- Description
- ISO 9001 certified
- American design and Taiwan quality machine
- Gang slit from 16Ga to 30Ga
- Easy slide away of slitting blades for cut to length operations without slitting.
- feed the sheet metal from the manual decoiler to cut to length without slitting blades
- 3" diameter shafts mounted in precision ball sealed bearings
- 4 sets of slitting blades with stripper rings to prevent material twisting
- Forward and reverse control with electrical cabinet
- One year warranty for parts
- Comes with 4 sets of slitting blades to slit max 4 trips
- Full length finger guard
- Manufacturer
- Specifications
- Options/Accessories

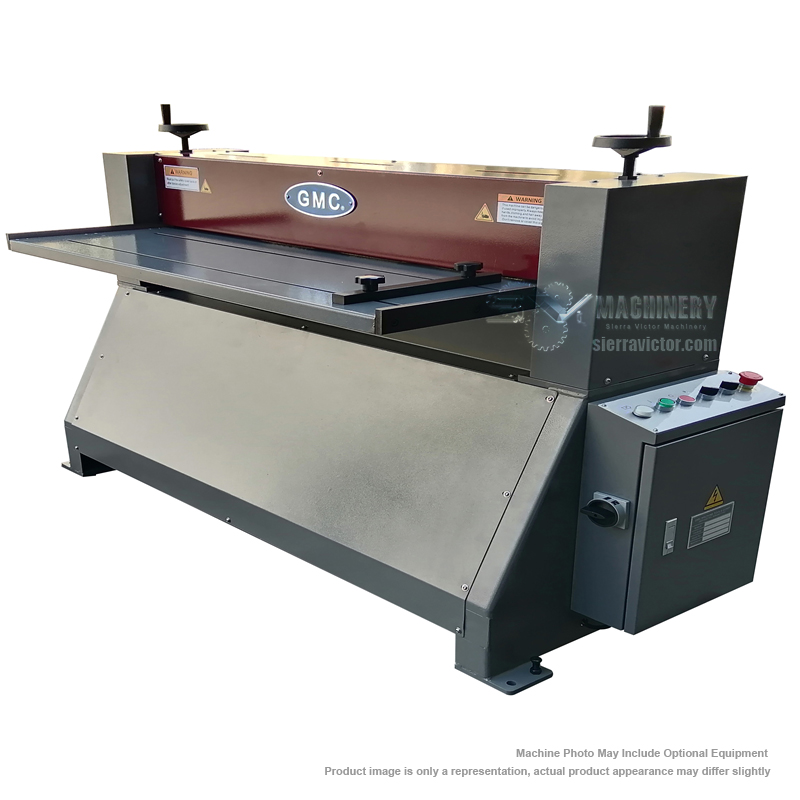

GMC 48 in. x 16 Ga Deluxe Gang Type Sheet Metal Powered Slitter 110v | PS-4816D
STANDARD EQUIPMENT:
ITEM: 48 in. x 16 Ga Deluxe Gang Type Sheet Metal Powered Slitter 110v
MANUFACTURER: GMC
MODEL: PS-4816D
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Slitters
Machine Sub-Category:
Gang
Control:
Power
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Slitting and shearing capacity: width x thickness |
mild steel (hot roll) Tensile 60,000PSI |
48 in. x 16 ga |
stainless steel and cold roll, tensile 85,000PSI |
48 in. x 20 ga |
|
soft aluminum, tensile 28,000PSI |
48 in. x 12 ga |
|
min. thickness |
30 ga |
|
Max. slitting length |
20 ft |
|
Max Sheet Material Width |
49 in. |
|
Shaft for slit blades |
3 in. |
|
Infeed/outfeed table height |
33-1/2 in. |
|
Slitting blades |
4 pairs |
|
Slitting feed speed |
57 FPM |
|
Slitting capacity: Number of cuts/strips |
16Ga mild steel |
1 cut / 2 strips |
18Ga mild steel |
1 cuts / 2 strips |
|
20Ga mild steel |
2 cuts / 3 strips |
|
22Ga-24Ga mild steel |
3 cuts / 4 strips |
|
26Ga-30Ga mild steel |
4 cuts / 5 strips |
|
Slitting motor |
1-1/2HP, 110v |
|
Amperage draw |
18A |
|

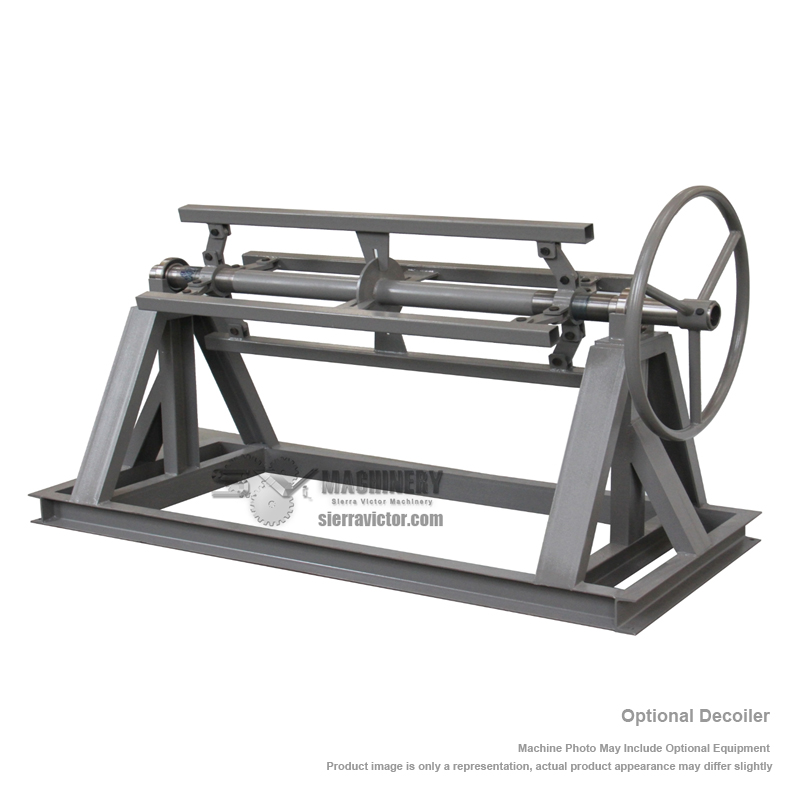

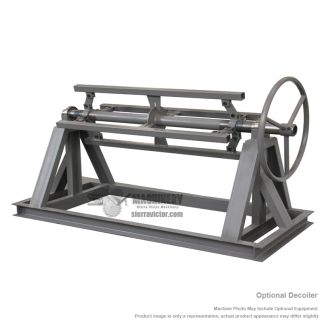

Decoiler specifications manually operated |
For coil size 48 in. width, 20 in. coil ID, Max coil weight 2T = 4,500LBS, Dimensions: 71 x 32 x 39-1/2 in. |
|
Machine weight |
1,012 lbs. |
|
Shipping weight |
1,145 lbs. |
|
Machine Dimensions |
68 x 27 x 47 in. |
|
Shipping Dimensions |
75 x 34 x 49 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
| PART# | ITEM |
PRICE |
FT-10 |

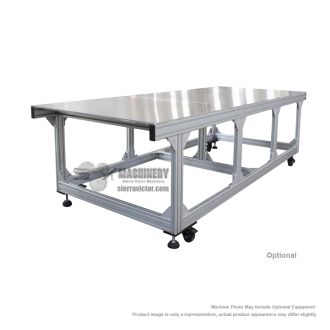

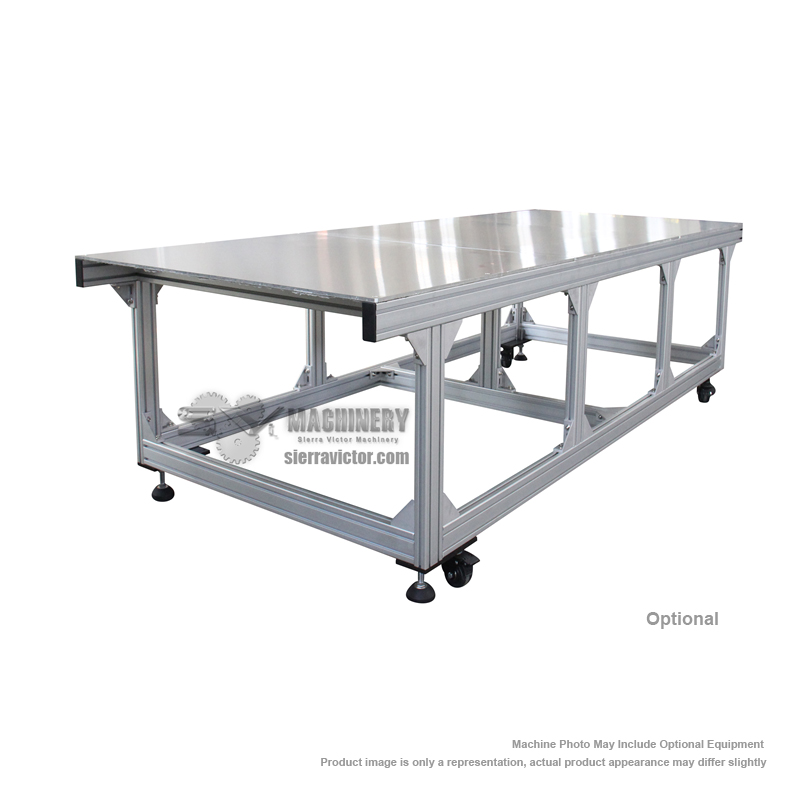

10ft Outfeed table, 121”x49”x32” LWH |
$2,750.00 |
FT-10 |
10ft Infeed table, 121”x49”x32” LWH |
$2,750.00 |
DC-4820-2T |
Decoiler, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight |
$2,750.00 |
— |
Extra set of slitter blades for PS-4816D |
$1,950.00 |
