- Description
- ISO 9001 certified
- 3HP Heavy Duty AC main motor, 220V, 3 phase
- Heavy welded all steel construction for maximum rigidity
- It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
- ACME side can be operated at same time
- One year warranty for parts
- Standard Pittsburgh Attachment # PA-18E, installed
- Slip & Drive Roll (S & Drive)# SDR-18E , installed
- Drive Cleat Roll # DCR-18E, installed
- Double Seam Roll # DSR-18E, installed

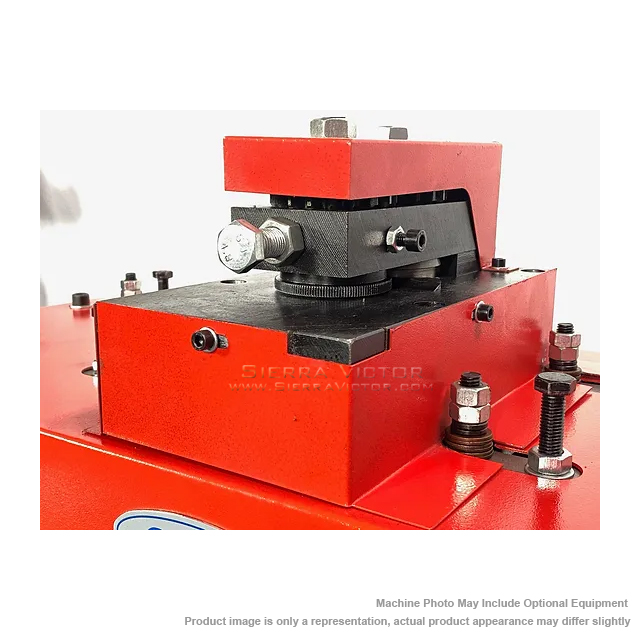

- Power Flanger # PF-18E, installed
- Manufacturer
- Specifications
- Options/Accessories
- Video

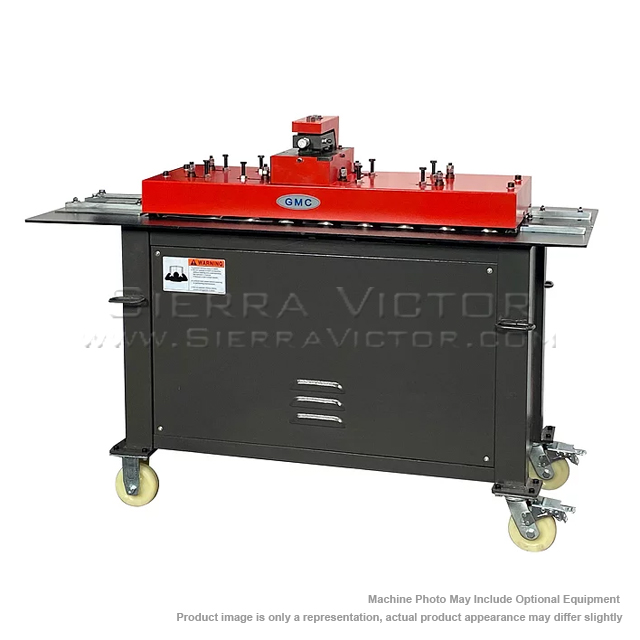

GMC 18 Ga. Pittsburgh Locking Forming Machine PL-18E
ITEM: 18 Ga. Pittsburgh Locking Forming Machine
MANUFACTURER: GMC
MODEL: PL-18E
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Metalworking
Mild Steel Capacity:
18 ga

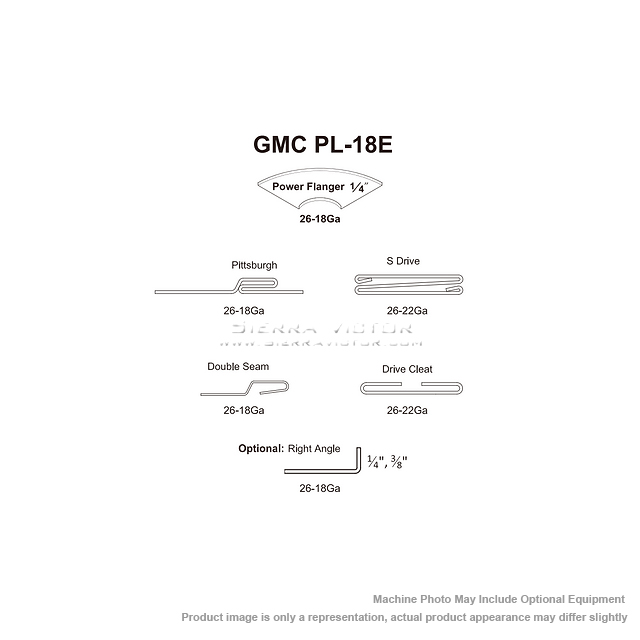

Capacity |
Pittsburgh Lock |
26 Ga. - 18 Ga. |
S Drive Lock |
26 Ga. - 20 Ga. |
|
Right Angle Lock |
26 Ga. - 20 Ga. |
|
Drive Cleat Lock |
26 Ga. - 18 Ga. |
|
Double Seam Lock |
26 Ga. - 18 Ga. |
|
Power Flange 1/4 |
26 Ga. - 20 Ga. |
|
Depth of Pocket |
1/2 in. |
|
Feeding Speed |
23 FPM |
|
Main Motor |
3 HP, 3 Phase, 10 AMP Prewired: 220VAC 220V, 1phase is optional |
|
Weight Approx |
908 lbs. |
|
Machine Dimensions (LxWxH) |
60 x 26 x 46 in. |
|
Shipping Dimensions |
63 x 27 x 48 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART # |
ITEM |
OUR PRICE |
RAR-18E |
Right Angle Roll set: 1/4”, 3/8” & 1/2” |
$CALL |
— |
Digital Inverter Drive control box for converting to PL-18E-1phase |
$CALL |
