- Discover the GMC Machine Tools Model #PL-18C Locking Forming Machine – your ultimate solution for precise forming and German lock technology in round ducting fabrication. With cutting-edge features and superior craftsmanship, optimize your workflow with unmatched efficiency and accuracy.
- ISO 9001 certified
- 2HP Heavy Duty AC main motor, 110V
- Heavy welded all steel construction for maximum rigidity
- One year warranty for parts

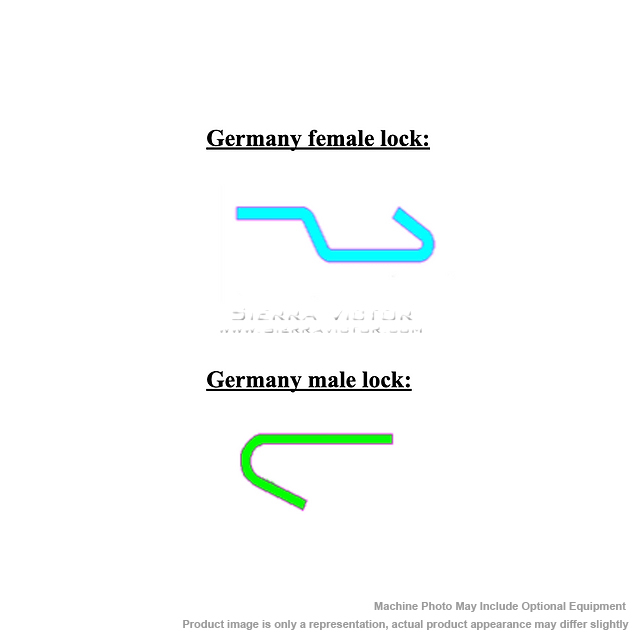

- Standard rolls for Germany female lock, installed
- Standard rolls for Germany male lock, installed
- Manufacturer
- Specifications
- Options/Accessories

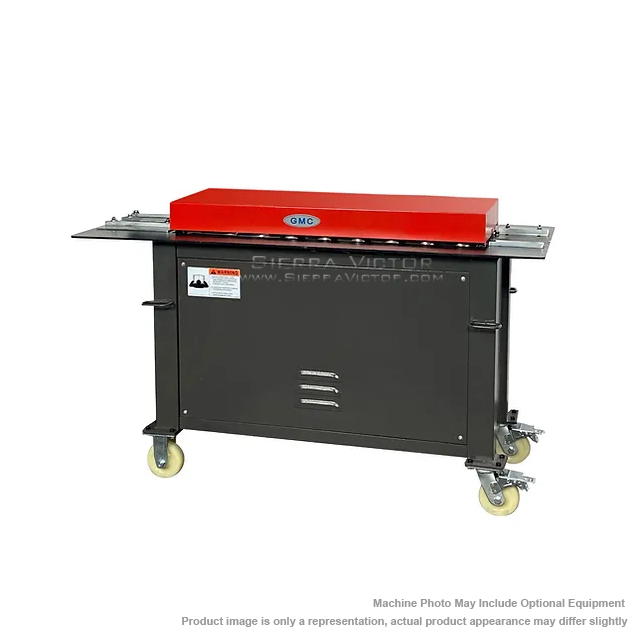

GMC 18 Ga. Pittsburgh Locking Forming Machine w/German Locks for Round Ducting PL-18C
ITEM: 18 Ga. Pittsburgh Locking Forming Machine w/German Locks for Round Ducting
MANUFACTURER: GMC
MODEL: PL-18C
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Metalworking
Mild Steel Capacity:
18 ga
Capacity |
Germany female lock |
26 Ga. to 18 Ga. |
Germany male lock |
26 Ga. to 18 Ga. |
|
Depth of pocket |
1/2 in. |
|
Feeding speed |
23 FPM |
|
Main motor |
2 HP, 110V |
|
Amperage draw |
15 Amp |
|
Weight Approx |
517 lbs. |
|
Machine dimensions, LxWxH |
42 x 22 x 43 in. |
|
Machine shipping dimensions, LWH |
43 x 25 x 46 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
OUR PRICE
|
RAR-18E
|
Right Angle Roll set : 1/4”, 3/8” & 1/2”
|
$995.00
|
