- Description
- ISO 9001 certified
- American design and Taiwan quality machine
- Hydraulic clamping for coil
- Hydraulic coil feeding table with height control
- With sensors to avoid the sheet metal touches the floor.
- Hydraulic front support arm
- Hydraulic top support arm
- One year warranty for parts
- Manufacturer
- Specifications

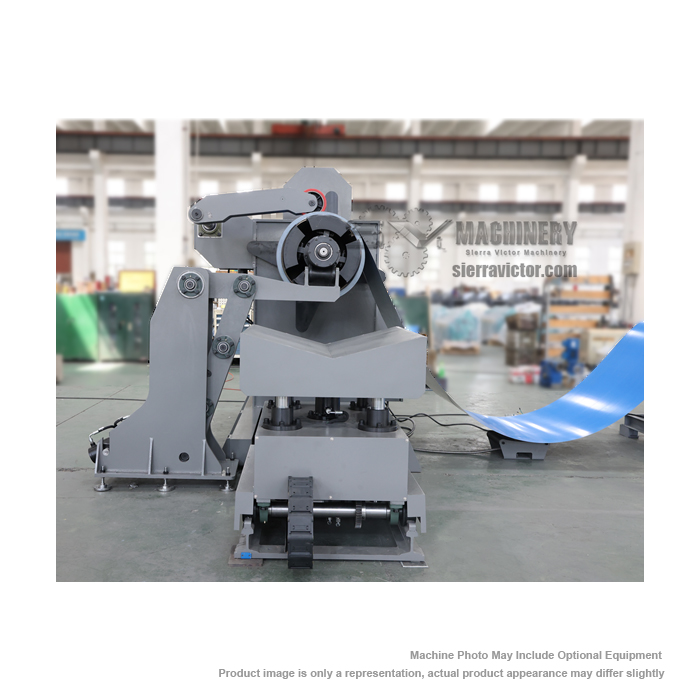

GMC 48 x 20 in. Hydraulic Decoiler | HDC-4820-6T
ITEM: 48 x 20 in. Hydraulic Decoiler
MANUFACTURER: GMC
MODEL: HDC-4820-6T
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Decoiler
Power Source:
Hydraulic
Metalworking
Material Length:
4 ft (48 in+)
Coil Size |
48 in. Wide |
Coil ID |
20 in., hydraulic clamping range from 18-1/2 to 20-3/4 in. |
Max Coil OD |
47 in. |
Max coil weight 6 Tons |
13,200 lbs. |
Speed |
0-100 ft/min |
Hydraulic system pressure |
0-15Mpa |
Main motor |
7-1/2HP, 220V, 3-phase |
Hydraulic motor |
4HP, 220V, 3-phase |
Machine Net Weight |
10,150 lbs. approx. |
Machine shipping weight |
11,310 lbs. |
Machine Dimensions |
166 x 95 x 85 in. |
Packing dimensions |
170 x 71 x 94 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
