- Description

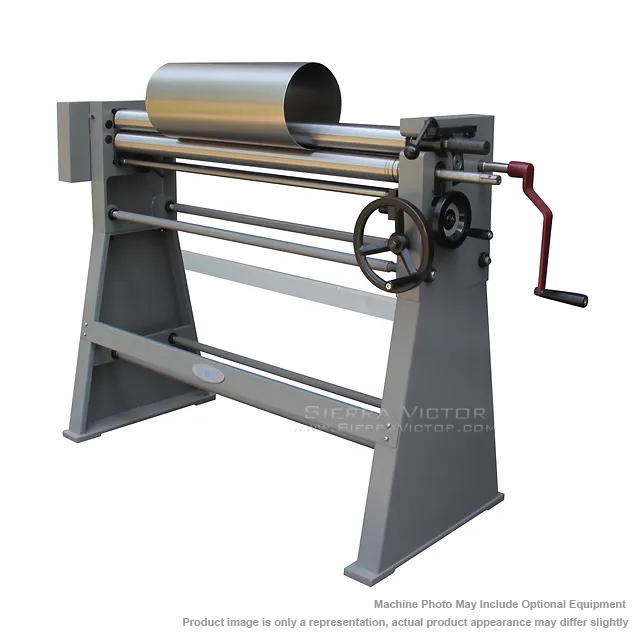

- Introducing our 41" Manual Slip Roll, designed for effortless shaping and forming of up to 16-gauge materials. Craft rounded tunnels, curved patches, panels, bends, cones, and intricate metal artwork with precision and ease. Accompanied by a robust metal stand, providing essential stability and support for your projects.
- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity

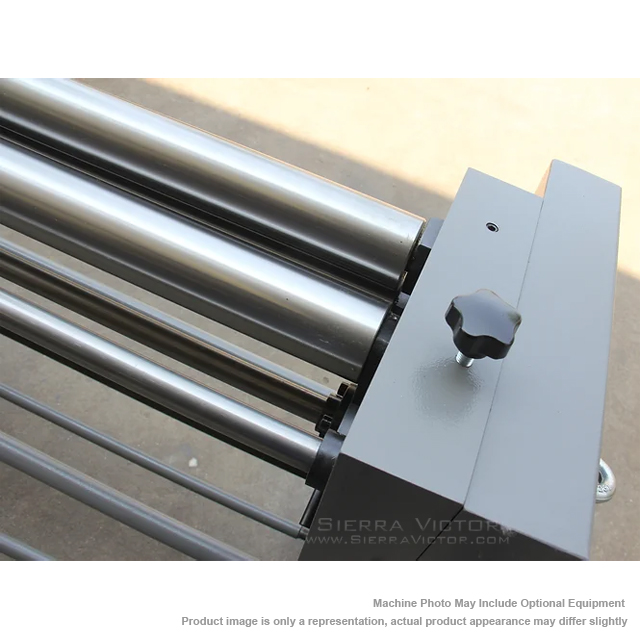

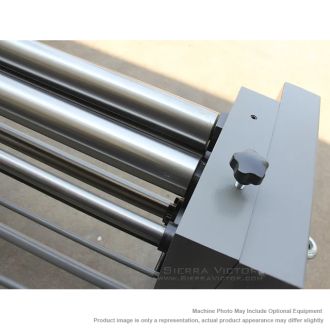

- Quick release top roller
- Precision ground rollers
- 1/4" roll opening
- All rolls run forward and reverse
- With high floor stand, assembly required
- One year warranty for parts
- Manufacturer
- Specifications

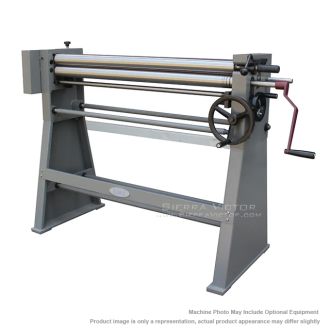

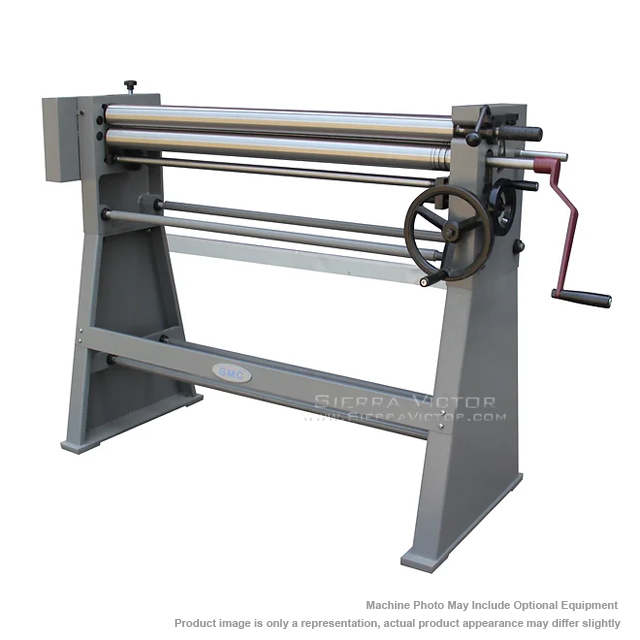

GMC 41 in. Manual Slip Roll SR-4116
ITEM: 41 in. Manual Slip Roll
MANUFACTURER: GMC
MODEL: SR-4116
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Slip Rolls
Control:
Manual
Material Type:
Metal
Metalworking
Material Length:
3 ft (36 in.+)
Mild Steel Capacity:
16 ga
Stainless Steel Capacity:
22 ga
Roll Capacity |
Mild Steel |
41 in. x 16 ga. |
Stainless Steel |
41 in. x 22 ga. |
|
Soft Aluminum |
41 in. x 11 ga. |
|
Min. Thickness |
41 in. x 28 ga. |
|
Rolls Size, length x dia |
41 in. x 2-3/8 in. |
|
Min. Roll Bending dia. capacity |
3 in. |
|
2 Rolling Speeds |
2 speed gearbox |
|
Rolls Opening |
1/4 in. |
|
(4) Grooves Sizes |
1mm, 2mm, 3mm, 4mm |
|
Machine Weight |
457 lbs. |
|
Shipping Weight |
529 lbs. |
|
Machine Dimensions, LxWxH |
66 x 22 x 55 in. |
|
Shipping Dimensions, LxWxH |
61 x 20 x 27 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
