- Description
- ISO 9001 certified

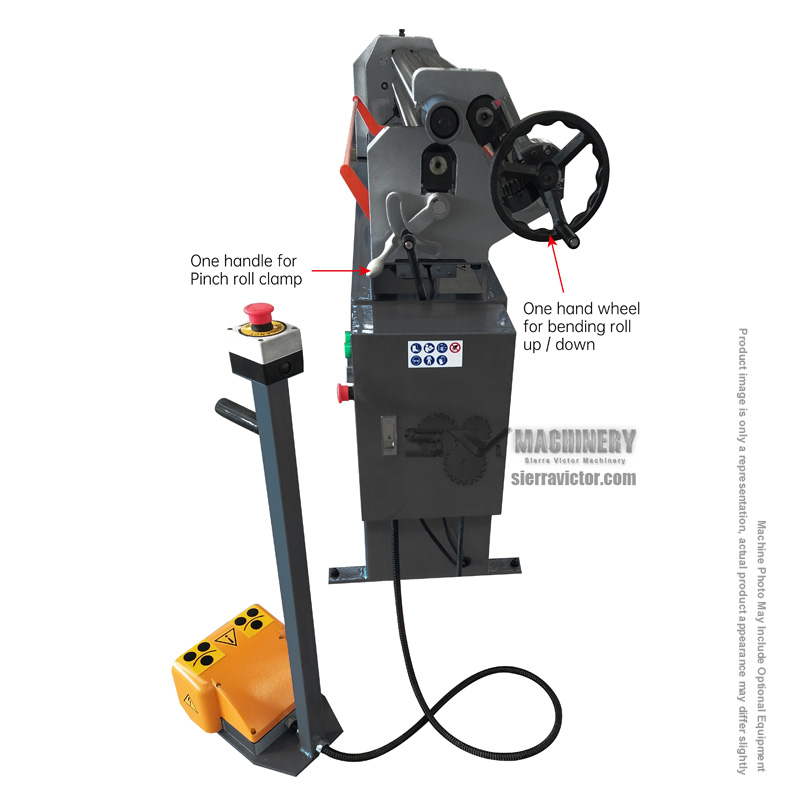

- One handle for pinch roll clamping
- One handwheel for bending roll up/down
- Cone attachment to make various size cone parts
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1" roll opening
- All three rolls are made of high grade alloy steel, hardened
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
- Manufacturer
- Specifications

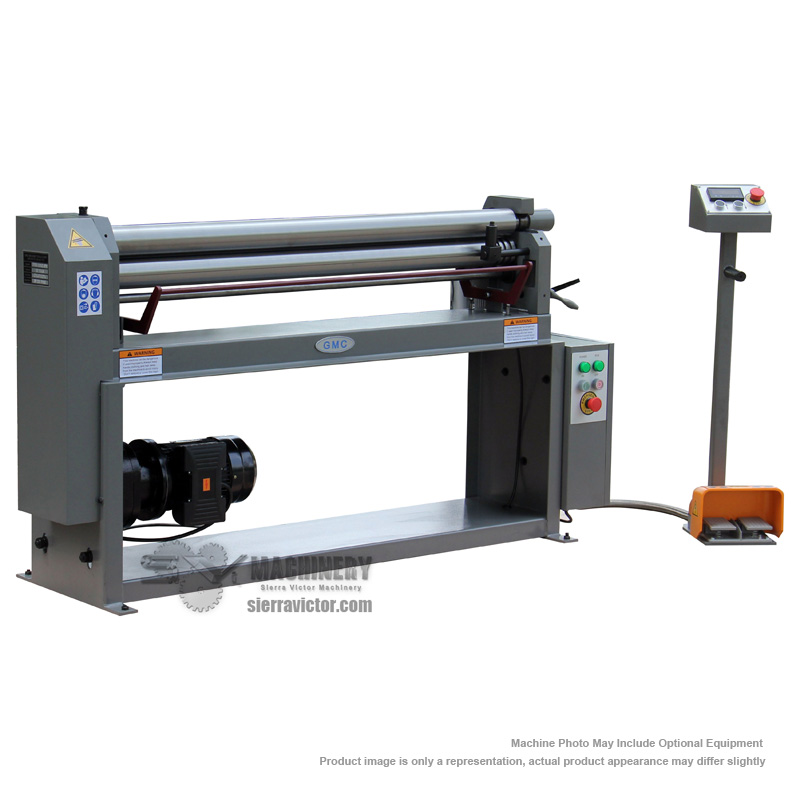

GMC 4 ft (50 inch) x 16 ga. Powered Slip Roll Machine | 3-Phase PSR-5016-3PH
STANDARD EQUIPMENT:
ITEM: 4 ft (50 in.) x 16 ga. Powered Slip Roll Machine | 3-Phase
MANUFACTURER: GMC
MODEL: PSR-5016N-3PH
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Slip Rolls
Control:
Power
Material Type:
Metal
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Stainless Steel Capacity:
22 ga
MODEL
|
PSR-5016N-3ph
|
Rolling Capacity: Mild steel
|
50 in. x 16 Ga.
|
Rolling Capacity: Stainless Steel
|
50 in. x 22 Ga.
|
Rolling Capacity: Soft aluminum
|
50 in. x 11 Ga.
|
Min. thickness capacity
|
50 in. x 26 Ga.
|
Rolls size, length x diameter
|
50 x 3 in.
|
Min. roll bending diameter capacity
|
3-1/2 in.
|
Roll Speed
|
201 in. / min
|
Rolls opening
|
1/4 in.
|
(3) Grooves size
|
5/16 in., 3/8 in., 1/2 in.
|
Main Motor
|
1 HP, 220V/440V, 3PH
|
Machine Dimensions
|
68 x 28 x 47 in.
|
Machine Weight
|
837 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
