- Description
- ISO 9001 certified
- Taiwan Machines
- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse
- Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V, 3 phase)
- LED readout indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal
- Tool Box
- Cone attachment ( to make cone parts)
- (3) wire grooves 3/8”, 1/2”, 5/8” on roll for bending wire
- Manufacturer
- Specifications
- Options/Accessories
- Safety fence for enclosure of the back side of the machine
- Video

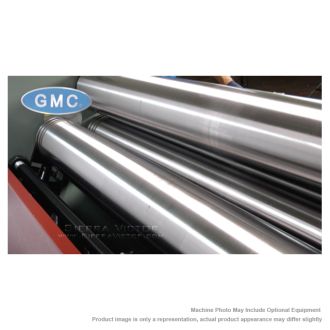

GMC 6 ft x 1/4 inch Initial Pinch Hydraulic Plate Bending Roll HBR-0625
STANDARD ITEMS:
ITEM: 6 ft x 1/4 inch Initial Pinch Hydraulic Plate Bending Roll
MANUFACTURER: GMC
MODEL: HBR-0625
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
1/4"
Stainless Steel Capacity:
3/16"
|
Roll Capacity: Mild Steel
|
6’ x 1/4"
|
|
Roll Capacity: Stainless Steel
|
6’ x 3/16”
|
|
Min. Roll Diameter
|
9-7/8”
|
|
Rolls Length
|
6’ 8”
|
|
Rolls Diameter
|
7”
|
|
Pre-Bend
|
0.18”
|
|
Rolls Speed
|
7 rpm
|
|
Rolls Opening
|
2-1/16"
|
|
Oil Tank Capacity
|
25 gal.
|
|
Main Motor
|
7-1/2 HP, 220V/440V, 3PH |
|
Overall Dimensions (LxWxH)
|
118" x 38" x 58"
|
|
Net Weight
|
7,650 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
