- Description
- The GMC Hydraulic Notcher delivers clean and sharp corner cuts. You can notch up to a 1/4" thick sheet metal up to 12 strokes per minute. You can re-sharpen the blades repeatedly to improve the lifespan and save money.
- ISO 9001 certified
- Super large table
- Milled table surface with engraved scales on left and right side of the table top
- 12" combination hold down and stop bars
- All steel construction
- Safety finger guards
- (2) quick change gauges
- Foot pedal control
- Quiet hydraulic system
- One year warranty
- **This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
- **Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- Manufacturer
- Specifications
- Video

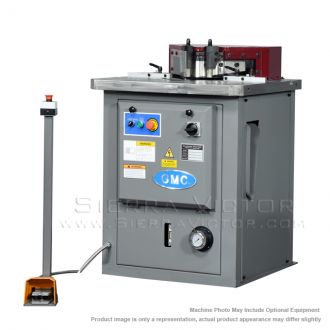

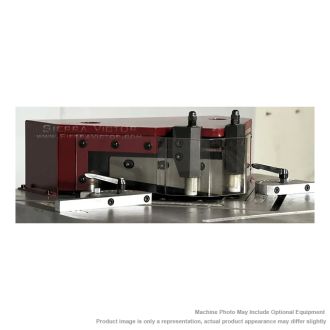

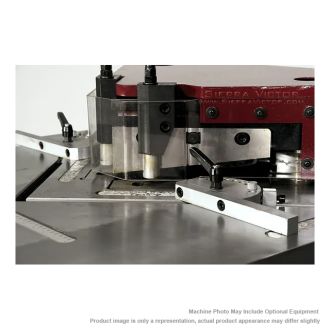

GMC 1/4 inch Hydraulic Sheet Metal Notcher with Fixed Angle HN-25HA
ITEM: 1/4 inch Hydraulic Sheet Metal Notcher with Fixed Angle
MANUFACTURER: GMC
MODEL: HN-25HA
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Notchers
Power Source:
Hydraulic
Metalworking
Mild Steel Capacity:
1/4"
Stainless Steel Capacity:
3/16"
|
Max. capacity: mild steel ( C.R.S.)
|
1/4 in.
|
|
Max. capacity: stainless steel
|
3/16 in.
|
|
Min. notching thickness
|
22 Ga.
|
|
Notching angle, fixed angle
|
90 degree
|
|
Max. cutting length
|
10 in.
|
|
Stroke per minute
|
27
|
|
Table dimensions, L x W
|
33 x 27 in.
|
|
Hydraulic oil tank capacity
|
9 Gal. Shell #68HD
|
|
Main motor
|
7-1/2 HP, 3 Phase, 25A
Prewired: 220VAC Optional: 440VAC 220V 15A |
|
Machine weight
|
2,650 lbs
|
|
Machine dimensions, (L x W x H)
|
39 x 38 x 49 in.
|
Shipping Dimensions, (LxWxH) |
47 x 41 x 56 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
