- Description
- Made in Taiwan
- Variable Speed
- “Meehanite” casting
- Turcite “B” coating on X/Y ways like CNC mills
- ISO 9001 certified
- Mechanical variable spindle speeds from 60-4,200 rpm
- Heavy duty 3 HP AC spindle motor, 3 phase
- Heavy Duty high grade castings
- Hardened and ground ways, dovetail ways on X and Z , square ways on Y knee
- Hardened and ground table and Ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head
- Tilting and rotating head
- Manual or automatic quill feeds 0.0015" , 0.003", 0.006" per spindle revolution
- One shot lube system
- front and rear rubber chip guards, and (1) manual draw bar
- Tool box kit and leveling pads
- Power source 220V OR 440V, 3 phase
- One year industrial warranty for parts
- *This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
- **Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- 2 axis CARMAR DRO installed on X and Y
- Table power feeds X and Y installed
- One shot lube
- Draw bar
- Rubber way covers
- Tool box
- Manufacturer
- Specifications
- Options/Accessories

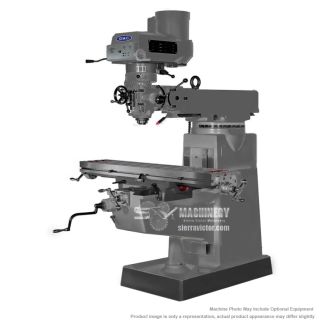

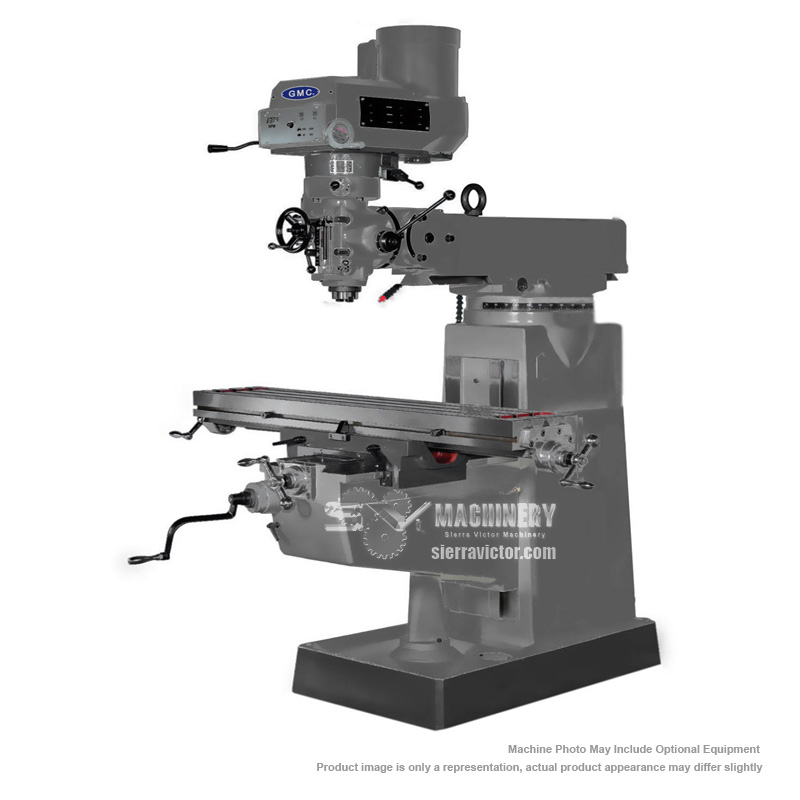

GMC 10 x 50 inch Manual Vertical Mill, Metal Milling Machine with DRO and Powerfeeds GMM-1050VT
STANDARD EQUIPMENT:
ITEM: 10 x 50 inch Manual Vertical Knee Mill with DRO and Powerfeeds
MANUFACTURER: GMC
MODEL: GMM-1054VT
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Mills
Control:
Manual
Position:
Vertical
Material Type:
Metal
Metalworking
Mill Capacity:
10" x 50"
Table Size |
10 x 50 in. |
Table Load Capacity |
727 lbs
|
X Axis Travel |
33 in.
|
X Travel with power feed |
28-3/4 in. |
Y Axis Travel |
12-1/2 in.with power feed |
Z Axis Travel |
16 in. |
Max. distance spindle to table |
1-11/16 -17-5/8 in. |
Max. distance spindle to column |
17-1/4 in. |
Min. distance spindle to column |
8-1/4 in. |
Spindle Taper Type |
R-8
|
AC Spindle Motor |
3 HP, 220V or 440V, 3 phase
|
Variable spindle speeds |
60-4,200 rpm |
Quill ( Spindle ) diameter |
3-3/8 in. |
Quill ( Spindle ) travel |
5 in. |
|
Ram travel
|
17 in. |
Table T-slot size |
5/8 in. x 3 slots |
Head Swivel, Right to Left |
90 degree |
Head Tilting |
45 degree |
Machine Dimensions |
66 x 63 x 87 in. |
|
Machine Weight, approx. |
2,830 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
— |
Coolant System |
$550.00 |
COOL-PAN |
Base coolant/chip drop pan |
$450.00 |
900-0021 |
6" angle lock vise with swivel base |
$595.00 |
900-0001 |
52 pcs clamping kit, 1/2”-13NC stud, 5/8” T-slot |
$295.00 |
900-0007 |
11 pcs R 8 collets set, 1/8” – 7/8” |
$275.00 |
PAM-300HD |
Rotary Phase converter, 7HP, USA, for single phase conversion |
$1,950.00 |
Mill package #3 |
Mill package #3, incl 6" vise # 3900-2103, Collet set #3900-0007, Clamping Kit #3900-0001, 20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001 |
$1,295.00 |
