- Description
- Made in Taiwan
- “Meehanite” casting
- Turcite “B” coating on X/Y ways like CNC mills
- ISO 9001 certified
- Inverter drive variable spindle speeds from 60-4,000 rpm
- Heavy duty 3 HP AC spindle motor with 5HP Delta inverter drive
- Heavy Duty high grade castings
- Hardened and ground ways, dovetail ways on X and Z , square ways on Y knee
- Hardened and ground table and Ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head
- Tilting and rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards, and (1) manual draw bar
- Tool box kit and leveling pads
- Power source 220V, 3-phase or 220V, 1-phase, either way works
- One year industrial warranty for parts
- 2 axis CARMAR DRO installed on X and Y
- Table power feeds X and Y installed
- One shot lube
- Draw bar
- Rubber way covers
- Tool box
- Manufacturer
- Specifications
- Options/Accessories

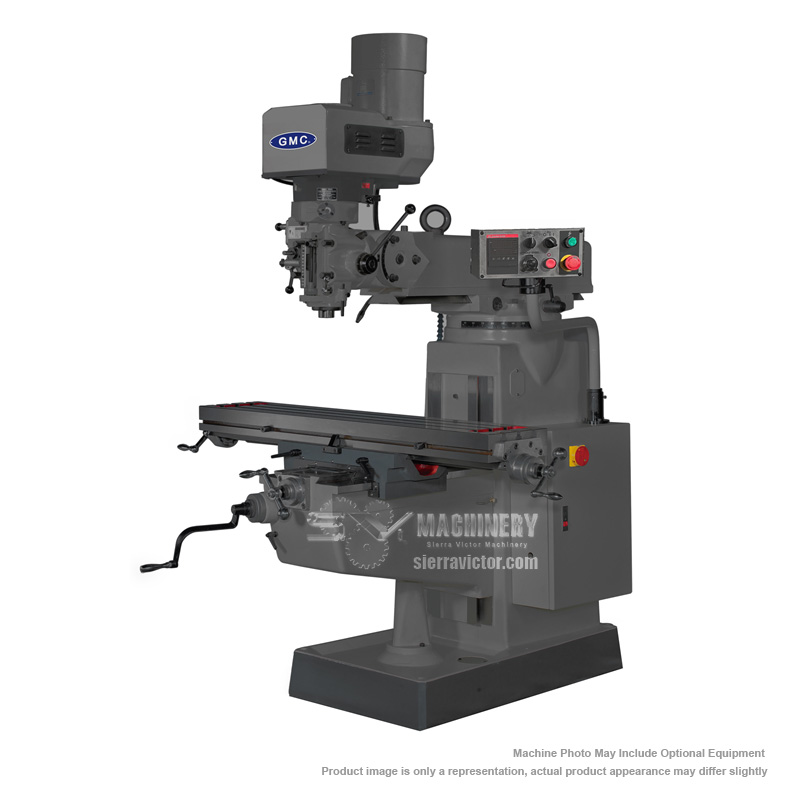

GMC 10 x 50 inch Manual Vertical Mill, Metal Milling Machine with Inverter Drive GMM-1050EVS
STANDARD EQUIPMENT:
ITEM: 10 x 50 inch Manual Vertical Knee Mill with Inverter Drive
MANUFACTURER: GMC
MODEL: GMM-1054EVS
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Mills
Control:
Manual
Position:
Vertical
Material Type:
Metal
Metalworking
Mill Capacity:
10" x 50"
Table Size |
10 x 50 in. |
Table Load Capacity |
727 lbs
|
X Axis Travel |
33 in.
|
X Travel with power feed |
28-3/4 in. |
Y Axis Travel |
12-1/2 in.with power feed |
Z Axis Travel |
16 in. |
Max. distance spindle to table |
1-11/16 -17-5/8 in. |
Max. distance spindle to column |
17-1/4 in. |
Min. distance spindle to column |
8-1/4 in. |
Spindle Taper Type |
R-8
|
AC Spindle Motor |
3 HP, 220V, 3-phase
or 1-phase
|
Variable spindle speeds |
60-4,000 rpm, Inverter Drive |
Quill ( Spindle ) diameter |
3-3/8 in. |
Quill ( Spindle ) travel |
5 in. |
|
Ram travel
|
17 in. |
Table T-slot size |
5/8 in. x 3 slots |
Head Swivel, Right to Left |
90 degree |
Head Tilting |
45 degree |
Machine Dimensions |
66 x 63 x 87 in. |
|
Machine Weight, approx. |
2,880 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
— |
Coolant System |
$550.00 |
COOL-PAN |
Base coolant/chip drop pan |
$450.00 |
900-0021 |
6" angle lock vise with swivel base |
$595.00 |
900-0001 |
52 pcs clamping kit, 1/2”-13NC stud, 5/8” T-slot |
$295.00 |
900-0007 |
11 pcs R 8 collets set, 1/8” – 7/8” |
$275.00 |
PAM-300HD |
Rotary Phase converter, 7HP, USA, for single phase conversion |
$1,950.00 |
Mill package #3 |
Mill package #3, incl 6" vise # 3900-2103, Collet set #3900-0007, Clamping Kit #3900-0001, 20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001 |
$1,295.00 |
