- Description
- Pan and Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
- Compare to Baileigh's Box and Pan Brake BB-9612
- One Year Parts Only Warranty
- ISO 9002 certified
- 1-9/16” adjustable beam opening
- 1” beam adjustment (front and back)
- Capable of hemming light gauge material of 26 gauge or thinner
- Capable of straight bending material fully across
- Oilable bearings to maintain precision overtime
- Adjustable stop gauge is included to allow the operator to perform repeat bends
- 16 Total fingers assortment:
- 2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
- 2 - Adjustable counterweights to assist you at max capacity bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- Some assembly is required
- Manufacturer
- Specifications
- Options/Accessories
- One piece straight finger to convert to straight brake - $1,995.00
- 2" or 2.5" replacement finger - $115.00
- 3" or 3.5" replacement finger - $115.00
- 5" or 6" replacement finger - $175.00
- 10" replacement finger - $175.00
- 12" replacement finger - $235.00

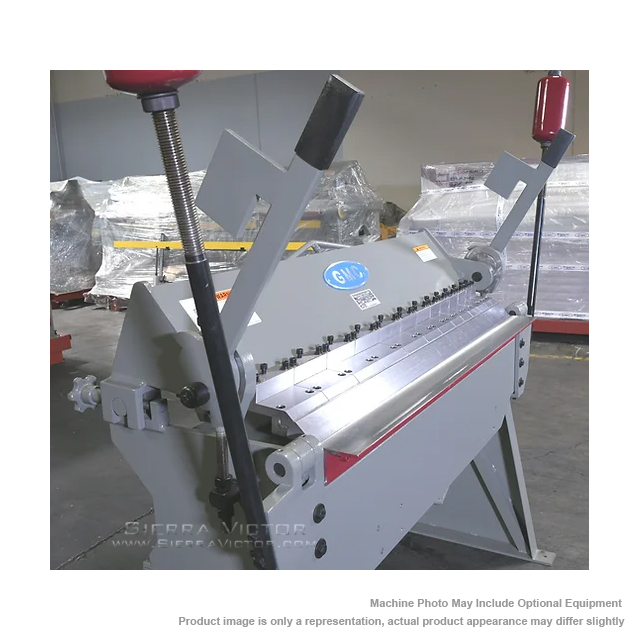

GMC 8 ft x 12 Ga. Sheet Metal Finger Brake | Box and Pan Brake BB-812-6HD
ITEM: 8 ft x 12 gauge Manual Box and Pan Brake
MANUFACTURER: GMC
MODEL: BB-812-6HD
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Material Type:
Metal
Metalworking
Material Length:
8 ft (96 in.+)
Mild Steel Capacity:
12 ga
Stainless Steel Capacity:
16 ga
|
Bending capacity: Mild steel |
12 Ga. |
Bending capacity: Stainless steel |
16 Ga. |
Max. hemming thickness for mild steel |
26 Ga. |
| Max. box depth |
6 in. |
| Bending length capacity |
8 ft |
| Bending angle |
0-135° |
| Beam adjustment, front and back |
1 in. |
| Minimum reverse bend |
1/2 in. |
| Manual clamping |
Standard |
| Beam opening |
1-9/16 in. |
Net weight |
2,850 lbs. |
Shipping weight |
3,050 lbs. |
Machine Dimensions |
139 x 32 x 77 in. |
Shipping Dimensions |
118 x 30 x 40 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
