- Description
- Introducing the BB-4816H 48" Manual Box and Pan Brake, crafted to excel in the realm of fabrication. Engineered for precision, it effortlessly shapes 16-gauge mild steel into sleek angles of up to 135°. With its arsenal of 16 removable fingers, this brake is finely tuned for box forming and a spectrum of specialized bending operations. Embrace its versatility as you navigate the intricacies of your fabrication projects, whether employing the fingers individually or collectively for unparalleled flexibility and finesse.
- ISO 9002 certified
- Large 1-9/16" beam opening, adjustable
- 3/8" beam adjustment (front and back)
- Very thick and long fingers to make max. 4" depth of box & pan.
- Total pieces fingers assortment:
- 2"/5pcs, 3"/6pcs, 4"/5pcs
- Stop rods for repeat bends
- Comes with one counter weight
- Comes with a tall floor stand, assembly required
- Comes a tray for holding removable fingers and tools
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- One year warranty for parts
- Manufacturer
- Specifications
- Options/Accessories
- 2" replacement finger ………………………………………………. $115.00
- 3" replacement finger ………………………………………………. $115.00
- 4" replacement finger ………………………………………………. $135.00

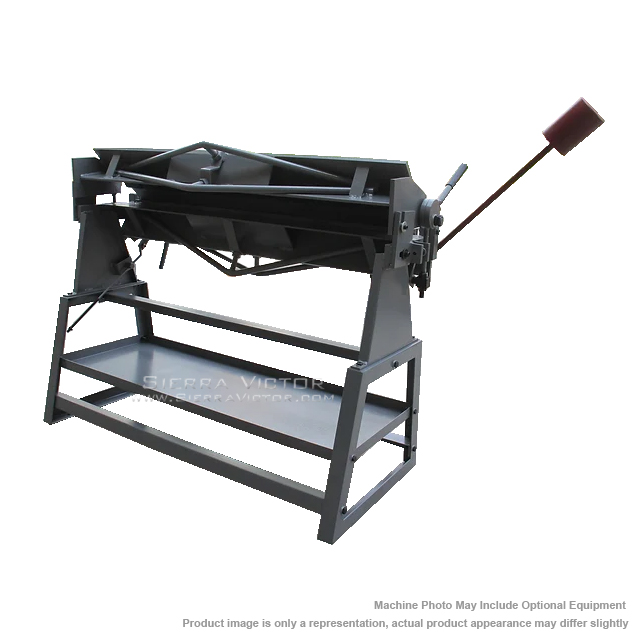

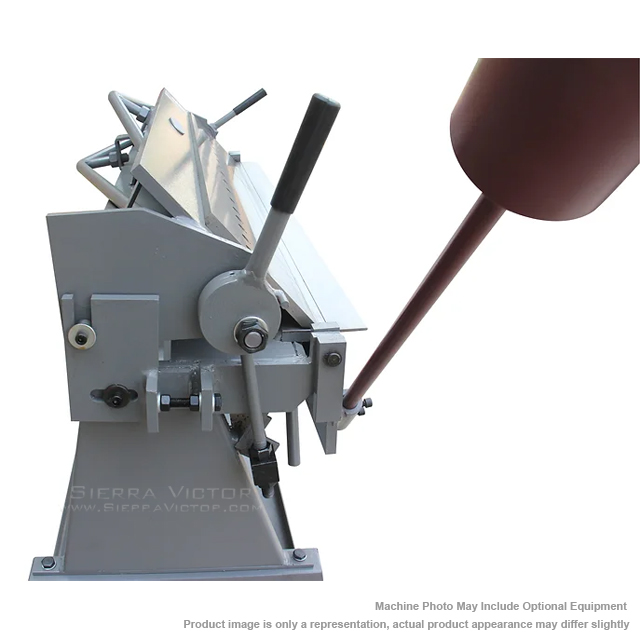

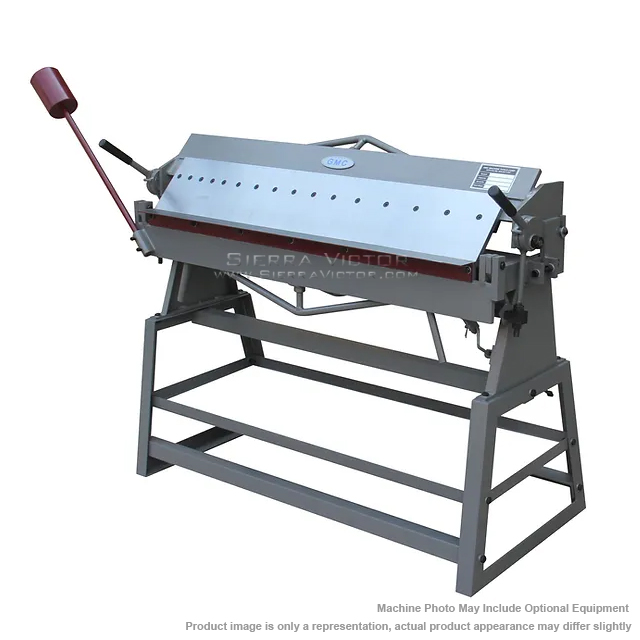

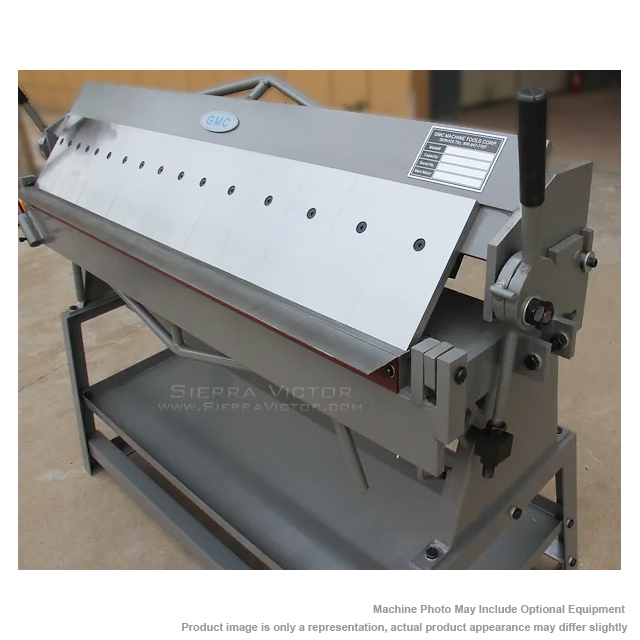

GMC 4 ft x 16 Ga. Manual Box and Pan Brake BB-4816H
ITEM: 4 ft x 16 Ga. Manual Box and Pan Brake
MANUFACTURER: GMC
MODEL: BB-4816H
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Material Type:
Metal
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Stainless Steel Capacity:
20 ga
MODEL |
BB-4816H
|
Bending capacity in mild steel |
16 ga. |
Bending capacity in stainless steel |
20 ga. |
Max. hemming thickness in mild steel |
28 ga. |
Max. box depth |
4 in. |
Bending length capacity |
48 in. = 4 ft |
Bending angle, degree |
0-135 |
Beam adjustment, front and back |
3/8 in. |
Minimum reverse bend |
1/2 in. |
Manual clamping |
Standard |
Beam opening |
1-9/16 in. |
Machine Net weight, LBS |
567 lbs. |
Shipping Weight, LBS |
617 lbs. |
Machine Dimensions, inch |
71 x 26 x 56 in. |
Shipping Dimensions, inch |
73 x 24 x 28 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
