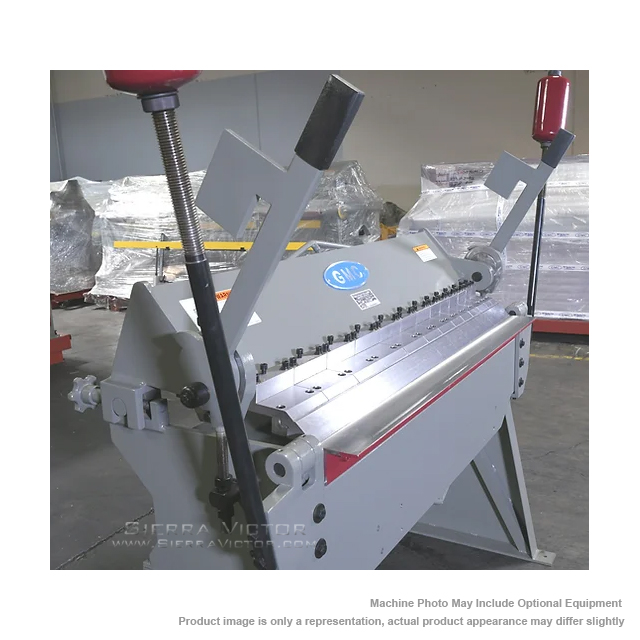

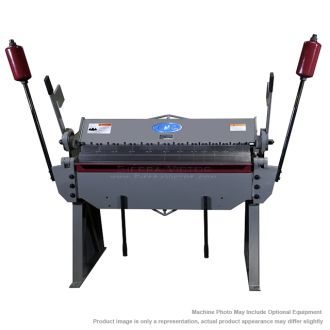

- The BB-412-6HD manual box and pan brake can make a 6" box in depth and has a 48" length capacity. Can bend up to 12 gauge mild steel or lighter. Our 48" metal finger brake is compact and will be a perfect addition to any metal fabrication shop. ***Compared to Baileigh's Finger Brake BB-44812
- ISO 9002 certified
- 1-year parts only warranty
- Bend up to 12 gauge mild steel x 48" in length (compact)
- Large 1-9/16" beam opening, adjustable

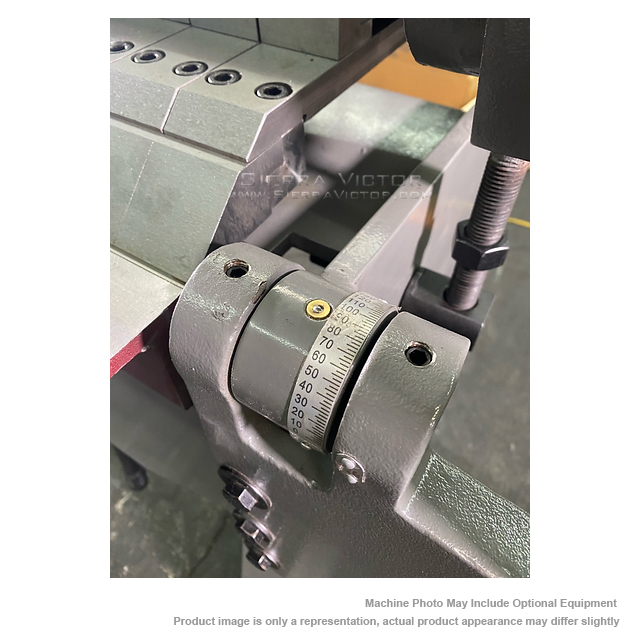

- 135 degree bend angle capacity with built in scale
- 2 - handwheels on the rear to ajust the gap
- 1" beam adjustment (front and back)
- Hem light gauge material 26 Ga. or thinner
- 2 - 30 lbs. adjustable counterweights

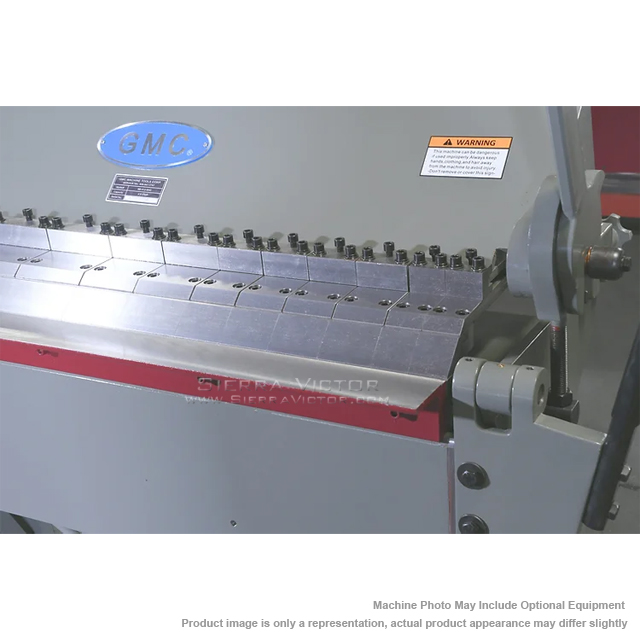

- Includes 9 fingers total: (measures 49")
- 2 - 2"
- 4 - 3"
- 2 - 4"
- 1 - 25"

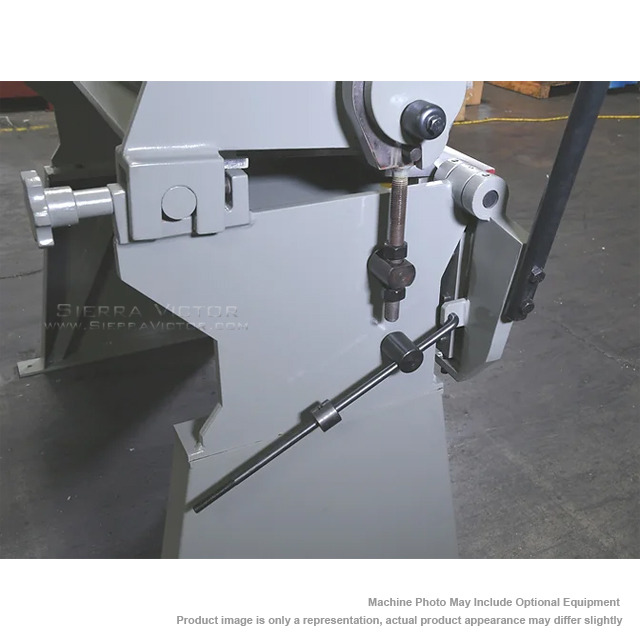

- 1 - Simple stop rod is included to make repeat bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- Manufacturer
- Specifications
- Options/Accessories
- 2" replacement finger - $115.00
- 3" replacement finger - $115.00
- 4" replacement finger - $135.00
- 25" replacement finger - $275.00

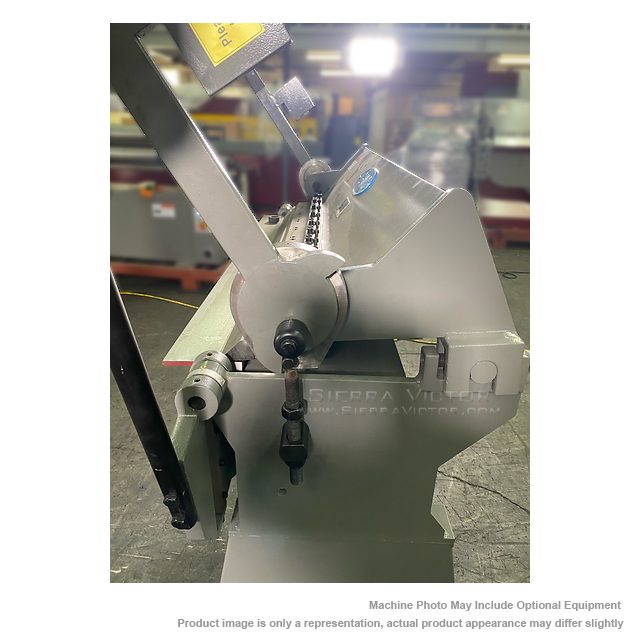

GMC 4 ft x 12 Ga. Box and Pan Brake, Metal Finger Brake BB-412-6HD
ITEM: 4 ft x 12 Ga. Box and Pan Brake, Metal Finger Brake
MANUFACTURER: GMC
MODEL: BB-412-6HD
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Material Type:
Metal
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
12 ga
Stainless Steel Capacity:
16 ga
MODEL |
BB-412-6HD |
Bending capacity in mild steel |
12 Ga. |
Bending capacity in stainless steel |
16 Ga. |
Max. hemming thickness for mild steel |
26 Ga. |
Max. box depth |
6 in. |
Bending length capacity |
4 ft |
Bending angle, degree |
0-135° |
Beam adjustment, front and back |
1 in. |
Minimum reverse bend |
1/2 in. |
Manual clamping |
Standard |
Beam opening |
1-9/16 in. |
Net weight |
1,150 lbs. |
Shipping weight |
1,265 lbs. |
Machine Dimensions |
82 x 32 x 69 in. |
Shipping Dimensions |
67 x 30 x 38 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
