- Description
- Made in Taiwan
- ISO 9001 certified
- Spindle run-out within 0.00005” ( 50 millionths inch )
- Turcite-B coating on guideways
- 3HP Yaskawa inverter drive spindle motor
- Infinity Yaskawa inverter drive spindle speeds from 0-4,000 rpm
- Easy to read digital readout on actual spindle rpm speeds
- Electric variable automatic feeding control on carriage and cross slide
- Quick change tool post slide for threading
- Dual range inch/metric quick change gear box for model # GMCTL-618EVS
- Digital control and inverter drive gearbox ( no change gear ) for #GMCTL-618E, easy cutting threads, variable inch / metric threads range
- Automatic thread length control w/ fine adjustable stops for accurate threading
- 36 kinds of inch threads, and 36 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- High precision pre-loaded angular contact bearings for spindle
- Lubrication system for headstock, feed box, ways and leadscrews
- Power 220V, 3 phase ( 220V, 1 phase is optional )
- One year industrial warranty for parts
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- 5C collet closer installed
- Quick change gear box
- 8” drive plate with drive dog
- Dual inch / metric dials
- CARMAR DRO, Installed
- Coolant system
- Halogen work light
- Tool box with tools
- Manufacturer
- Specifications
- Options/Accessories

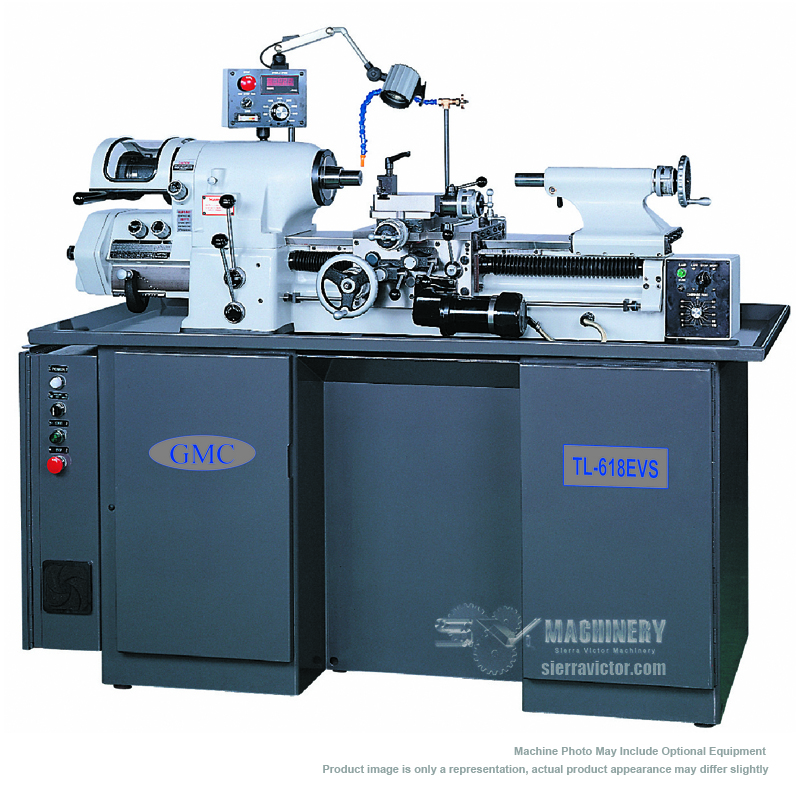

GMC 6 x 18 in. Hardinge Precision Toolroom Lathe TL-618EVS
STANDARD EQUIPMENT:
ITEM: 6 x 18 in. Hardinge Precision Toolroom Lathe
MANUFACTURER: GMC
MODEL: TL-618EVS
Manufacturer:
GMC Machine Tools
Lathes
Lathe Size:
33" x 160"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
Max. swing over cross slide |
6" |
|
Distance between centers |
18" |
|
Max. swing over bed |
11" |
|
Swing over carriage |
9" |
|
Spindle Capacities |
with 3-jaw chuck |
6" |
with expanding collets |
3" |
|
with round 5C collets |
1-1/16" |
|
with hexagon 5C collets |
7/8" |
|
with Square 5C collets |
3/4" |
|
with step chucks |
1-1/16" to 6" |
|
Spindle nose diameter |
2.189” |
|
Spindle nose ID/OD |
5C / 4 degree taper |
|
Spindle thru hole |
1-1/4” |
|
Bar stock diameter with 5C closer |
1-1/16” |
|
Variable spindle speeds |
0-4,000 rpm (5C) 0-3,000 rpm (with 6” 3-jaws chuck) |
|
Leadscrew diameter / pitch |
1” / 8TPI |
|
Carriage power feed speed range |
5/16” to 7” /min |
|
Cross slide power feed range |
3/16” to 4” / min |
|
Cross slide travel |
6" |
|
Quick change compound slide travel |
0.1" |
|
Compound slide travel |
3" |
|
Inch threads |
11-118 TPI , 36 kinds |
|
Metric threads |
0.275-2.7mm, 36 kinds |
|
Tailstock quill diameter |
1-3/8” |
|
Tailstock quill taper |
MT# 2 |
|
Tailstock quill travel |
3-3/4” |
|
Spindle motor ( inverter drive ) |
3HP, 220V, 3 phase |
|
DC feeding motor |
110V, 70 W |
|
Inverter drive for gear box |
— |
|
Coolant pump |
1/8HP, 220V, 3 phase |
|
Machine weight , approx |
2,530 lbs. |
|
Machine dimensions, LxWxH |
73 x 30 x 67 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
TA-618EVS |
Taper Attachment, Installed |
$3,150.00 |
3900-0014 |
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth |
$595.00 |
