- Description
- Made in Taiwan
- ISO 9001 certified
- Super large spindle bore 12-1/8" (310mm)
- Rapid traverse on carriage longitudinal, cross slide and top slide
- Automatic feeding on carriage longitudinal, cross slide
- 2 speed Tailstock
- solid cast iron machine base
- Heavy Duty guideway width 27-1/4"
- Heavy Duty main motor 50 HP
- 16 spindle speeds from 9-300rpm
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
- *DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- **This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported
- 4-way tools post
- Work light
- Coolant system
- (1) dead center for tailstock
- Thread chasing dial
- Tool box
- Manufacturer
- Specifications
- Options/Accessories

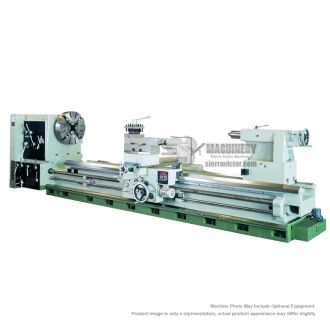

GMC 47 x 240 in. Heavy Duty Oil Field Country Lathe OCL-47240G
STANDARD EQUIPMENT:
ITEM: 47 x 240 in. Heavy Duty Oil Field Country Lathe
MANUFACTURER: GMC
MODEL: OCL-47240G
Manufacturer:
GMC Machine Tools
Lathes
Lathe Size:
47" x 240"
Lathe Type:
Oil Field
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Oil Field/Country
MODEL
|
OCL-47240G
|
Max. swing over bed |
47 in. |
Distance Between Centers |
240 in. |
Max. swing over cross slide |
33-1/2 in. (830mm) |
Width of Bed |
24-1/4 in. (692mm) |
Spindle bore |
12-1/8 in. (310mm) |
Spindle Nose |
A 2-20 |
Spindle speeds |
4-420rpm, 12 steps |
Max. weight of workpiece |
9,000 lbs. |
Longitudinal Auto Feeds |
0.004" – 0.055" IPR, 40 kinds |
Cross Slide Auto Feeds |
0.004" – 0.022" IPR, 40 kinds |
Inch threads |
59 – 1 TPI, 35 kinds |
Metric threads |
0.5-18mm , 34 kinds |
Max. travel of top slide |
13-3/4 in. |
Longitudinal rapid traverse |
12 ft/min |
Cross rapid traverse |
6 ft/min |
Top slide rapid traverse |
3 ft/min |
Diameter of tailstock quill |
5 in. |
Max. travel of tailstock quill |
12 in. |
Taper of tailstock quill center |
MT 6 |
Main Motor |
50 HP, 220V or 440V, 3 phase |
Rapid traverse motor |
1/2 HP, 220V or 440V, 3 phase |
Lubrication pump motor |
1/8 HP, 220V or 440V, 3 phase |
Coolant pump motor |
1/8 HP, 220V or 440V , 3 phase |
Weight, approx. |
31,580 lbs. |
Overall Dimensions LWH |
335 x 79 x 82 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
SR10-OCL |
Large steady rest 3" to 10-1/2" |
$2,950.00 |
SR-18-OCL |
Large steady rest 6" to 18-1/2" |
$9,950.00 |
SR23-OCL |
Large steady rest 10" to 23" |
$10,950.00 |
SR36-OCL |
Large steady rest 21" to 36" |
$13,950.00 |
FR10-OCL |
Follow rest, 4" – 10" |
$13,950.00 |
4J30-OCL |
Heavy duty 30" 4-jaw chuck |
$32,950.00 |
LC-OCL |
Roller live center for tailstock MT6 |
$9,950.00 |
TA-OCL |
Taper turning attachment, free installation |
$17,950.00 |
MTS |
Motorized top slide |
$1,950.00 |
QC |
Quick change toolpost( fixed type) |
$6,950.00 |
— |
Grinder |
$7,950.00 |
— |
Machine centers from 390" to 630" |
$POR |
