- Description
- Made in Taiwan
- Meehanite casting – high performance cast iron
- ISO 9001 certified
- Large spindle bore 4-3/4" (120mm)
- Heavy Duty spindle D1-11
- Heavy Duty main motor 15HP
- 2-speed tailstock
- 16 spindle speeds from 25-1,600 rpm, 16 speeds
- 54 kinds of inch threads, and 54 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
- *Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- **This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- Free CARMAR DRO, installed
- Rapid traverse on carriage on Longitudinal way
- Automatic kick-out longitudinal carriage stop system
- 2-speed tailstock
- 12” 3-jaw chuck with top reversible jaws, direct mount
- 20” Face plate
- 12” steady rest with roller jaws
- 5” follow rest with roller jaws
- Removeable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Splash guard on carriage
- Dead center
- Thread chasing dial
- Reducing sleeve MT7/MT5 for spindle
- Tool box and leveling pads
- Manufacturer
- Specifications
- Options/Accessories
- Video

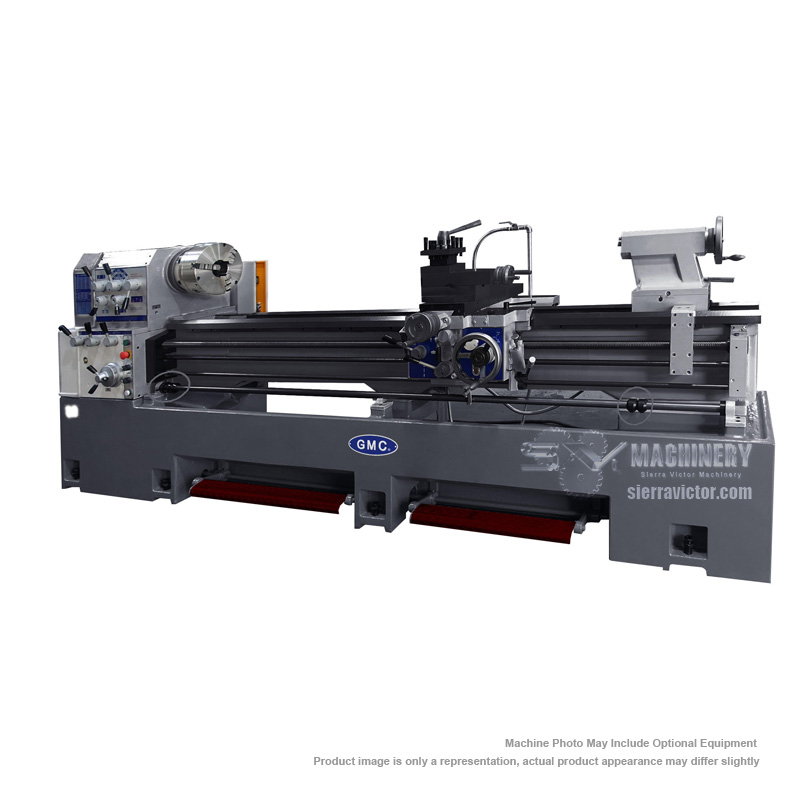

GMC 33 x 160 inch Heavy Duty Precision Gap Bed Lathe GML-33160T
STANDARD EQUIPMENT:
ITEM: 33 x 160 inch Heavy Duty Precision Gap Bed Lathe
MANUFACTURER: GMC
MODEL: GML-33160T
Manufacturer:
GMC Machine Tools
Lathes
Lathe Size:
33" x 160"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
|
MODEL
|
GML-33160T
|
|
Max. swing over bed
|
33 in.
|
|
Max. length of workpiece
|
160 in.
|
|
Max. swing over cross slide
|
24 in.
|
|
Max. Swing in gap
|
42 in.
|
|
Width of Bed
|
15-3/4 in.
|
|
Effective length in gap to spindle
|
9 in.
|
|
Effective length in gap to chuck jaws
|
4-1/2 in.
|
|
Spindle bore
|
4-3/4 in. (120mm), D1-11
|
|
Taper of spindle center
|
MT# 7/MT5 with reducing sleeve
|
|
Spindle speeds
|
10-1,000 rpm / 12 steps
|
|
Longitudinal feeds
|
0.002-0.032 IPR, 35kinds
|
|
Cross feeds
|
0.001-0.0094IPR, 35kinds
|
|
Inch threads
|
2-56 TPI, 44kinds
|
|
Metric threads
|
0.5-14mm , 24 kinds
|
|
Max. travel of top slide
|
8 in.
|
|
Max. travel of cross slide
|
13-1/2 in.
|
|
Leadscrew length X TPI
|
1-1/2 in. x 4 TPI
|
|
Diameter of tailstock quill
|
3-1/2 in.
|
|
Max. travel of tailstock quill
|
7-1/2 in.
|
|
Taper of tailstock quill center
|
M.T. # 5
|
|
Main Motor
|
15HP, 220V or 440V, 3 phase (specify)
|
|
Amperage Draw
|
55Amp on 220V / 30Amp on 440V
|
|
Rapid traverse motor
|
1HP, 220V or 440V, 3 phase
|
|
Coolant pump motor
|
1/8 HP, 220V, or 440V, 3 phase,
3 Gal coolant fluid |
|
Machine Oil
|
#30 weight machine oil, 8 Gallons
|
|
Machine Weight, approx.
|
11,230 lbs.
|
|
Overall Dimensions LWH
|
219 x 50 x 76
|
|
Shipping Dimensions LWH
|
232 x 44 x 79
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
3900-5160 |
6pc ALORIS type QC tool post set |
$2,850.00 |
3900-5005 |
Live Center |
$195.00 |
— |
Taper Attachment, Installed |
$3,150.00 |
— |
Chuck |
$875.00 |
