- Description
- ISO 9001 certified
- Large spindle bore 2-1/16”
- Heavy Duty spindle D1-6
- One-piece solid cast iron machine base
- Heavy Duty guideway width 10-1/4”
- Heavy Duty main motor 6 HP

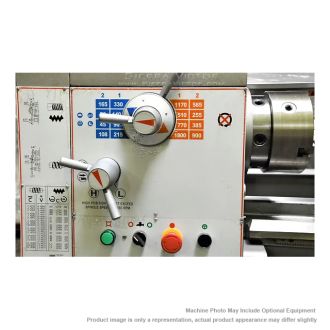

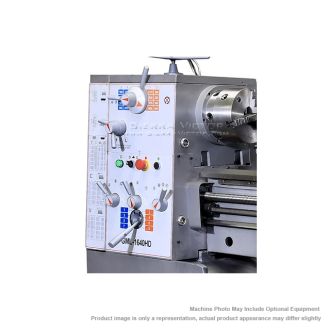

- 16 spindle speeds from 45-1,800 rpm,
speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm - 45 kinds of inch threads, and 39 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- SINO DRO (installed)

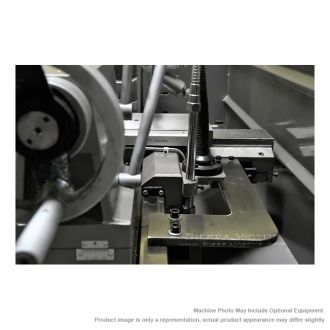

- Taper turning attachment (installed)
- 8” 3-jaw chuck with one set of reversible jaws
- 10” 4-jaw chuck
- 12” Face plate
- 5 1/2” large steady rest with roller jaws (bearings)

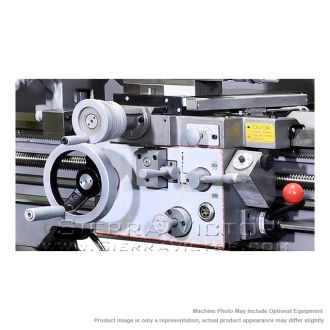

- Oil pump on Apron for all guideways and leadscrews
- 2” follow rest with roller jaws (bearings)
- Removable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
- Manufacturer
- Specifications
- Options/Accessories
- Video

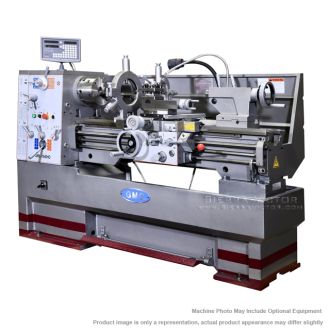

GMC 16 x 60 inch Metal Lathe with 2-Axis DRO GML-1660HD
STANDARD ACCESSORIES:
ITEM: 16 x 60 inch Metal Lathe with 2-Axis DRO
MANUFACTURER: GMC
MODEL: GML-1660HD
Manufacturer:
GMC Machine Tools
Lathes
Lathe Size:
16" x 60"
Lathe Type:
Large Spindle Bore
Machine Type
Machine Category:
Lathes
Material Type:
Metal
|
Max. swing over bed
|
16-1/16"
|
|
Max. length of workpiece
|
60"
|
|
Max. swing over cross slide
|
10-1/4"
|
|
Max. Swing in gap
|
23-1/4"
|
|
Width of Bed
|
10-1/4"
|
|
Effective length in gap to spindle
|
8-1/2"
|
|
Effective length in gap to chuck jaws
|
3-1/2"
|
|
Spindle bore
|
2-1/16" , D1-6
|
|
Taper of spindle center
|
M.T.# 6 ( with MT6/MT4 sleeve)
|
|
Spindle speeds
|
45-1,800 rpm / 16 steps
|
|
Longitudinal feeds
|
0.0018-0.07 IPR, 42 kinds
|
|
Cross feeds
|
0.0009-0.03 IPR, 42 kinds
|
|
Inch threads
|
70-2 TPI, 45 kinds
|
|
Metric threads
|
0.2-14 mm , 39 kinds
|
|
Diametral pitch threads
|
8-40 DP , 21 kinds
|
Module threads
|
0.3-3.6 mm, 18 kinds
|
|
Max. travel of top slide
|
4-1/4"
|
|
Max. travel of cross slide
|
8-1/2"
|
|
Spindle length w/o chuck
|
20-1/2"
|
|
Leadscrew length X TPI
|
1-1/4” x 4 TPI
|
|
Diameter of tailstock quill
|
2-1/16"
|
|
Max. travel of tailstock quill
|
5”
|
|
Taper of tailstock quill center
|
MT4
|
|
Main motor
|
6 HP, 220V/20A, 3 Phase
|
|
Coolant pump motor
|
1/8 HP, 220V, 3 Phase
|
|
Overall dimensions, LxWxH
|
100 x 32.2 x 56 in.
|
Net Weight |
4,850 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
