- Description
- Made in Taiwan
- ISO 9001 certified
- Large spindle bore 2-3/16”
- Heavy Duty spindle D1-6
- High Tensile cast iron FC25
- Heavy Duty guideway width 10”
- Heavy Duty main motor 5HP
- 12 spindle speeds from 50-2,000 rpm
- 32 kinds of inch threads, and 32 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- Free CARMAR DRO installed
- 8" 3-jaw chuck with one set of reversible jaws
- 14" Face plate
- 1-3/16" - 5" steady rest with roller jaws
- 3" follow rest
- Removeable gap
- 4-way tools post
- 4-position carriage stop
- Foot brake
- LED Work light
- coolant system
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
- Manufacturer
- Specifications
- Options/Accessories

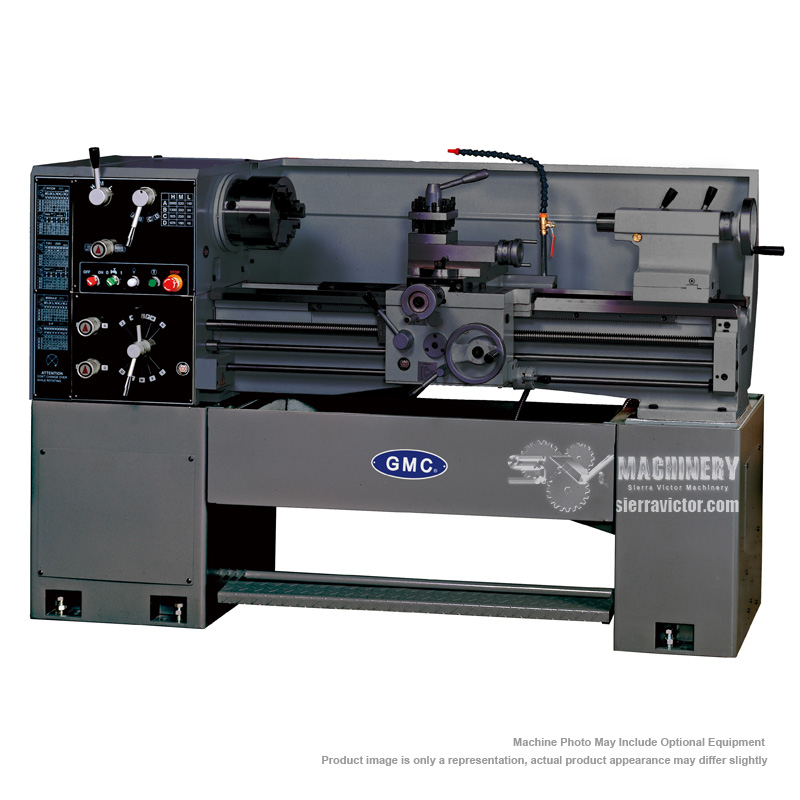

GMC 16 x 60 inch Heavy Duty Precision Gap Bed Lathe GML-1660AT
STANDARD ACCESSORIES:
ITEM: 16 x 60 inch Heavy Duty Precision Gap Bed Lathe
MANUFACTURER: GMC
MODEL: GML-1640AT
Manufacturer:
GMC Machine Tools
Lathes
Lathe Size:
16" x 60"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Gap Bed
| Max. swing over bed |
16 in. |
| Max. length of workpiece |
60 in. |
| Max. swing over cross slide |
9-1/2 in. |
| Max. Swing in gap |
21-3/4 in. |
| Width of Bed |
10 in. |
| Effective length in gap to spindle |
8-1/2 in. |
| Effective length in gap to chuck jaws |
3-1/2 in. |
| Spindle bore |
2-1/16 in., D1-6 |
| Taper of spindle center |
M.T.# 6 (with MT6/MT4 sleeve) |
| Spindle speeds |
50-2,000 rpm / 12 steps |
| Longitudinal feeds |
0.0017 - 0.0242 IPR, 32 kinds |
| Cross feeds |
0.00056 - 0.008 IPR, 32 kinds |
| Inch threads |
56-4 TPI, 32 kinds |
| Metric threads |
0.4-7.0 mm , 32 kinds |
| Module threads |
0.4-7.0 mm, 32 kinds |
| Diametral pitch threads |
8-120 DP , 32 kinds |
| Max. travel of top slide |
3-9/16 in. |
| Max. travel of cross slide |
8 in. |
| Spindle length w/o chuck |
20 in. |
| Leadscrew length X TPI |
1-1/4 in. x 4 TPI |
| Diameter of tailstock quill |
2 in. |
| Max. travel of tailstock quill |
4-3/8 in. |
| Taper of tailstock quill center |
M.T. # 4 |
| Main motor |
5 HP, 220/440v, 3-phase |
Amperage Draw |
20Amp on 220V, 12Amp on 440V |
| Coolant pump motor |
1/8 HP, 220V/440V, 3 phase |
| Oil for Headstock / Gear box / Apron |
#30 weight machine oil, TEXACO regal R&O/100, 3 Gal. |
| Net weight, approx. |
3,630 lbs. |
| Overall dimensions, LxWxH |
100 x 38 x 57 in. |
| Machine Shipping Dimensions LWH |
102 x 34 x 60 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
5C-1660AT |
5-C Hand lever type collet closer, free install |
$1,850.00 |
3900-0014 |
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth |
$595.00 |
— |
Taper Attachment, Installed |
$1,750.00 |
3900-5230 |
6pc ALORIS type QC tool post set |
$895.00 |
3900-5004 |
Live Center |
$195.00 |
2003-0004 |
5pc Indexable carbide turning set |
$69.00 |
2003-0014 |
3/8" carbide insert |
$12.00/ea |
GMCLSUP101 |
Lathe package #1 includes: 5pc indexable carbide turning set# 2003-0004, 1/2 drill chuck # 3700-0102, Chuck arbor # 3700-0157 and 29pc Titanium drill bit set #5000-0001T |
$695.00 |
