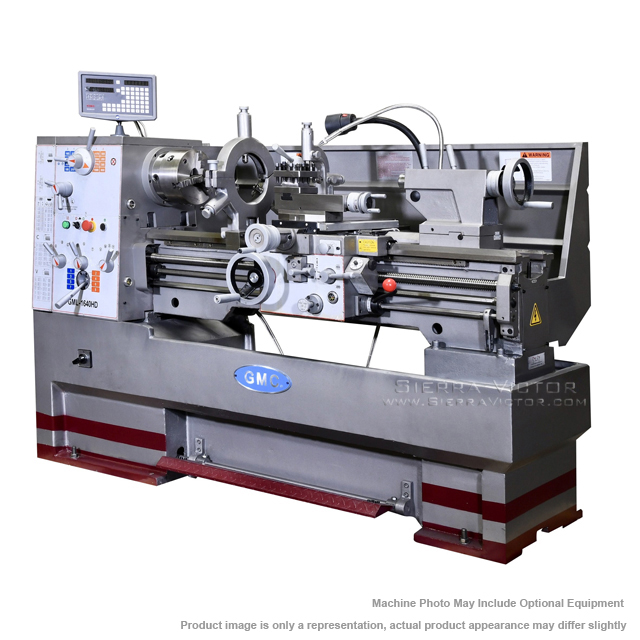

GMC 14 x 40 in. Gap Bed Lathe with SINO DRO GML-1440HD

• ISO 9001 certified
• Large spindle bore 2-1/16”
• Heavy Duty spindle D1-6
• One-piece solid cast iron machine base
• Heavy Duty guideway width 10-1/4”
• Heavy Duty main motor 6 HP

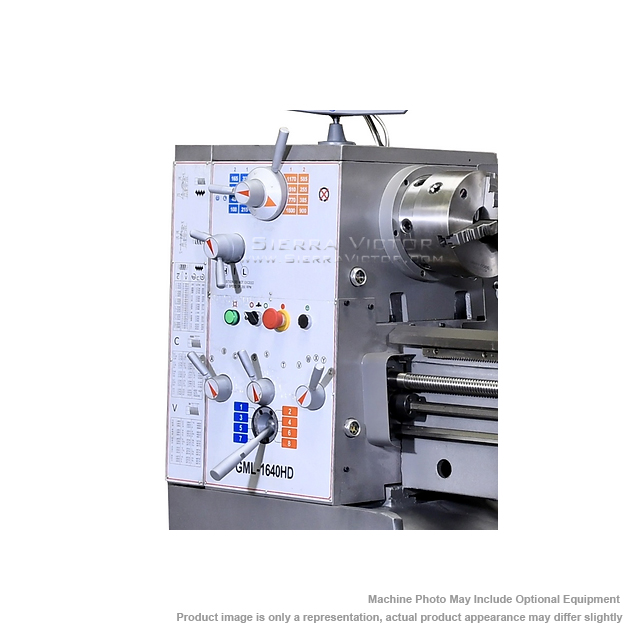

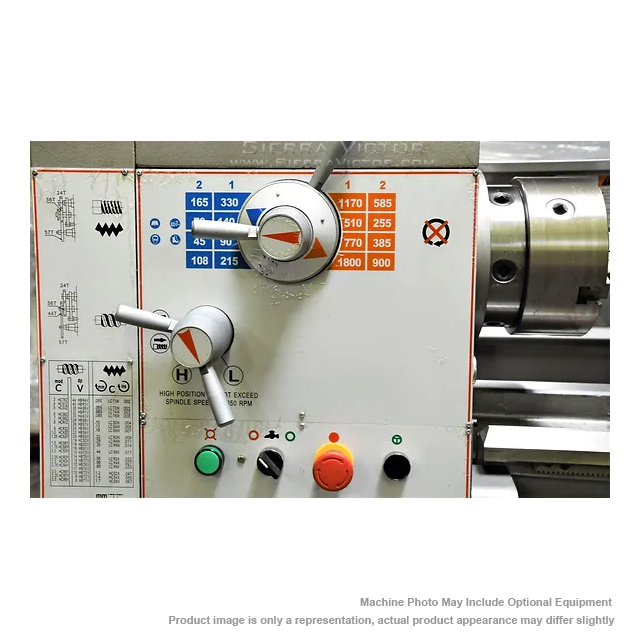

• 16 spindle speeds from 45-1,800 rpm, speeds:
  45/ 75/ 90/ 130/ 160/ 195/ 210/ 260/ 350/ 390/ 600/ 690 / 790 / 910/ 1,200/ 1,800 rpm
• 45 kinds of inch threads, and 39 kinds of metric threads

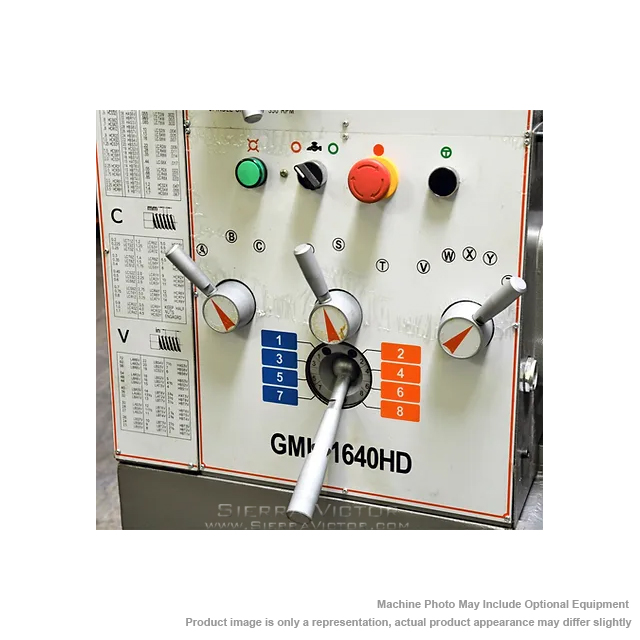

• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year industrial  warranty for parts
• DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
• This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

STANDARD EQUIPMENT:

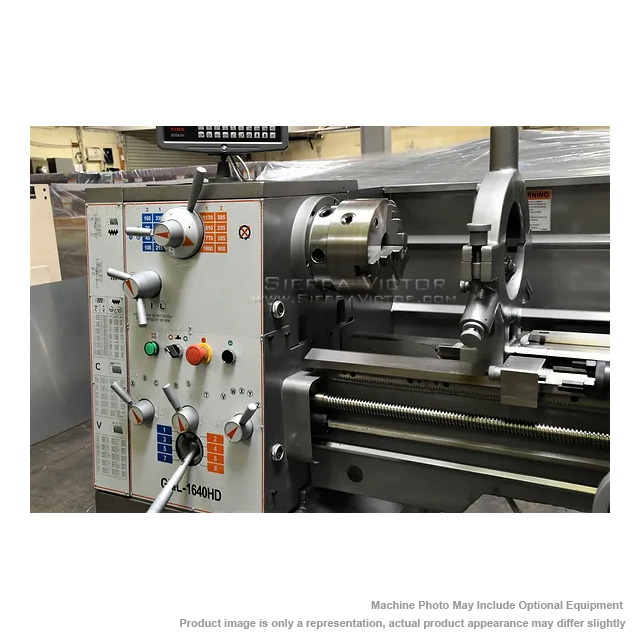

• Free SINO DRO; Installed

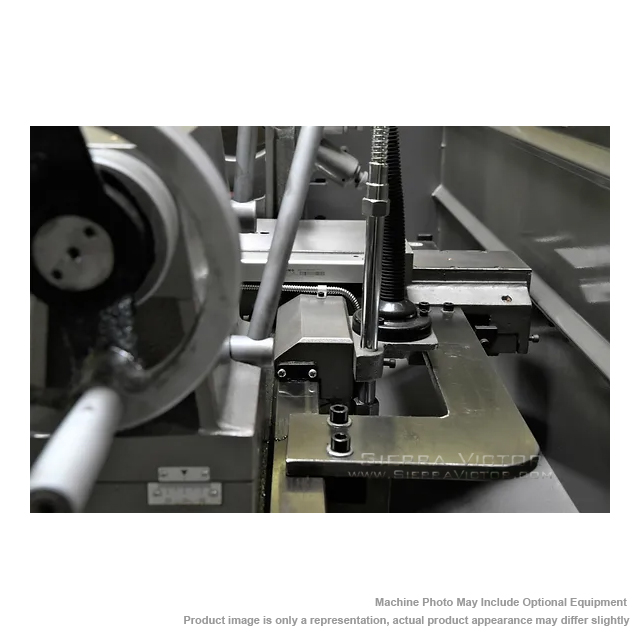

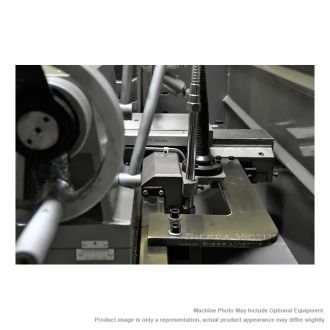

• Free Taper turning attachment; Installed
• 8” 3-jsw chuck with one set reversible jaws
• 10” 4-jaw chuck
• 12” Face plate

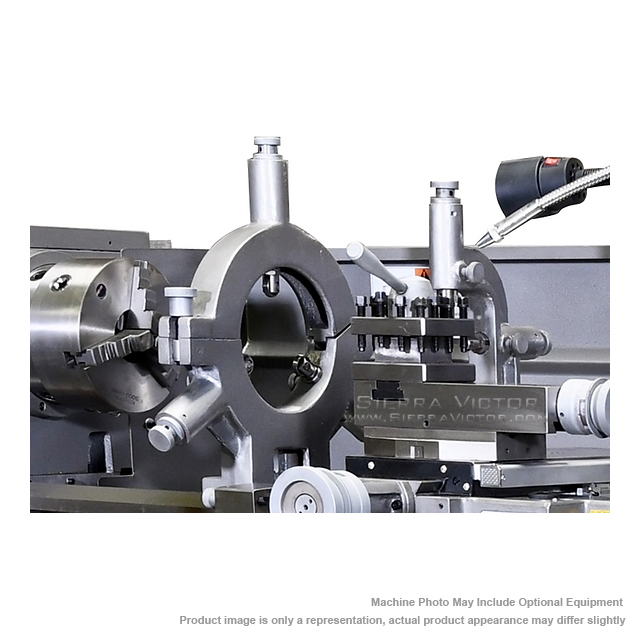

• 5 1/2” large steady rest with roller jaws

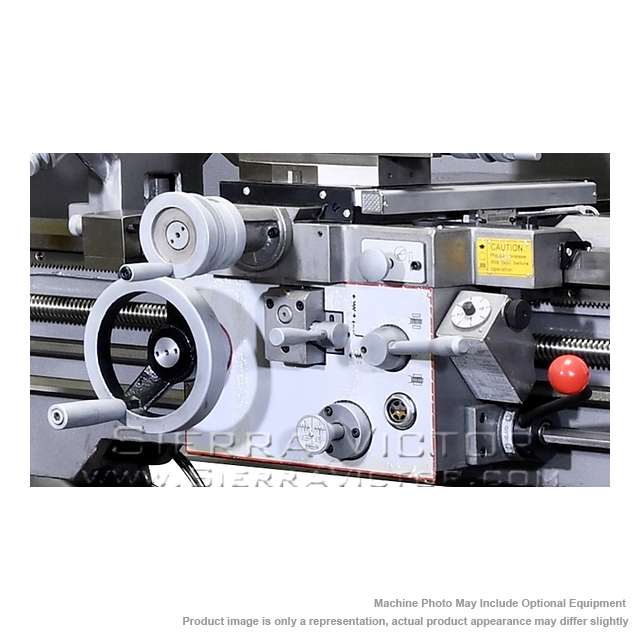

• Oil pump on Apron for all guideways and leadscrews
• 2” follow rest
• Removeable gap

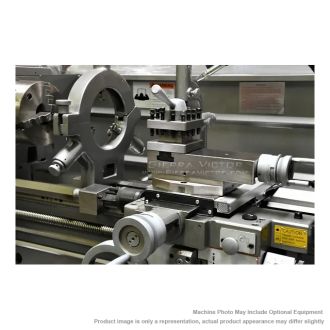

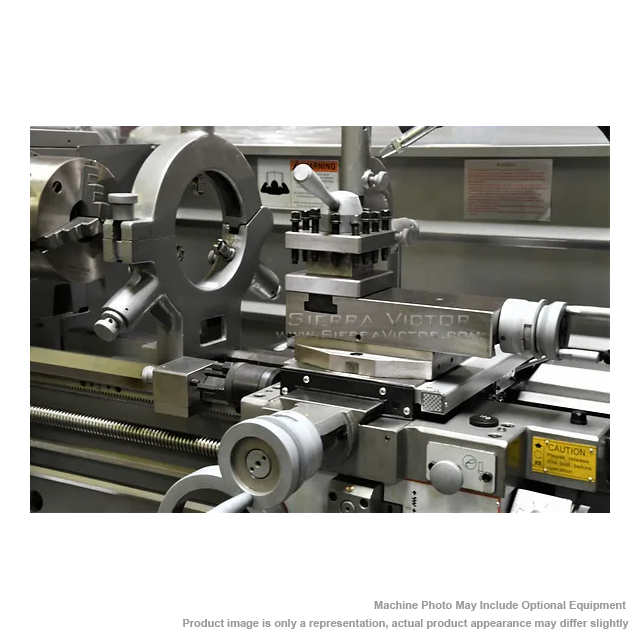

• 4-way tools post
• Foot brake
• Coolant system
• Halogen Work light
• Full length splash guard
• (2) dead centers and (1) reducing sleeve MT6/MT4
• Thread chasing dial
• Tool box and leveling pads
