- Description
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA S840 CNC control, made in Italy
- Max. 99 bends per program
- Upto 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct
- 48” CNC back gauge with table and fingers
- Hardened fingers 2”/3”/4”/6”, up to 48HRC
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Meet OSHA standard, to start the program, need to press foot pedal twice
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Need to step up transformer if the power supply is 208V, 3 phase
- One year industrial warranty for parts
- Manufacturer
- Specifications
- Options/Accessories

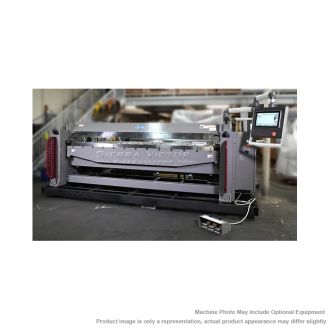

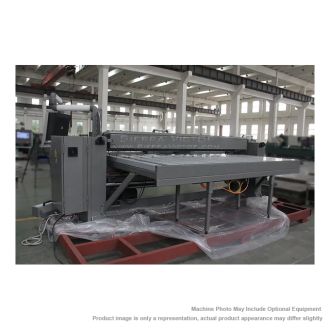

GMC EBB-1014CNC 10 ft x 14 ga. CNC Box & Pan Brake
ITEM: 10 ft x 14 ga. CNC Box & Pan Brake
MANUFACTURER: GMC
MODEL: EBB-1014CNC
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
CNC
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Capacity |
Mild Steel |
14 Ga. |
Stainless Steel |
18 Ga. |
|
Close hemming with one piece finger |
26 Ga. |
|
Open hemming |
24 Ga. |
|
Bending length capacity |
10’1” |
|
Bend Angle Degree, programmable |
0- 135 degree |
|
Max depth of box or pan |
4 in. |
|
Large Beam Opening/clamping opening |
4-7/8 in. |
|
Min. Reverse Bend |
1/2 in. |
|
Max. Table Back Gauge Distance |
48-3/8 in. |
|
Min. Table Back Gauge Distance |
1/2 in. |
|
Back Gauge Repeatability |
0.0039 in. |
|
Back Gauge Table height |
35-3/4 in. |
|
Motor for bending leaf |
4HP, 220V, 3 phase |
|
Servo motor for back gauge |
2HP, 220V, 3 phase |
|
Clamping Motor |
1-1/2HP, 220V, 3 phase |
|
Amperage Draw |
35A |
|
Shipping dimensions |
174 x 80 x 71 |
|
Machine Dimensions, LWH (in.) |
168 x 79 x 67 |
|
Machine weight |
9,850 lbs. |
|
Shipping weight |
10,150 lbs. |
|
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
ITEM
|
PRICE |
One piece 10’ long straight finger |
$2,995.00 |
One day on-site training |
$4,995.00 |
Rotary Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase |
$3,950.00 |
