- Description
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA CNC control, made in Italy

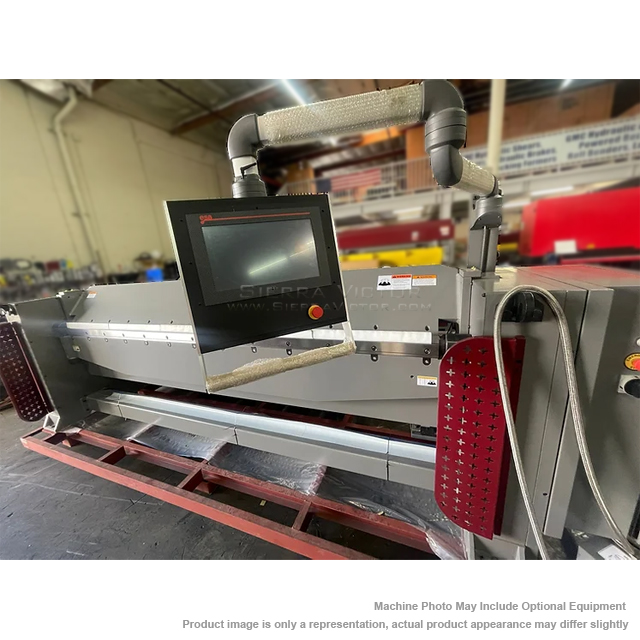

- 16" large Digital glass touch screen
- Max. 99 bends per program
- Up to 2000 Programs Storage

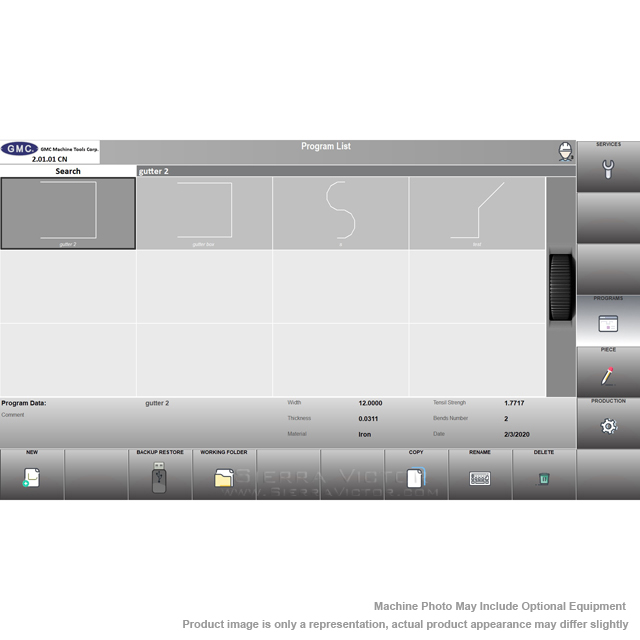

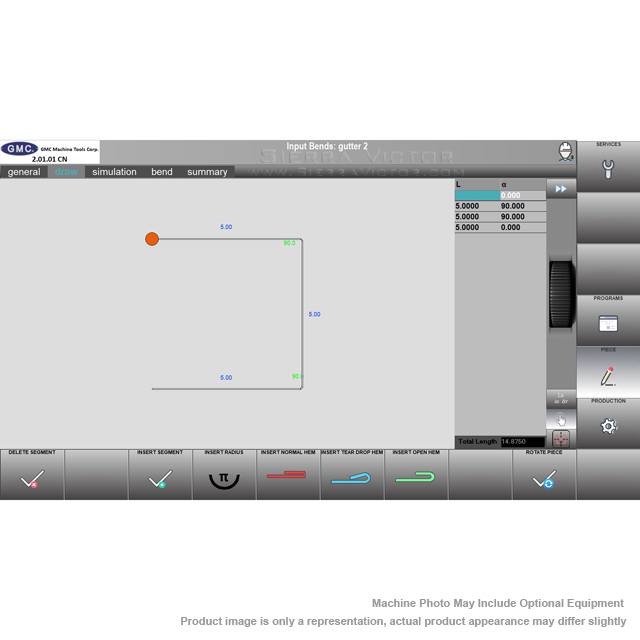

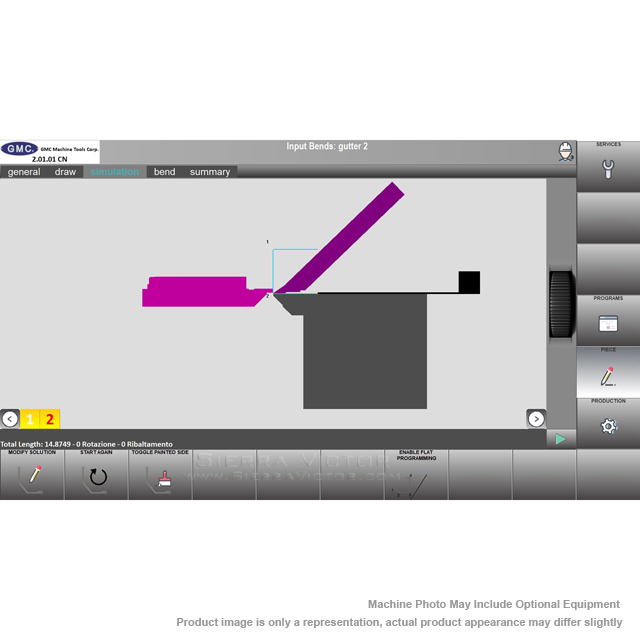

- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct

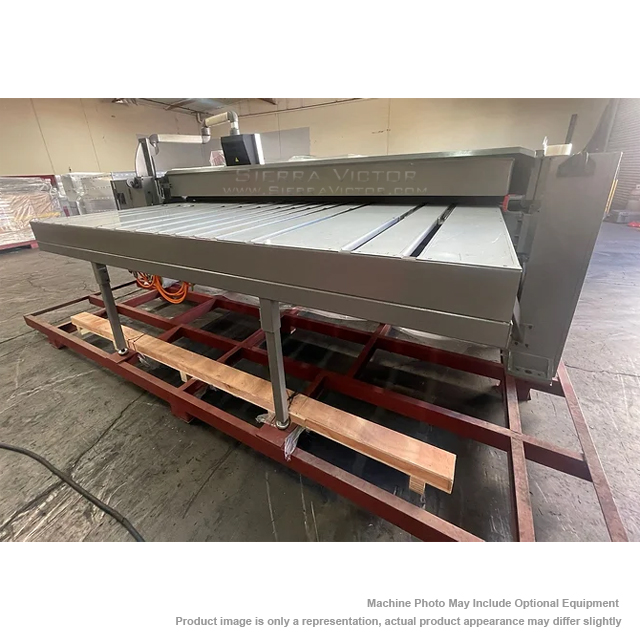

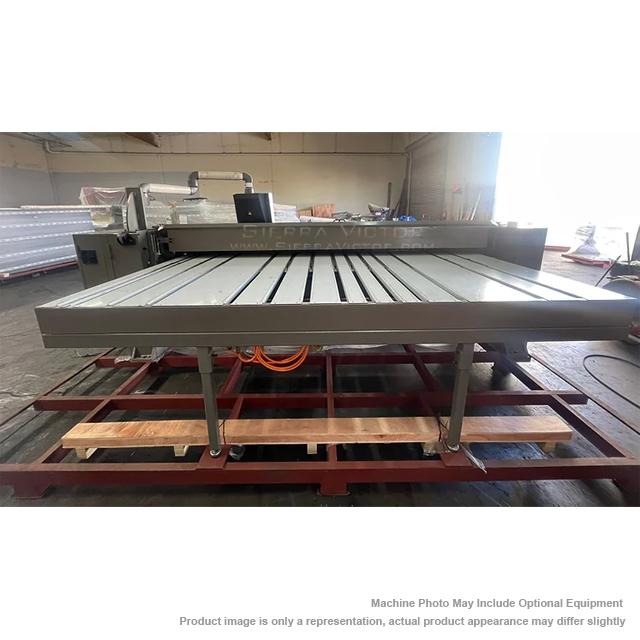

- 48" CNC back gauge with table and fingers

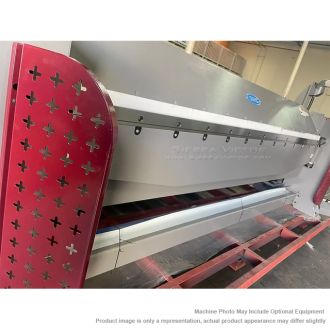

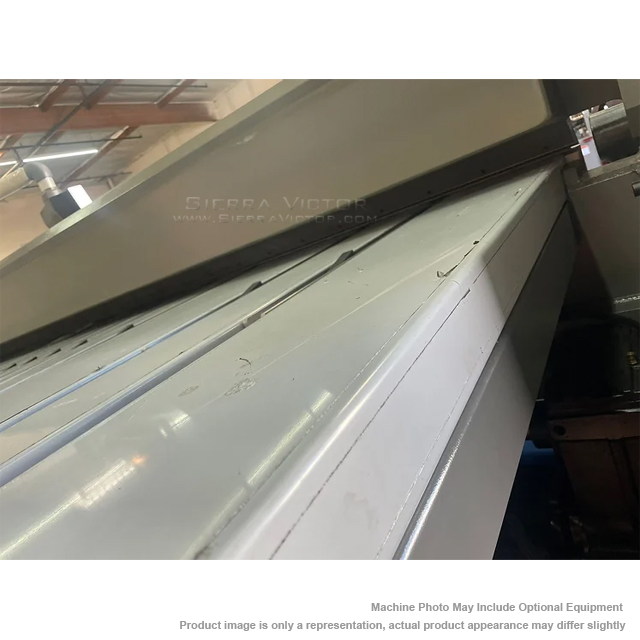

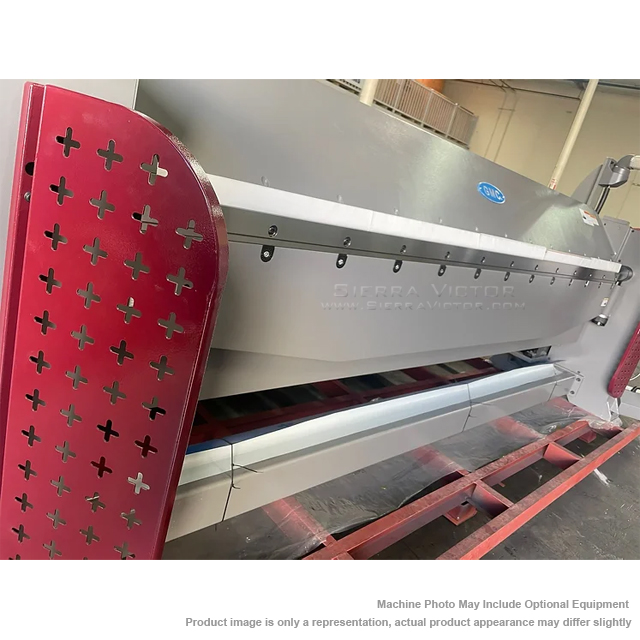

- Hardened nose bar and table, up to 48HRC
- Comes with one 1" Insert Bar and one ½" Insert Bar

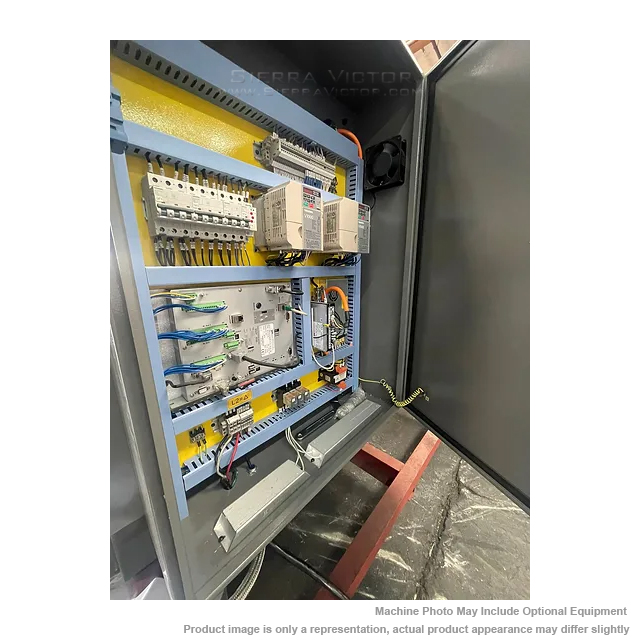

- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
- One year industrial warranty for parts
- Manufacturer
- Specifications
- Options/Accessories
- 1/2" thick insert bar for ½" min. reverse bend,capacity mild steel 28-22G…$1,950.00
- One day on-site training ……………………………………………………….$4,995.00
- Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase …. $4,250.00
(must be purchased and installed by GMC or warranty will be voided) - This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
- Video

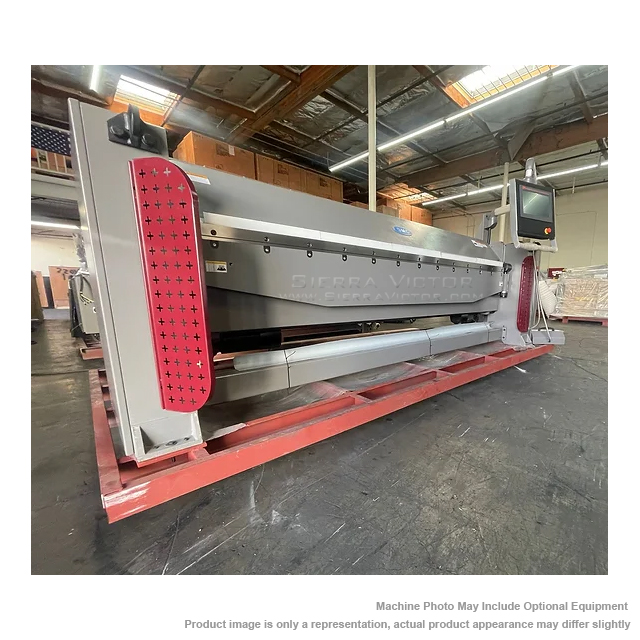

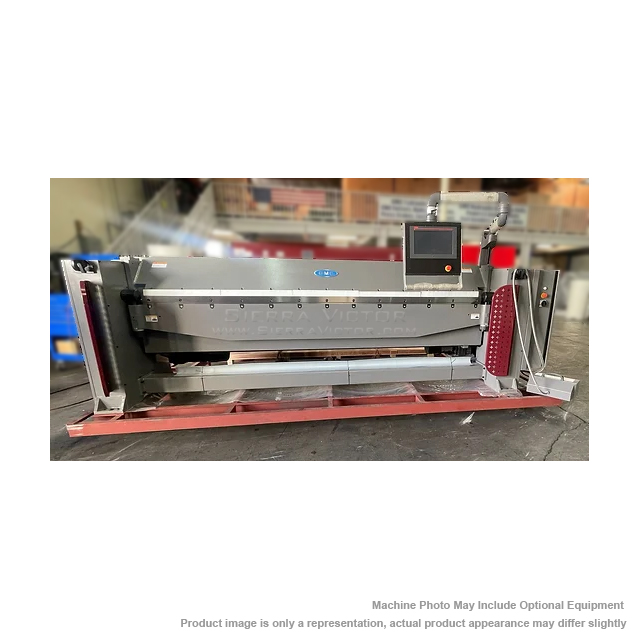

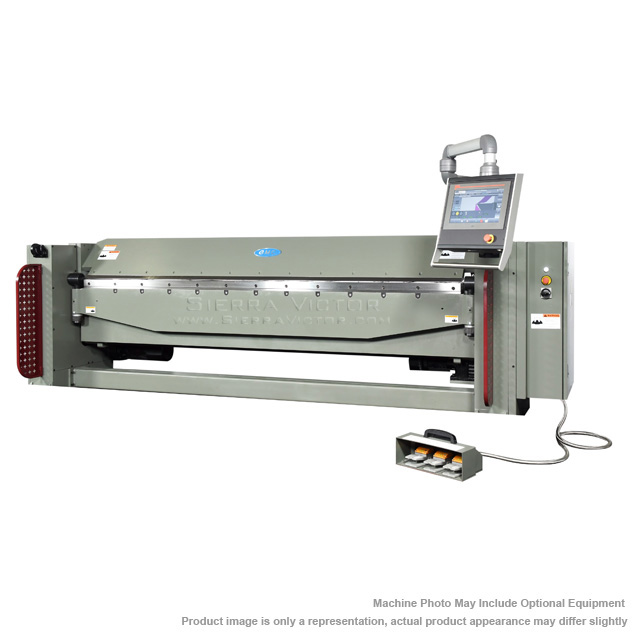

GMC 10 ft x 14 Ga. CNC Power Folder EFM-1014CNC
ITEM: 10 ft x 14 Ga. CNC Power Folder
MANUFACTURER: GMC
MODEL: EFM-1014CNC
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Folders
Control:
CNC
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Capacity: Mild Steel |
14 Ga |
Capacity: Stainless Steel |
18 Ga |
Close Hemming capacity |
26 ga. |
Open Hemming capacity |
24 ga. |
Bending length capacity |
10'1" |
Bend Angle Degree, programmable |
0- 135 degree |
Large Beam Opening/clamping opening |
4-7/8" |
Min. Reverse Bend |
1/2" |
Max. Table Back Gauge Distance |
48-3/8" |
Min. Table Back Gauge Distance |
1/2" |
Back Gauge Repeatability |
0.0039" |
Back Gauge Table height |
35-3/4" |
Main motor |
4HP, 220V, 3-phase |
Servo motor for back gauge |
2 HP, 220V, 3-phase |
Clamping motor |
1-1/2 HP, 220V, 3-phase |
Amperage Draw |
35A |
Machine Dimensions, L x W x H |
168 x 79 x 67 in. |
Shipping Dimensions |
174 x 80 x 71 in. |
Machine Weight |
9,850 lbs. |
Shipping Weight |
10,150 lbs. |
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
