- Description
- ISO 9001 certified
- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
- Easy to operate in two positions; vertically and horizontally on its back
- DRO -Digitally displays your exact position and ensures repeatability
- Heavy Duty 3HP AC main motor

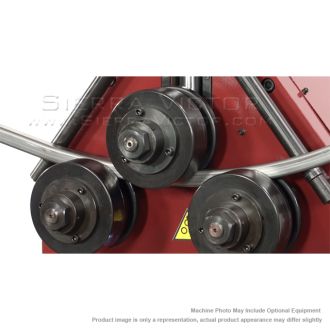

- 1 - Top forming roll (hydraulic driven)
- 2 - Driven bottom rolls
- Robust, all steel and welded framework
- Quiet, compact, hydraulic system that ensures precision and improves productivity
- Adjustable pressure control valve
- 1-year parts only warranty and lifetime tech support (by video and phone)
- *Compared to Baileighs Profile Bender R-M55H
- Equipped with 1-set of universal forming rolls suitable for many applications except pipes & round tubes (need special dies)

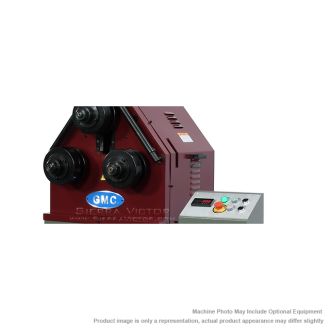

- Digital Readout (ensures repeatability and digitally displays your exact position)
- Left and right guide rollers (easily adjustable)
- Foot pedal (controls forward and reverse)
- Digital Readout (digital display)
- 4 - metal support legs for horizontal position
- Manufacturer
- Specifications
- Options/Accessories
- One Roll Set (3 rolls) - for pipe & round tubing, any size - call for pricing

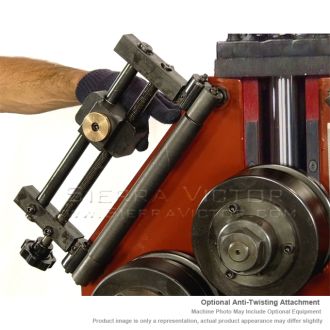

- Anti-twisting attachment - $call for pricing
- Video

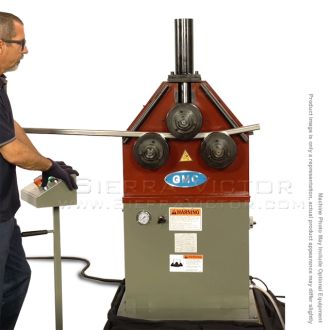

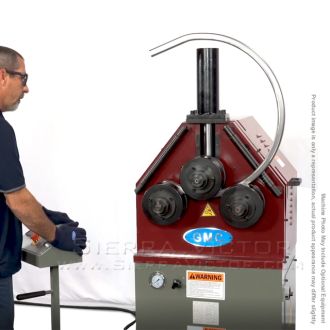

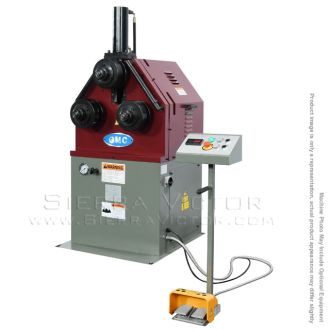

GMC 2 inch Angle Iron Ring Roller, Hydraulic Tube Bender - Single Phase PRB-55H-1PH
ITEM: 2 inch Angle Iron Ring Roller, Hydraulic Tube Bender - Single Phase
MANUFACTURER: GMC
MODEL: PRB-55H-1PH
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Benders - Angle Roll
Power Source:
Hydraulic
Metalworking
Bending Capacity:
2-1/2"
Roll Adjustment |
Hydraulic Driven |
Dia. of roller |
7.5" |
Diameter of roller shaft |
2" |
Motor |
3 HP, 220VAC, Single phase |
Roller Speed |
16 RPM |
Oil Tank Capacity (only fill up 90%) |
7 Gal. |
Recommended Hydraulic Oil |
Texaco-Rando HD-68 Hydraulic Oil Shell AW-68 Hydraulic Oil |
Dimensions |
40 x 35 x 65 in. |
Weight |
1,120 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART#
|
ITEM
|
PRICE |
34T-PRB55 |
TUBE ROLL SETS: 3/4" |
$CALL |
1T-PRB55 |
TUBE ROLL SETS: 1" |
$CALL |
114T-PRB55 |
TUBE ROLL SETS: 1-1/4" |
$CALL |
112T-PRB55 |
TUBE ROLL SETS: 1-1/2" |
$CALL |
2T-PRB55 |
TUBE ROLL SETS: 2" |
$CALL |
212T-PRB55 |
TUBE ROLL SETS: 2-1/2" |
$CALL |
34P-PRB55 |
PIPE ROLL SETS: 3/4" |
$CALL |
1P-PRB55 |
PIPE ROLL SETS: 1" |
$CALL |
114P-PRB55 |
PIPE ROLL SETS: 1-1/4" |
$CALL |
112P-PRB55 |
PIPE ROLL SETS: 1-1/2" |
$CALL |
2P-PRB55 |
PIPE ROLL SETS: 2" |
$CALL |
