- Description
- This machine has a 4 HP Motor, rated at 220V, single phase. Gear driven manual positioning. 2” Dia. of roller shaft, 7-1/2” roller Dia.
- ISO 9001 certified

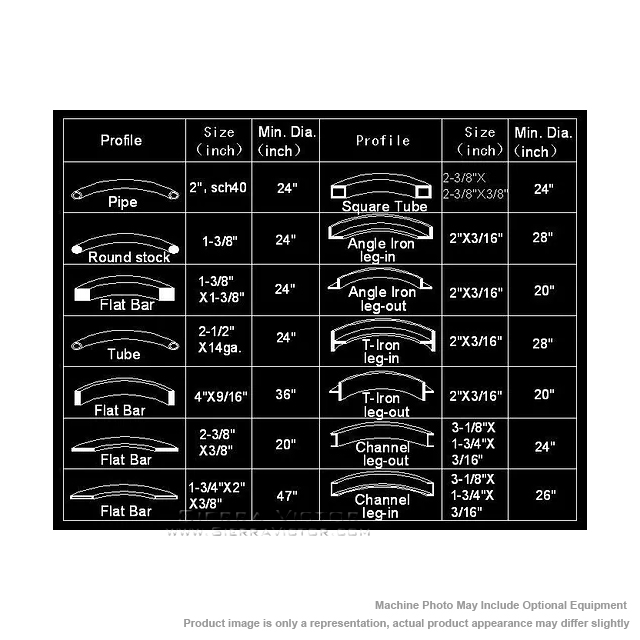

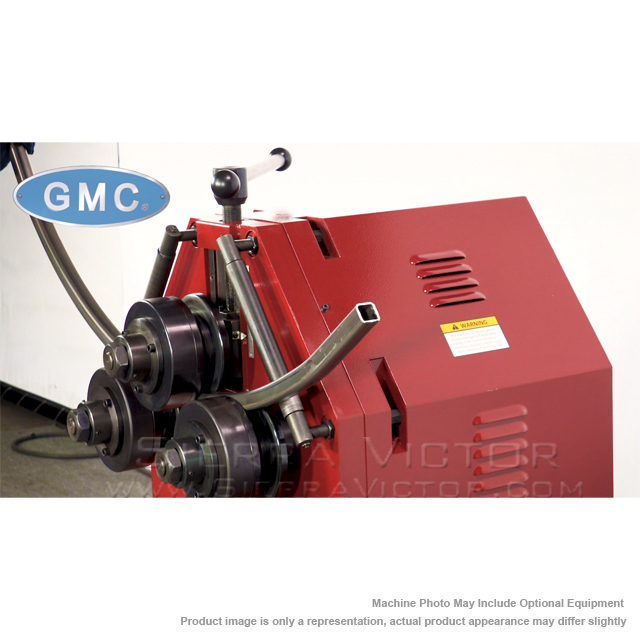

- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube

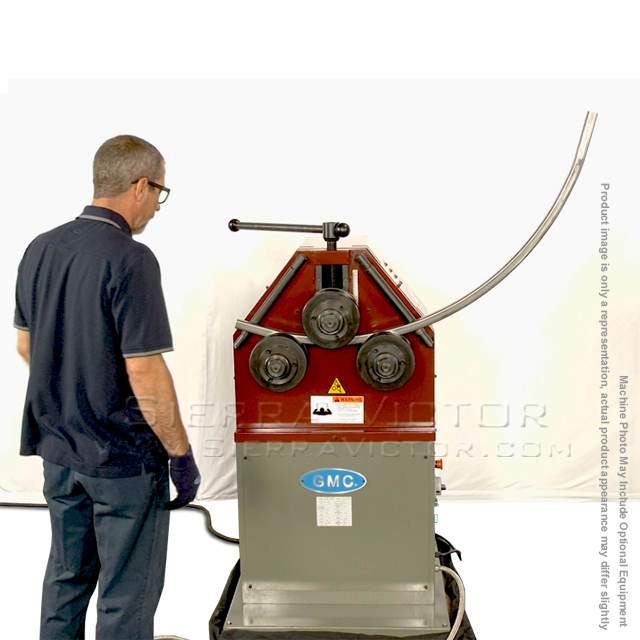

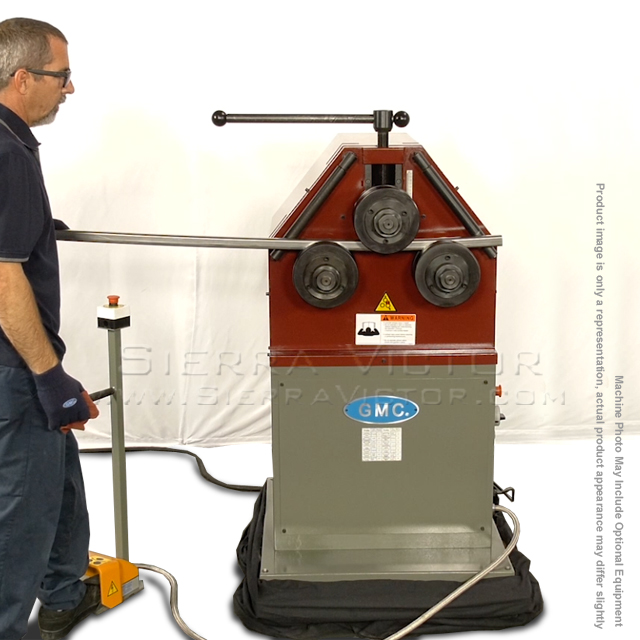

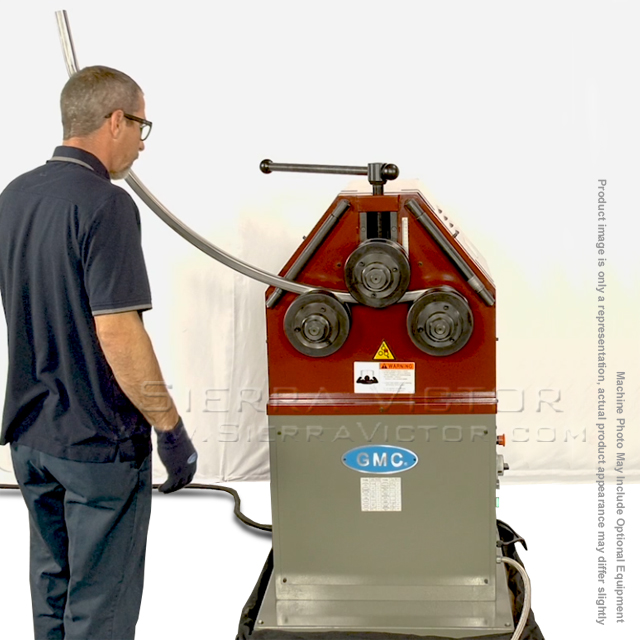

- Easy to operate in two positions; vertically and horizontally on its back
- DRO - Digitally displays your exact position and ensures repeatability
- Heavy Duty 4HP AC main motor

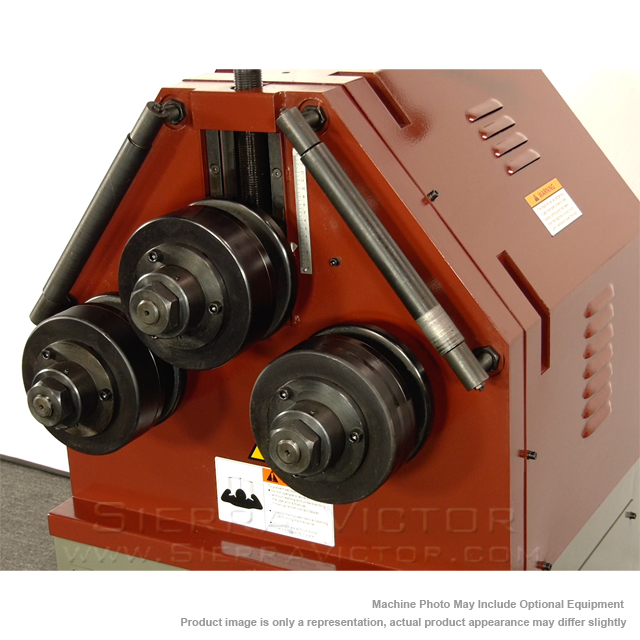

- 1 - Top forming roll (hydraulic driven)
- 2 - Driven bottom rolls
- Robust, all steel and welded framework
- Quiet, compact, hydraulic system that ensures precision and improves productivity
- Adjustable pressure control valve
- 1-year parts only warranty and lifetime tech support by video and phone

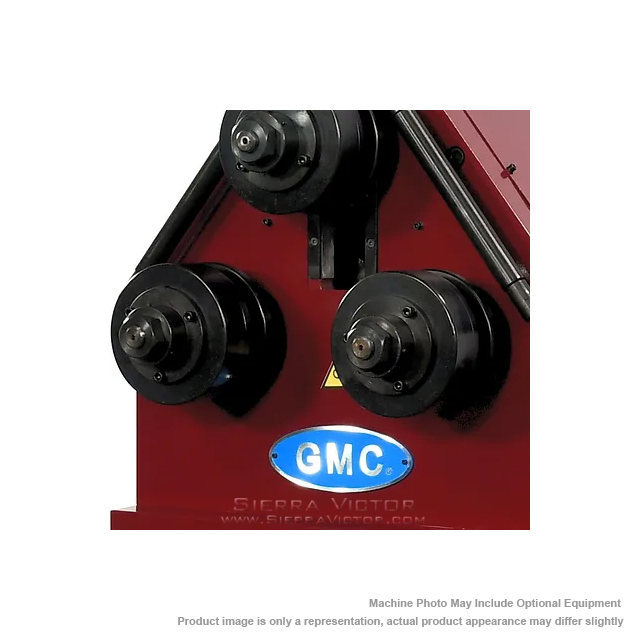

- Equipped with 1-set of universal forming rolls suitable for many applications One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
- Digital Readout (ensures repeatability and digitally displays your exact position)
- Left and right guide rollers (easily adjustable)
- Foot pedal (controls forward and reverse)
- Digital Readout (digital display)
- 4-metal support legs for horizontal position
- Manufacturer
- Specifications
- Options/Accessories

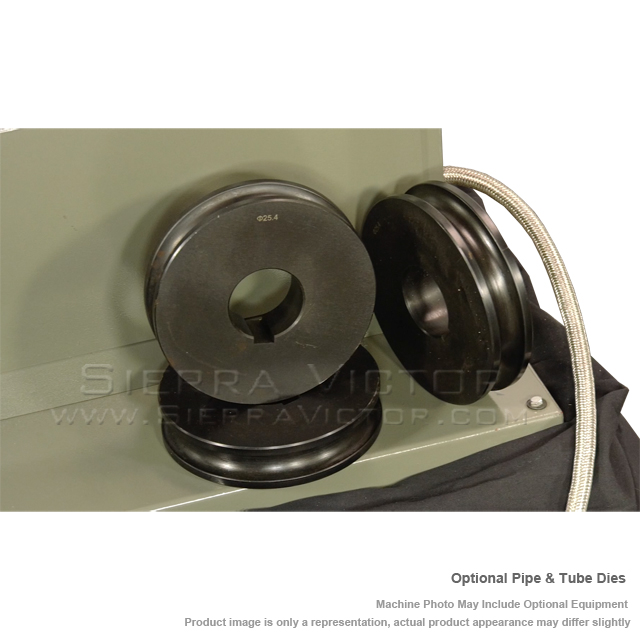

- Optional roller sets for pipe & round tubing, any size, one set (3 rolls) ....... Call for pricing

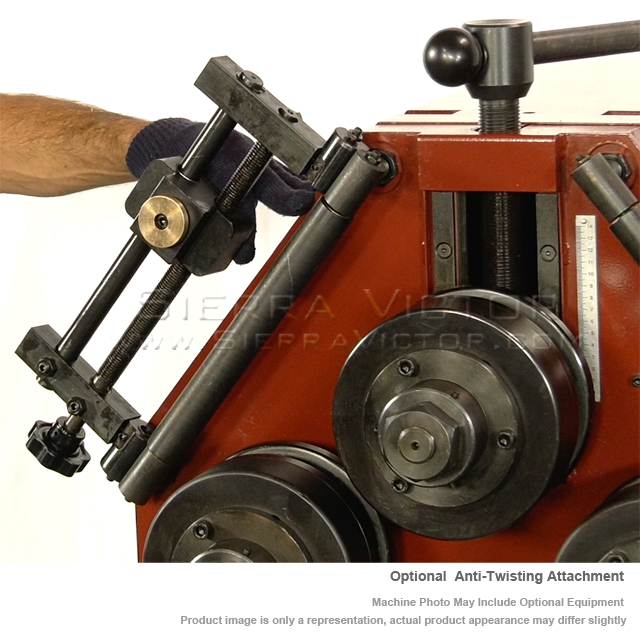

- Optional anti-twisting attachment ............ Call for pricing
- Video

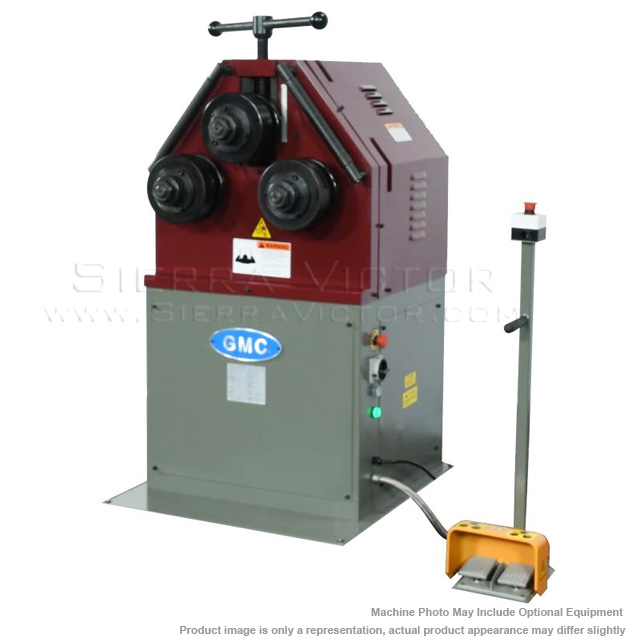

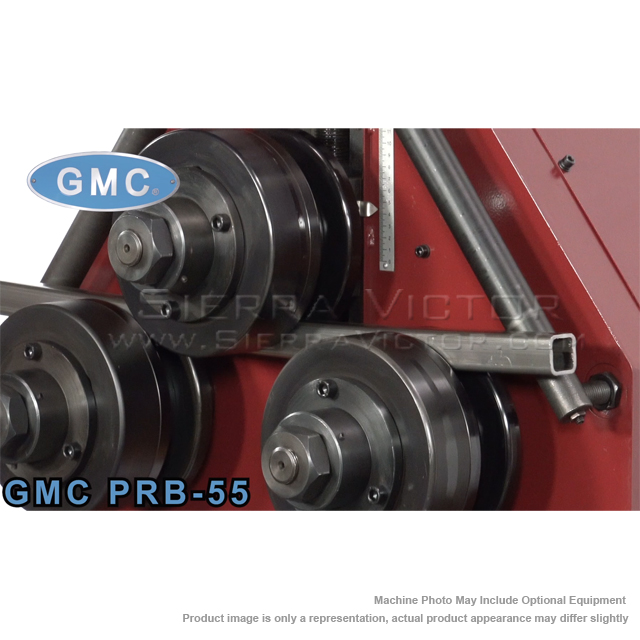

GMC 2 inch Ring and Angle Roll Bender w/Manual Positioning | Single Phase PRB-55-1PH
STANDARD EQUIPMENT:
ITEM: 2 inch Ring and Angle Roll Bender with Manual Positioning - Single Phase
MANUFACTURER: GMC
MODEL: PRB-55-1PH
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Benders - Angle Roll
Control:
Manual
Metalworking
Bending Capacity:
2"
Roll Adjustment |
Manual |
Dia. of roller |
7-1/2" |

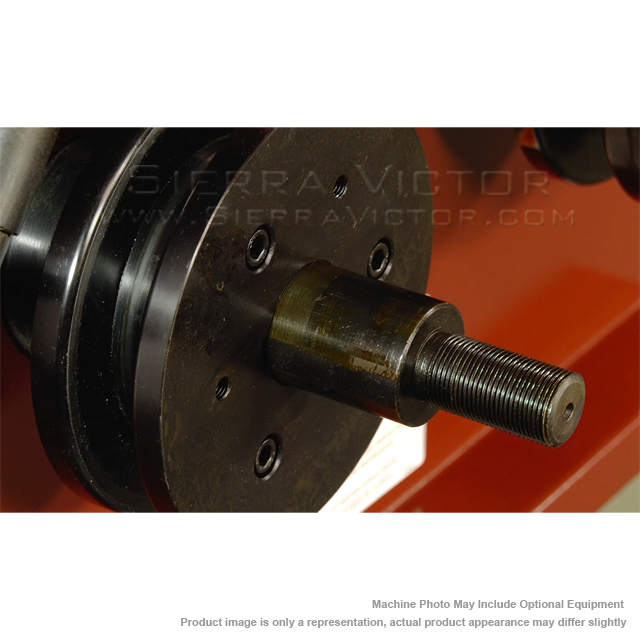

Diameter of roller shaft |
2" |
Motor |
4 HP, Single Phase Prewired: 220VAC | 15A |
Roller Speed |
16 RPM |
Oil Tank Capacity (only fill up 90%) |
7 Gal. |
Recommended Hydraulic Oil |
Texaco-Rando HD-68 Hydraulic Oil Shell AW-68 Hydraulic Oil |
Dimensions |
40 x 35 x 65 in. |
Weight |
1,120 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART# |
ITEM
|
PRICE |
34T-PRB55 |
ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
1T-PRB55 |
ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
114T-PRB55 |
ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
112T-PRB55 |
ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
2T-PRB55 |
ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
212T-PRB55 |
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
34P-PRB55 |
ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
1P-PRB55 |
ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
114P-PRB55 |
ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
112P-PRB55 |
ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
2P-PRB55 |
ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
