- Description
- ISO 9001 certified
- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
- Heavy Duty 3HP AC main motor

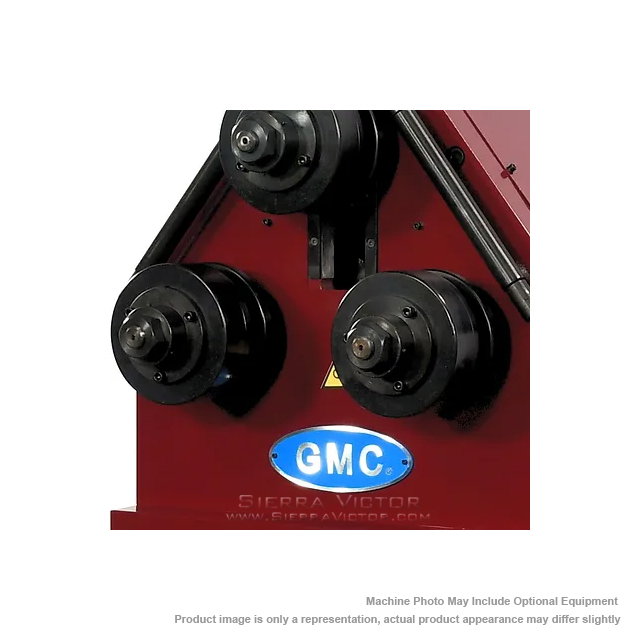

- 1 top forming roll (manually driven)
- 2 driven bottom rolls
- Robust, all steel and welded framework
- 1-year parts only warranty and lifetime tech support by video and phone
- One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
- Left and right guide rollers (easily adjustable)

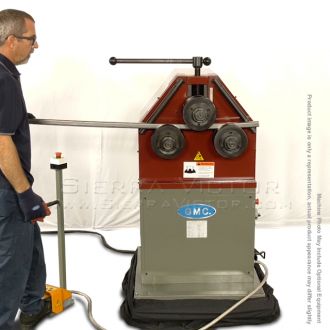

- Foot pedal (controls forward and reverse
- Manufacturer
- Specifications
- Options/Accessories
- Optional roller sets for pipe & round tubing, any size, one set (3 rolls) ....... Call for pricing

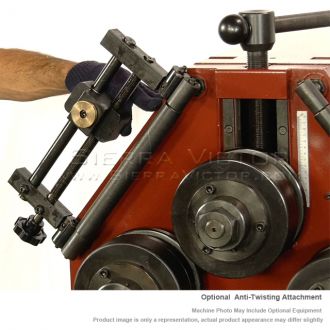

- Optional anti-twisting attachment ............ Call for pricing
- Video

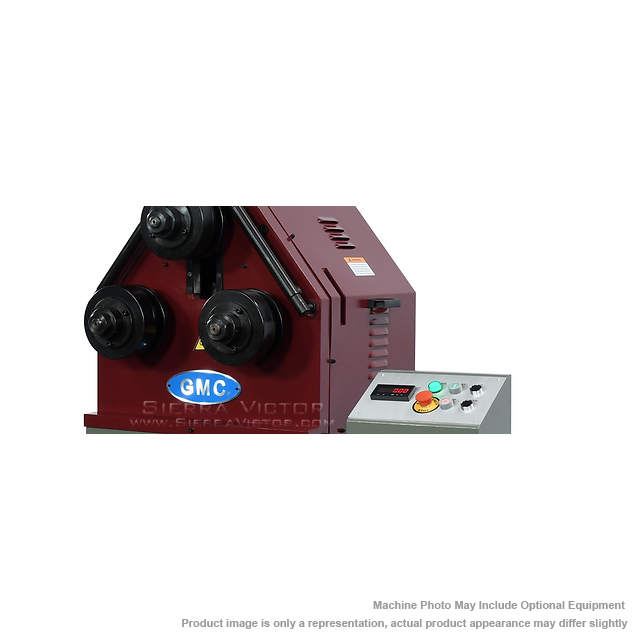

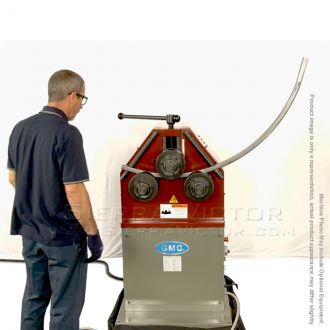

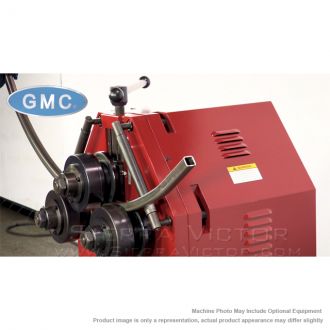

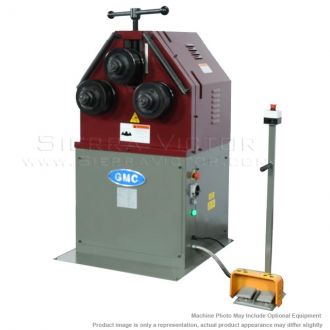

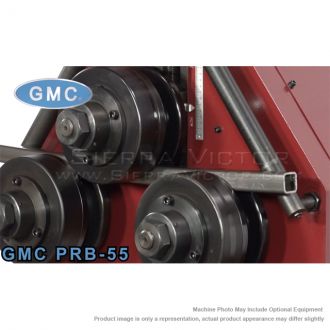

GMC 2 inch Angle Roll Bender with Manual Positioning PRB-55
STANDARD EQUIPMENT:
ITEM: 2 inch Power Ring and Angle Roll Bender
MANUFACTURER: GMC
MODEL: PRB-55
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Benders - Angle Roll
Control:
Manual
Metalworking

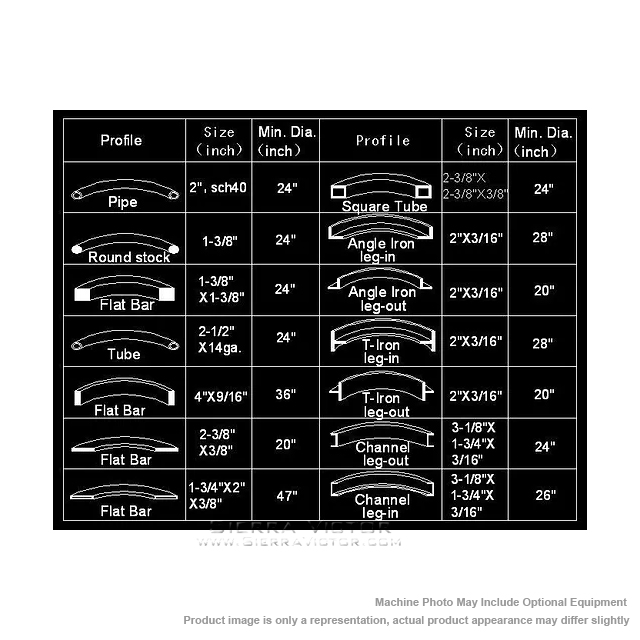

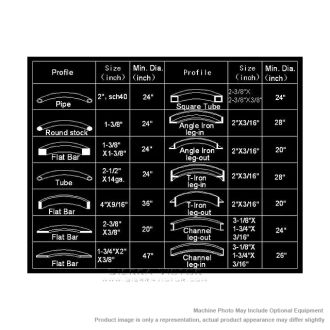

Bending Capacity:
2"
Pipe Capacity |
2” schedule 40 / Min. Dia.24” |
Tube Capacity |
2-1/2” x 14 Ga. (wall) / Min. Dia. 24” |
Solid Round Tube |
1-3/8” / Min. Dia. 24” |
Square Tube |
2” x 2” x 3/16” (wall) / Min. Dia. 24” |
Solid Square Tube |
1-3/8” x 1-3/8” / Min. Dia. 24” |
Solid Flat Bar |
4” x 9/16” (wall) / Min. Dia. 36” |
Solid Flat Bar |
2-3/8” x 3/8” (wall) / Min. Dia. 20” |
Angle Flat Bar |
2-3/4” x 2” x 3/8” (wall) / Min. Dia. 47” |
Angle Iron Leg-In |
2” x 3/16” (wall) / Min. Dia. 28” |
Angle Iron Let-Out |
2” x 3/16” (wall) / Min. Dia. 20” |
T-Iron Leg-In |
2” x 3/16” (wall) / Min. Dia. 28” |
T-Iron Leg-Out |
2” x 3/16” (wall) / Min. Dia. 20” |
Channel Leg-In |
3-1/8” x 1-3/4” x 3/16” / Min. Dia. 26” |
Channel Leg-Out |
3-1/8” x 1-3/4” x 3/16” / Min. Dia. 24” |
Dia. of roller |
7-1/2" |
Diameter of roller shaft |
2" |
Motor |
3 HP, 220VAC 3-Phase (Optional 440VAC) |
Roller Speed |
16 RPM |
Dimensions |
40 x 35 x 65 in. |
Weight |
1,050 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART# |
ITEM
|
PRICE |
34T-PRB55 |
ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
1T-PRB55 |
ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
114T-PRB55 |
ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
112T-PRB55 |
ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
2T-PRB55 |
ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
212T-PRB55 |
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
$CALL |
34P-PRB55 |
ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
1P-PRB55 |
ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
114P-PRB55 |
ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
112P-PRB55 |
ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
2P-PRB55 |
ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H |
$CALL |
