- Description
- Durability and Longevity: Our CNC and NC-equipped 4-roll hydraulic plate bending machines are produced to the highest quality standards and come with a 3-year warranty. Their robust construction ensures long-lasting performance, maintaining consistent operation even in high-demand production environments and helping you avoid costly repairs.
- Expert Support and After-Sales Services: Customer satisfaction is our top priority. Our expert team supports you throughout the entire process, from pre-sales to after-sales. We assist with product selection, installation, and training. Additionally, our maintenance and repair services ensure your machine runs smoothly.
- Contact us now to learn more about our CNC and NC 4-roll hydraulic plate bending machines and discover how they can enhance your business’s productivity. We are committed to offering the best solutions to meet your needs.
- NC Control

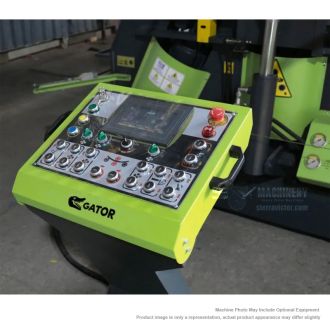

- Multi-functional touch screen (7” display up to 12″ top roll dia. ; 10” for top roll dia 12″ and above)
- PLC control with manual, semi-automatic, and fully automatic options
- 3-Stage Rotation Speed setting
- Bearing guidance system
- A572 Gr50 quality frame construction
- Bottom roll pressure setting
- Hydraulic top roll lifting and drop-end
- Automatic balance system by single button

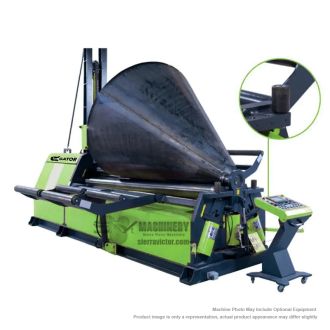

- Conical bending system and auxiliary parts

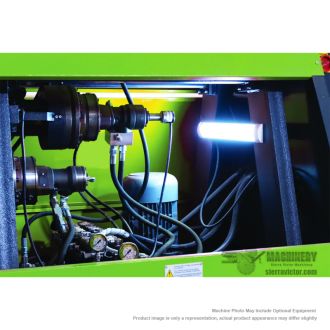

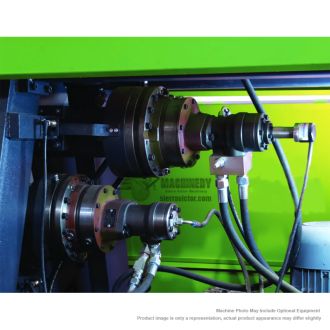

- Top and bottom rolls driven by hydraulic motor and planetary gearbox
- Linear guide system
- Hidden encoder to save roll rotation
- Protection system against overloads
- Continuous turning by single button
- Induction-hardened and polished rolls (1045)
- Three-stage view position on mobile control panel
- Online remote connection
- Formula page for calculating the radius and depth
- Sound-light buzzer warning system
- Emergency stop wire around the machine
- Maintenance time warning page
- Alarm page for machine warnings
- CE Certified
- Transparent control panel screen protection
- Ultrasonic safety sensor
- Manufacturer
- Specifications
- Options/Accessories
- CNC System
- Rear laser emergency stop barrier
- Variable speed feature
- Central support

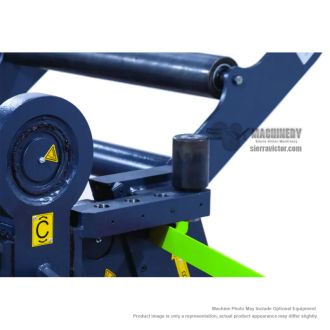

- Hydraulic side supports (2 pieces)
- Material feeding table
- Material output table
- Changeable top roll
- Automatic central lubrication system
- Oil cooling system
- Automation system for different voltage and frequency
- Custom Freight

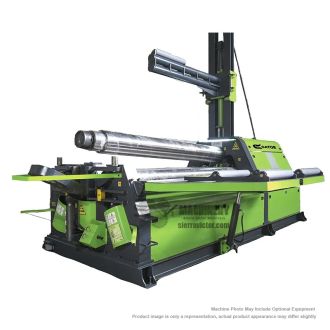

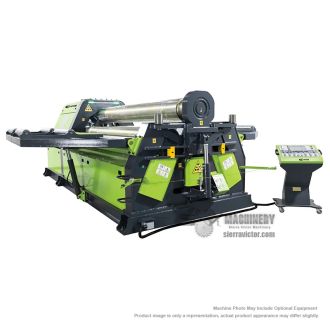

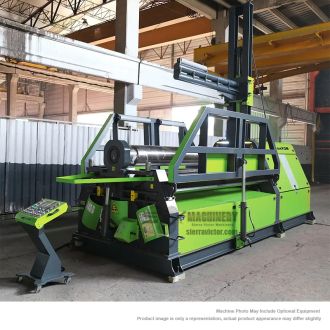

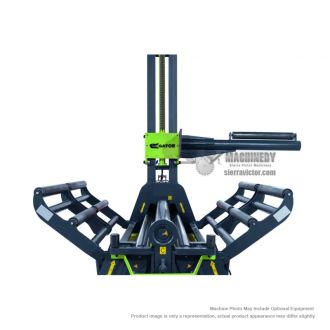

GATOR FAB 4-Rolls Hydraulic Plate Roll - Linear Guide | 200 (16 ft) x 1/4 - 1 3/8 in. G4L Series
STANDARD FEATURES:
ITEM: 200 x 1/4 - 1 3/8 in. 4-Rolls Hydraulic Plate Roll - Linear Guide
MANUFACTURER: GATOR FAB
MODEL: G4L 50
Manufacturer:
Gator Fab
Machine Type
Machine Category:
Plate Bending Rolls
Power Source:
Hydraulic
Metalworking
Material Length:
16 ft (192 in.+)
|
MODEL
|
Working Length
|
Mx. Thickness
|
Pre-Bending Thickness
|
|
inch
|
inch
|
inch
|
|
|
G4L 50/06
|
200
|
1/4
|
8 ga.
|
|
G4L 50/08
|
5/16
|
1/4
|
|
|
G4L 50/10
|
3/8
|
5/16
|
|
|
G4L 50/13
|
1/2
|
3/8
|
|
|
G4L 50/16
|
5/8
|
1/2
|
|
|
G4L 50/20
|
13/16
|
5/8
|
|
|
G4L 50/25
|
1
|
13/16
|
|
|
G4L 50/30
|
1-3/16
|
1
|
|
|
G4L 50/35
|
1-3/8
|
1-3/16
|
* The specifications above are based on steel with a yield point of 36,000 PSI.
GATOR reserves the right to change any of these specifications without prior notice.
* For other lengths and sizes please contact us
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR
CALL FOR PRICE:
