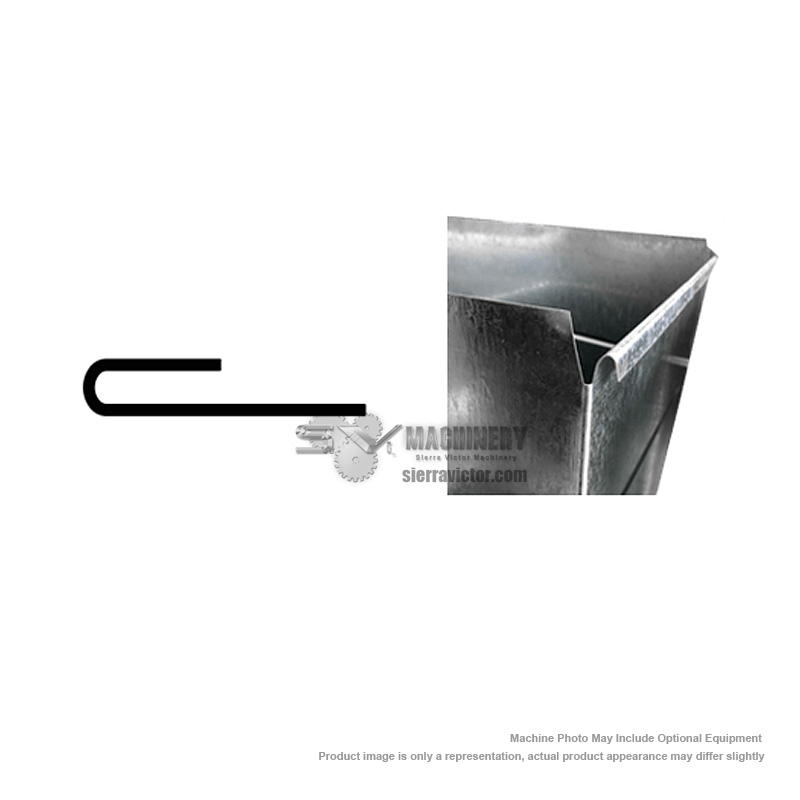

- FLAGLER HYC-30 HYBRID ELECTRIC/PNEUMATIC 30" x 20 GAUGE CLEATFOLDER MACHINE #34-200-H Turns a 7/16" Cleat on 20ga & Lighter Material
- The Flagler Hybrid Cleatfolder takes advantage of the best parts of the electric and the best parts of the pneumatic models. The clamping table is pneumatic: This gives a stronger holding power when clamping the metal. The bending process is done mechanically with a motor like the electric models which means it still has the speed of the electric.
- Manufactured in Michigan
- Guarded Safety Foot Switch
- Armor Plated Back-gauge Inserts.
- Manufacturer
- Specifications
- Custom Freight

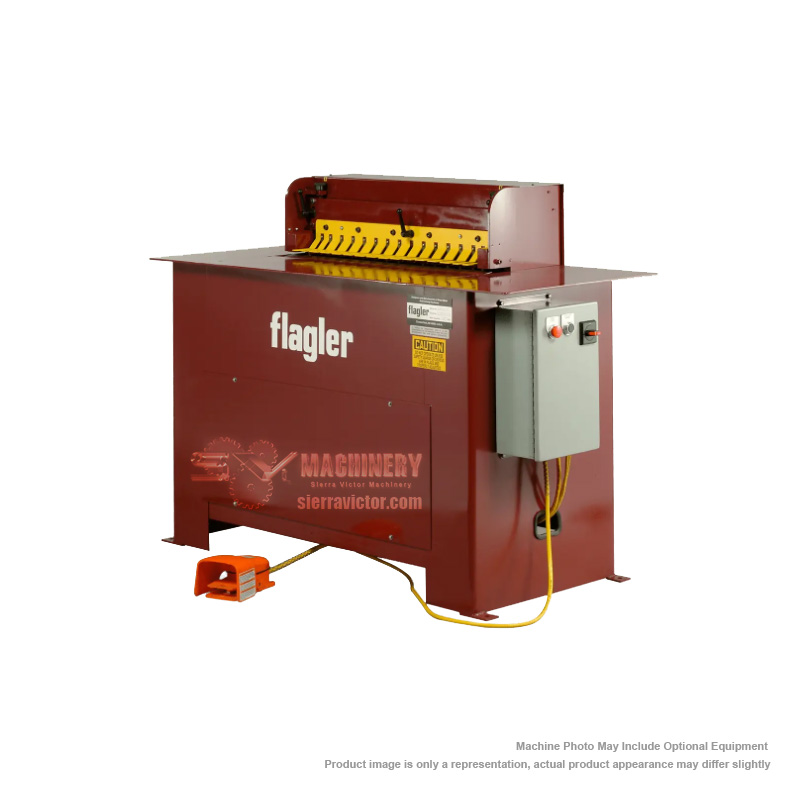

FLAGLER 30 in. x 20 ga. Hybrid Electric/Pneumatic Cleatfolder HYC-30
EQUIPPED WITH:
ITEM: 30 in. x 20 ga. Hybrid Electric/Pneumatic Cleatfolder
MANUFACTURER: FLAGLER
MODEL: HYC-30
STOCK# 34-200-H
Manufacturer:
Flagler
Machine Type
Machine Category:
Cleat Folders
Machine Sub-Category:
Hybrid
Control:
Electrical
Metalworking
Mild Steel Capacity:
20 ga
MODEL |
HYC-30 |
Cleat edge |
7/16 - 1/2 in. (20 ga. max) |
Cycle Time |
1.7 second |
Max Forming Width |
30 in. Wide |
Capacity |
20 gauge and lighter |
Design |
Open throat |
Bending Motor |
2 HP, 230/3/60 gear motor w/overload shear pin |
Clamping Table |
Pneumatic 90 psi |
Dimensions |
59 wide x 27 long x 46 high in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
