- Description
- Turns a 7/16" Cleat on 20ga & Lighter Material
- The Flagler Hybrid Cleatfolder takes advantage of the best parts of the electric and the best parts of the pneumatic models
- The clamping table is pneumatic: This gives a stronger holding power when clamping the metal. The bending process is done mechanically with a motor like the electric models which means it still has the speed of the electric.
- All Flagler Machinery is engineered, manufactured, assembled, and tested in their factory in Chesterfield, Michigan, USA
- Guarded Safety Foot Switch
- Armor Plated Back-gauge Inserts
- Manufacturer
- Specifications
- Custom Freight

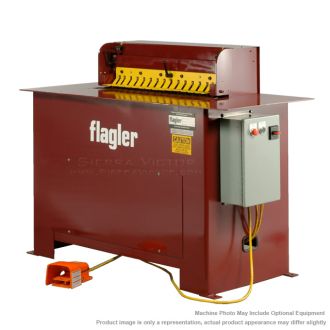

FLAGLER 36" x 20 ga. Hybrid Electric/Pneumatic Cleatfolder HYC-36
STANDARD EQUIPMENT:
ITEM: 36" x 20 ga. Hybrid Electric/Pneumatic Cleatfolder
MANUFACTURER: FLAGLER
MODEL: HYC-36
STOCK# 34-300-H
Manufacturer:
Flagler
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Control:
Electrical
Metalworking
Mild Steel Capacity:
20 ga
MODEL |
HYC-36 |
Cleat edge |
7/16" - 1/2" (20 ga. max) |
Cycle Time |
2.2 second |
Max Forming Width |
36" wide |
Capacity |
20 Gauge & Lighter |
Design |
Open Throat |
Bending Motor |
2 HP 230V/3/60 gear motor w/ overload shear pin |
Clamping Table |
Pneumatic 90 psi |
Dimensions |
27" wide x 65" long x 46" high |
Shipping Weight |
1,150 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
