- Description

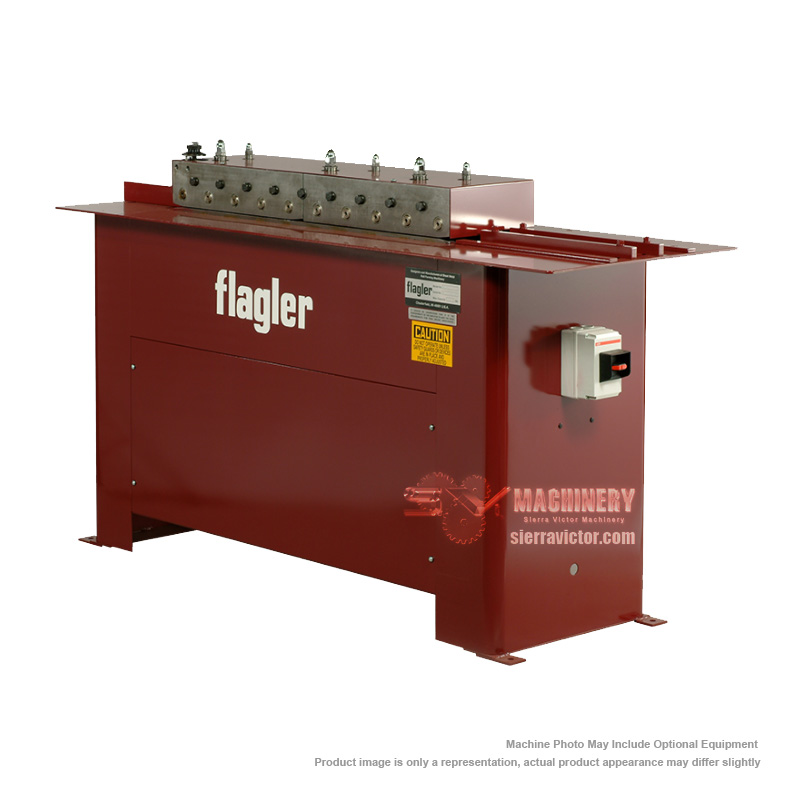

- Flagler 20 Gauge High-Speed Button Lock equipped with built-in Male and Female Button Lock Rolls 5 HP 230/3/60/1800 RPM, motor and manual (100 fpm) #30-000

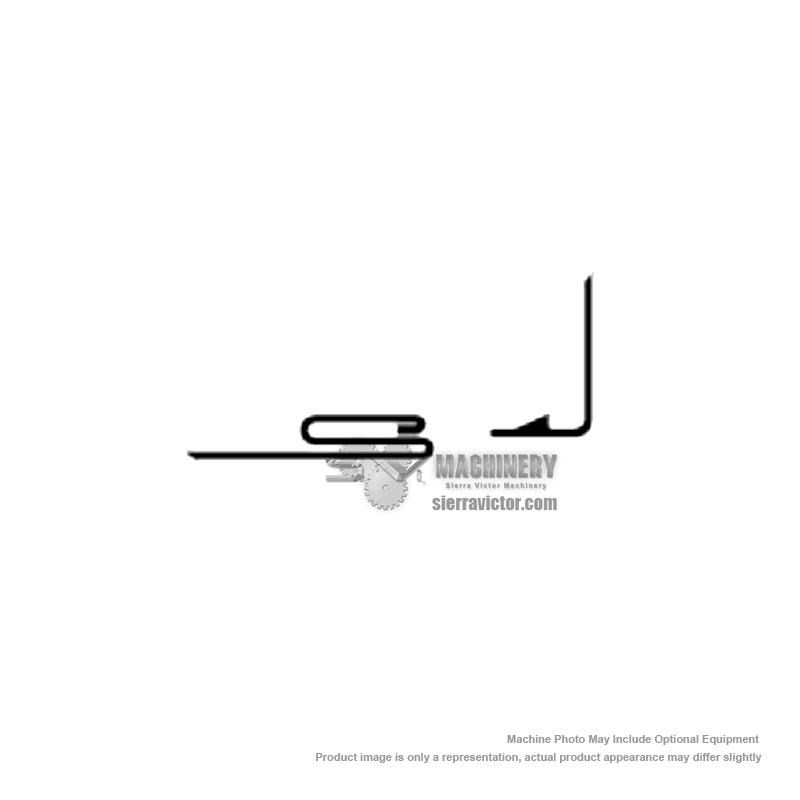

- Runs a female receiver lock on inboard rolls and the male button-punched right angle flange on the outboard rolls. The inboard female operation is fixed.
- Manufactured in Michigan
- Manufacturer
- Specifications
- Custom Freight
FLAGLER 20 ga. High Speed Button Lock
ITEM: 20 ga. Standard Pittsburgh Machine
MANUFACTURER: FLAGLER
MODEL: 30-000
Manufacturer:
Flagler
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Metalworking
Mild Steel Capacity:
20 ga
Maximum Capacity, Mild Steel |
20 ga |
Depth of Pocket |
9/16 in. |
Speed (Approx) |
100 fpm |
Number of Stations |
10 |
Drive |
Double Matched V-Belt |
Base |
Arc Welded Steel Heavy Top Plate |
Work Height (Feed Table) |
35-1/8 in. |
Shaft - Center to Center |
1-3/4 in. |
Gear Ratio |
1 to 1 |
Motor |
5HP, 230/3/60, 1800 RPM |
Dimensions |
69 L x 24 W x 42 H in. |
Shipping Weight (approx) |
1,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
