- Description
- Finish Pro Model FP-5160T Dry Type Line Graining/Deburring/Finishing machine
- Made in Taiwan
- Computerized programmable thickness control
- Abrasive belt size: 51” x 60”
- 10" diameter heavy duty drum for perfect graining
- 5-1/8" wide opening for max. workpiece thickness 5"
- Motorized Table Lift with LED display
- Variable Speed Conveyor
- Conveyor Forward and Reverse
- Belt Safety Overtravel Switches
- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double Infeed and Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning and compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase ( 440/460V is available )
- One year Industrial Warranty for parts.
- NOTE:
- Prices are for 208-230 VOLTS
- Total amps 120 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
- CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
- DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
- This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
- Manufacturer
- Specifications
- Options/Accessories
- WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
- *This machine requires two sets Wet Dust Collectors #WDC-2100 & 2 sets of ducting packages

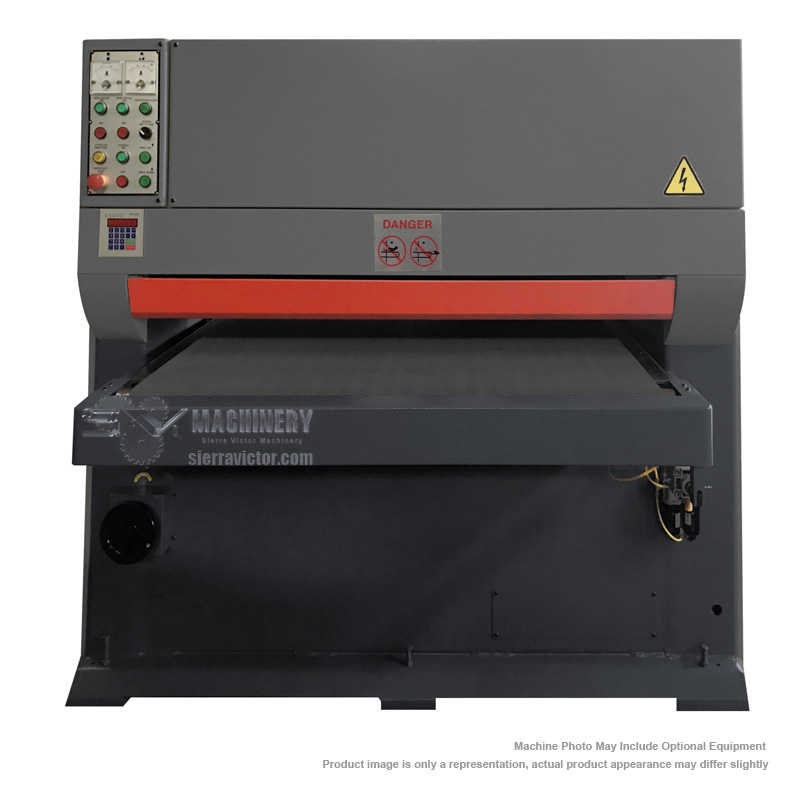

FINISH PRO 51x60 in. Heavy Duty Finishing Machine FP-5160T
ITEM: 51 x 60 in. Heavy Duty Finishing Machine
MANUFACTURER: FINISH PRO
MODEL: FP-5160T
Manufacturer:
Finish Pro (GMC)
Grinder/Sander Size:
51" x 60"
Machine Type
Machine Category:
Deburring/Finishing
Machine Sub-Category:
Wide Belt
Material Type:
Metal
| Max. Part Width |
51 in. |
| Abrasive Belt Size |
51 x 60 in. |
| Contact Roller Size |
8 in. Dia. |
Passline Height |
31-37 in. |
Thickness Capacity |
20Ga to Max. 5-1/8 in. |
Conveyor Drive Speeds |
15-56 FPM |
Infeed Conveyor Length |
20 in. |
Dust Collector Capacity |
2,800 CFM |
Outlet of dust hood |
Dia 6 in. x 2 outlets |
Main Motor |
30 HP, 230/460v, 3-ph |
Conveyor Motor |
2 HP, 230/460v, 3-Ph |
Table Lifting Motor |
2 HP, 230/460v, 3-Ph |
Amperage Draw |
120A on 220V, 60A on 440V |
Machine Weight, approx. |
4,190 lbs |
Machine Dimensions LxWxH |
82 x 68 x 73 in. |
Machine Shipping Dimensions LWH |
84 x 70 x 75 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM |
PRICE
|
WDC-2100 |
Wet Dust Collector, 5 HP, 2100CFM (it is demo wet collector, all stainless steel) |
$10,950.00 |
HDDP-2560 |
Heavy Duty Ducting Package |
$1,290.00 |
ST |
Service Engineer for Start-Up and On-site Training. Plus travel expenses |
$POR |
