STANDARD FEATURES:

• 29.5 INCH SERVO MOTORIZED BACK GAUGE SYSTEM
• 700W servo drive and motor with +/- 0,1 mm accuracy
• 32/32 thread ballscrew system with +/- 0,05 mm accuracy
• Aluminum sigma profile sheet support

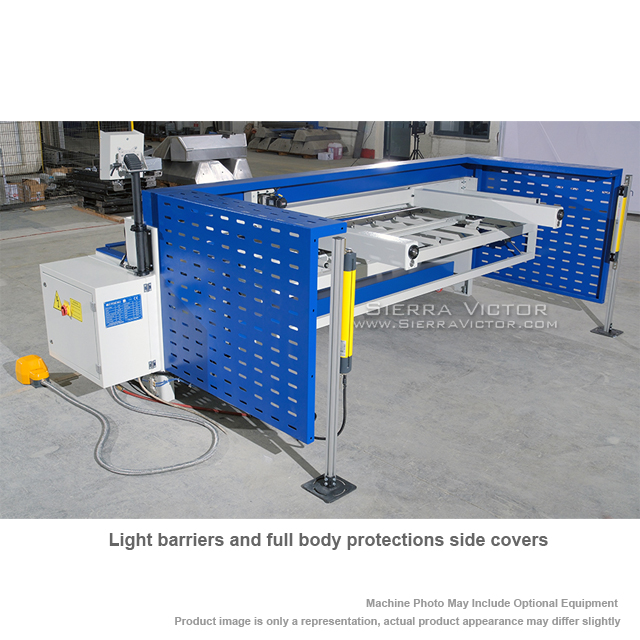

• One fixed, one movable, full body protective, vertical light barriers
• Side fences to avoid unwanted interventions

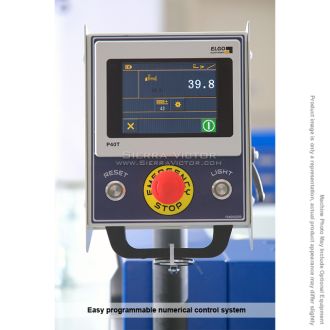

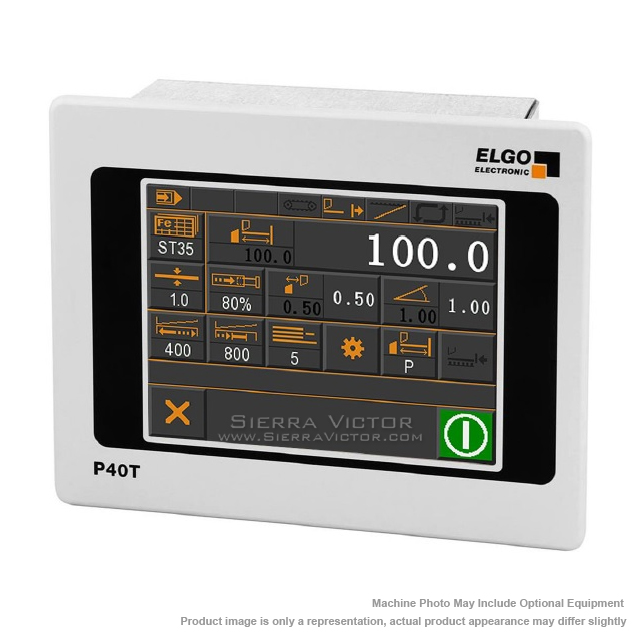

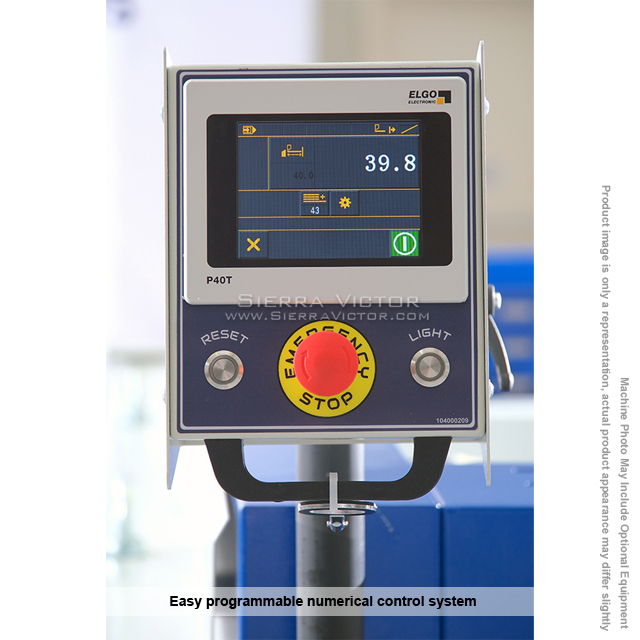

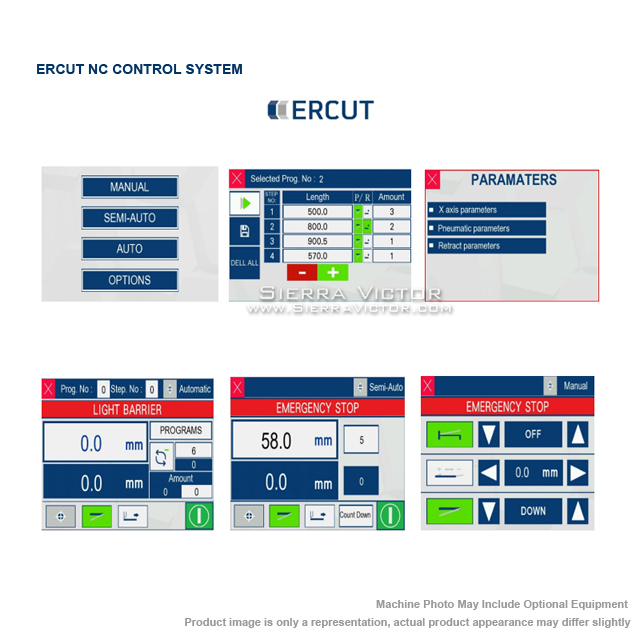

• ERCUT NC CONTROL SYSTEM
• HMI - 7 inch TFT display touchscreen with 800x480 resolution
• Ethercat + USB inputs and IP65 protection class
• 128 MB memory for 10.000 programmes with 10 steps
• Manual,semi-automatic and automatic functions
• Parametrical settings for retraction, pneumatic support and backgauge
• Language selection (specific languages can be imported)

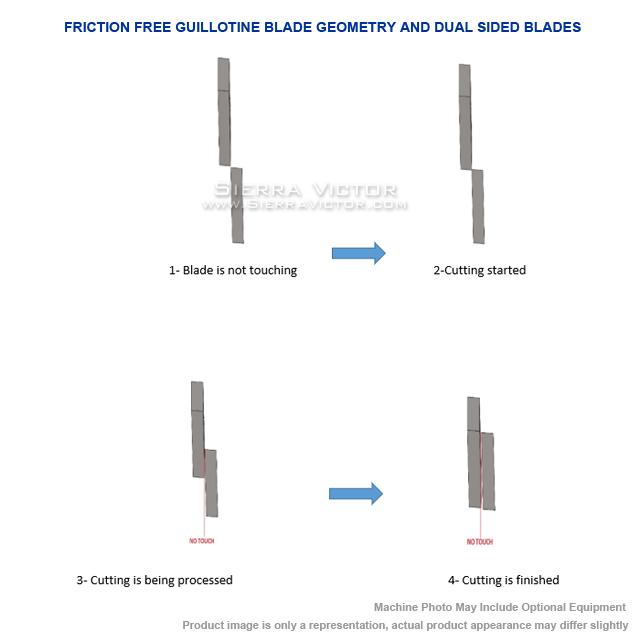

• FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES
• Thanks to the curvy machined blade geometry, blades never touch eachother which sustains a much more longer blade life without sacrificing cutting presicion.
• Both sides of the blades can be used by switching easily
• 2525 – 3220 - 4015 series do not have/need blade gap adjustment, all thicknesses can be done with the same fixed adjustment
• 2540 and 3240 series have manual mechanical blade gap adjustment function

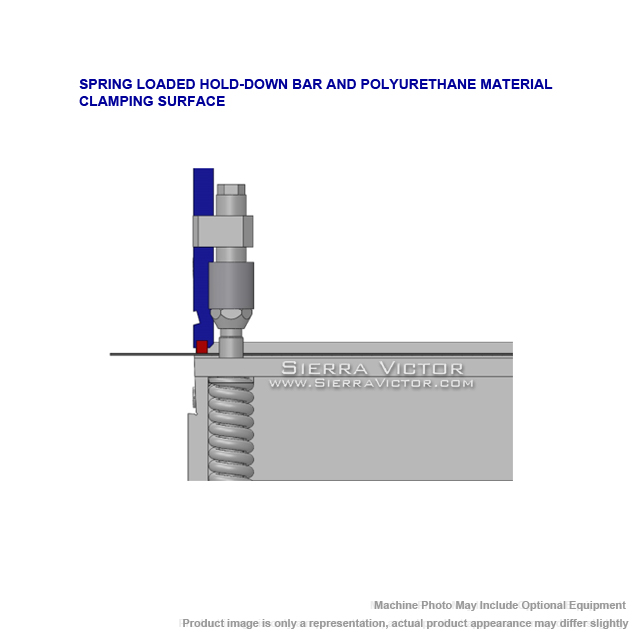

• SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE
• Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting
• With the polyurethane touching surface (shown in red below), your material is never scratched

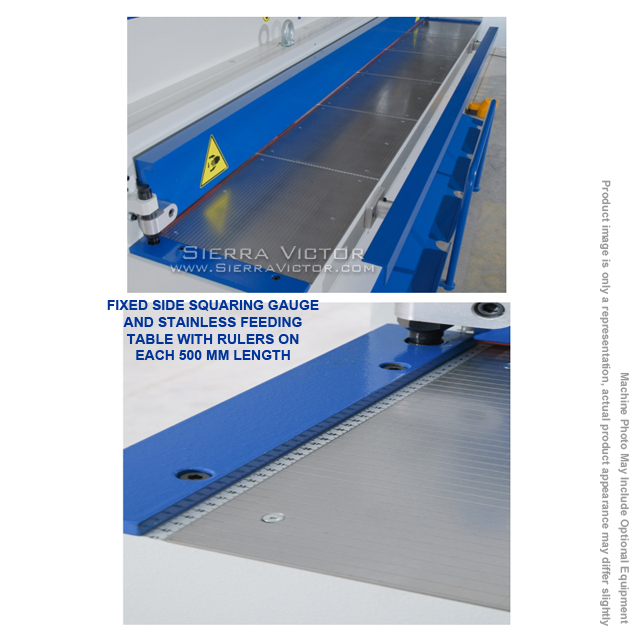

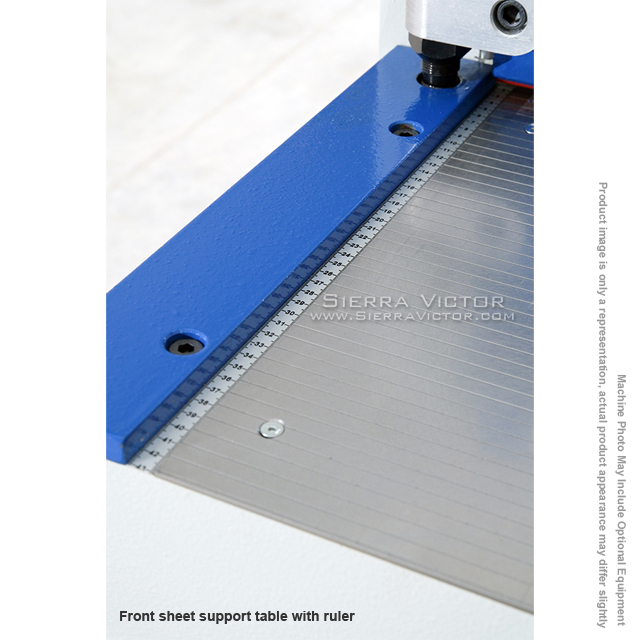

• FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 19.68 INCH LENGTH

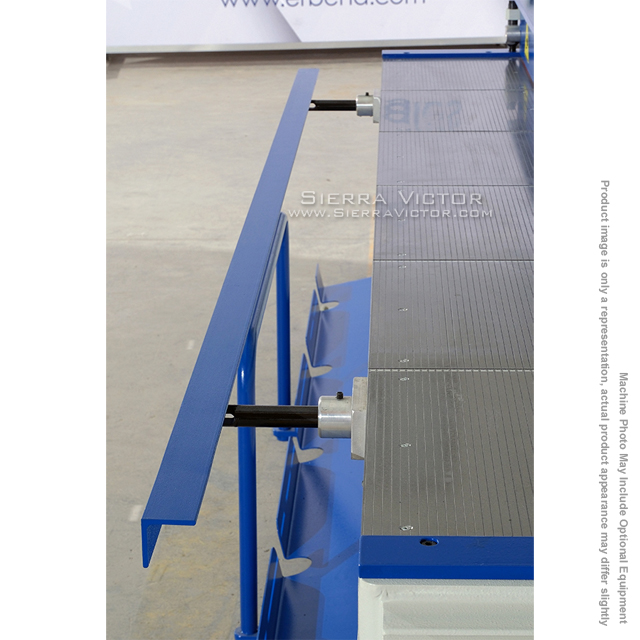

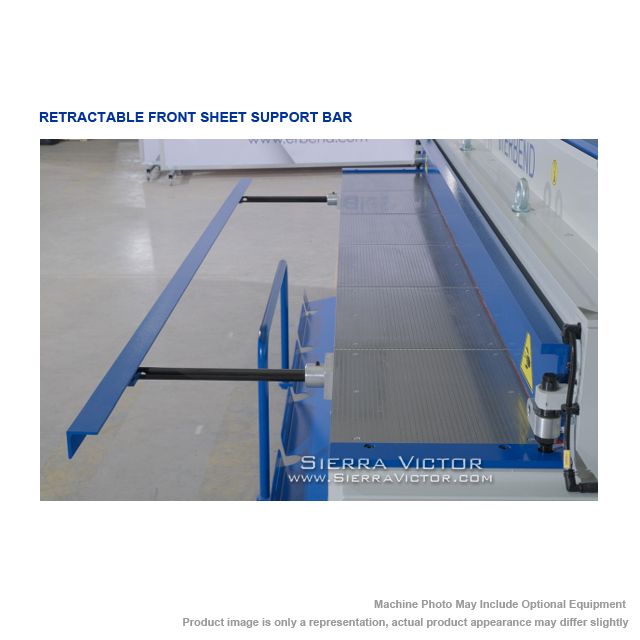

• RETRACTABLE FRONT SHEET SUPPORT BAR
• From the cutting line to the edge, it is able to support max 36.6 inch long sheets
• Smooth and light movement only by pulling from the middle

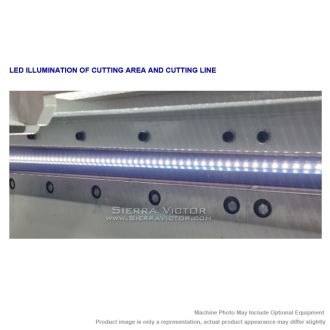

• LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

CALL FOR PRICE:

• 29.5 inch NC motorized back gauge system

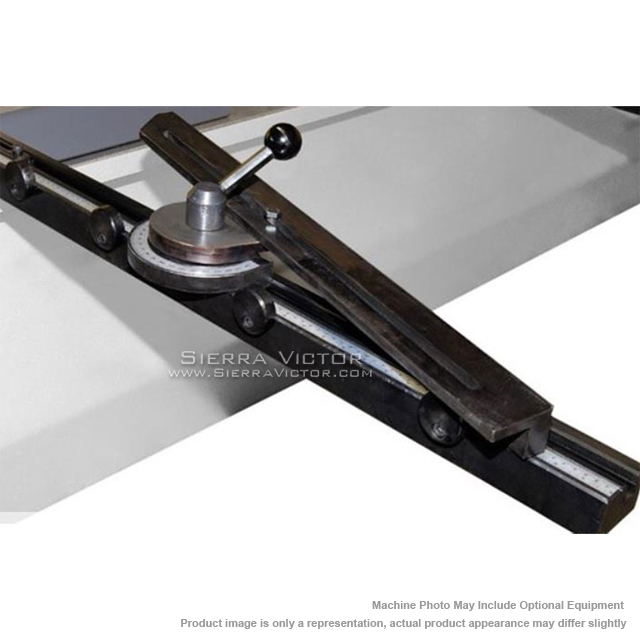

• 0-180° angular cutting device
• Pneumatic sheet support system
• Blade set as spares

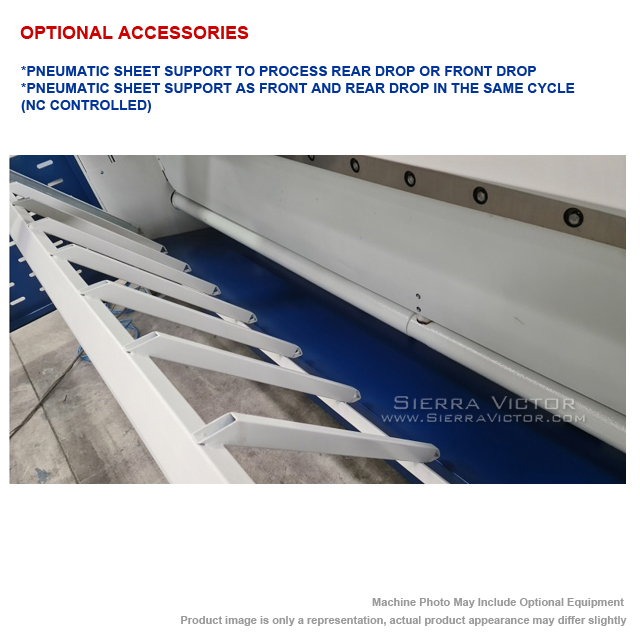

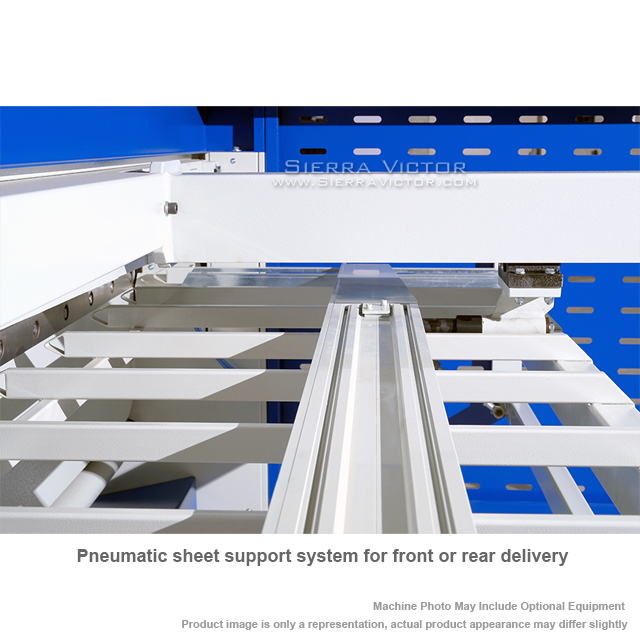

• PNEUMATIC SHEET SUPPORT TO PROCESS REAR DROP OR FRONT DROP
• PNEUMATIC SHEET SUPPORT AS FRONT AND REAR DROP IN THE SAME CYCLE (NC CONTROLLED)

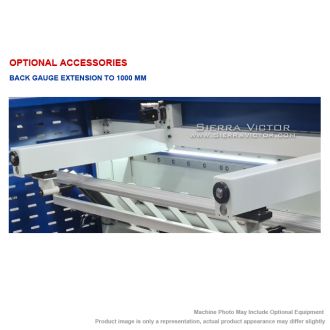

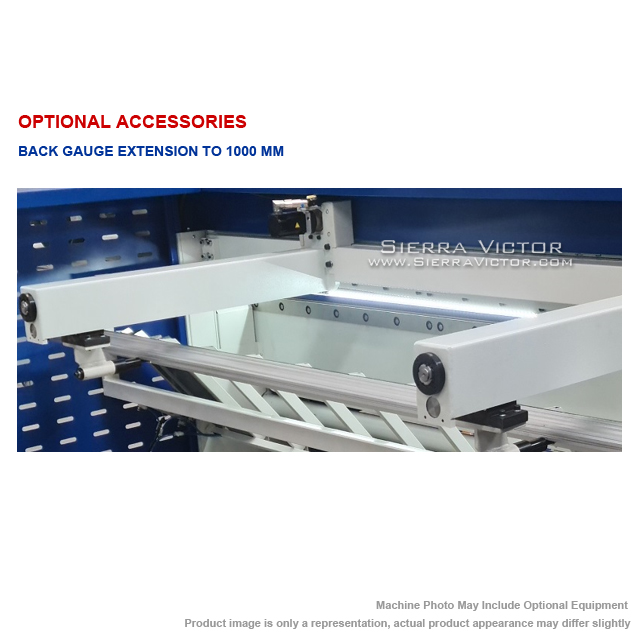

• BACK GAUGE EXTENSION TO 39 INCH

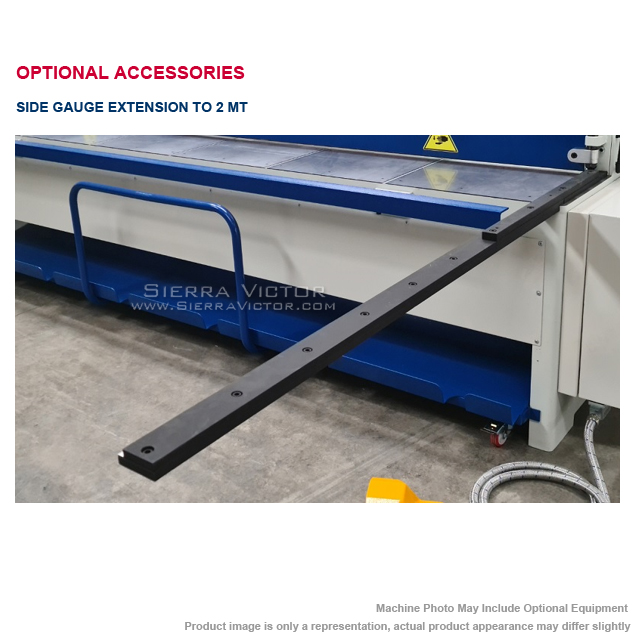

• SIDE GAUGE EXTENSION TO 2 MT

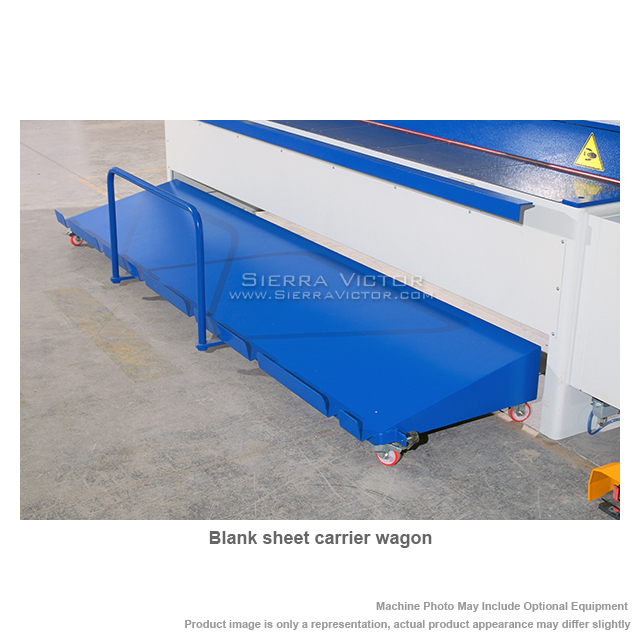

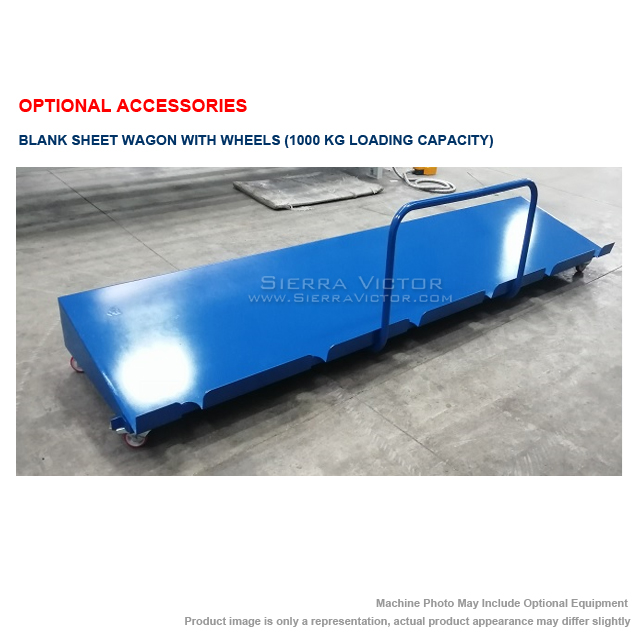

• BLANK SHEET WAGON WITH WHEELS (2204.6 LBS LOADING CAPACITY)

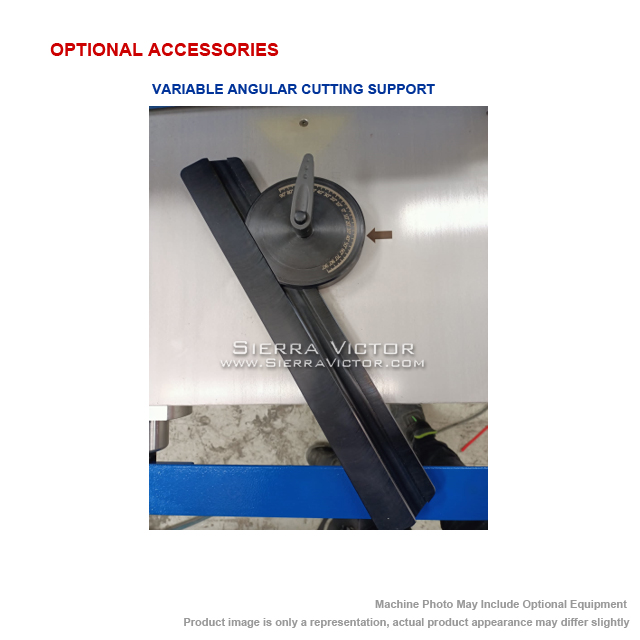

• VARIABLE ANGULAR CUTTING SUPPORT

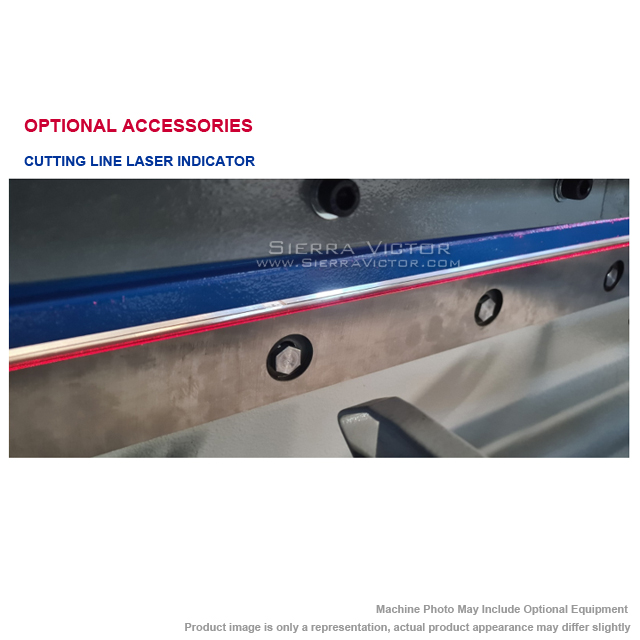

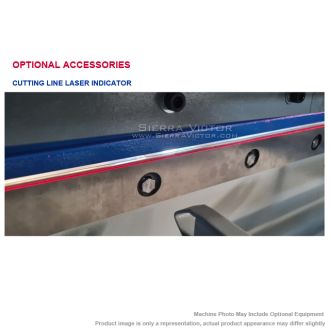

• CUTTING LINE LASER INDICATOR
