MODEL EMS 3220 IN STOCK
- Description
- 29.5 inch NC motorized back gauge system

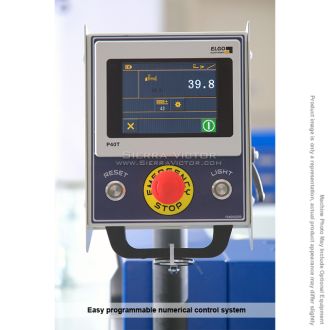

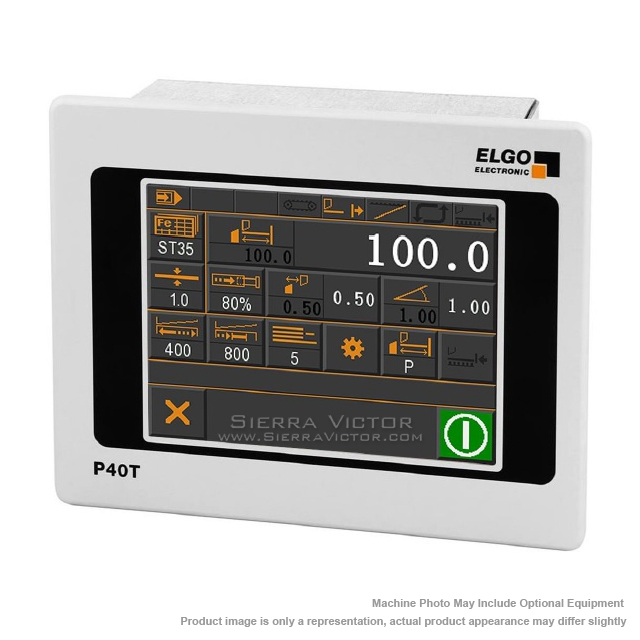

- ELGO P40T touchscreen digital NC controller unit
- Back light barriers and finger protection cover in front side.
- Sliding front sheet support arms
- Shadow light and cutting line enlightenment
- Suitable for CE norms
- Manufacturer
- Product Features

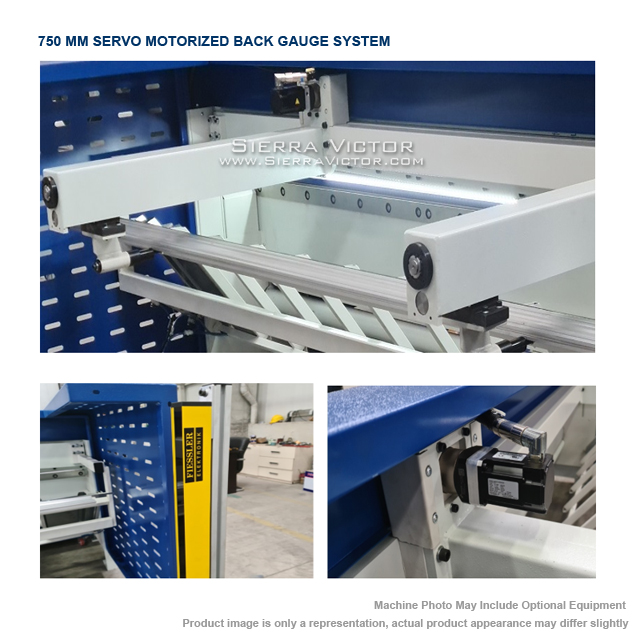

- 29.5 INCH SERVO MOTORIZED BACK GAUGE SYSTEM
- 700W servo drive and motor with +/- 0,1 mm accuracy
- 32/32 thread ballscrew system with +/- 0,05 mm accuracy
- Aluminum sigma profile sheet support

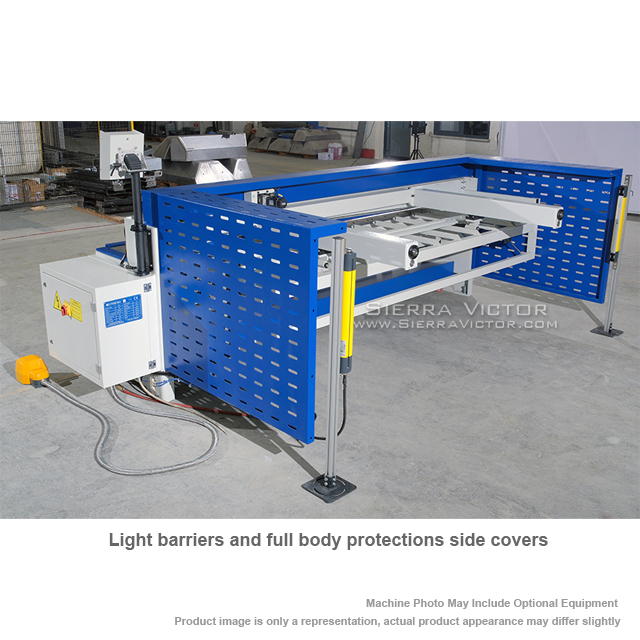

- One fixed, one movable, full body protective, vertical light barriers
- Side fences to avoid unwanted interventions

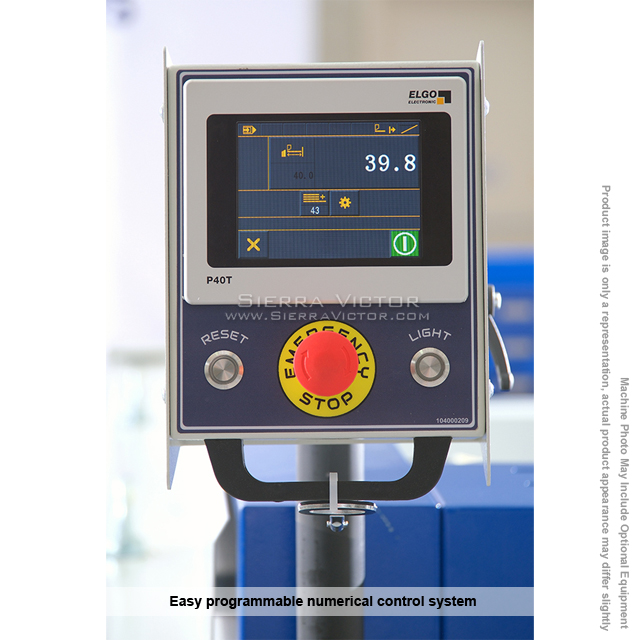

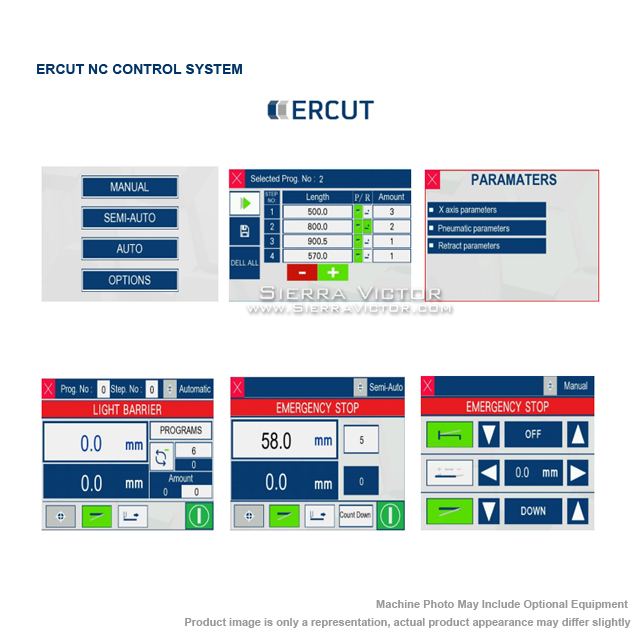

- ERCUT NC CONTROL SYSTEM
- HMI - 7 inch TFT display touchscreen with 800x480 resolution
- Ethercat + USB inputs and IP65 protection class
- 128 MB memory for 10.000 programmes with 10 steps
- Manual,semi-automatic and automatic functions
- Parametrical settings for retraction, pneumatic support and backgauge
- Language selection (specific languages can be imported)

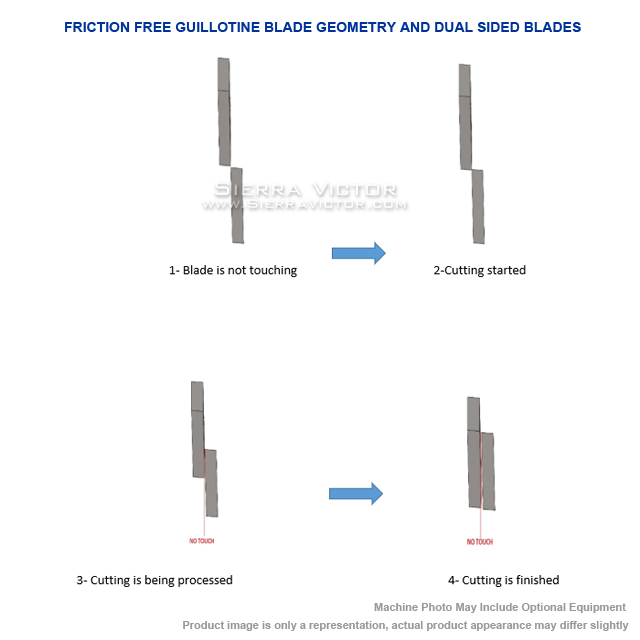

- FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES
- Thanks to the curvy machined blade geometry, blades never touch eachother which sustains a much more longer blade life without sacrificing cutting presicion.
- Both sides of the blades can be used by switching easily
- 2525 – 3220 - 4015 series do not have/need blade gap adjustment, all thicknesses can be done with the same fixed adjustment
- 2540 and 3240 series have manual mechanical blade gap adjustment function

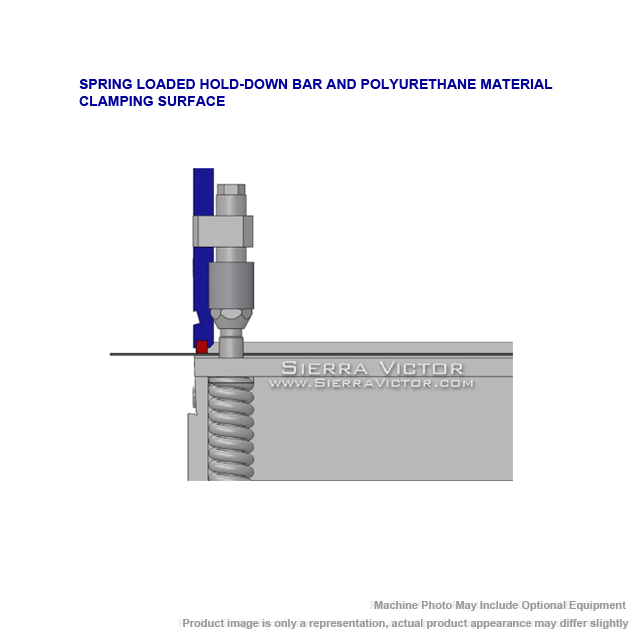

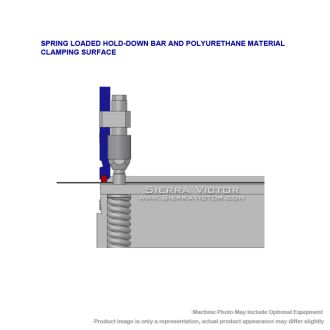

- SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE
- Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting
- With the polyurethane touching surface (shown in red below), your material is never scratched

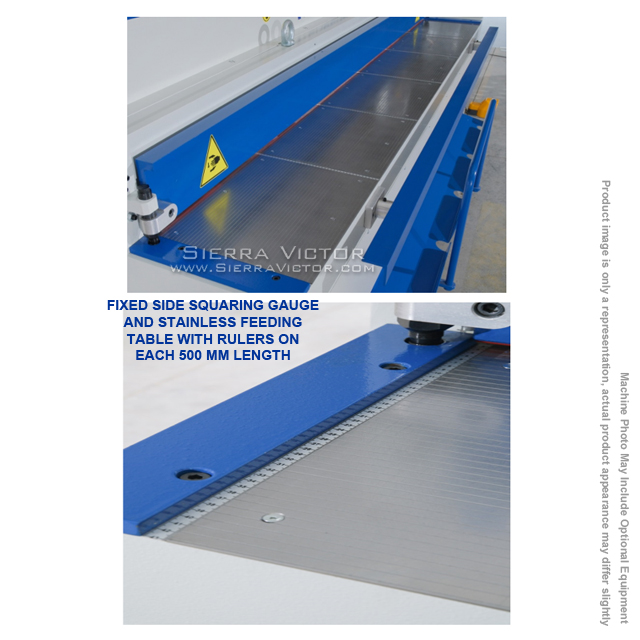

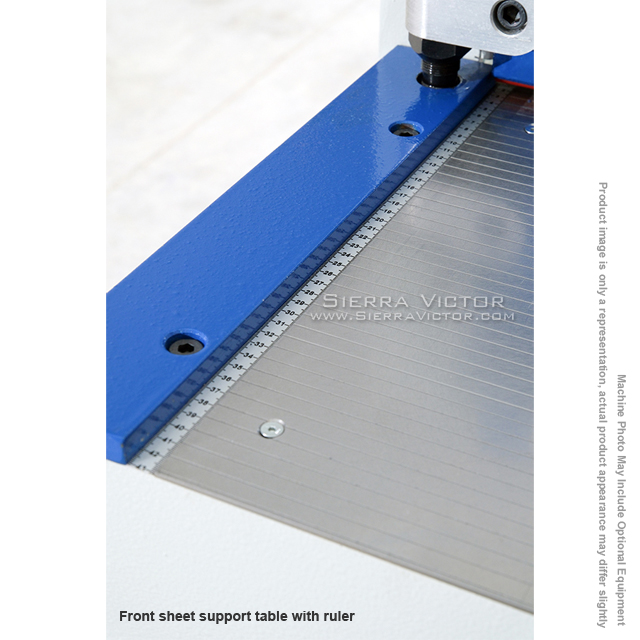

- FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 19.68 INCH LENGTH

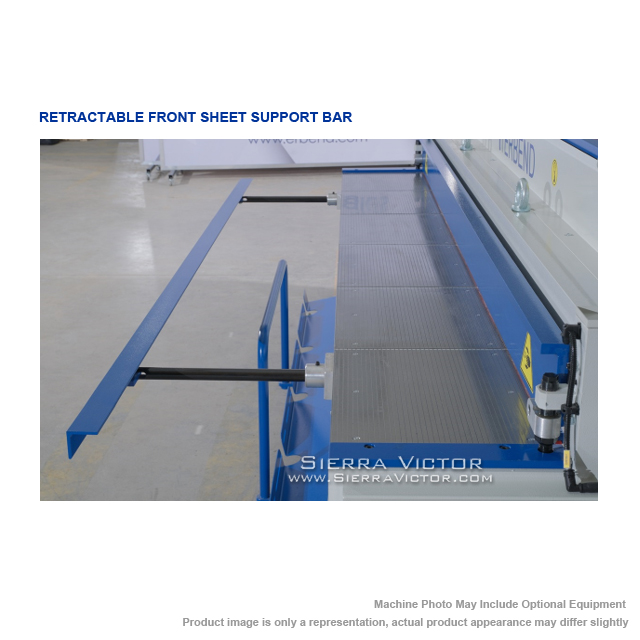

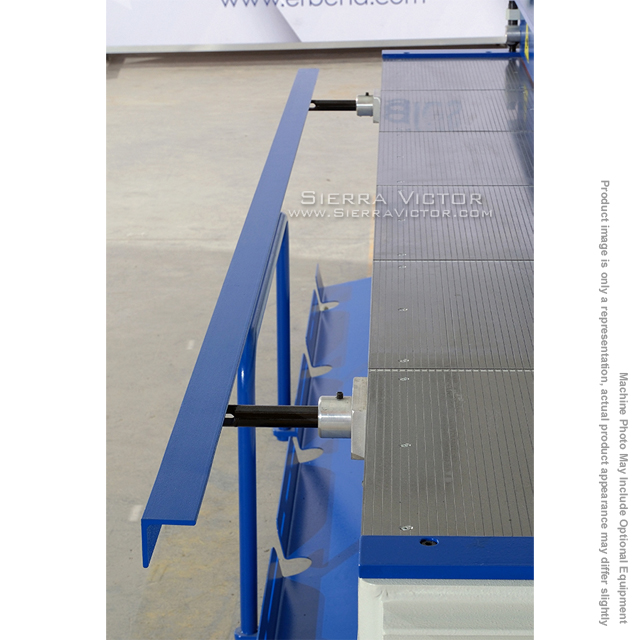

- RETRACTABLE FRONT SHEET SUPPORT BAR
- From the cutting line to the edge, it is able to support max 36.6 inch long sheets
- Smooth and light movement only by pulling from the middle

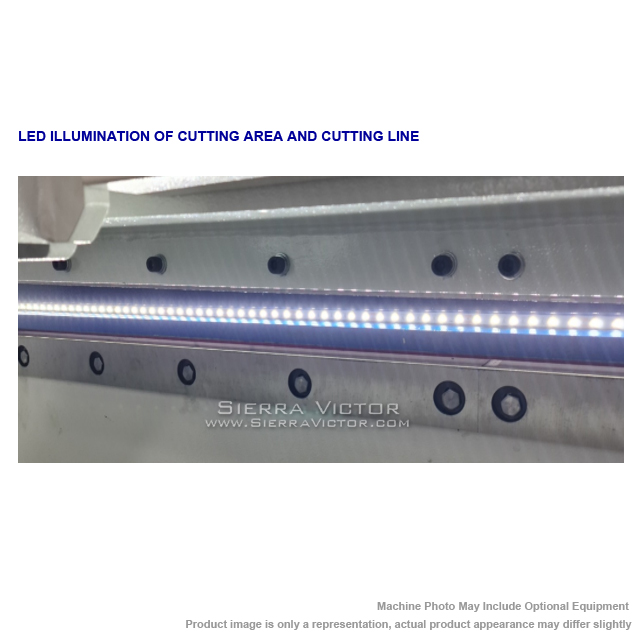

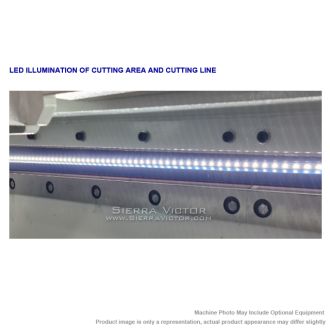

- LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE
- Specifications
- Options/Accessories
- 39 inch NC motorized back gauge system
- 0-180° angular cutting device
- Pneumatic sheet support system
- Blade set as spares

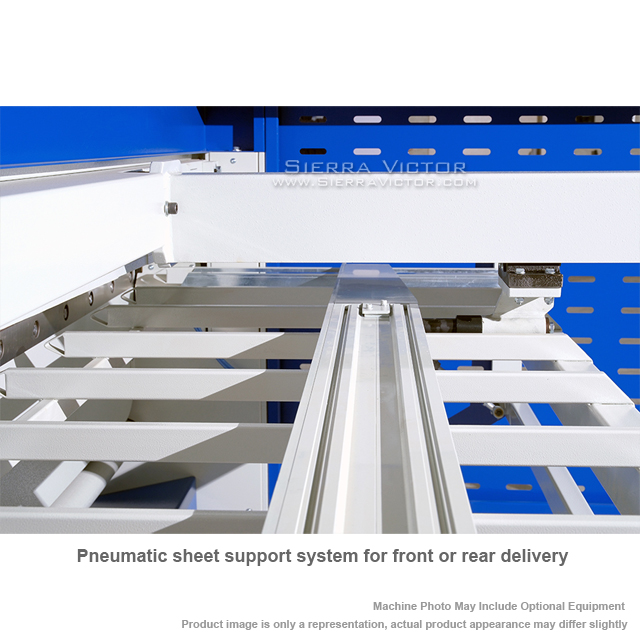

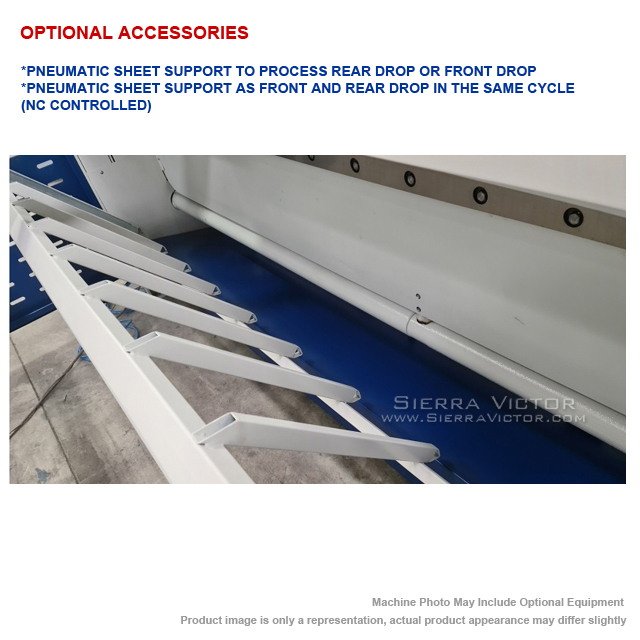

- PNEUMATIC SHEET SUPPORT TO PROCESS REAR DROP OR FRONT DROP
- PNEUMATIC SHEET SUPPORT AS FRONT AND REAR DROP IN THE SAME CYCLE (NC CONTROLLED)

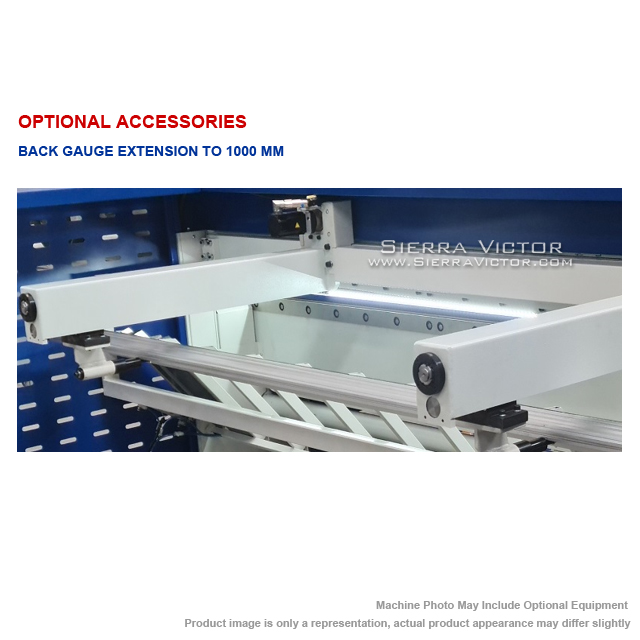

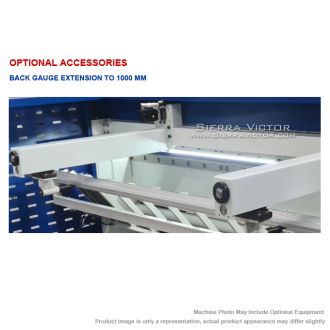

- BACK GAUGE EXTENSION TO 39 INCH

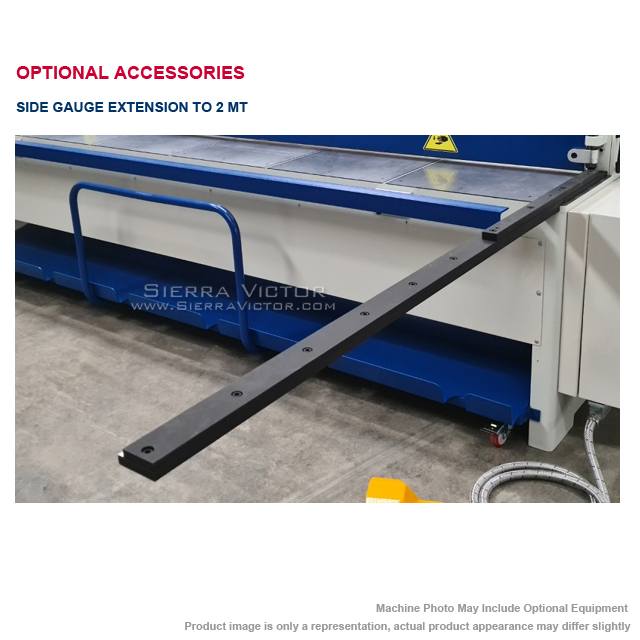

- SIDE GAUGE EXTENSION TO 2 MT

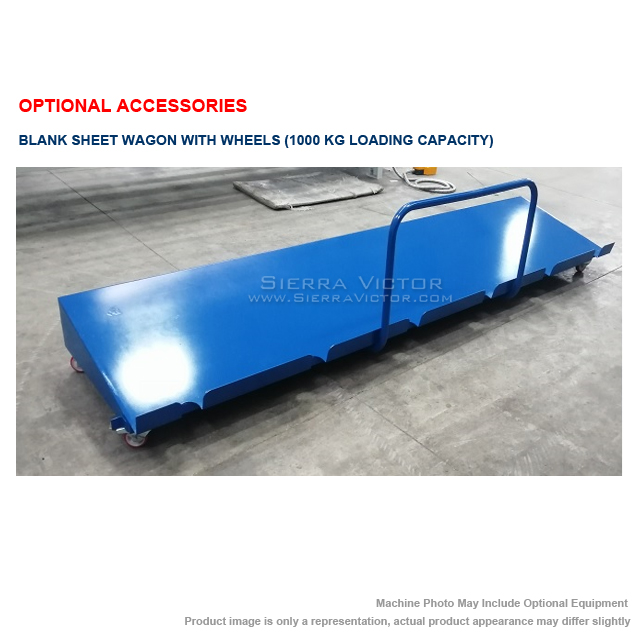

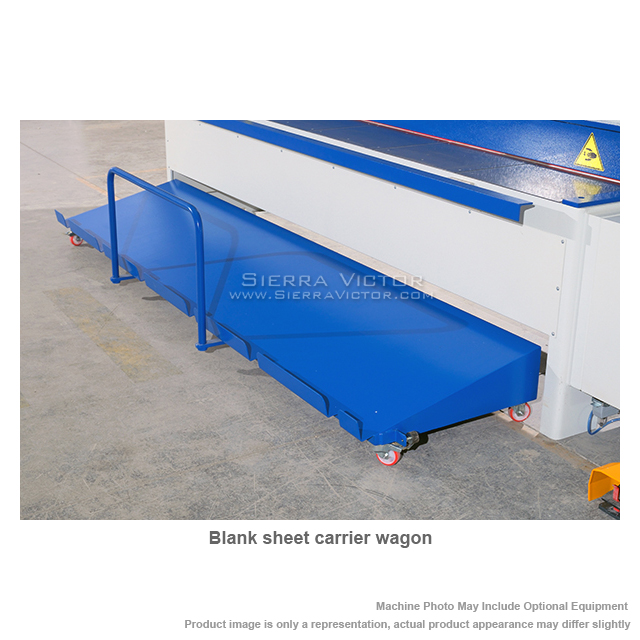

- BLANK SHEET WAGON WITH WHEELS (2204.6 LBS LOADING CAPACITY)

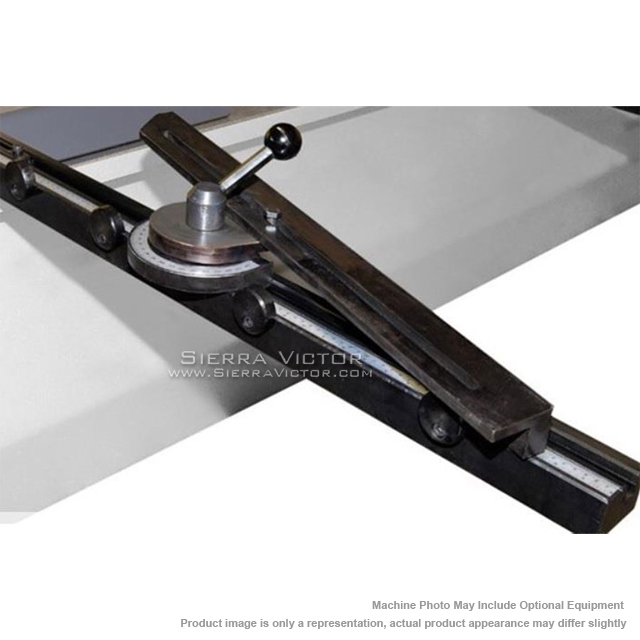

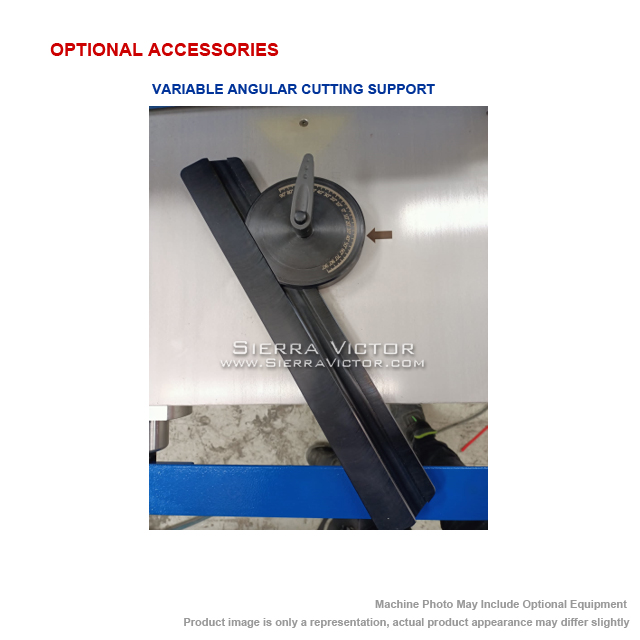

- VARIABLE ANGULAR CUTTING SUPPORT

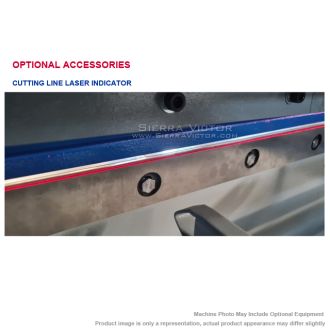

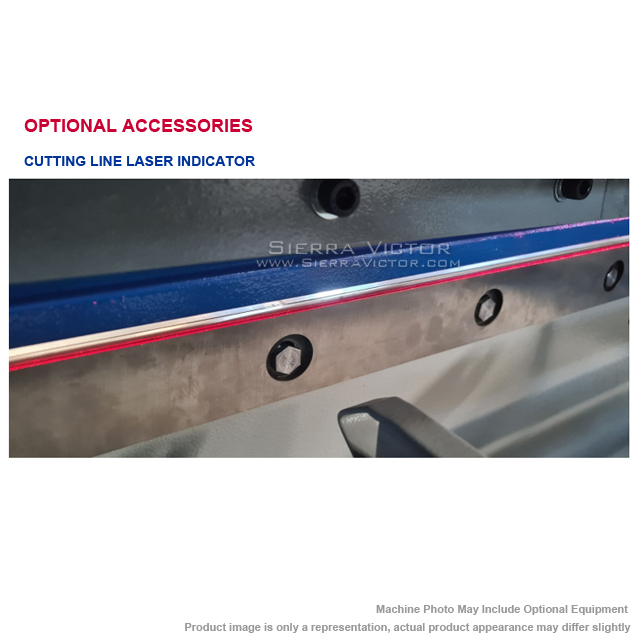

- CUTTING LINE LASER INDICATOR
- Custom Freight
- Video

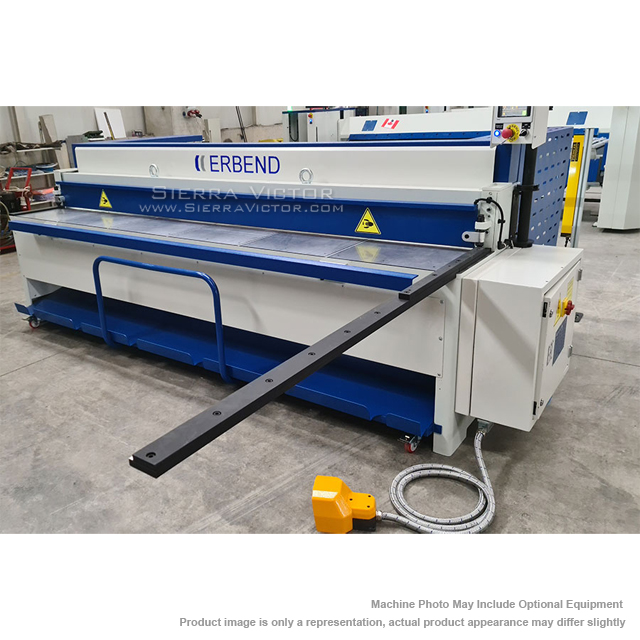

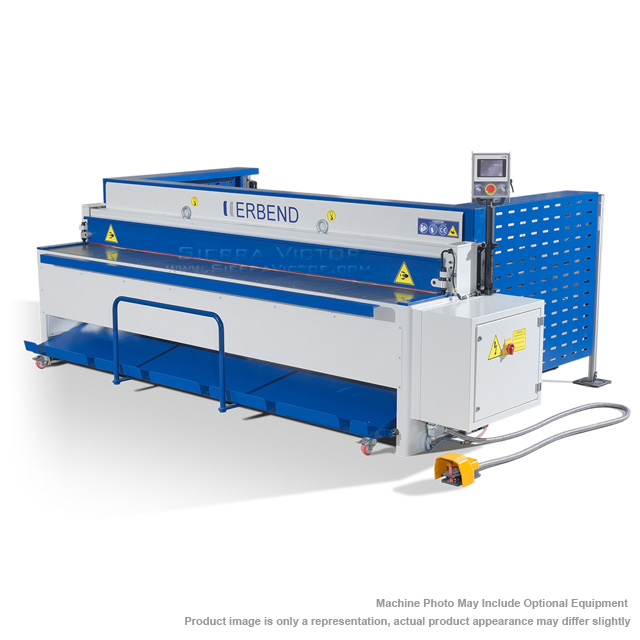

ERBEND 10 ft x 0.078 in. - 0.157 in. NC Motorized Shears EMS 3220 / EMS 3240
ITEM: 10' x 0.078 in. - 0.157 in. NC Motorized Shears
MANUFACTURER: ERBEND
MODEL: EMS 3220 / EMS 3240
Manufacturer:
Erbend
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Motorized
Control:
NC
Material Type:
Metal
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Stainless Steel Capacity:
18 ga
STANDARD FEATURES:
MODEL
|
EMS 3220
|
Sheet Length |
125.9 in. (10.5 ft) |
Mild Steel |
0.078 in. |
Stainless |
0.047 in. |
Aluminum |
0.118 in. |
Dimensions |
67 x
144 x 51 in. |
Weight |
6,834 lbs. |
MODEL
| EMS 3240
|
Sheet Length | 125.9 in. (10.5 ft) |
Mild Steel | 0.157 in. |
Stainless | 0.098 in. |
Aluminum | 0.236 in. |
Dimensions | 67 x
144 x 51 in. |
Weight | 7,055 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
