- Description
- Vertical clamping with 7.87 in. stroke
- Easy tool clamping system with specific Erbend design
- All segmented tools are 42CrMo4 material, 60 HRC laser induction surface hardened and grinded

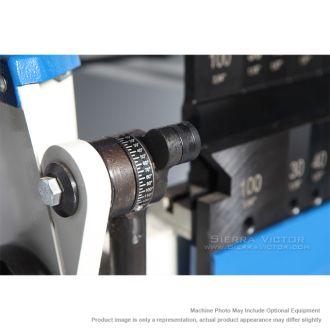

- Bending angle stabilization system
- Clamping beam stabilizer arm
- Clamping beam stabilizer foot pedal
- Easier clamping re-swivel thanks to special pressure springs
- Easier folding re-swivel thanks to special return springs
- 19.68 in. manual back gauge system
- Tool accessory cabinet holder

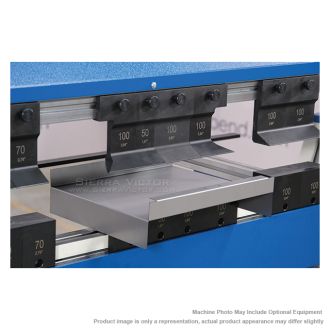

- STANDARD TOOLS

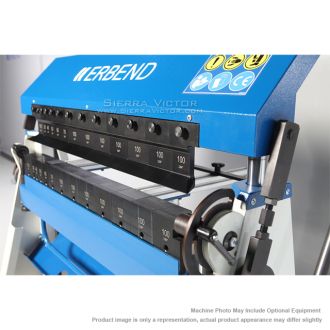

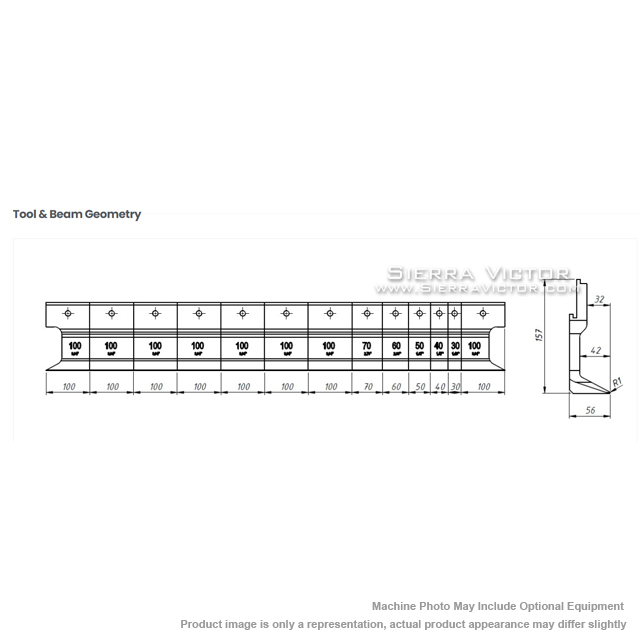

- All upper,lower and folding beam tools are segmented

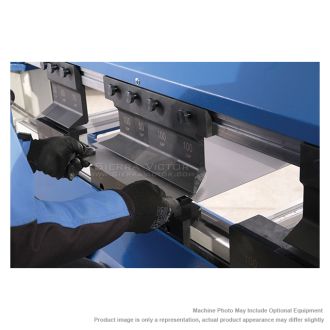

- Easy Erbend screwing system for upper beam tools
- Lower and folding beam tools are easily seated in their holes thanks to precise machining

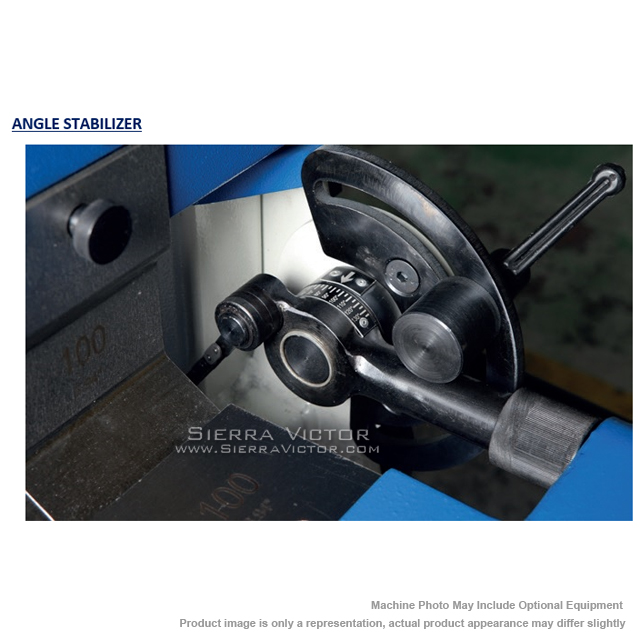

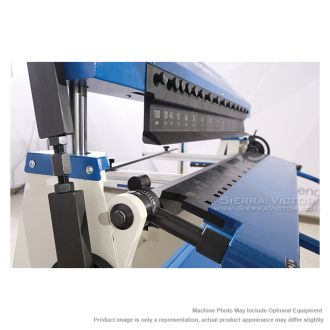

- ANGLE STABILIZER

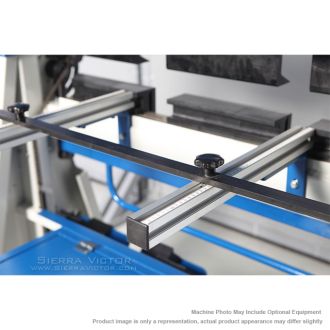

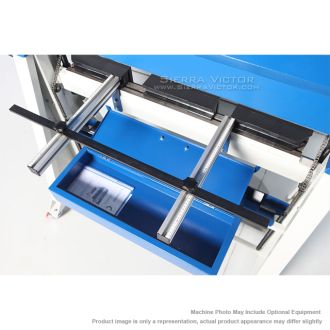

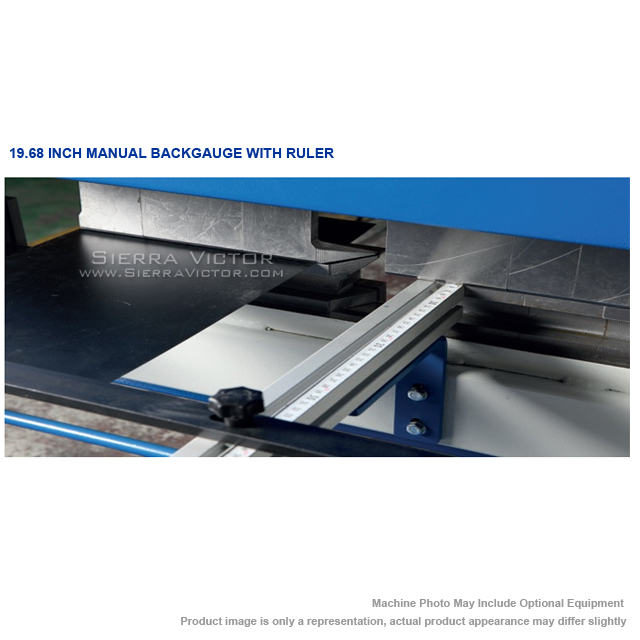

- 19.68 INCH MANUAL BACKGAUGE WITH RULER

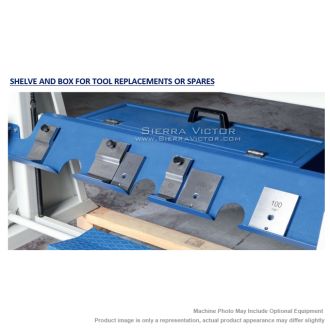

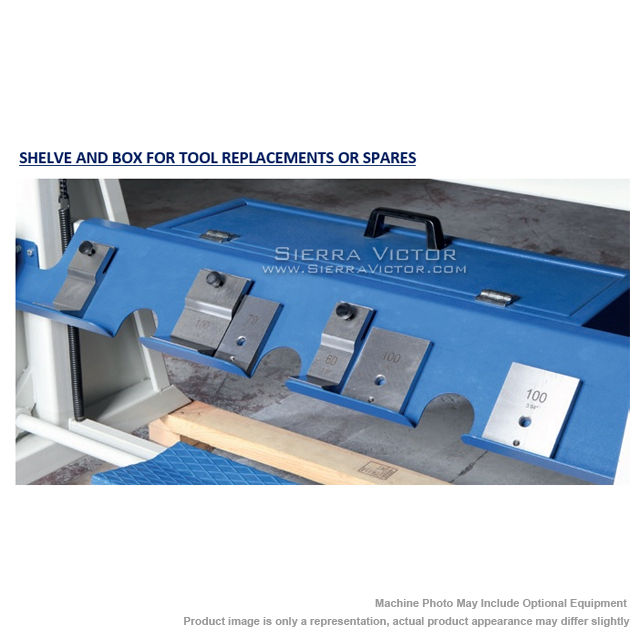

- SHELVE AND BOX FOR TOOL REPLACEMENTS OR SPARES

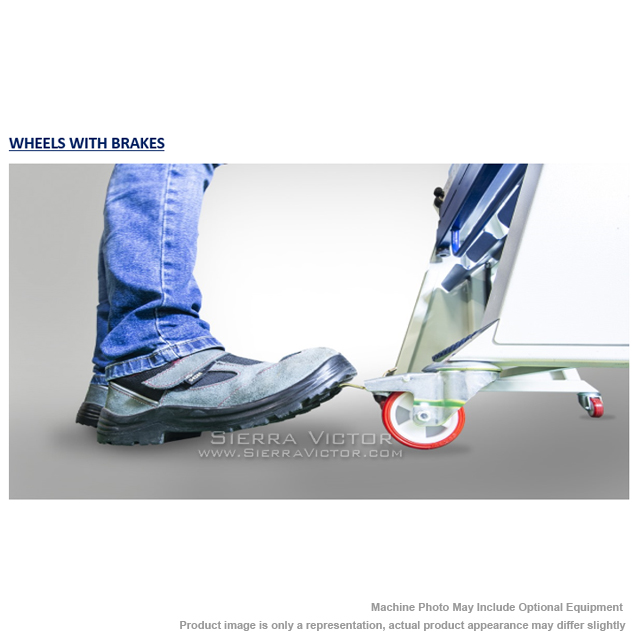

- WHEELS WITH BRAKES
- Manufacturer
- Specifications
- Custom Freight

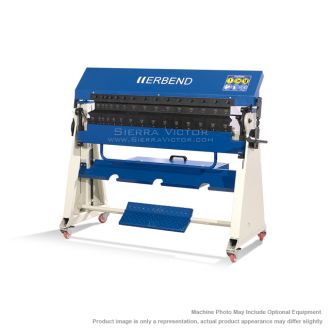

ERBEND 3 ft x 0.059 in. Manual Metal Folding Machine UFA 1015
ITEM: 3 ft x 0.059 in. Manual Metal Folding Machine
MANUFACTURER: ERBEND
MODEL: UFA 1015
Manufacturer:
Erbend
Machine Type
Machine Category:
Folders
Control:
Manual
Metalworking
Material Length:
3 ft (36 in.+)
Mild Steel Capacity:
16 ga
|
MODEL
|
UFA 1015
|
|
Sheet Length
|
3.4 ft (41.3 in.)
|
|
Capacity - Steel
|
0.059 in.
|
|
Capacity - Stainless
|
0.039 in.
|
|
Capacity - Aluminum
|
0.086 in.
|
|
Dimensions
|
30 x
51 x 60 in.
|
|
Weight
|
617 lbs.
|
| STANDART TECHNICAL SPECS |
Axis controlls |
Manual |
|
Upper Beam (Z axis) |
Beam geometry |
45° |
Opening height (without tools) |
7.87 in. |
|
Folding Beam (Y axis) |
Bending angle (with angle stabilizor) |
0-150° |
Folding Beam Height Adjustment (A1-A2 axis) |
Adjustment (manual) |
1.37 in. |
Back gauge (X axis) |
Gauging control |
Manual |
Gauging min/max length |
0.39 / 19.68 in. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
