- Description
- Clamping beam with 13.7 in. opening height and 6.69 in. high, segmented goat foot tools.
- Dual drive clamping beam with ball screw spindle system for more clamping power.

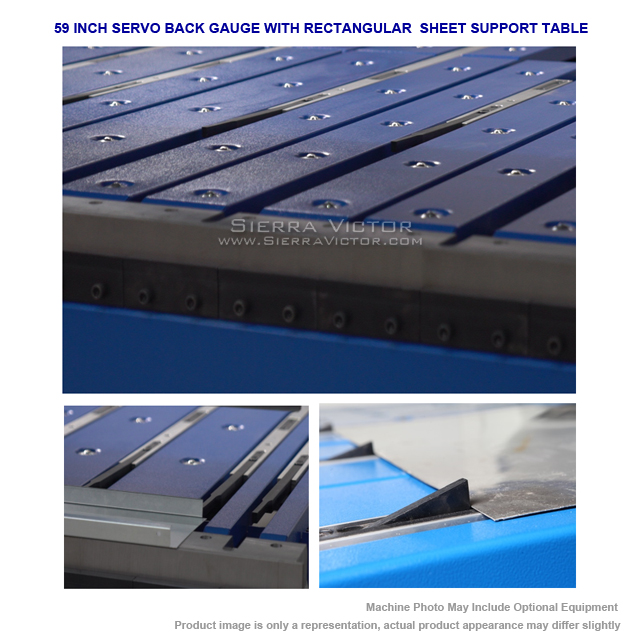

- 60 inch servo backgauge system with rectangular sheet support table and solid fingers.

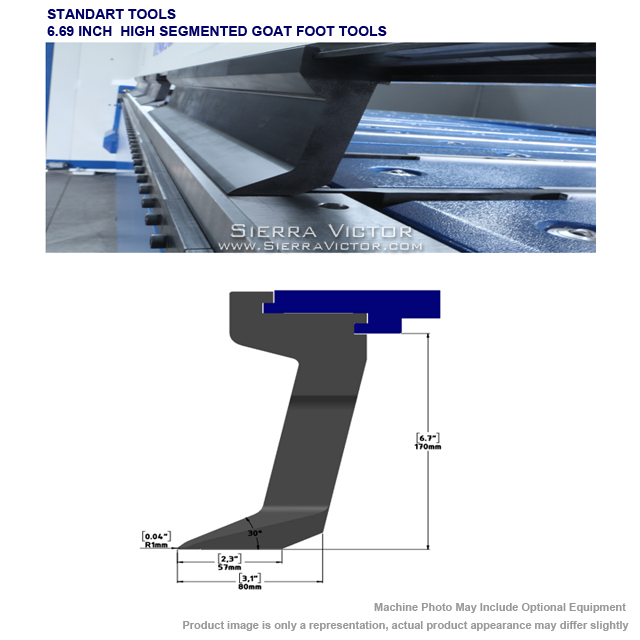

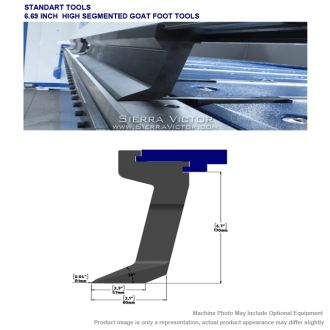

- 6.69 inch high segmented goat foot tools.

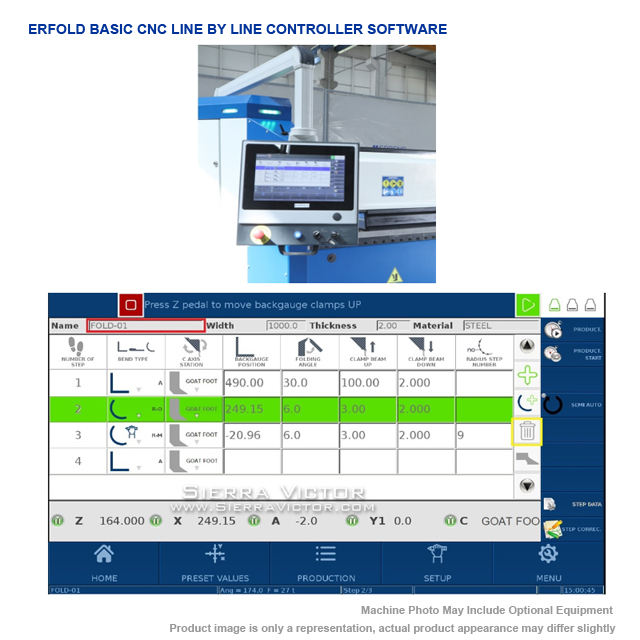

- ERFOLD BASIC CNC LBL control software on 15.6" touchscreen controller with swivel arm.

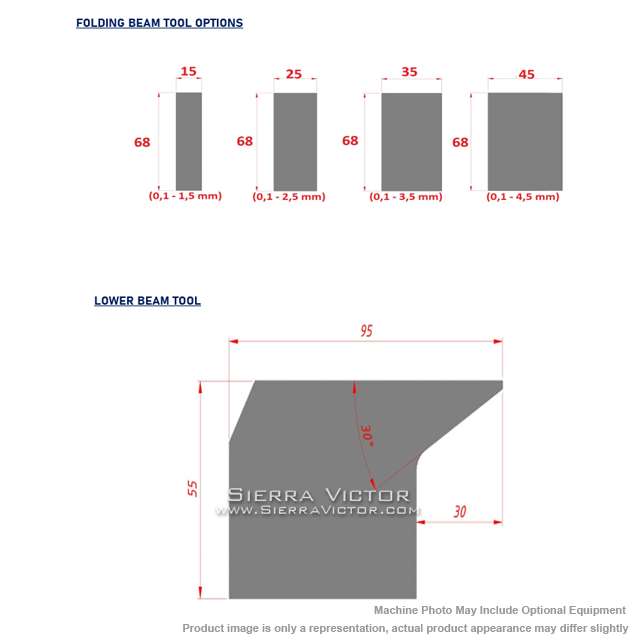

- .59 and 1.57 in. wide folding beam tools, single piece as 2 sets.

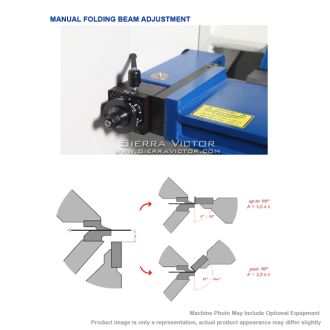

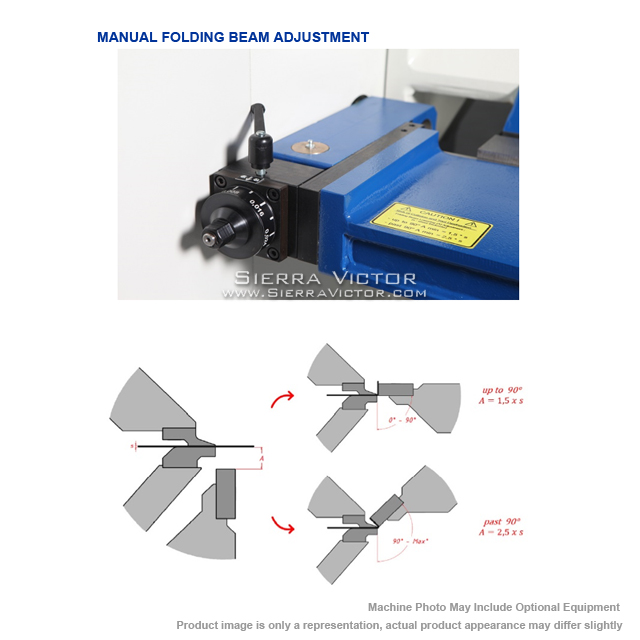

- Manual folding beam adjustment.

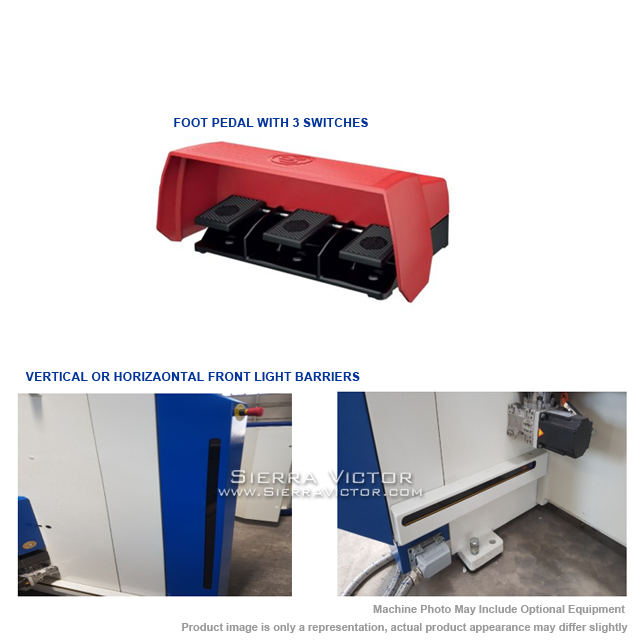

- Front light barriers.
- Manufacturer
- Specifications
- Options/Accessories

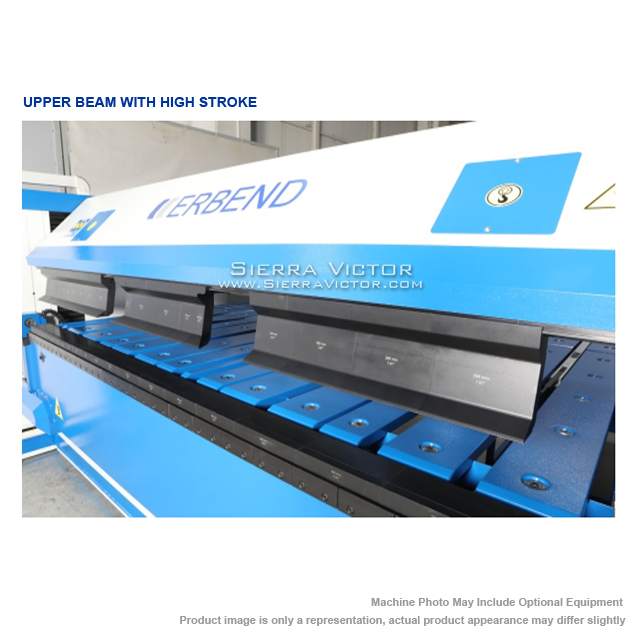

- 400 mm clamping beam opening and 200 mm high tools upgrade.

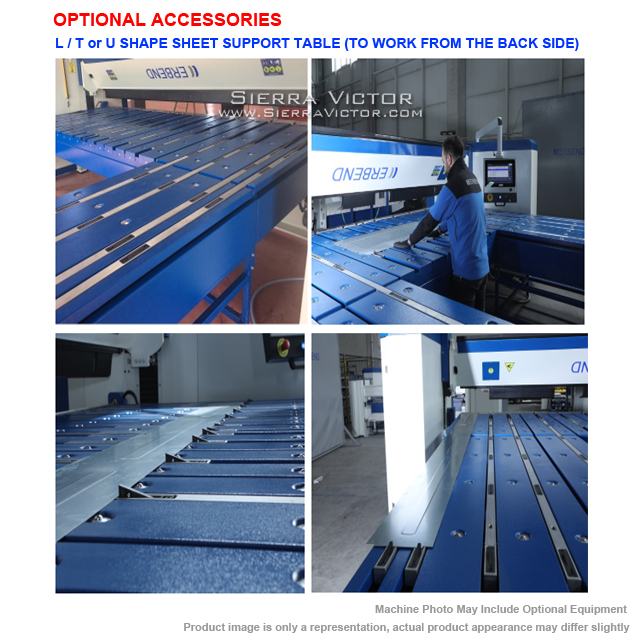

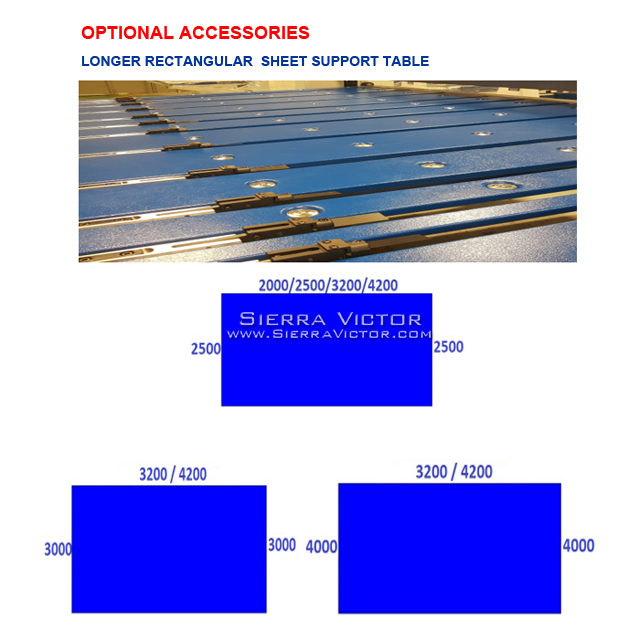

- 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.

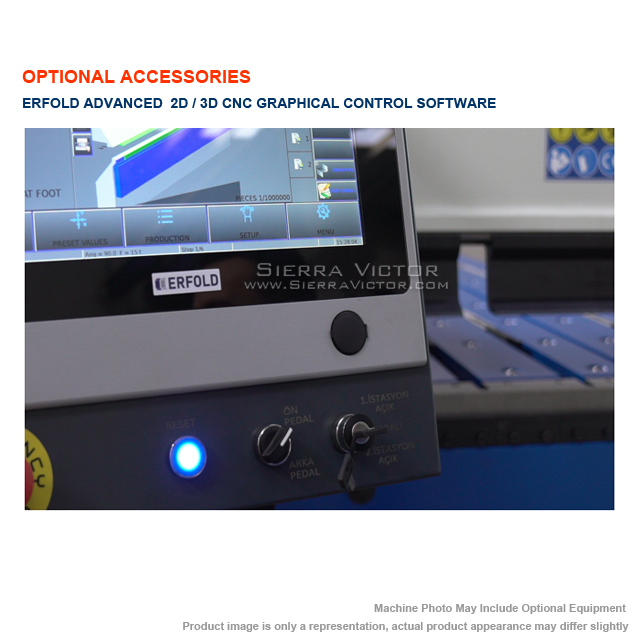

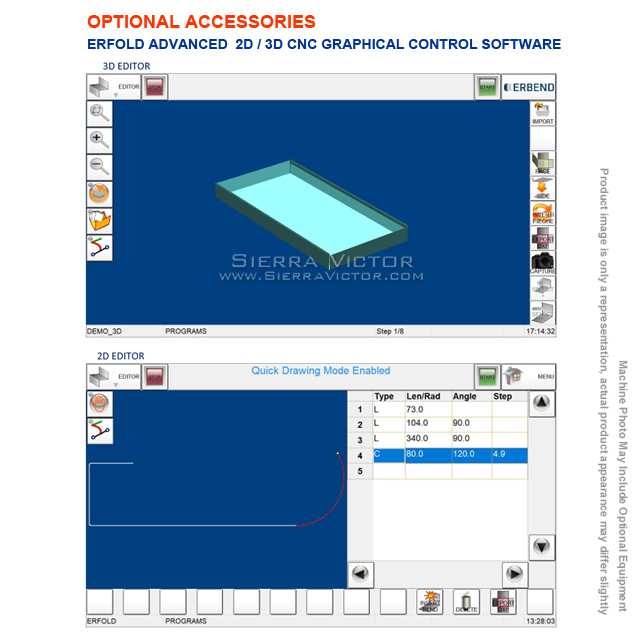

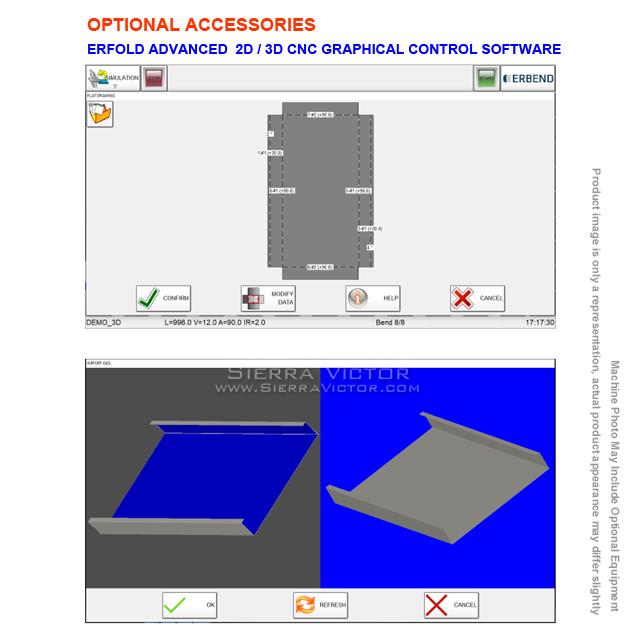

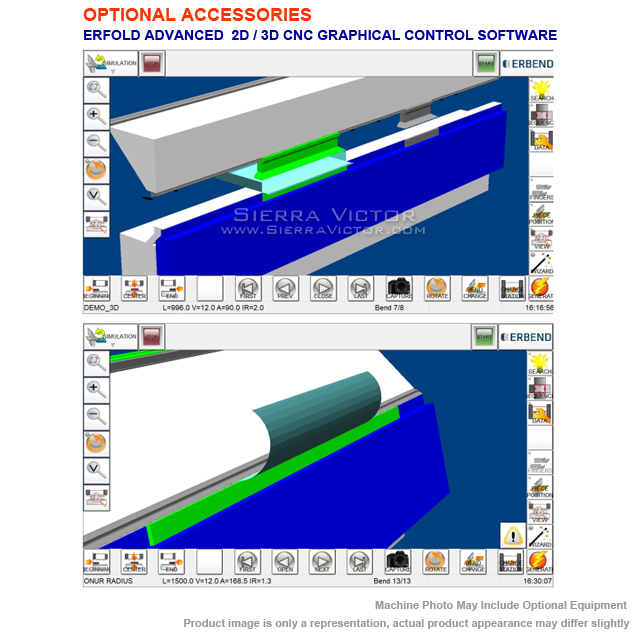

- ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
- Motorized folding beam adjustment.

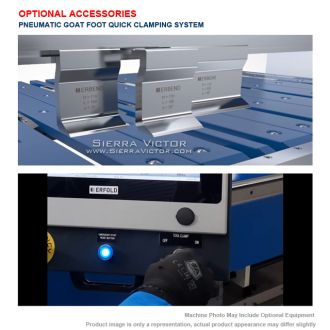

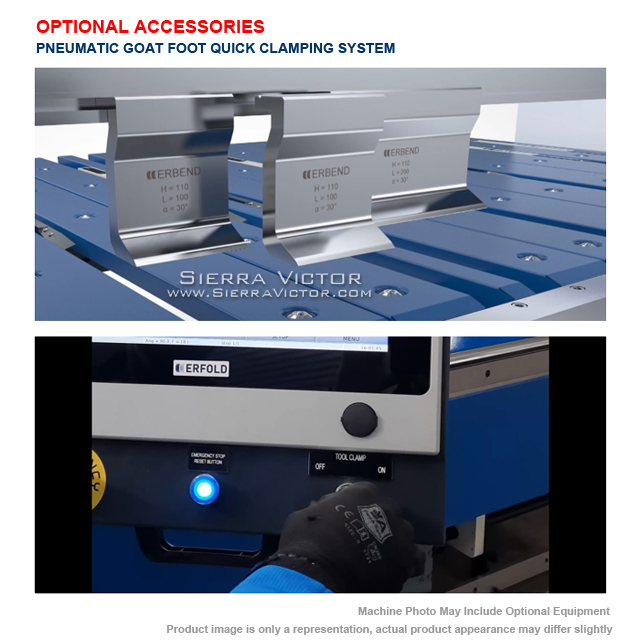

- Pneumatic goat foot quick clamping.

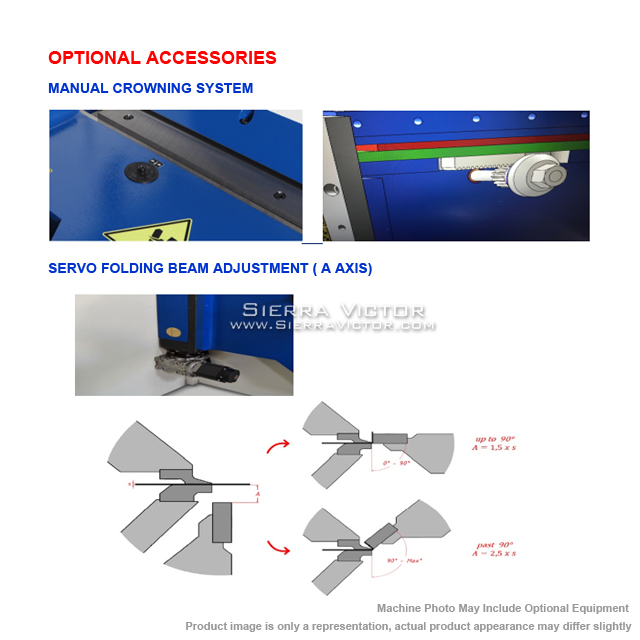

- Manual crowning system.
- Feather grooves with solid lower beam tool without channels.

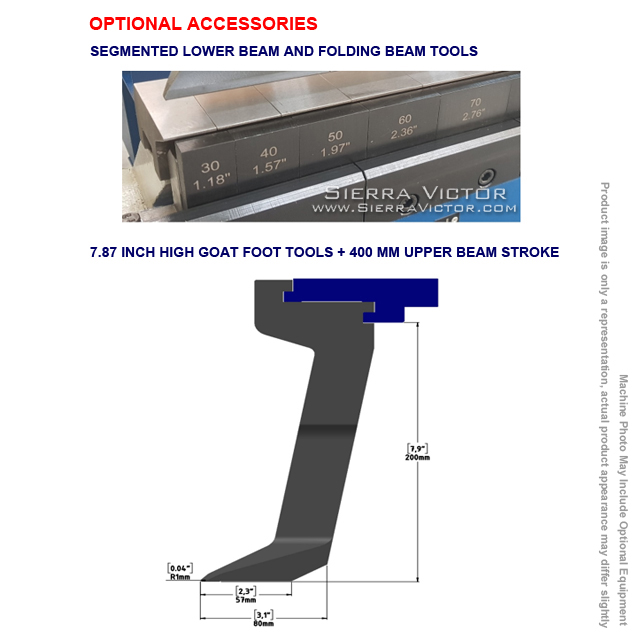

- Segmented bottom or folding beam tools.
- Custom Freight

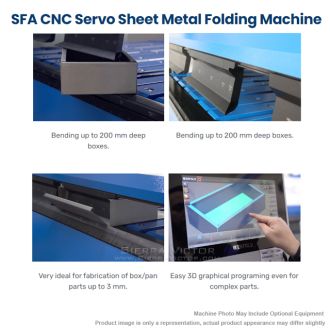

ERBEND 6 ft x 0.157 in. CNC Servo Sheet Metal Folding Machine SFA 2040
ITEM: 6 ft x 0.157 in. CNC Servo Sheet Metal Folding Machine
MANUFACTURER: ERBEND
MODEL: SFA 2040
Manufacturer:
Erbend
Machine Type
Machine Category:
Folders
Control:
CNC
Material Type:
Metal
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
5/32"
|
MODEL
|
SFA 2040
|
|
|
Sheet Length
|
2050mm (81 in. - 6.75 ft)
|
|
|
Capacity
|
Steel
|
4mm (5/32 in.)
|
|
Stainless
|
3mm (1/8 in.)
|
|
|
Aluminum
|
6mm (1/4 in.)
|
|
|
Dimensions
|
142 x 91 x 94 in.
(3600 x 2300 x 2400mm) |
|
|
Weight
|
6800kg (14,991 lbs.)
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
