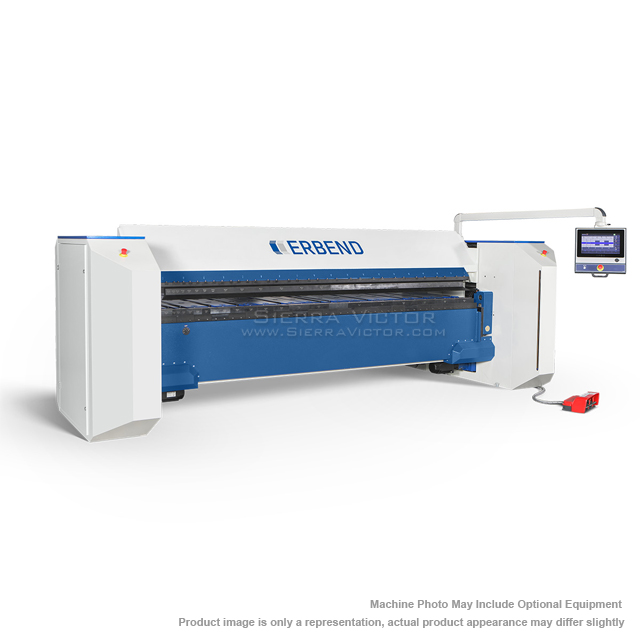

STANDART SPECS AND ACCESSORIES:

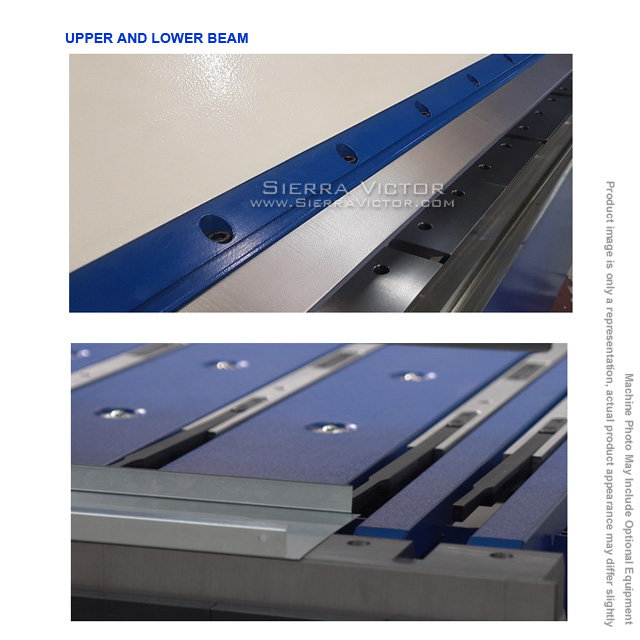

• UPPER AND LOWER BEAM
• Standart single rail sharpnose tool on clamping beam with 6.29 inch opening height.
• Bottom tool with channels that allow solid fingers to enter inside until 0.19 inch gauging
• Thanks to its brass and oil-free friction plates on the linear guides, you can work for years without any lubrication or maintenence
• Also thanks to the protective bellows, no dirt or dust is allowed in the swivel parts of this axis

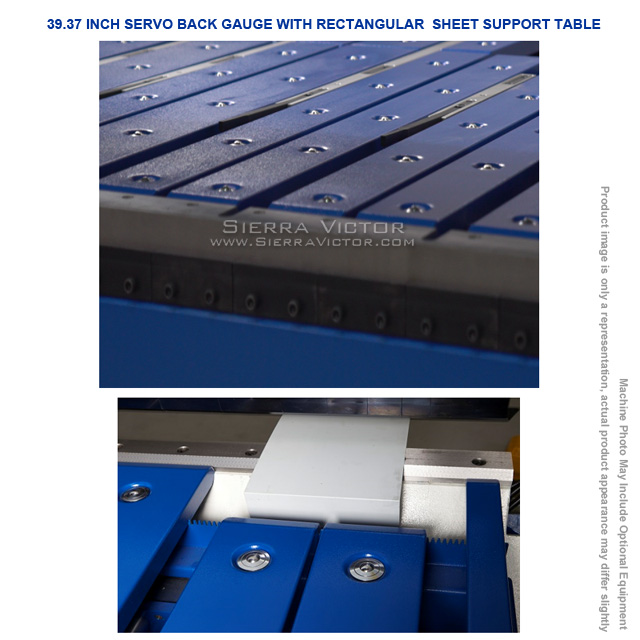

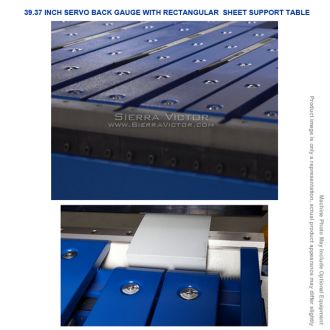

• 39.37 INCH SERVO BACK GAUGE WITH RECTANGULAR SHEET SUPPORT TABLE
• 39.37 inch servo driven back gauge system with feather grooves only
• 39.37 inch long rectangular sheet support table with stainless ball-casters
• Sliders can be pulled back to create space for down flanges at the back of the bottom tool

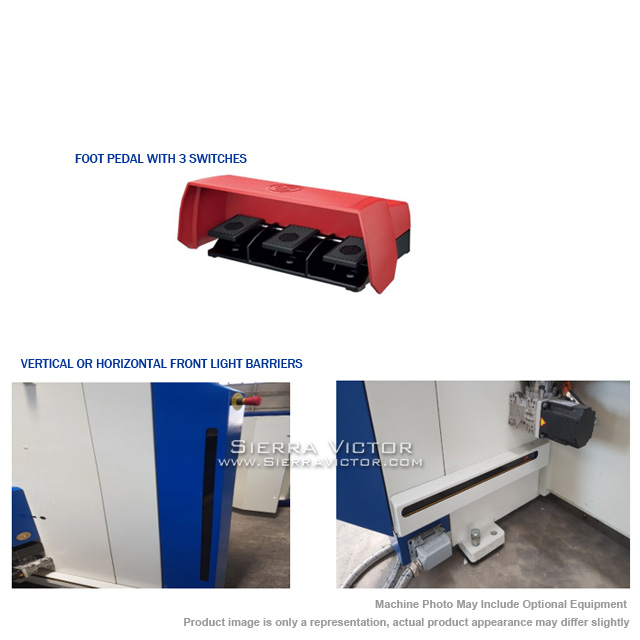

• FOOT PEDAL WITH 3 SWITCHES
• 3 switch foot pedal with panic button function on two steps.
  (Sudden step on left pedal = clamping beam goes up immediately)
  (Sudden step on middle pedal = folding beam and all axis stops immediately)
• VERTICAL OR HORIZONTAL FRONT LIGHT BARRIERS
• For operator safety, front light barriers are located at the left and right front side of the machine, managed by safety plc and prevent unwanted interventions to avoid accidents. You can choose as horizontal or vertical or you can completely remove the light barriers from your configuration.

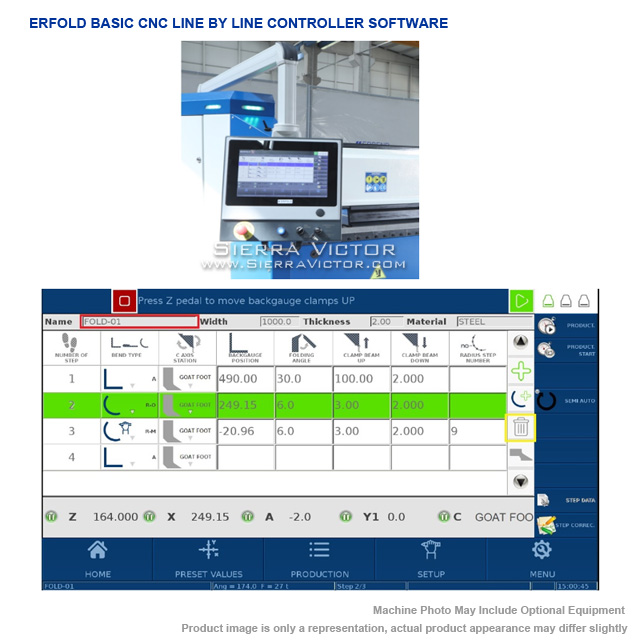

• ERFOLD BASIC CNC LINE BY LINE CONTROLLER SOFTWARE
• 15.6" touchscreen PC based controller on swivel arm
• Line by line part programming by entering numerical values of the axes
• Creating, saving, loading parts with different names, materials and sheet thicknesses
• Open or drop hemming funciton
• Multi radius bending function
• 16 gb memory for unlimited receipt storage
• Manual axis controls, alarm and error indications, machine detailed parameters

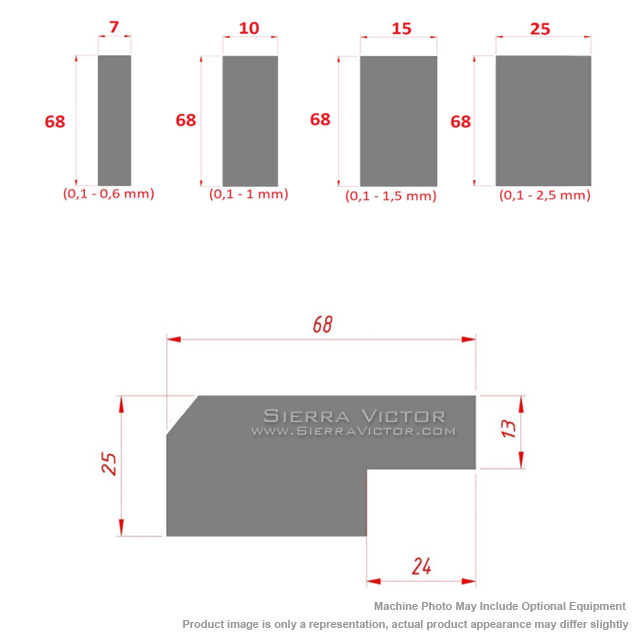

• STANDART TOOLS

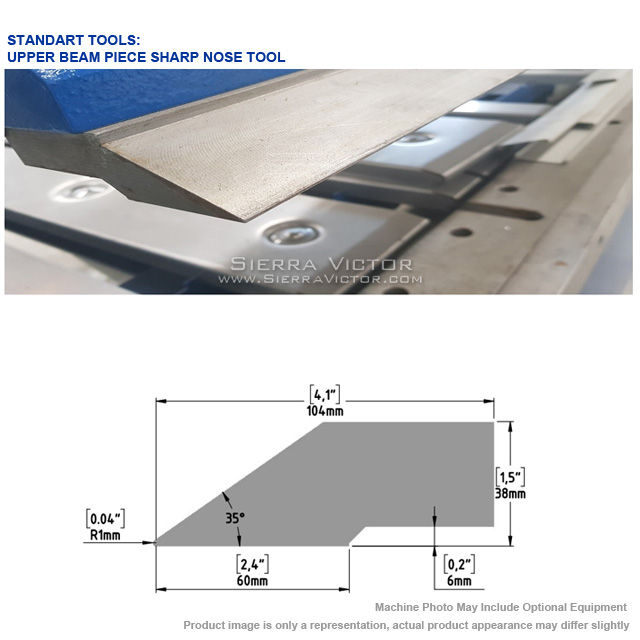

  • UPPER BEAM PIECE SHARP NOSE TOOL
• Grinded material, single piece, 30° nose angle

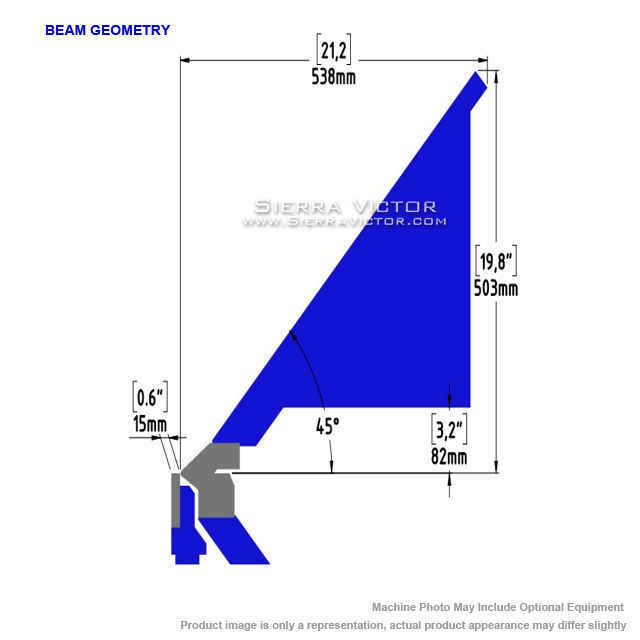

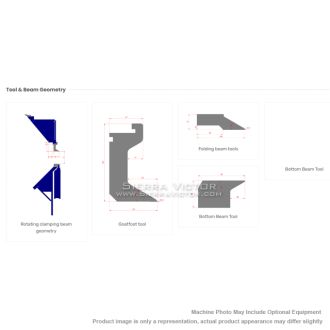

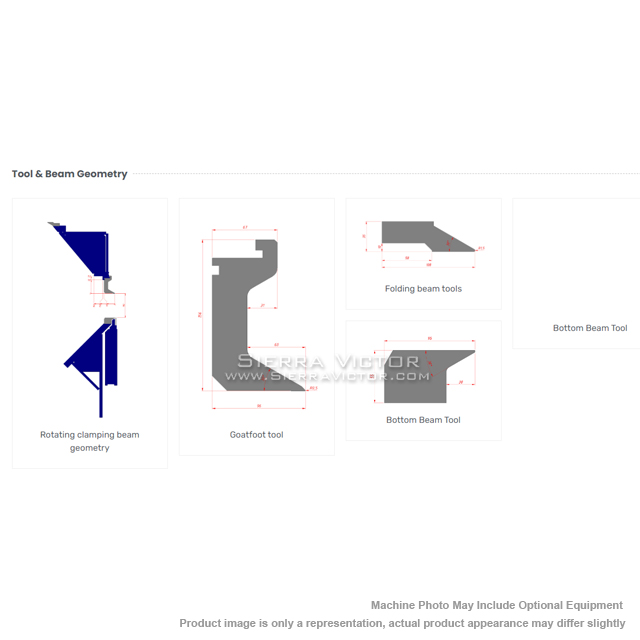

• BEAM GEOMETRY

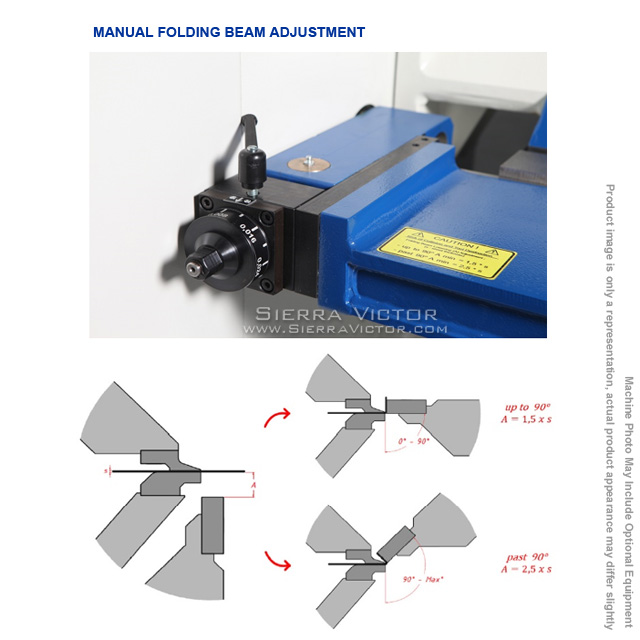

• MANUAL FOLDING BEAM ADJUSTMENT
• Manual height adjustment of folding beam according to the sheet thickness or bending point radius
• Located in left and right side and should be adjusted equally on both sides as thickness x 1 for sharp bending radius or thickness x 1,5 /2,5 for more oval radius.
• More you lower the folding beam,more you have to increase the bending angle in the programme to be able to catch the right bending angle

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

CALL FOR PRICE:

• 98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options
• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
• Servo folding beam adjustment.
• Manual crowning system.
• Pneumatic quick goatfoot tool clamping.
• Segmented bottom or folding tools.
• 3.93 inch high segmented goat foot tool set.

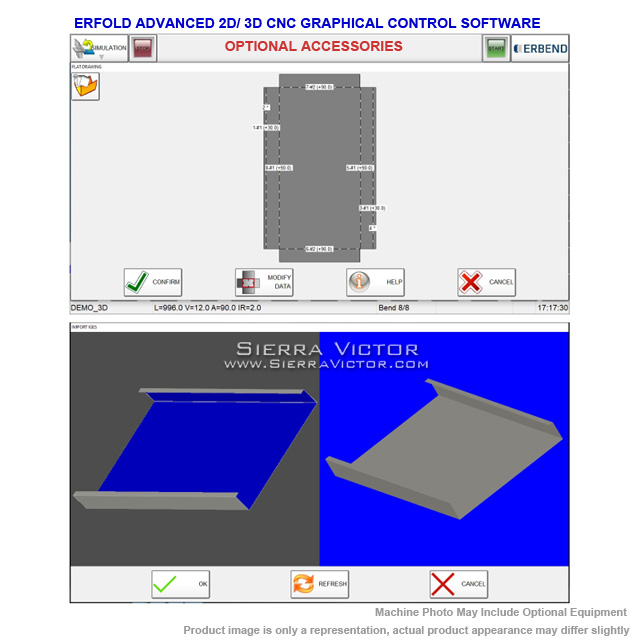

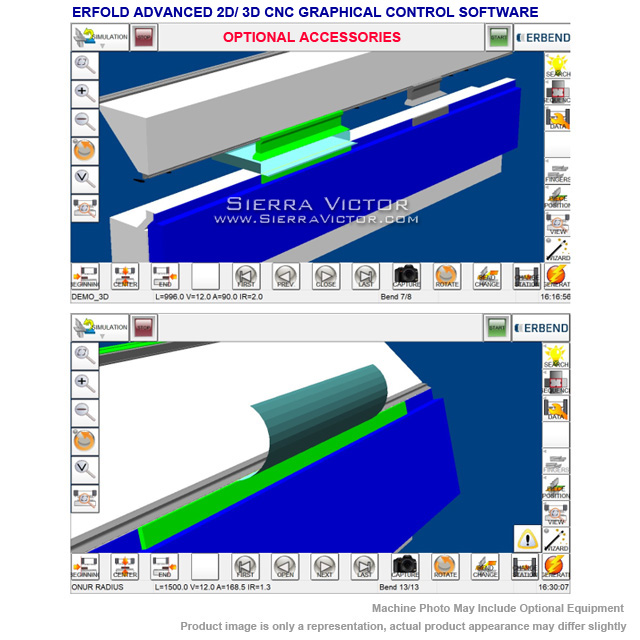

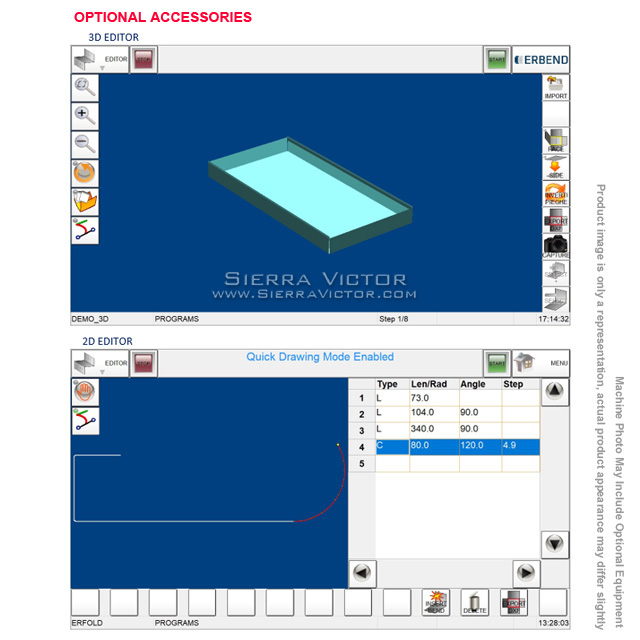

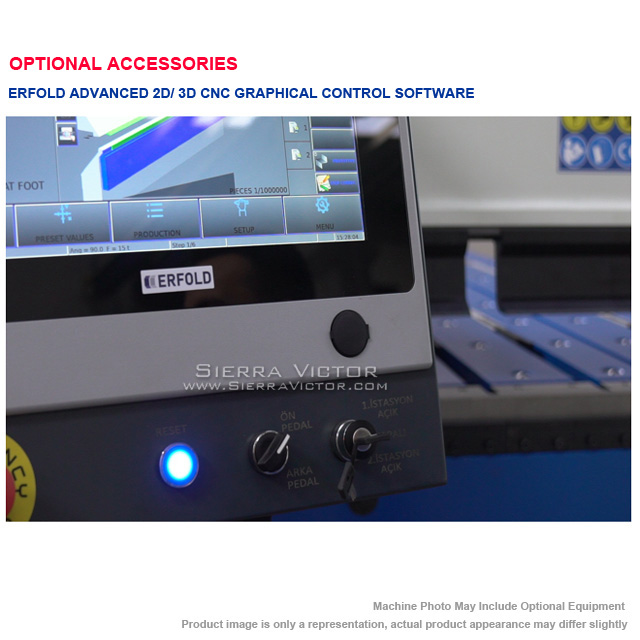

• ERFOLD ADVANCED 2D/ 3D CNC GRAPHICAL CONTROL SOFTWARE
• 15.6" touchscreen all-in one industrial pc controller on swivel arm
• 2D part editor: you can create a new bending programme by drawing or line by line and and visualize in 2D
• 3D editor: You can draw the parts in 3D or you can import 3D step/igs files over your offline software
• You can determine and change the bending sequence on the created part
• 3D simulation of bending to check for collisions and intervene if needed
• Capability of choosing material type, thickness, springback, shortening, bending correction and creating data base for every type of material or lot
• Tool library and edit: You can import, create by drawing and define new tools, save, recall or delete in the library
• Authorization with password
• Real time simulated production page in which you can monitor all axes movements on 3D graphic view of the machine and also numerical values of the axes
• 16 GB hard disk space which allows you to save unlimited bending receipt or tool data
• Detailed alarm and parameters page

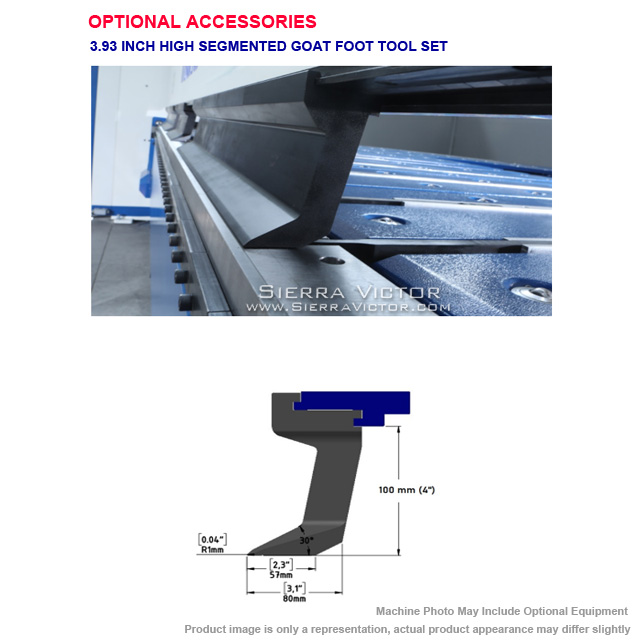

• 3.93 INCH HIGH SEGMENTED GOAT FOOT TOOL SET

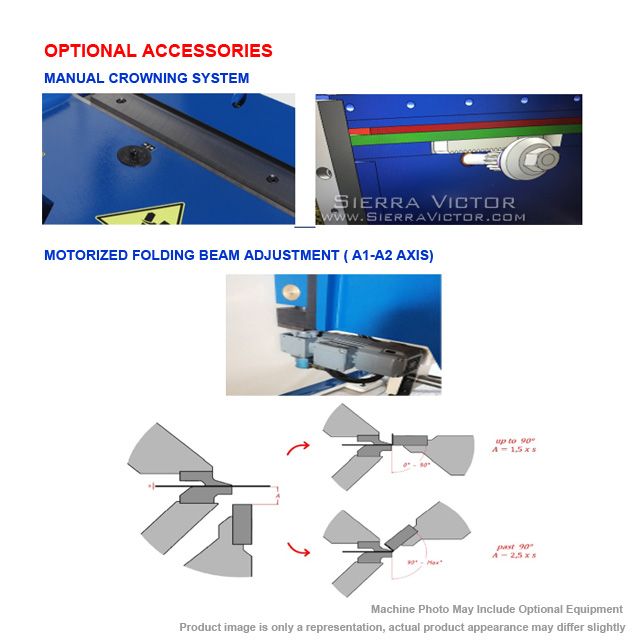

• MANUAL CROWNING SYSTEM
• On long and thin sheets, in order to prevent the banana shape bends, you just need to adjust the crowning between %25 and %100 to give more support from the middle side of the folding beam
• MOTORIZED FOLDING BEAM ADJUSTMENT (A1-A2 AXIS)
• Motorized and cnc controlled of the folding beam height. Your bending height is calculated automatically according to the parameters and set just before the bend.

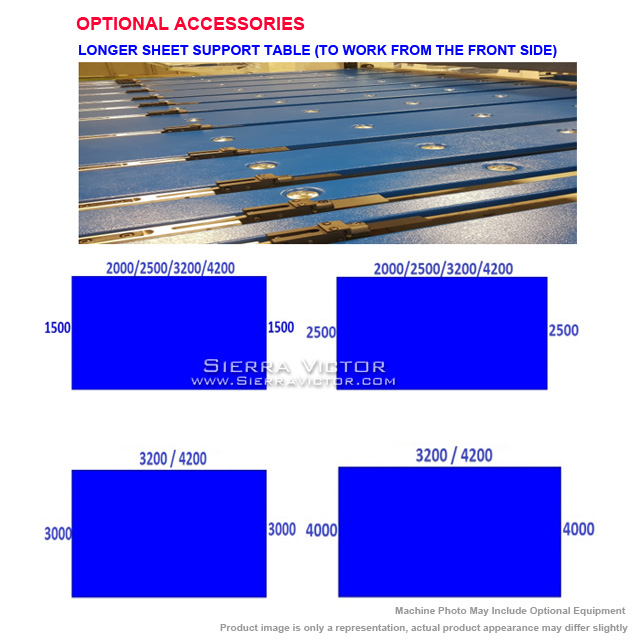

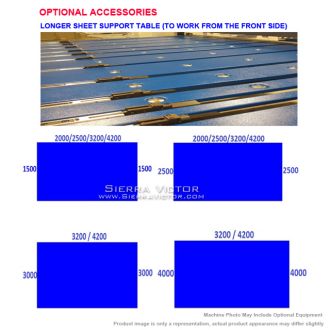

• LONGER SHEET SUPPORT TABLE (TO WORK FROM THE FRONT SIDE)
• 59 / 98.42 / 118.11 / 157.48 inch rectangular sheet support table and back gauges
• Front side gauging arms + middle and back side triangle fingers up to 6 sectors
• Movable sliders for down flanges + steady side gauge

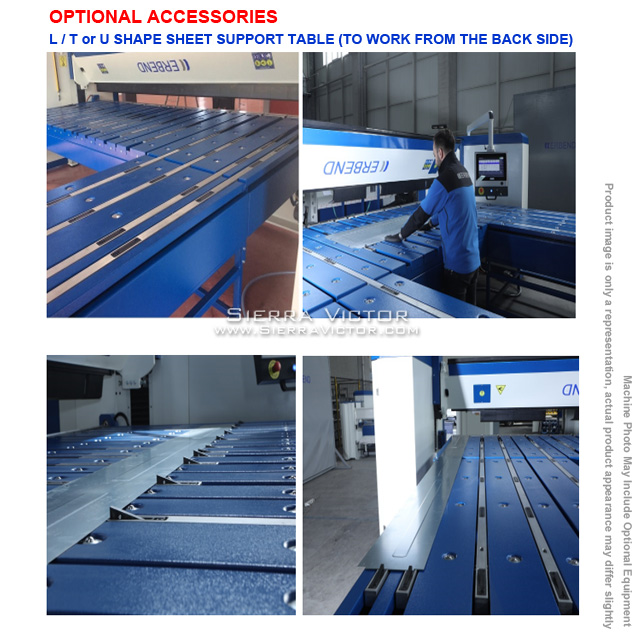

• L / T or U SHAPE SHEET SUPPORT TABLE (TO WORK FROM THE BACK SIDE)
• L / T or U shape sheet support table with ball casters.
• Front side gauging arms + middle and back side triangle fingers up to 6 sectors

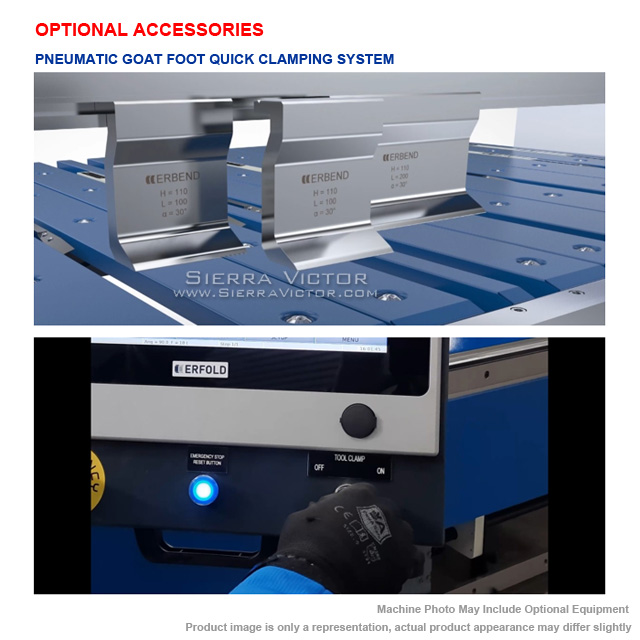

• PNEUMATIC GOAT FOOT QUICK CLAMPING SYSTEM
• Eliminates the time for tool-setup. No time spent for screwing or unsecrwing, just by turning one key, all tools are clamped or unclamped so that you can slide,remove or mount all goat foot tools just in seconds

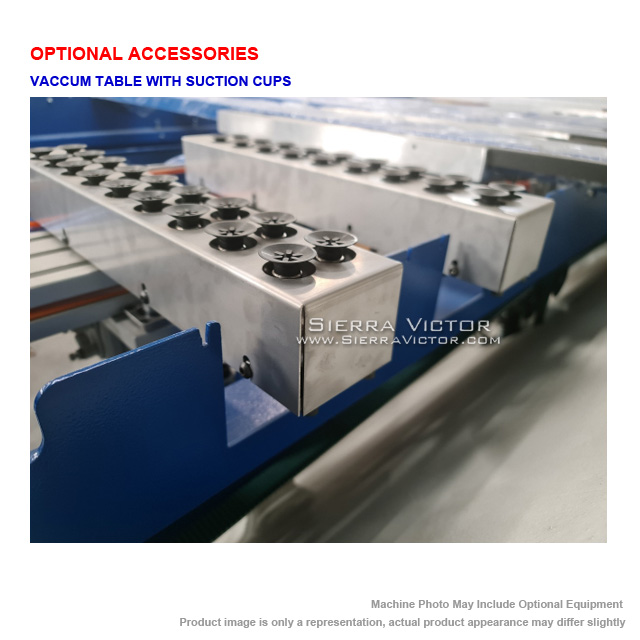

• VACCUM TABLE WITH SUCTION CUPS
• Thanks to the suction cups placed on the front gauging group;
  • Misalignment of the sheet is avoided.
  • Dropping down of the sheet because of downwards flanges is avoided.
  • No need to support the sheet anymore from the front side during multi radius bends.
  • If the gauging side of the sheet is oval or can not be gauged well to the standard fingers/gauges,you do not need to adjust it again in each bending step.
