- Description
- Clamping beam with 180 mm opening height and dual servo driven ballscrew spindle system.

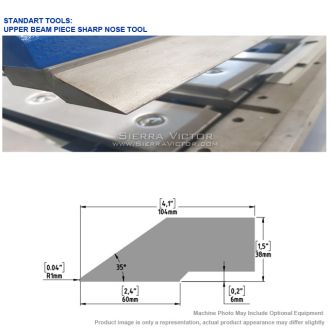

- 30° single piece sharpnose tool.

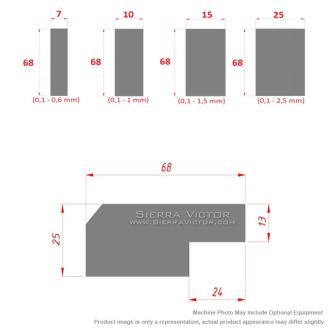

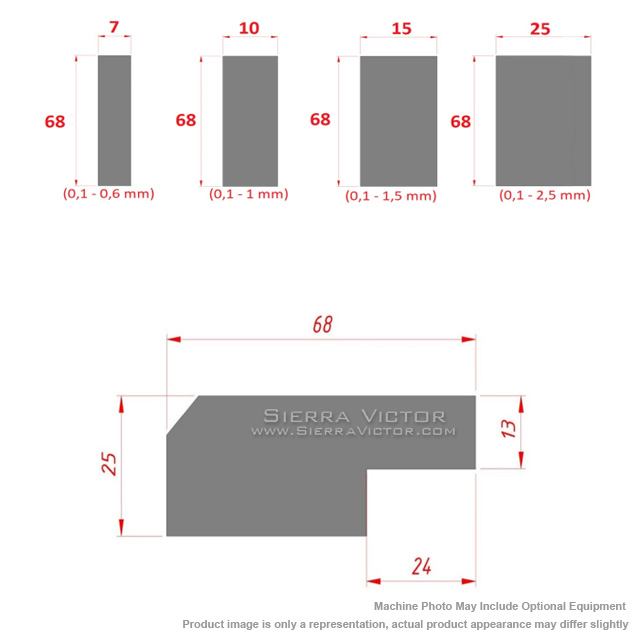

- 15 and 40 mm wide folding beam tools, single piece as 2 sets

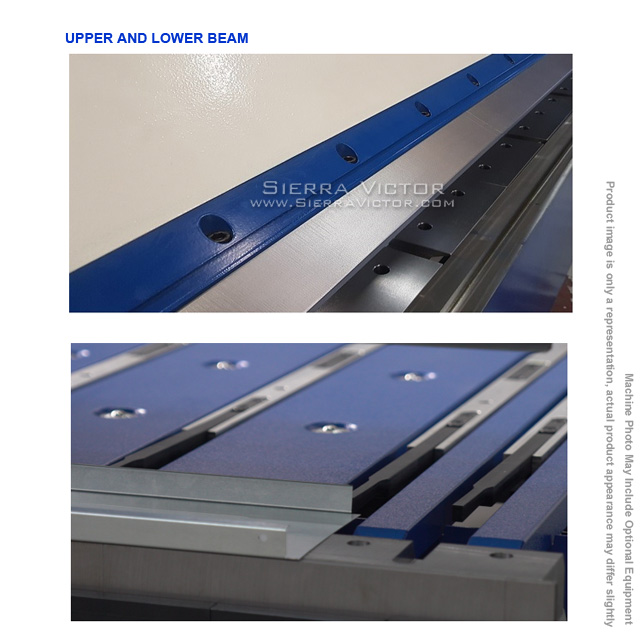

- Bottom beam tool with channels and two sets of single piece folding tools.
- 2 sets of single piece folding tools as 15 and 40 mm wide.

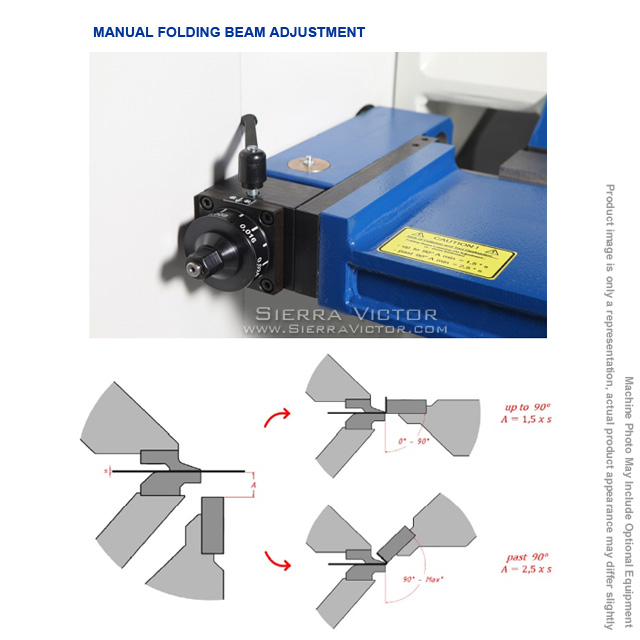

- Manual folding beam adjustment.

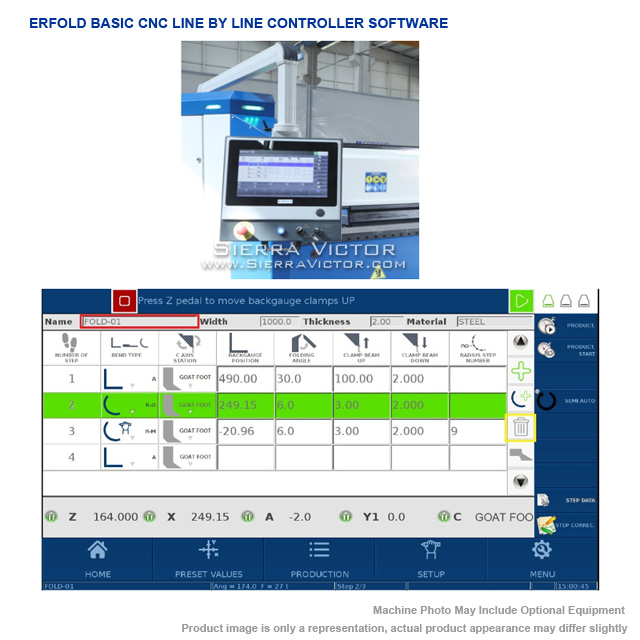

- ERFOLD BASIC CNC control software on 15.6 ” touchscreen controller with swivel arm.

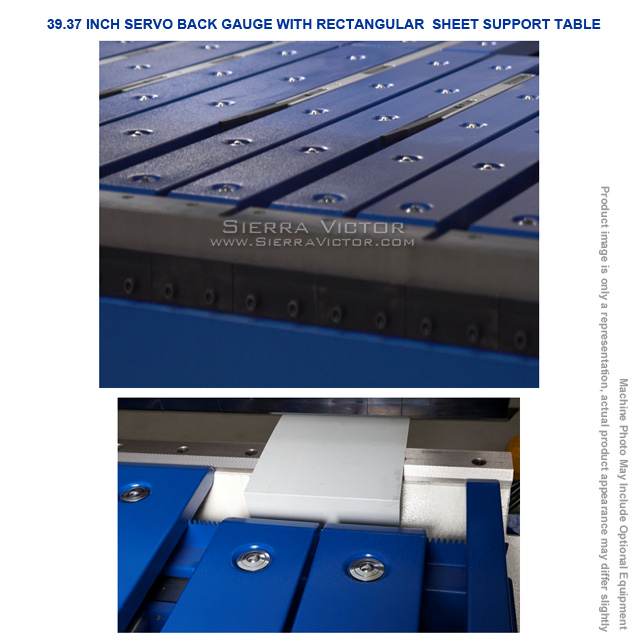

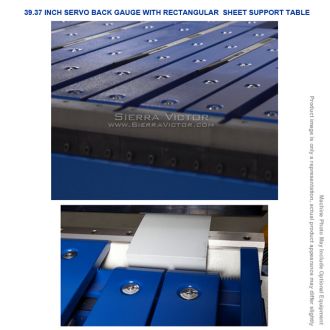

- 1000 mm servo backgauge system with rectangular sheet support table and solid fingers.

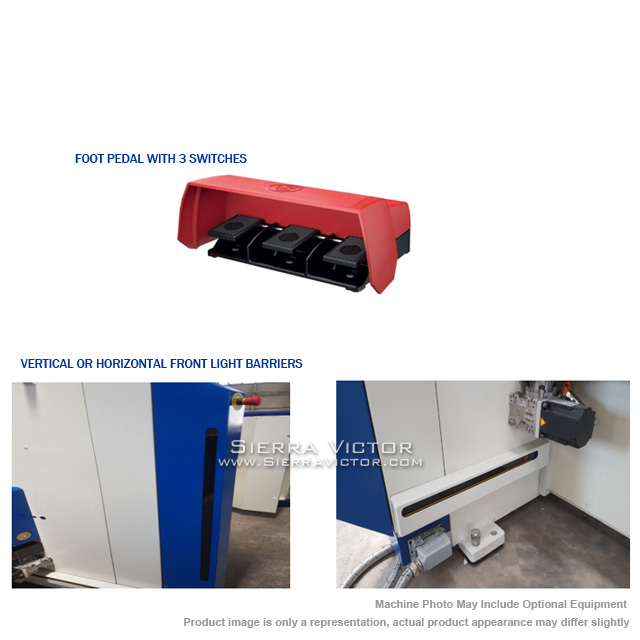

- Front light barriers.
- Manufacturer
- Specifications
- Options/Accessories

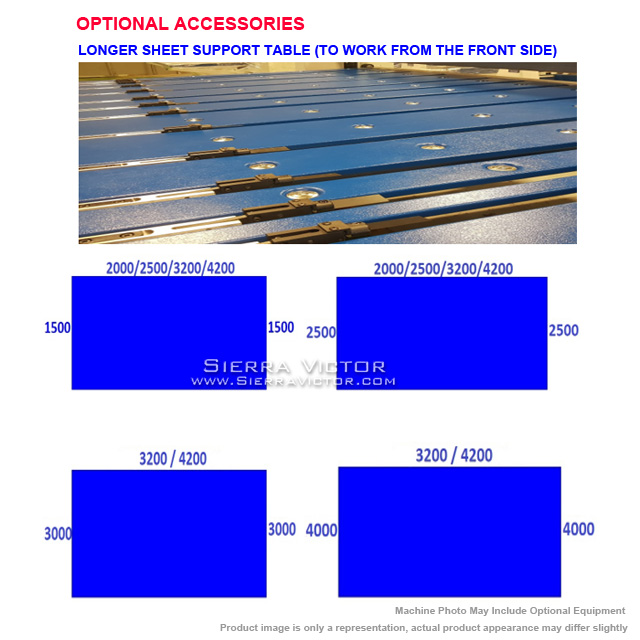

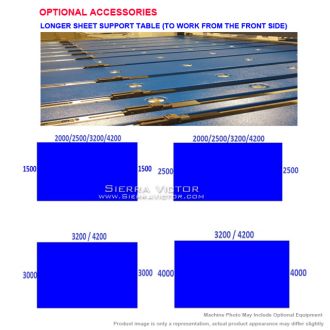

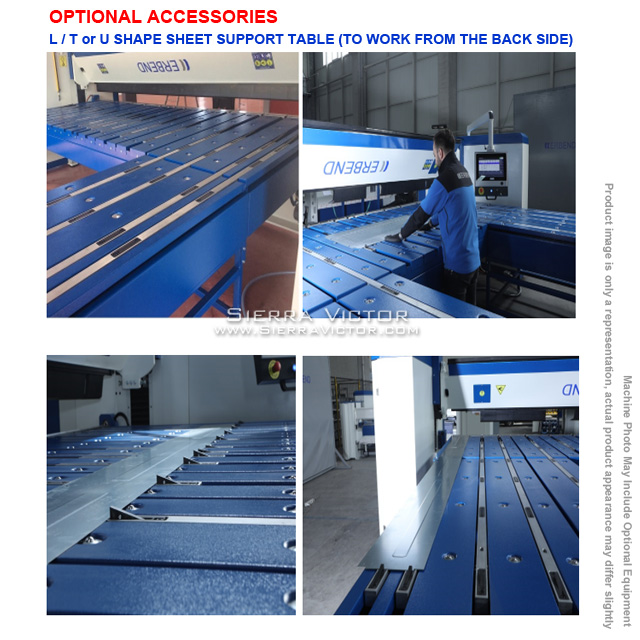

- 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options

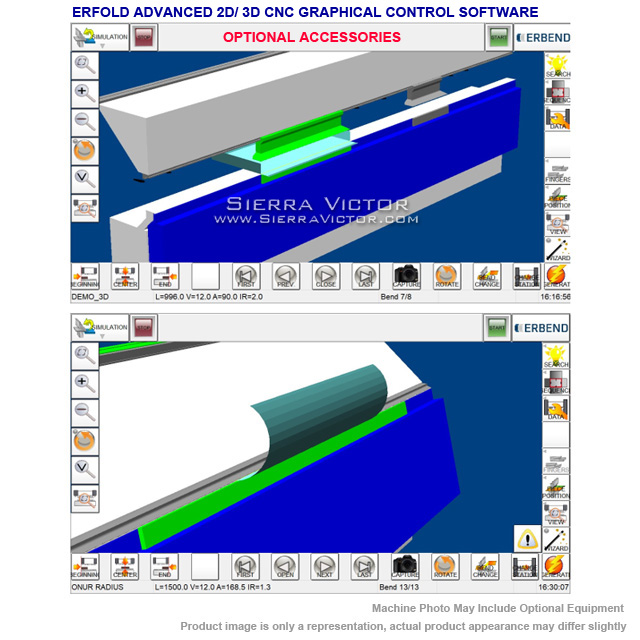

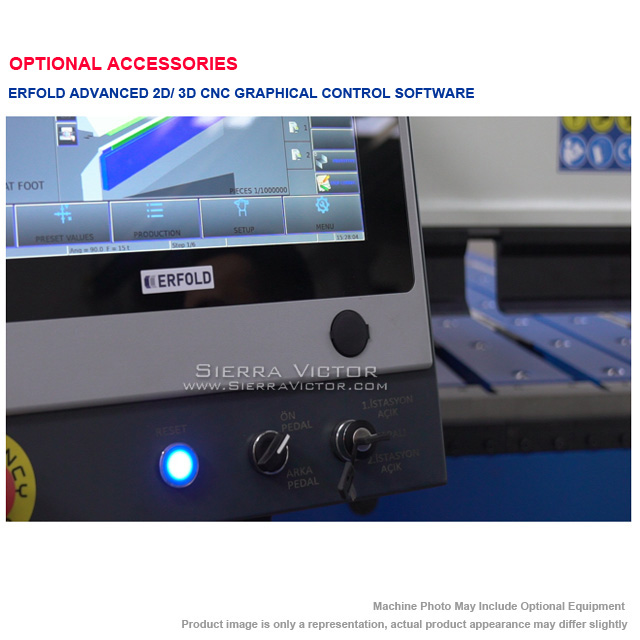

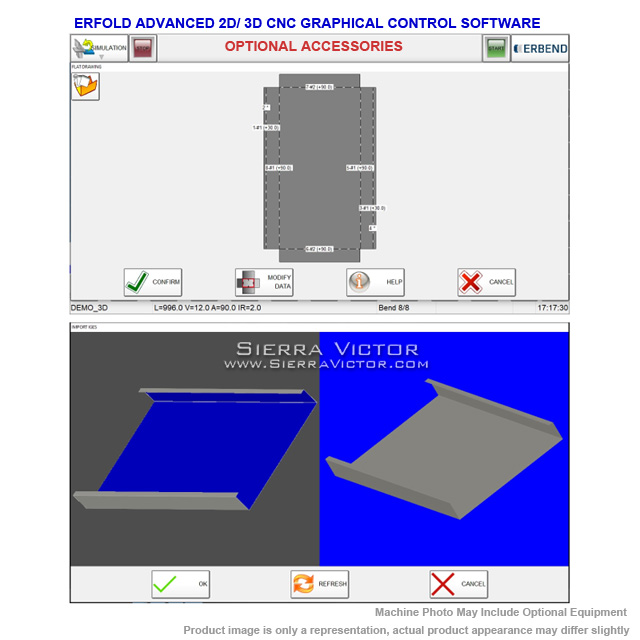

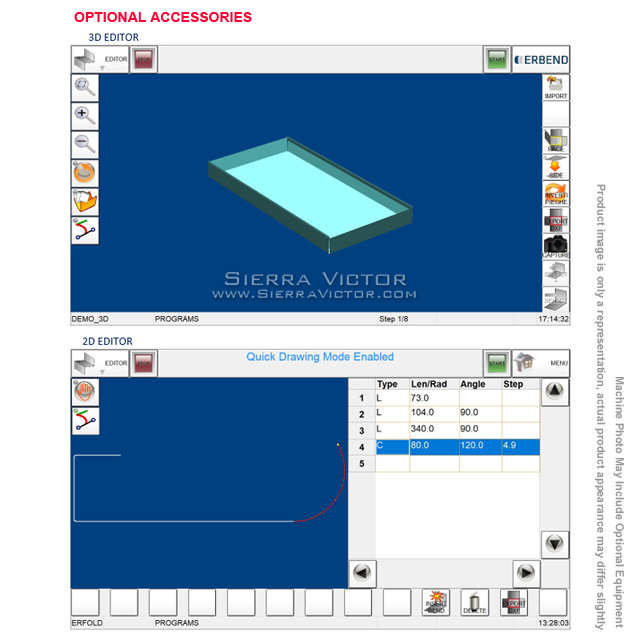

- ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.

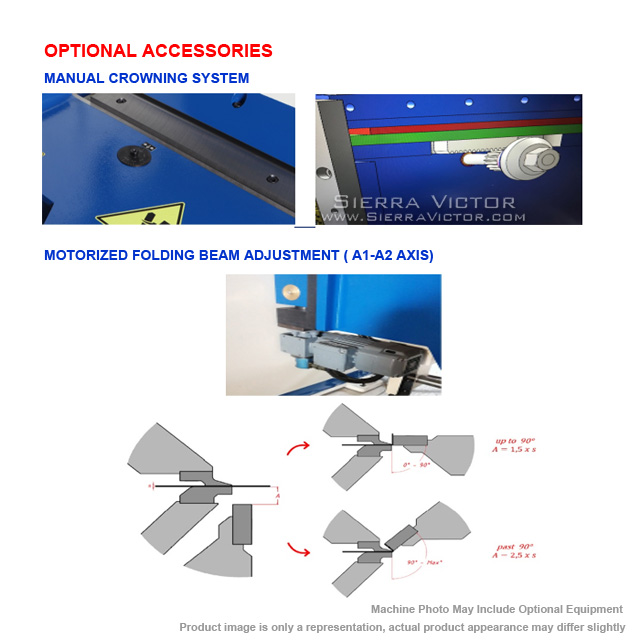

- Servo folding beam adjustment.
- Manual crowning system.

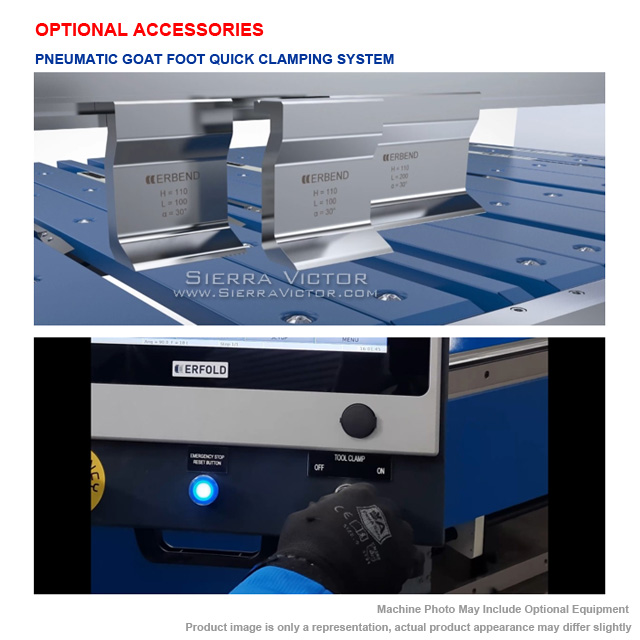

- Pneumatic quick goatfoot tool clamping.
- Segmented bottom or folding tools.

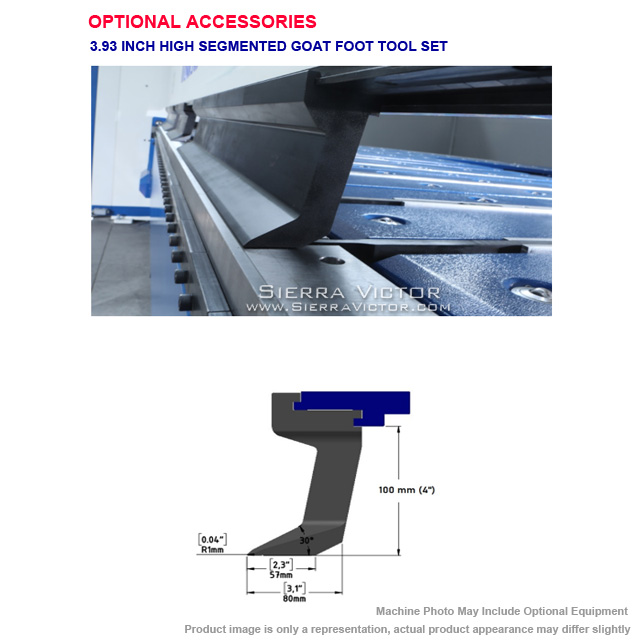

- 100 mm high segmented goat foot tool set.
- Custom Freight

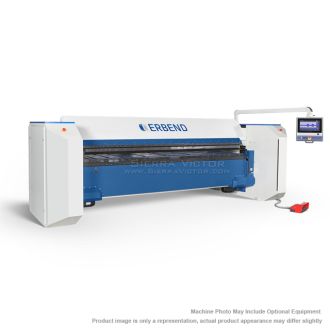

ERBEND 6 ft x 0.196 in. CNC Servo Sheet Metal Folding Machine MFE 2050
ITEM: 6 ft x 0.196 in. CNC Servo Sheet Metal Folding Machine
MANUFACTURER: ERBEND
MODEL: MFE 2050
Manufacturer:
Erbend
Machine Type
Machine Category:
Folders
Machine Sub-Category:
Servo
Control:
CNC
Material Type:
Metal
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
3/16"
MODEL |
MFE 2050 |
|
Sheet Length |
81 in. (6.75 ft) |
|
Capacity |
Steel |
0.196 in. |
Stainless |
0.137 in. |
|
Aluminum |
0.255 in. |
|
Dimensions |
142 x 91 x 79 in. |
|
Weight |
10,803 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
