- The rotating combi beam, is a technology that's been around since 1987. This feature gives the machine lightening fast automatic tool changes. This gives the ability to have a 30 degree sharp tool for linear bends and segmented tooling for 4-sided forming at the same time.
- AC motorized drive X,Y, Z, C-Axis (clamping, folding, back gauge, clamp rotate)
- Manual mechanical crowning system
- 15.6” Touchscreen ERFOLD BASIC CNC line by line& 2D software control
- Flat rail bottom beam tool for feather groves
- COMBI CLAMPING BEAM with 2 tool stations
- Clamping beam open height 160mm (without tools)
- 90mm high goats foot tools on station 1
- R1 or 20 degree sharp nose clamping beam tools on station 2
- Folding beam tools 2 sets: 15mm & 25mm
- Manual folding beam adjustment 1.37” (35mm) (A-Axis)
- 6-1000mm motorized back gauge + sheet support table with ball casters
- Front Horizontal light barriers
- LED Function lights (red, green, and blue)
- 3 switch foot pedal
- Manufacturer
- Specifications
- Options/Accessories
- Set up and training (2 days)
- Motorized A-Axis (folding beam)
- ERFOLD Advanced 3D graphical control
- Advanced 3D offline for PC
- Advanced 3D offline for PC including step/IGS import function (3D control only)
- 1500 motorized back gauge with arms and sheet support table with ball casters
- 2000 motorized back gauge with arms and sheet support table with ball casters
- L shaped backgauge (1m + 3m)
- U shaped backgauge (3m + 1m + 3m)
- Brush table type upgrade
- Stainless table type upgrade
- Custom Freight
- Video

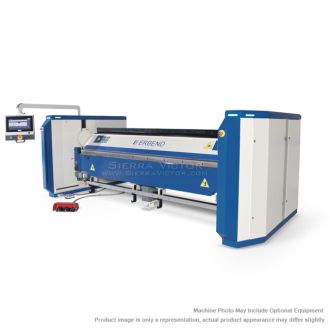

ERBEND 10 ft x 14 ga. Combi Beam Folder MFD 3220
ITEM: 10' x 14 ga. Combi Beam Folder
MANUFACTURER: ERBEND
MODEL: MFD 3220
Manufacturer:
Erbend
Machine Type
Machine Category:
Folders
Machine Sub-Category:
Combi-Beam
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
CAPACITY |
Max sheet length |
10.49 ft |
Max Thickness Capacity Full Length |
2mm, 0.078" (14g) Steel |
|
Mild sheet |
2mm, .078” (14g) |
|
Stainless |
1.2mm, .047” (18g) |
|
Aluminum |
3mm, .118” (11g) |
|
CLAMPING BEAM (Z-AXIS) |
Drive Power (SEW AC Motor w/Encoder) |
2 HP |
Opening Height (No tools) |
6.3 in (160.02 mm) |
|
Clamping Speed |
2.36 in/sec |
|
FOLDING BEAM (Y-AXIS) |
Drive Power (SEW AC Motor w/Encoder) |
4 HP |
Folding Angle |
0 - 150° |
|
Folding Speed |
65°/sec |
|
FOLDING BEAM ADJUSTMENT (A-AXIS) |
Adjustment Height |
1.37” (35 mm) |
Adjustment |
Manual |
|
1M BACK GAUGE SYSTEM (X-AXIS) |
Drive Power (SEW AC Motor w/Encoder) |
.53 HP |
Speed |
9.8 in/sec |
|
Min/Max Gauging |
0.078” / 39.37” (2 mm / 1000 mm) |
|
CLAMPING BEAM ROTATION (C-AXIS) |
Rotational Speed |
20°/sec |
GENERAL |
Dimensions |
(W x L x H): 90.55” / 175.19” / 74.80" |
Weight: |
10,141 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
