EMS 3220 - STANDARD FEATURES:

• 29.5 INCH SERVO MOTORIZED BACK GAUGE SYSTEM
• 700W servo drive and motor with +/- 0,1 mm accuracy
• 32/32 thread ballscrew system with +/- 0,05 mm accuracy
• Aluminum sigma profile sheet support
• One fixed, one movable, full body protective, vertical light barriers
• Side fences to avoid unwanted interventions

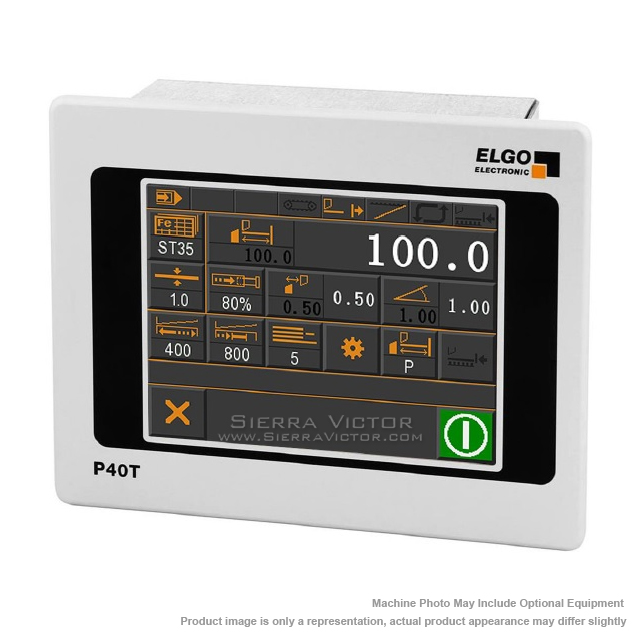

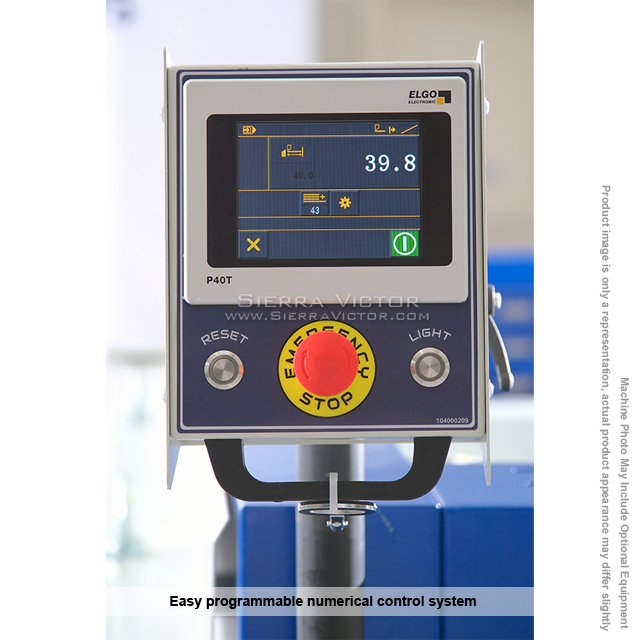

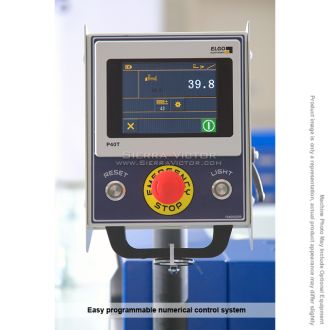

• ERCUT NC CONTROL SYSTEM
• HMI - 7 inch TFT display touchscreen with 800x480 resolution
• Ethercat + USB inputs and IP65 protection class
• 128 MB memory for 10.000 programmes with 10 steps
• Manual,semi-automatic and automatic functions
• Parametrical settings for retraction, pneumatic support and backgauge
• Language selection (specific languages can be imported)
• FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES
• Thanks to the curvy machined blade geometry, blades never touch eachother which sustains a much more longer blade life without sacrificing cutting presicion.
• Both sides of the blades can be used by switching easily
• 2525 – 3220 - 4015 series do not have/need blade gap adjustment, all thicknesses can be done with the same fixed adjustment
• 2540 and 3240 series have manual mechanical blade gap adjustment function
• SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE
• Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting
• With the polyurethane touching surface (shown in red below), your material is never scratched

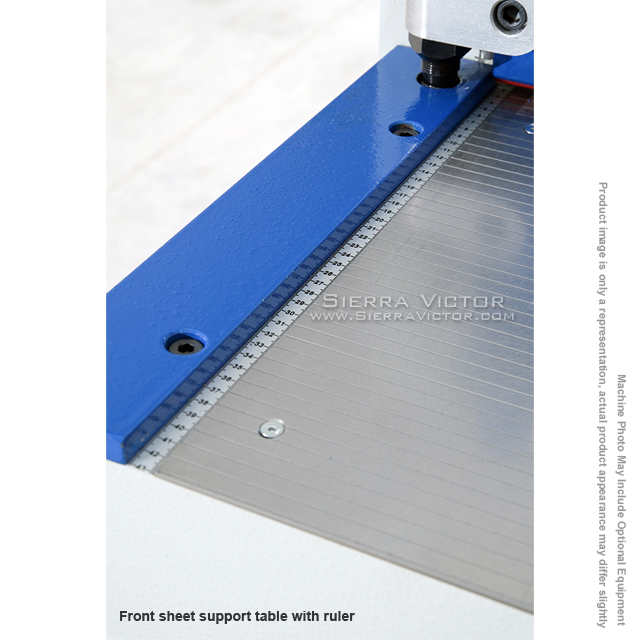

• FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 19.68 INCH LENGTH
• RETRACTABLE FRONT SHEET SUPPORT BAR
• From the cutting line to the edge, it is able to support max 36.6 inch long sheets
• Smooth and light movement only by pulling from the middle
• LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE

MFC 3215 - STANDARD SPECS AND ACCESSORIES:

• UPPER BEAM
• Clamping beam with 4.72 inch opening height without tools and 45° beam geometry
• Thanks to fast eccentric system, clamping speed is increased up to 3.93 inch/sec
• Thanks to its brass and oil-free friction plates on the linear guides, you can work for years without any lubrication or maintenance
• Also thanks to the protective bellows, no dirt or dust is allowed in the swivel parts of this axis
• 29.5 INCH SERVO BACK GAUGE WITH RECTANGULAR SHEET SUPPORT TABLE
• 29.5 inch servo driven back gauge system with feather grooves only
• 29.5 inch long rectangular sheet support table with stainless ball-casters
• Sliders can be pulled back to create space for down flanges at the back of the bottom tool
• SOLID LOWER BEAM (WITHOUT CHANNELS) AND FEATHER GROOVES
• To avoid unwanted scratches and cracks on the painted sheets caused by lower beam channels, we can build the lower beam without channel and also with special design gauging arms produced by flexible feather steel (0,5 mm thick) so that the arms can approach until the end of the lower beam to the edge and can be clamped between the upper beam tool and lower beam tool together with the sheet.
• FOOT PEDAL WITH 3 SWITCHES
• 3 switch foot pedal with panic button function on two steps.
  (Sudden step on left pedal = clamping beam goes up immediately)
  (Sudden step on middle pedal = folding beam and all axis stops immediately)
• VERTICAL OR HORIZONTAL FRONT LIGHT BARRIERS
• For operator safety, front light barriers are located at the left and right front side of the machine, managed by safety plc and prevent unwanted interventions to avoid accidents. You can choose as horizontal or vertical or you can completely remove the light barriers from your configuration.
• TOOL HOLDERS
• 2 stacks of tool holders that can carry 2 single piece folding tool or clamping beam sharpnose tool

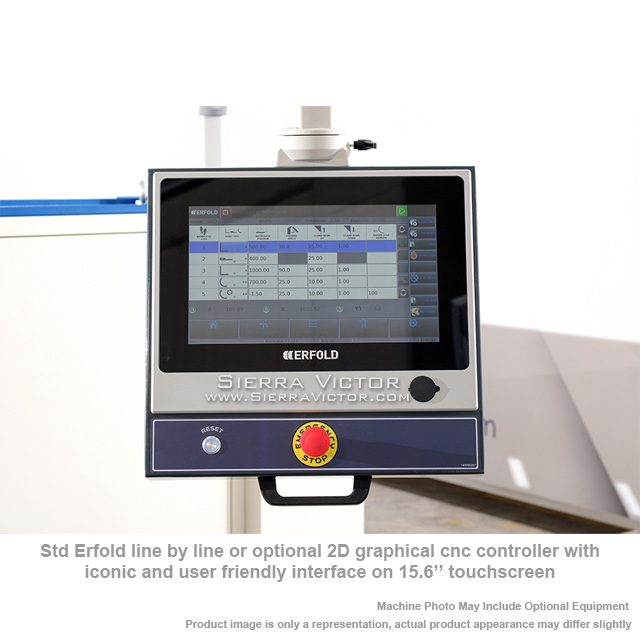

• ERFOLD BASIC NUMERIC CONTROLLER SOFTWARE
• Very user friendly, iconic screen layout
• 15.6" tft panel touchscreen controller on swivel arm
• Windows based Erfold software that allows you to store and reload back ups of the factory settings or saves programmes easily
• 128 gb memory for unlimited receipt storage
• Line by line part programming by entering numerical values of the axes for each step
• Creating, saving, loading parts with different names,materials and sheet thicknesses
• Open or drop hemming function
• Multi radius bending function as by pressing or by bending
• Backgauge finger pause and on/off functions
• Material database control for springback correction and folding beam height correction regarding material type,thickness and length
• Piece counter for lot production
• Manual axis controls, alarm and error indications, machine detailed parameter pages
• Remote service connection via wireless internet
• User authorization with special passwords.
• Can be upgraded to 2D graphical software after installation
• STANDARD TOOLS
  • UPPER BEAM PIECE SHARP NOSE TOOL
  • Grinded material, single piece, 20° nose angle
  • BEAM GEOMETRY
• MANUAL FOLDING BEAM ADJUSTMENT
• Manual height adjustment of folding beam according to the sheet thickness or bending point radius
• Located in left and right side and should be adjusted equally on both sides as thickness x 1 for sharp bending radius or thickness x 1,5 /2,5 for more oval radius.
• More you lower the folding beam,more you have to increase the bending angle in the programme to be able to catch the right bending angle.

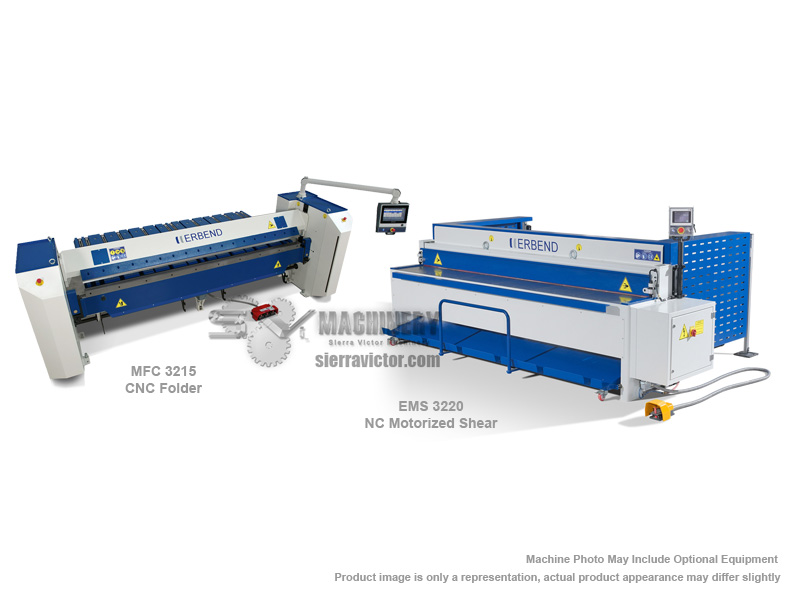

MFC 3215 CNC FOLDER SPECIFICATIONS:

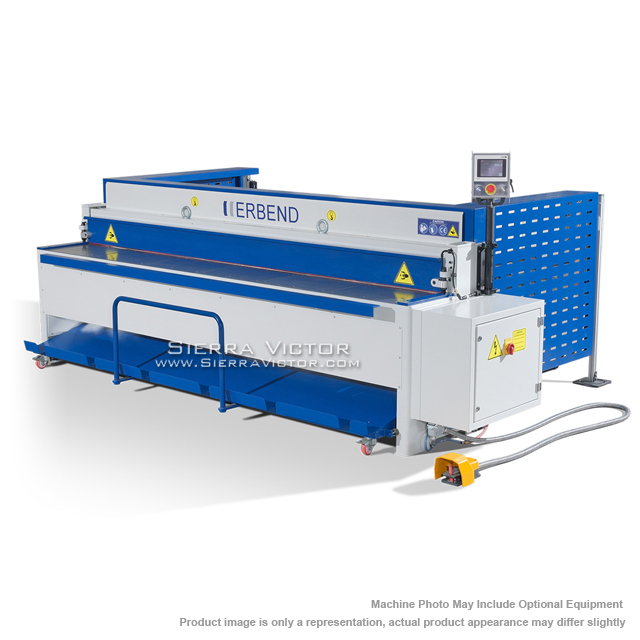

EMS 3220 NC MOTORIZED SHEAR SPECIFICATIONS:

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
