- Description

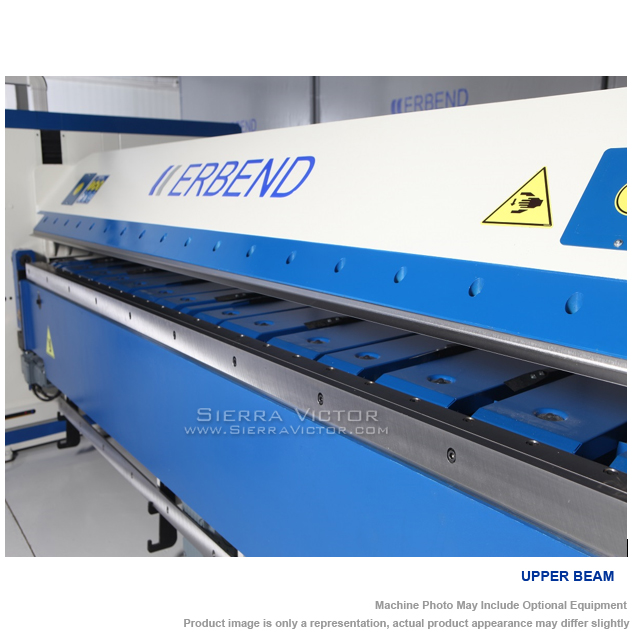

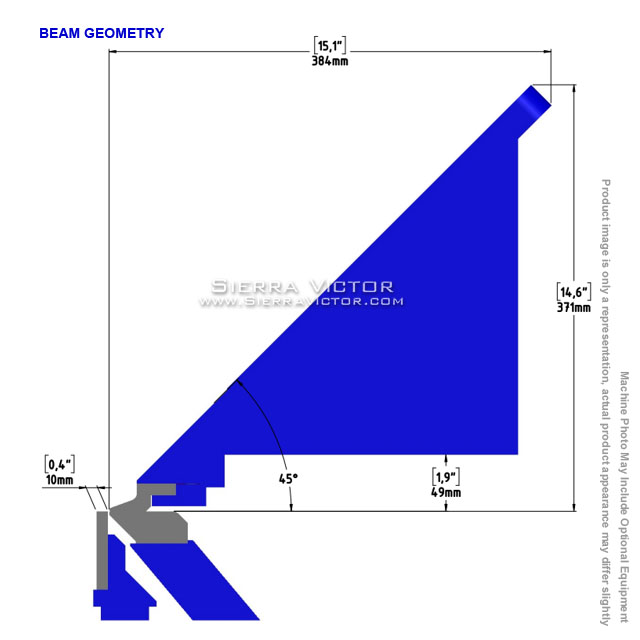

- 220 mm opening height capacity on the upper beam.
- Eccentric upper beam power transmission system for rapid clamping/unclamping.
- 1000 mm servo backgauge system with feather grooves.

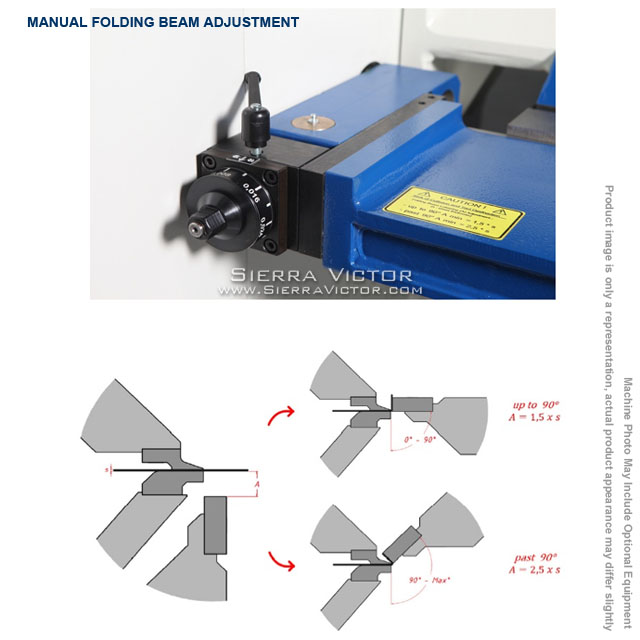

- Manual folding beam adjustment.

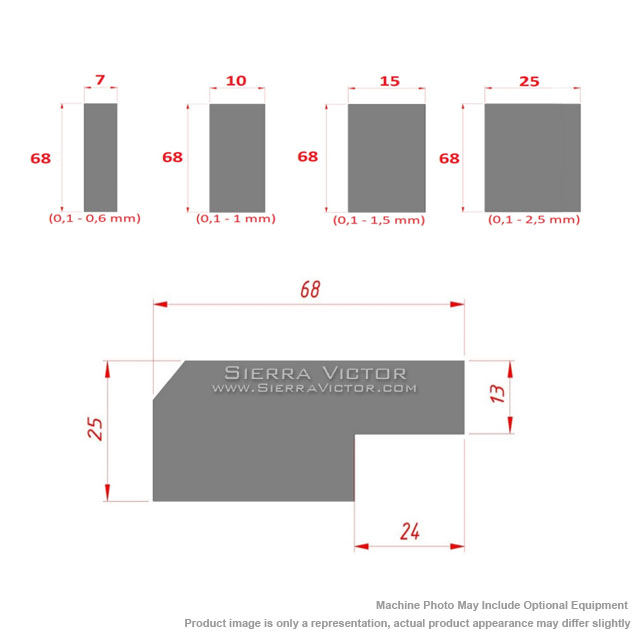

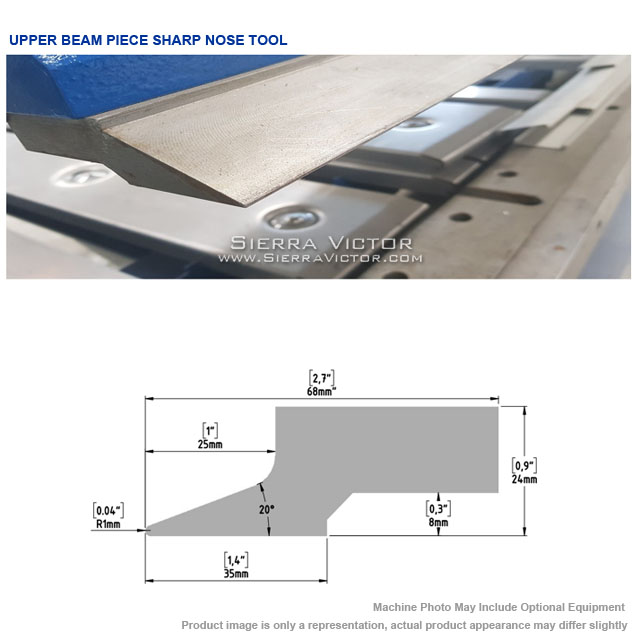

- 10 and 25 mm wide single piece folding tools as 2 sets.

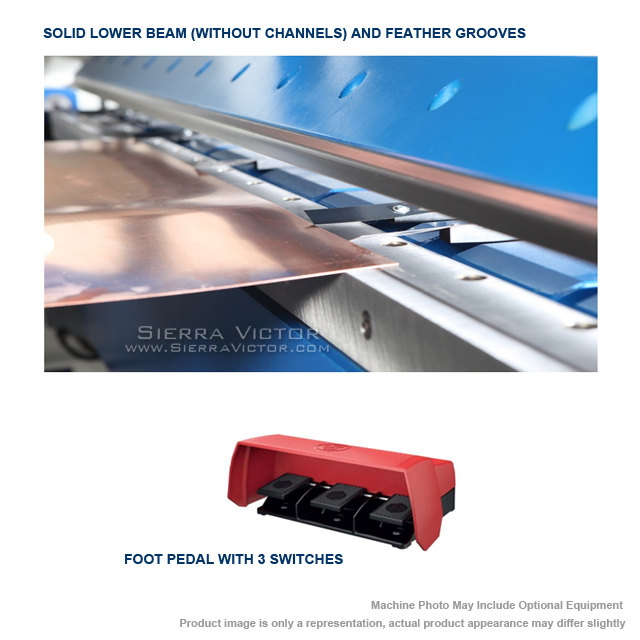

- Solid lower beam tool without channels.

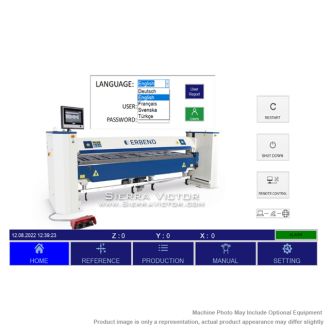

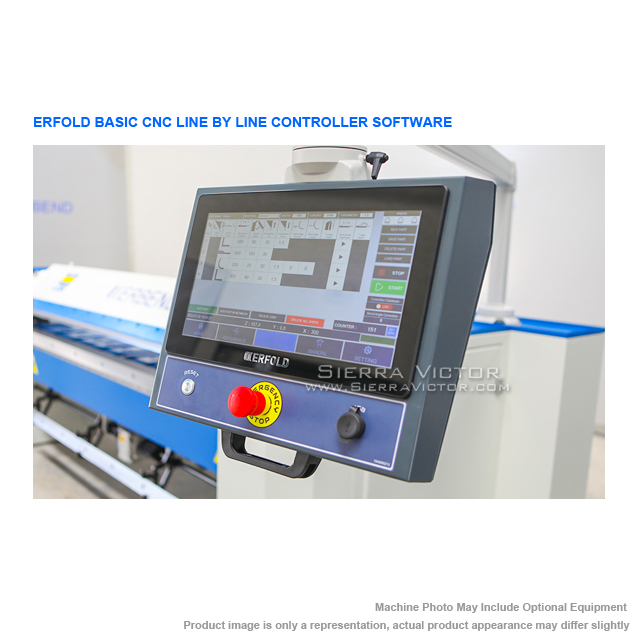

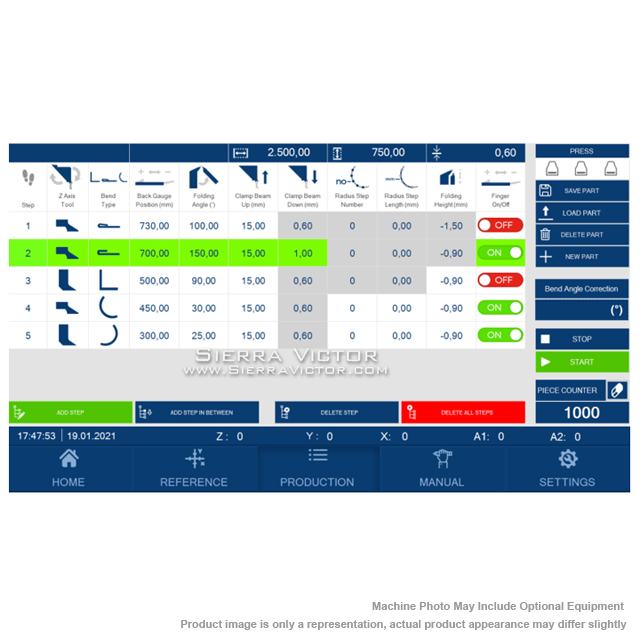

- ERFOLD BASIC CNC LBL CNC control software on 15.6 inch touchscreen controller with swivel arm.

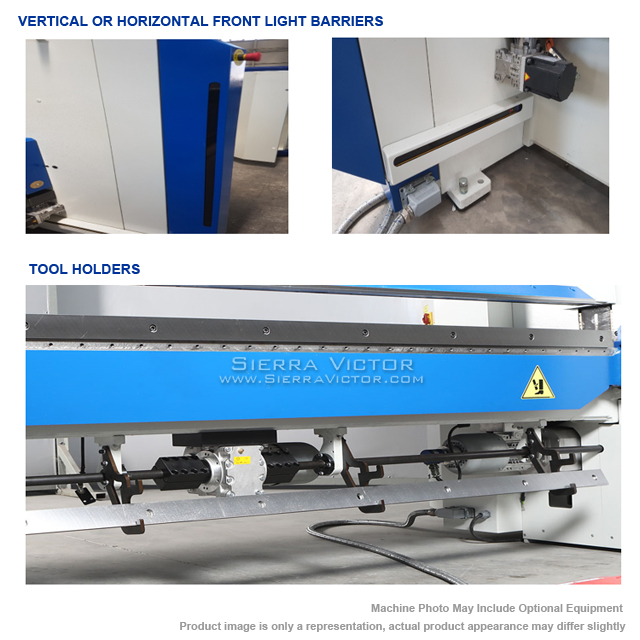

- Front light barriers.
- Manufacturer
- Specifications
- Options/Accessories

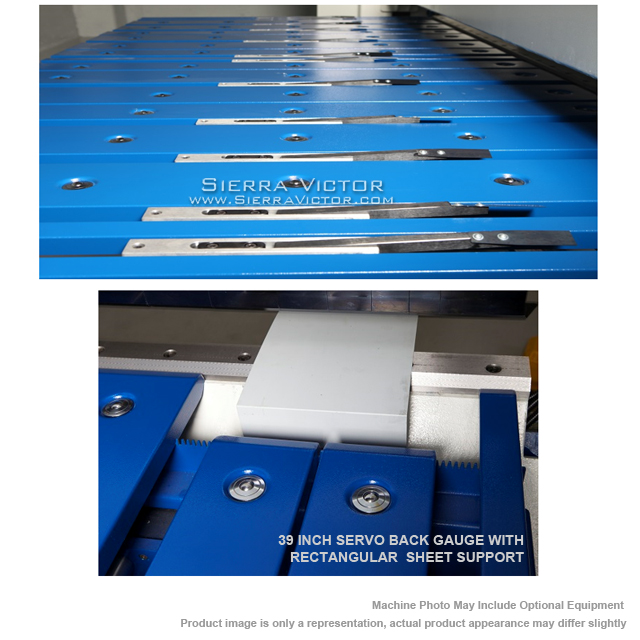

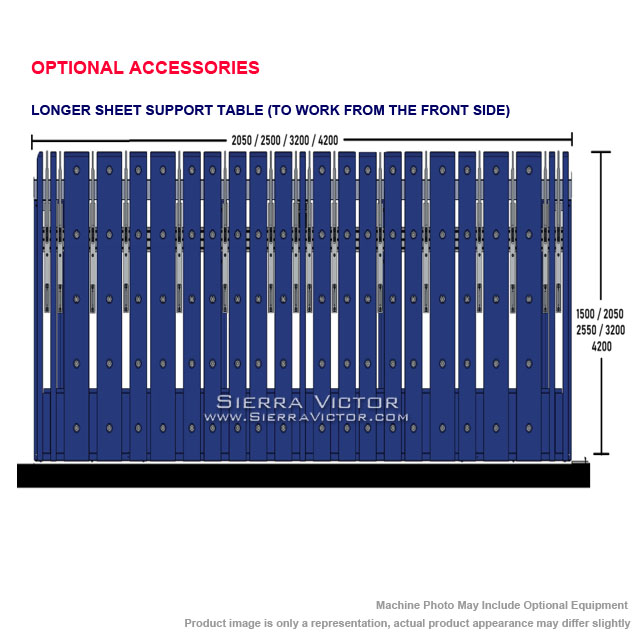

- 1500 mm servo backgauge system with rectangular sheet support table.

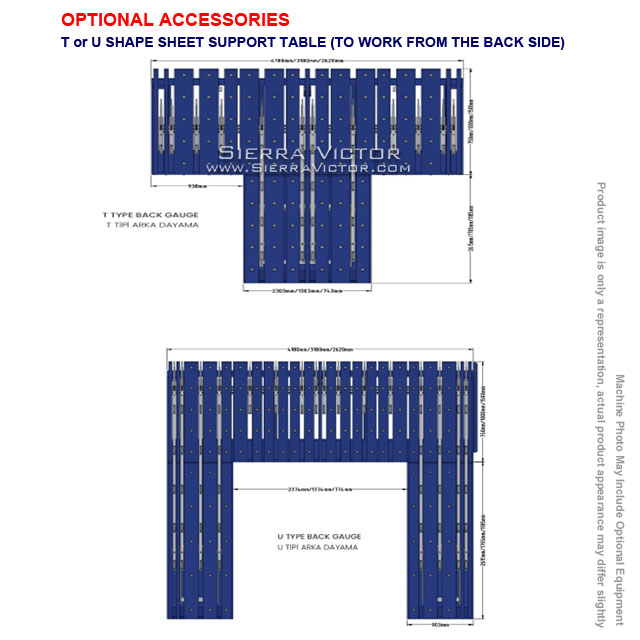

- 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.

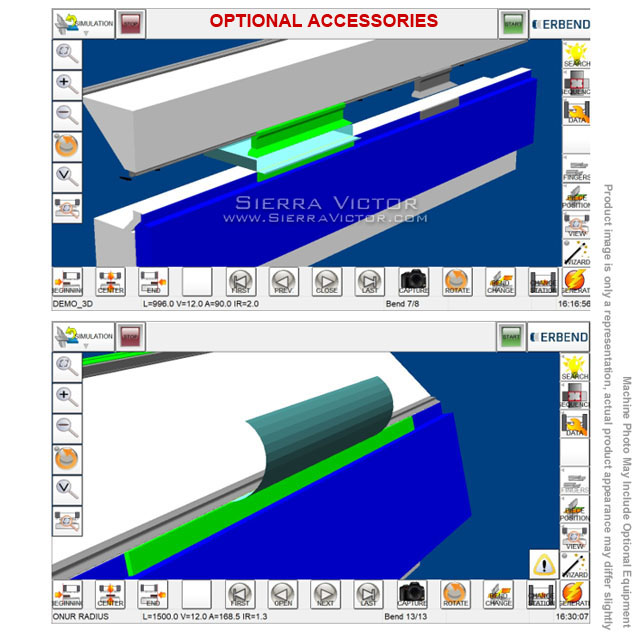

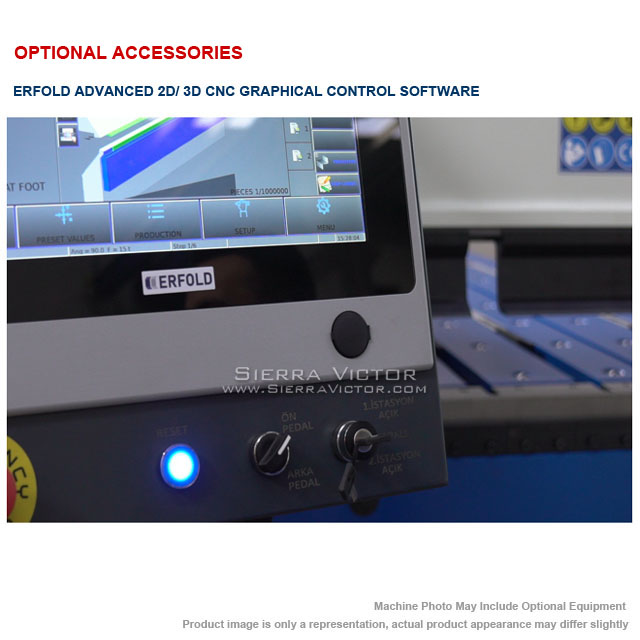

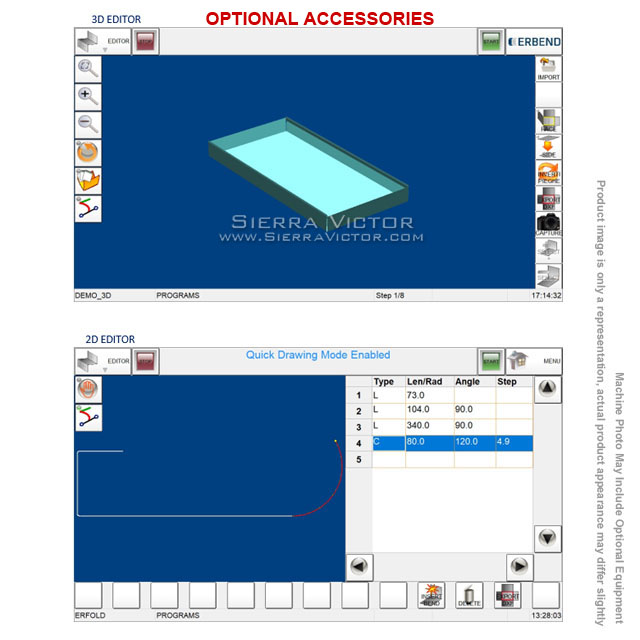

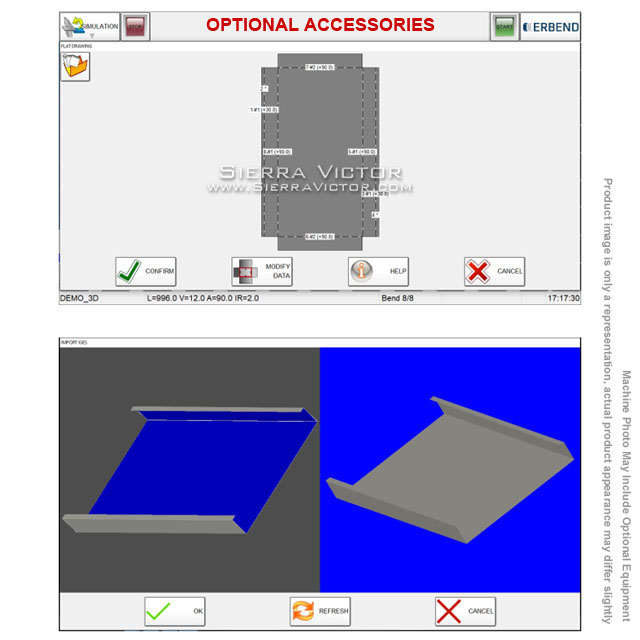

- ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
- Servo folding beam adjustment.

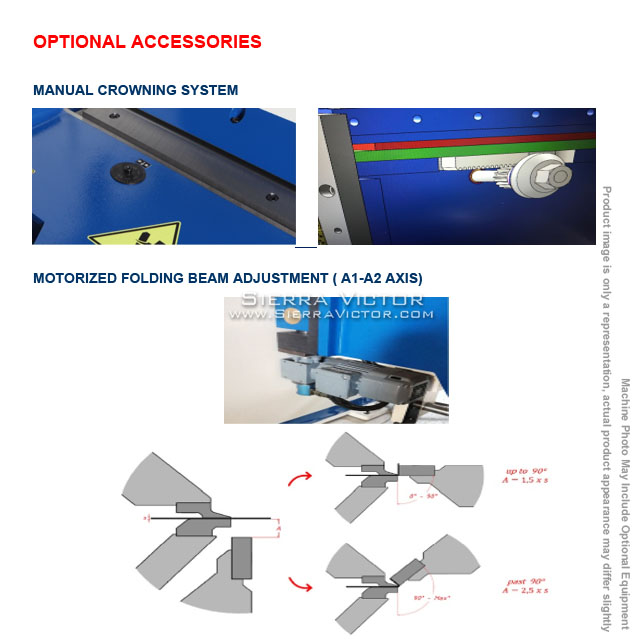

- Manual crowning system.

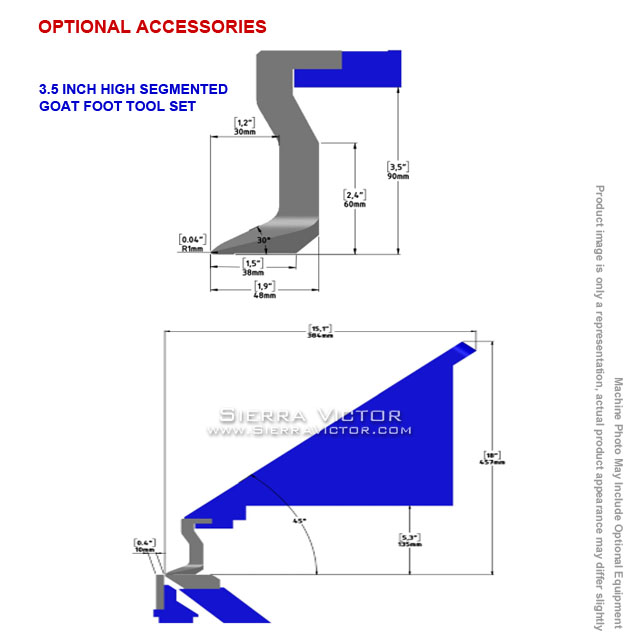

- 90 or 110 mm high segmented goat foot tool set.

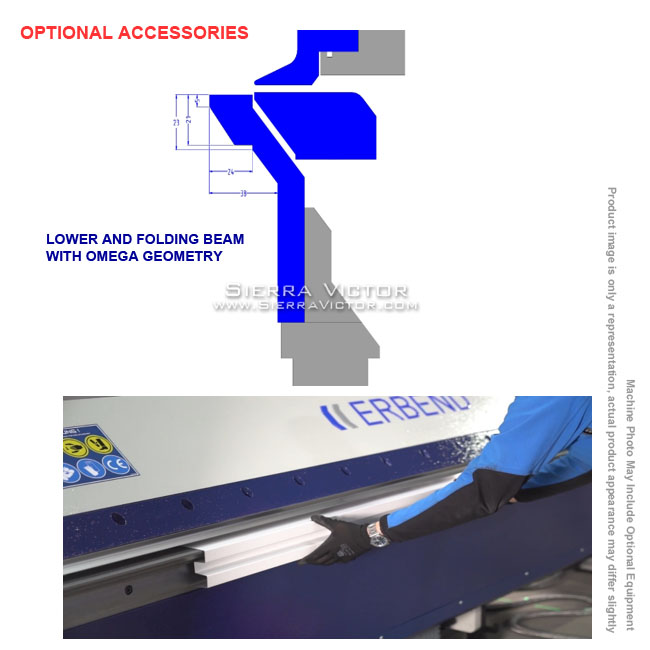

- Omega geometry upgrade on lower and folding beam.
- Manual conical backgauge finger.

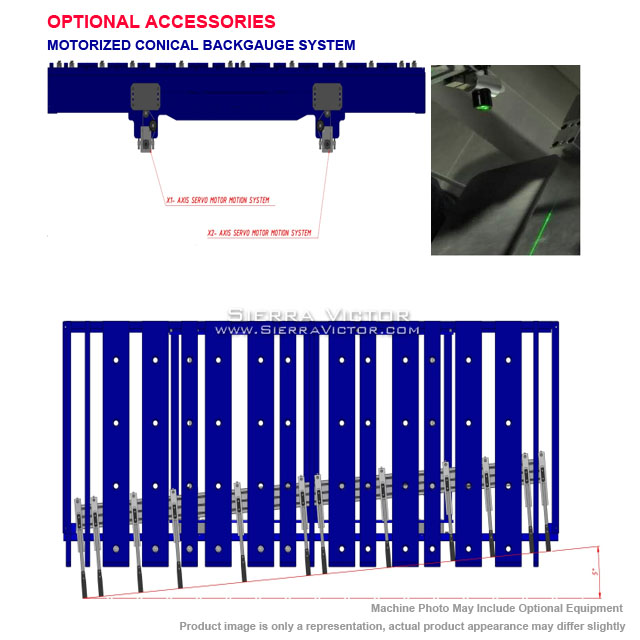

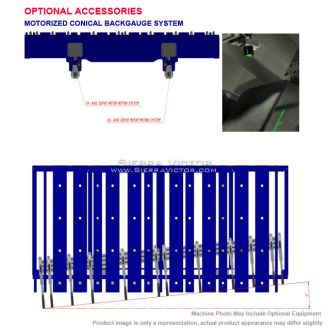

- Motorized conical backgauge system.

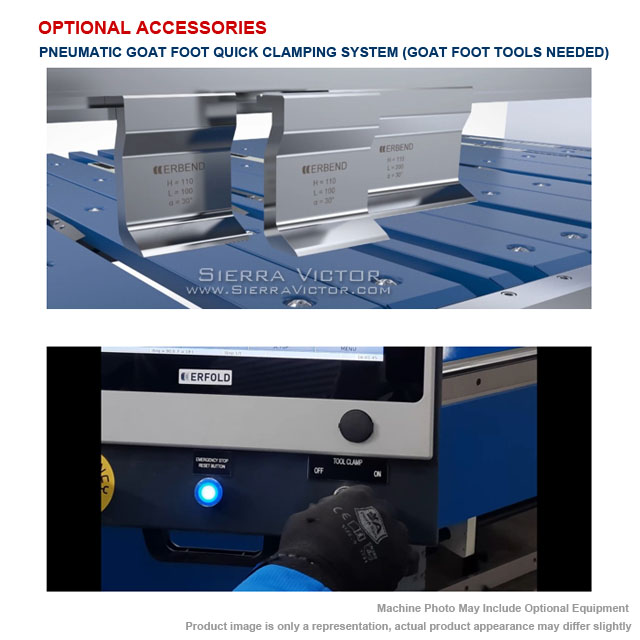

- Pneumatic goat foot tool quick clamping system.
- Custom Freight
- Video
ERBEND 6ft x 0.118 in. CNC Motorized Sheet Metal Folding Machine MFB 2030
ITEM: 6 ft x 0.118 in. CNC Motorized Sheet Metal Folding Machine
MANUFACTURER: ERBEND
MODEL: MFB 2030
Manufacturer:
Erbend
Machine Type
Machine Category:
Folders
Control:
CNC
Material Type:
Metal
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
5/32"
MODEL |
MFB 2030 |
|
Sheet Length |
81 in. (6.6 ft) |
|
Capacity |
Steel |
0.118 in. |
Stainless |
0.078 in. |
|
Aluminum |
0.157 in. |
|
Dimensions |
132 x 87 x 78 in. |
|
Weight: |
8,378 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
