Name: ERBEND MFA 3230 10ft x 0.118 in. CNC Servo Combi Sheet Metal Folding Machine
Brand: Erbend
SKU: MFA 3230
Availability: InStock
Rating: 4.9 (8 reviews)

ERBEND 10ft x 0.118 in. CNC Servo Combi Sheet Metal Folding Machine MFA 3230

Dual drive clamping beam with ball screw spindle system for more clamping power.

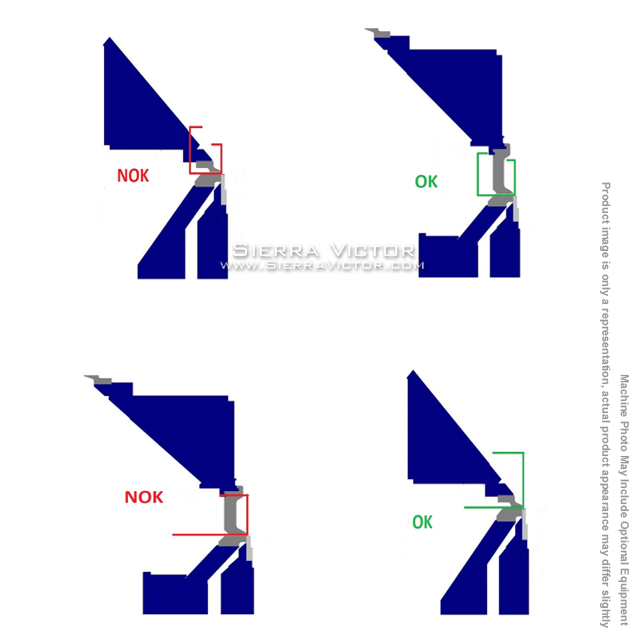

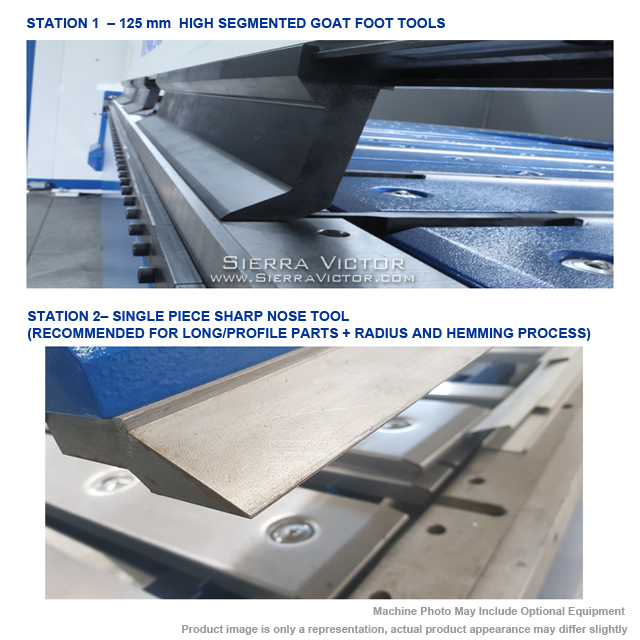

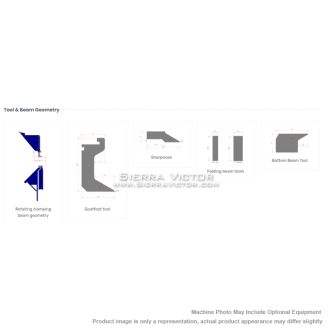

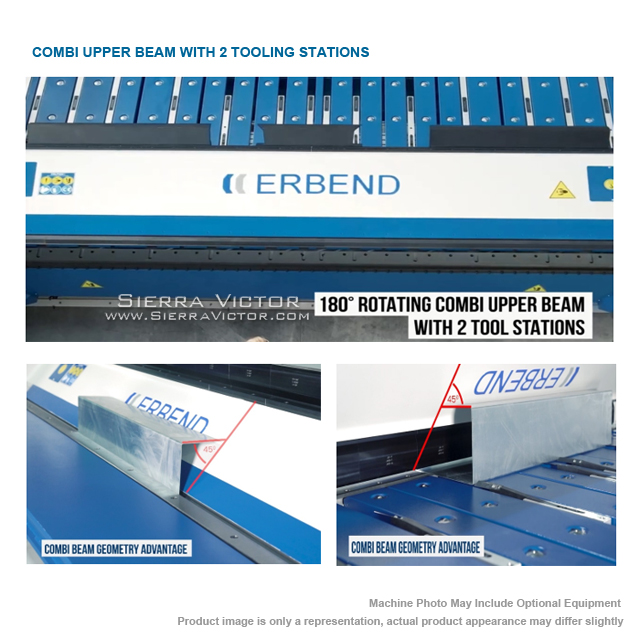

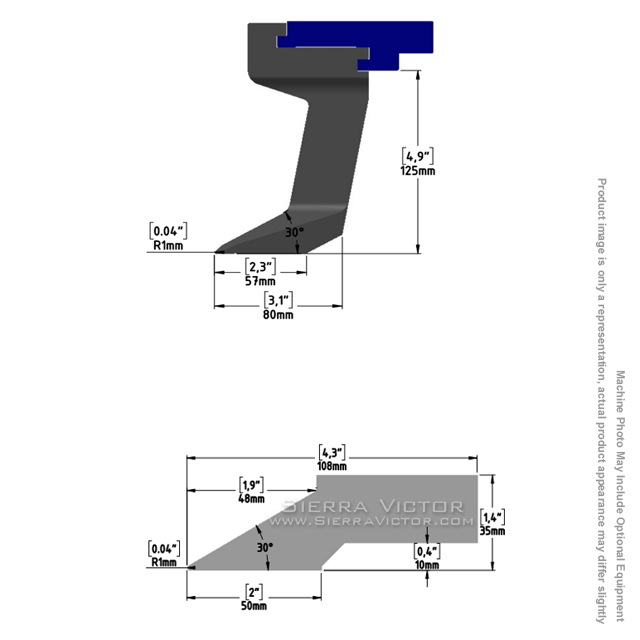

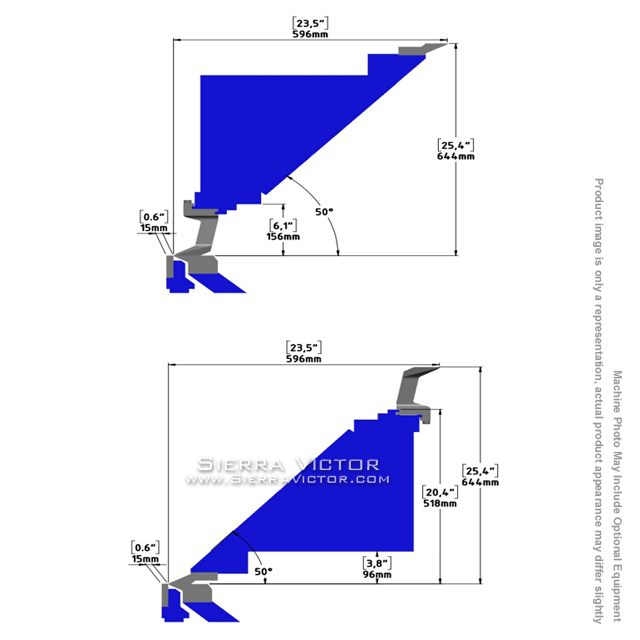

9.84 inch opening height on 180° rotating combi clamping beam with 2 tooling stations as 4.92 inch high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2.

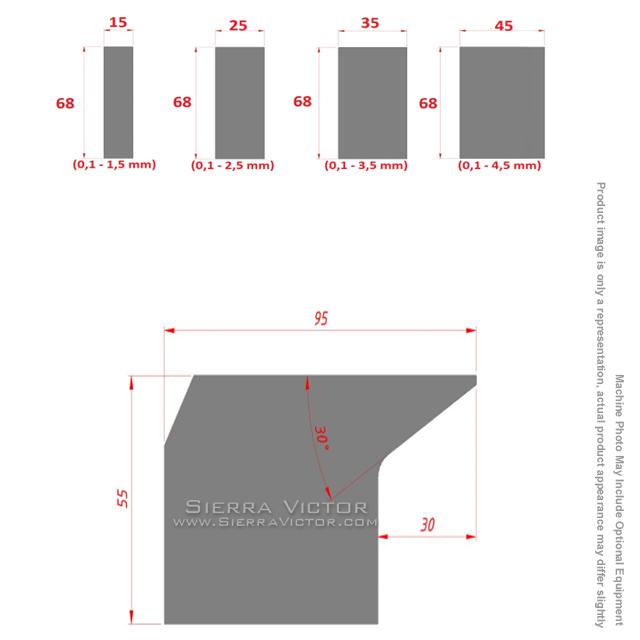

Solid lower beam with channels and 2 sets of single piece folding tools as 0.59 and 1.57 inch wide.

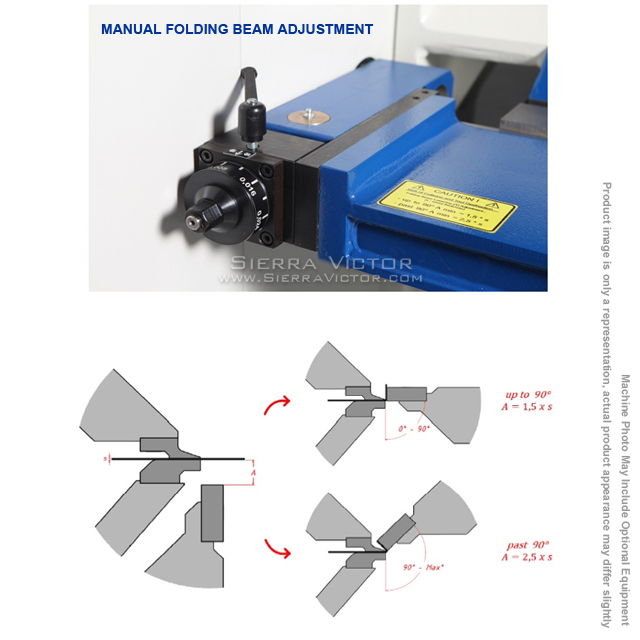

Manual folding beam adjustment.

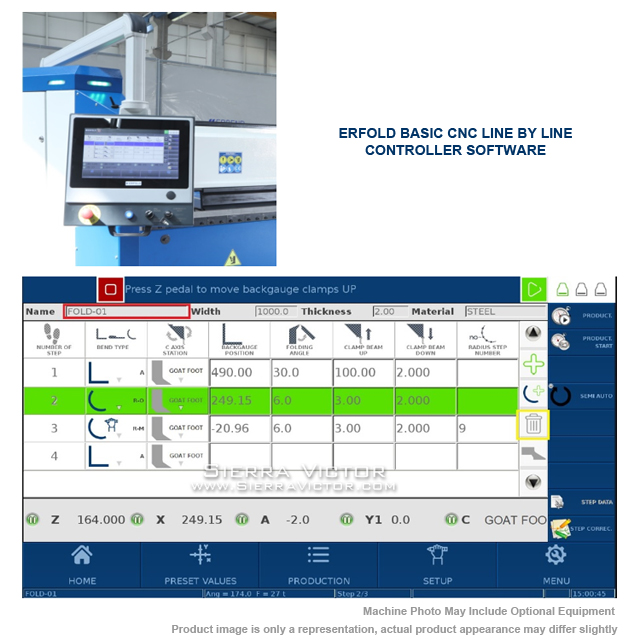

ERFOLD BASIC CNC LBL control software on 15.6" touchscreen controller with swivel arm.

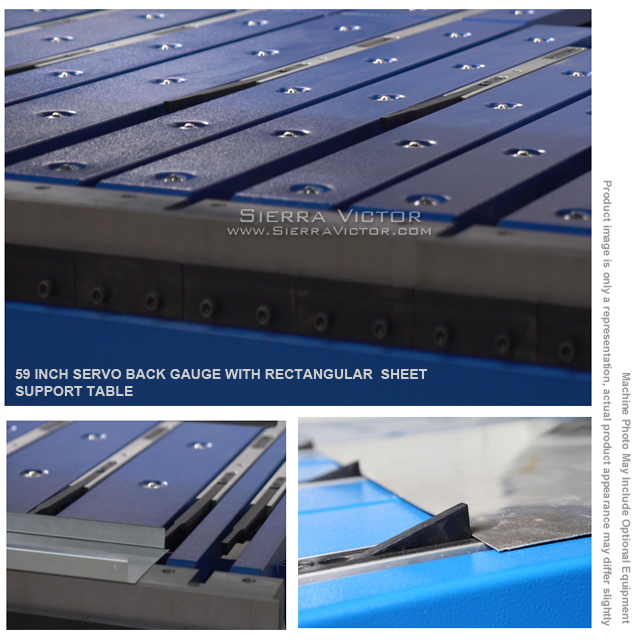

59 inch servo back gauge system with pneumatic solid fingers and sheet support table with ball casters.

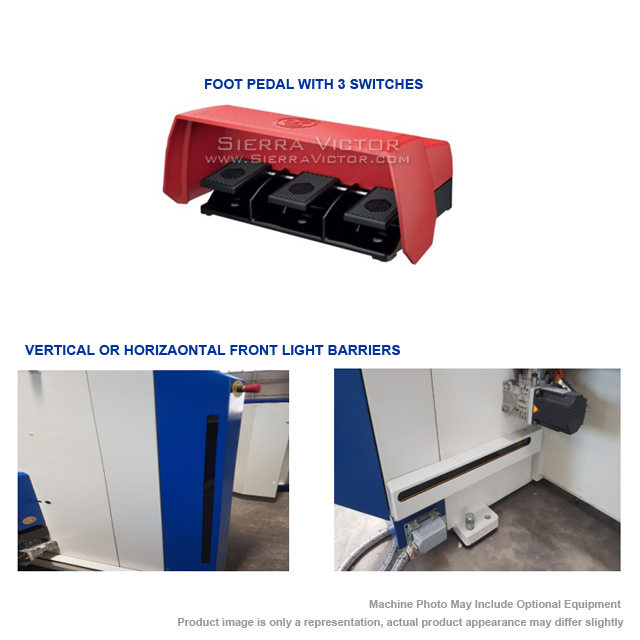

Front light barriers.

ITEM: 10 ft x 0.118 in. CNC Servo Combi Sheet Metal Folding Machine

MANUFACTURER: ERBEND

MODEL: MFA 3230

CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY

Manufacturer:

Erbend

Machine Type

Machine Category:

Folders

Control:

CNC

Metalworking

Material Length:

10 ft (120 in.+)

Mild Steel Capacity:

1/8"

MODEL		MFA 3230
Sheet Length		125.9 in. (10.5 ft)
Capacity	Steel	0.118 in.
	Stainless	0.078 in.
	Aluminum	0.157 in.
Dimensions		185 x 90.5 x 90.5 in.
Weight		17,747 lbs.

TECHNICAL PARAMETERS OF 11 AXIS

Upper Beam (Z axis)	Opening height (without tools)	7.87 in.
	Motor Power (Sew Eurodrive AC)	1,5 kW
	Transmission system	Eccentric
	Clamping speed	3.54 in./sec
Folding Beam (Y axis)	Folding angle	0 - 150°
	Motor Power (Sew Eurodrive AC)	2,2 kW
	Folding Speed	80°/sec
Folding Beam Height Adjustment (A1-A2 axis)	Adjustment height	0 / -1.37 in.
Folding Beam Height Adjustment (A1-A2 axis)	Control	Manual
Back gauge system (X axis)	Movement speed	11.81 in./sec
	Motor Power (Servo)	400 W
	Positioning / repeatability accuracy	+/- 0,1 mm

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY

CALL FOR PRICE:

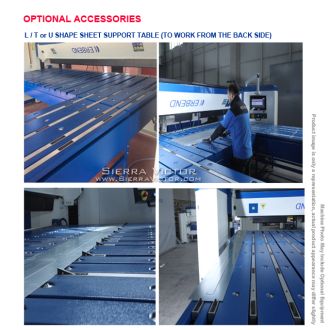

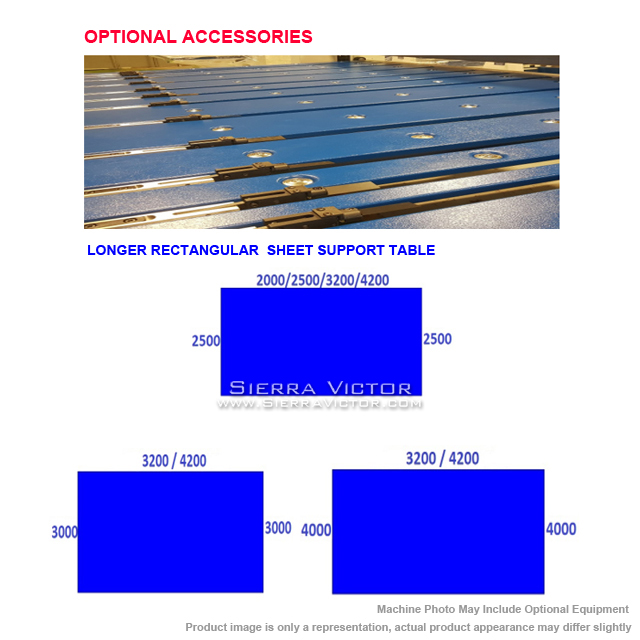

2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.

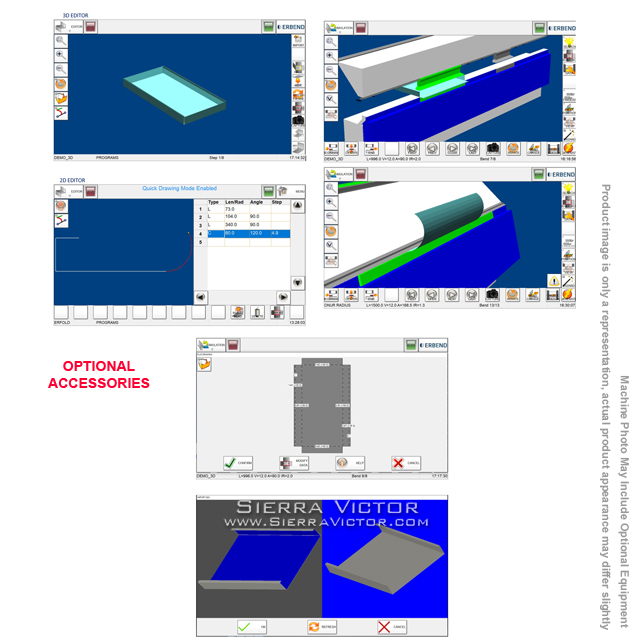

ERFOLD ADVANCED 2D/3D cnc graphic control software.

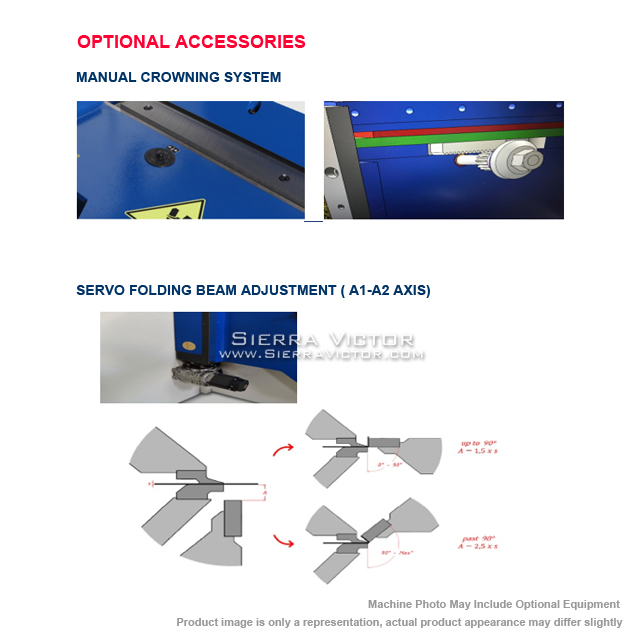

Servo folding beam adjustment.
Manual crowning system.

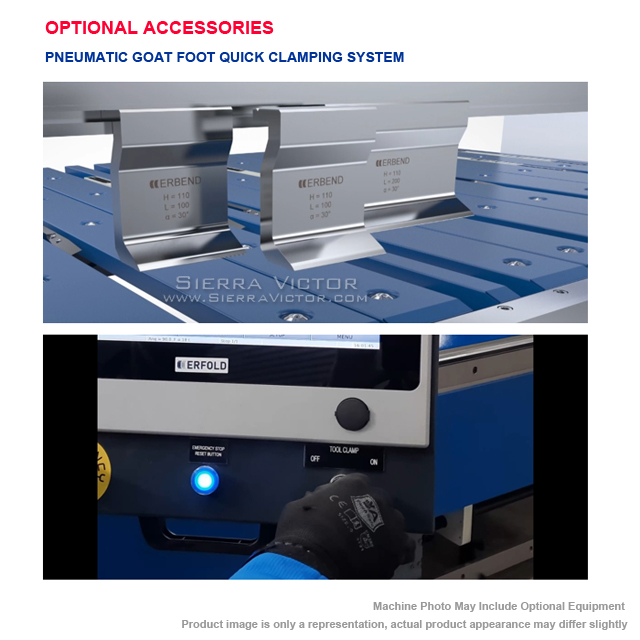

Pneumatic quick goatfoot tool clamping.

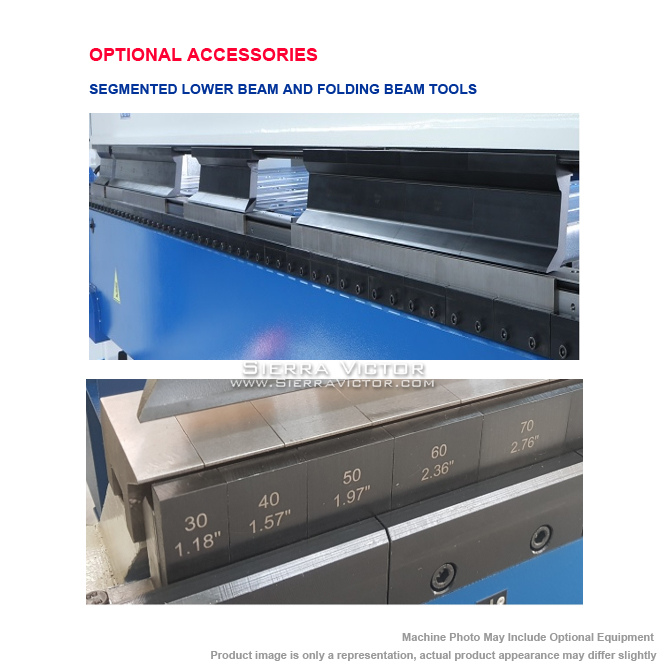

Segmented bottom or folding tools.
