- Description
- Dual drive clamping beam with ball screw spindle system for more clamping power.

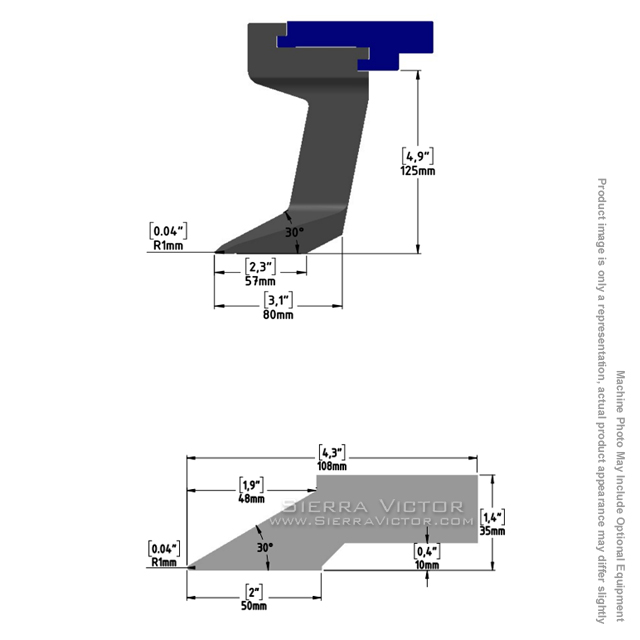

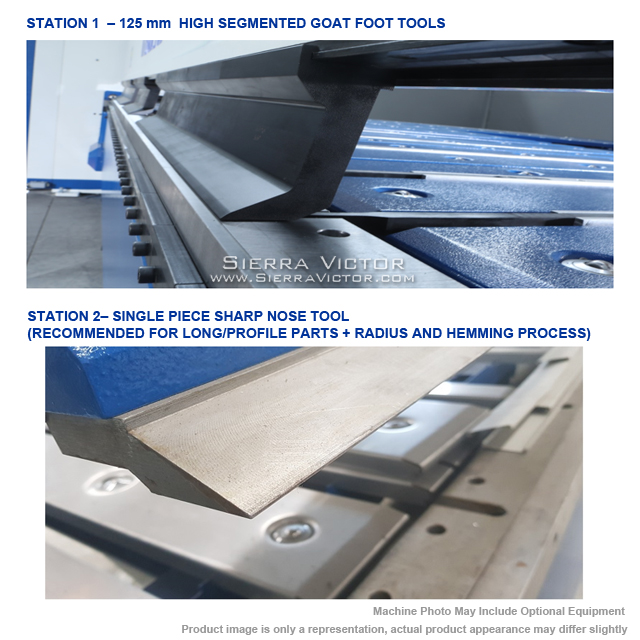

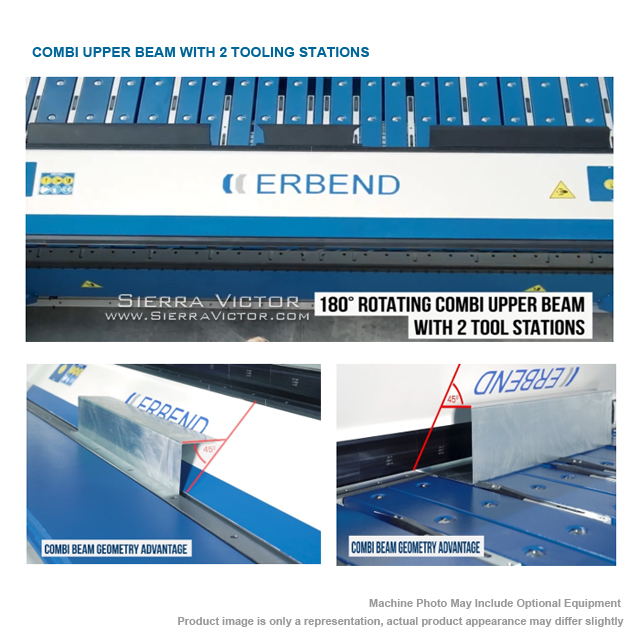

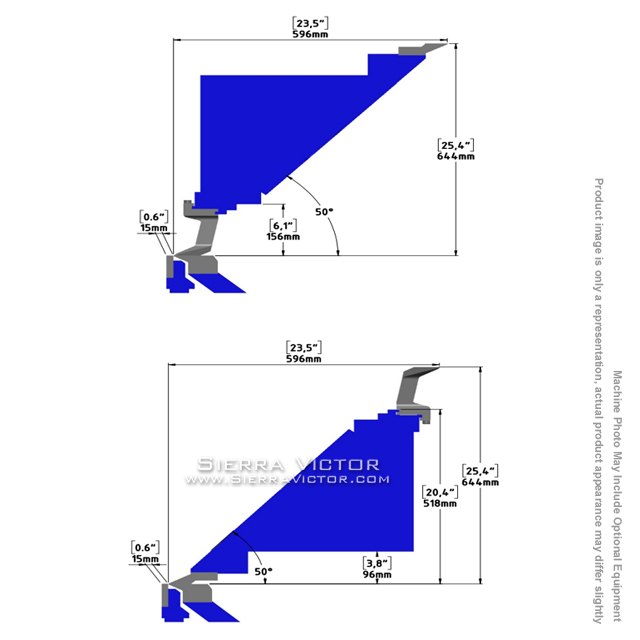

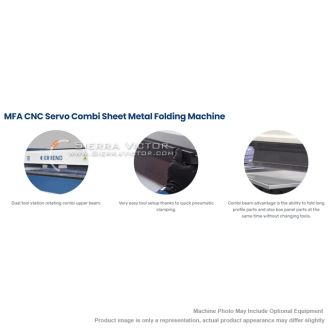

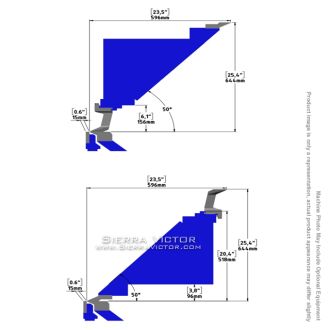

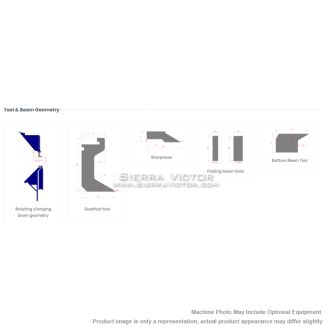

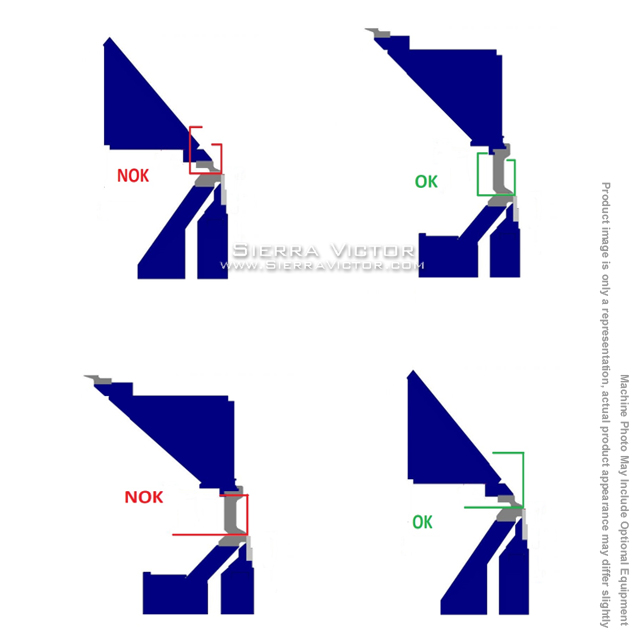

- 250 mm opening height on 180° rotating combi clamping beam with 2 tooling stations as 125 mm high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2.

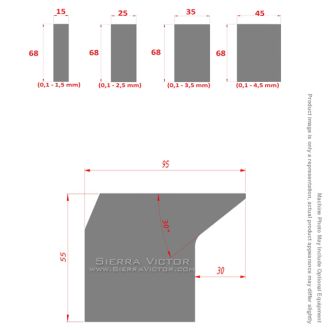

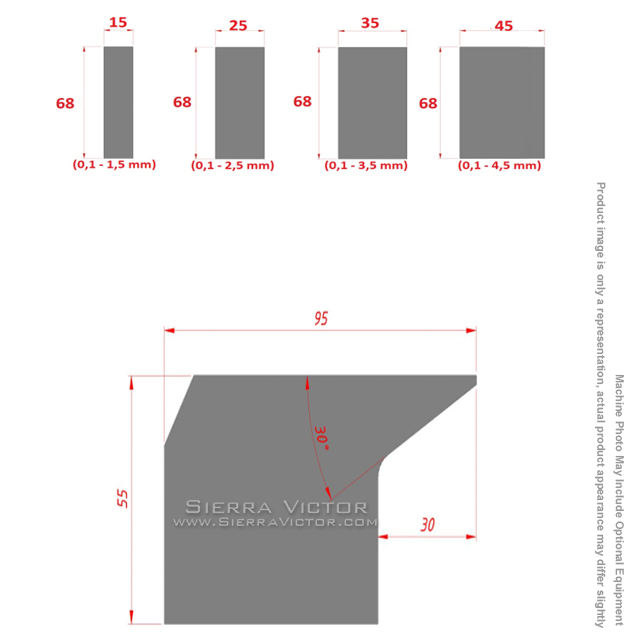

- Solid lower beam with channels and 2 sets of single piece folding tools as 15 and 40 mm wide.

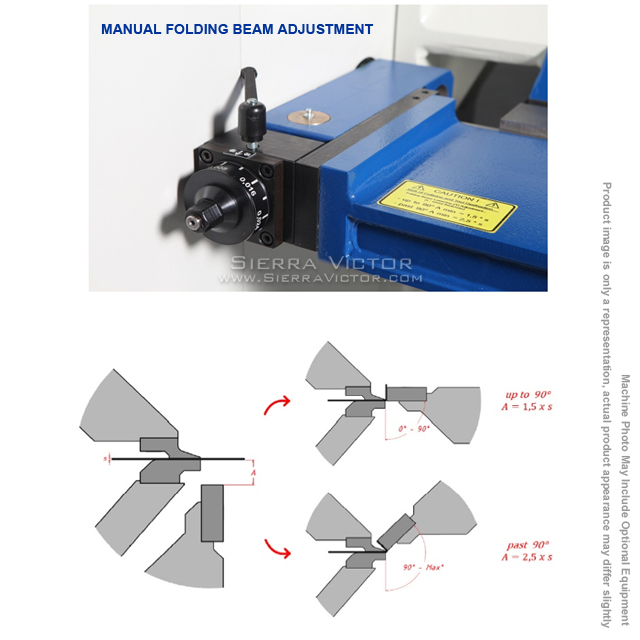

- Manual folding beam adjustment.

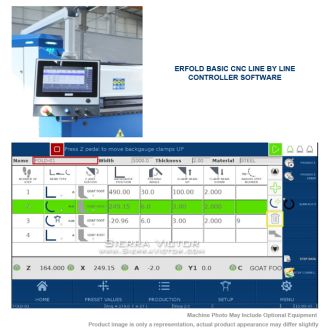

- ERFOLD BASIC CNC LBL control software on 15.6 ” touchscreen controller with swivel arm.

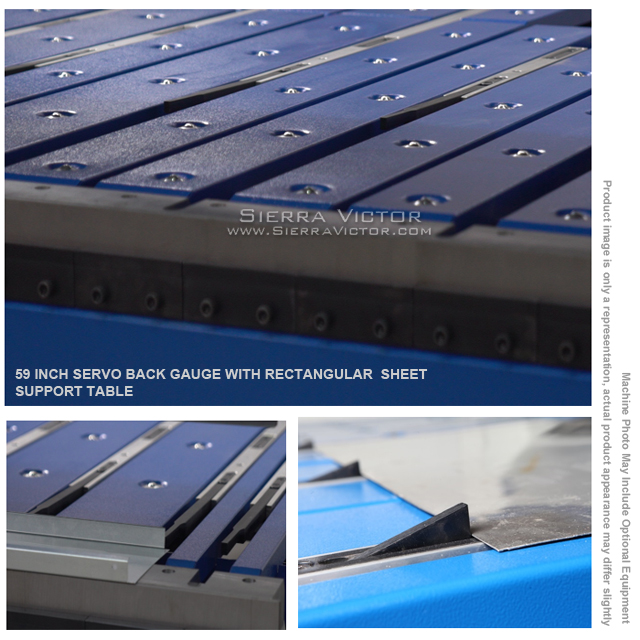

- 1500 mm servo back gauge system with pneumatic solid fingers and sheet support table with ball casters.

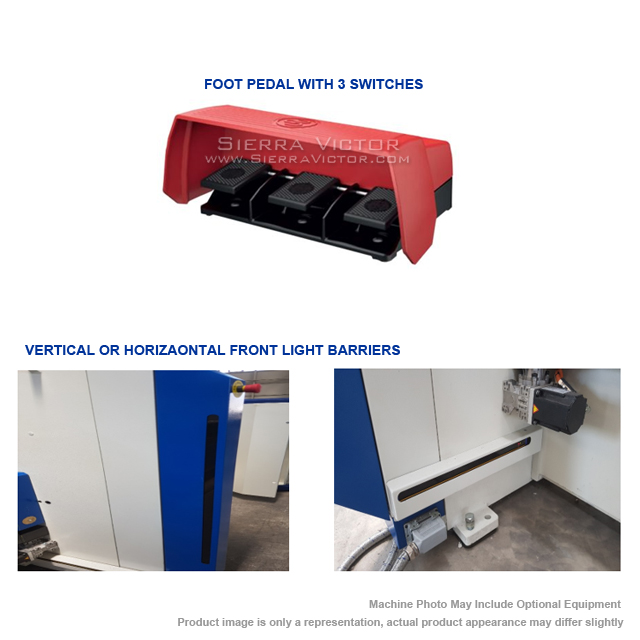

- Front light barriers.
- Manufacturer
- Specifications
- Options/Accessories

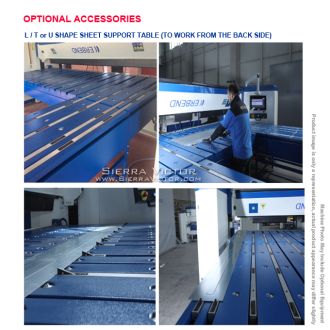

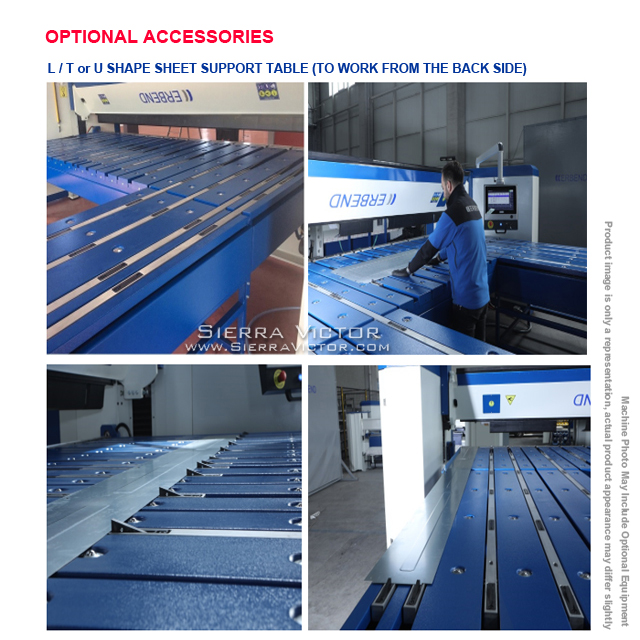

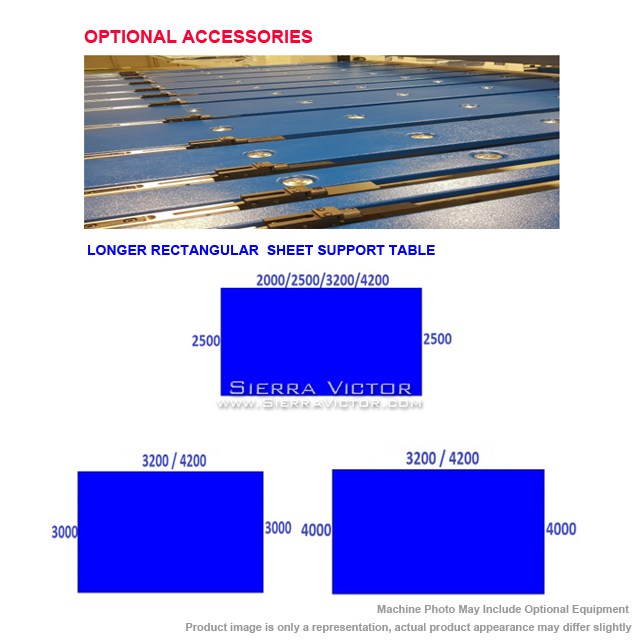

- 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.

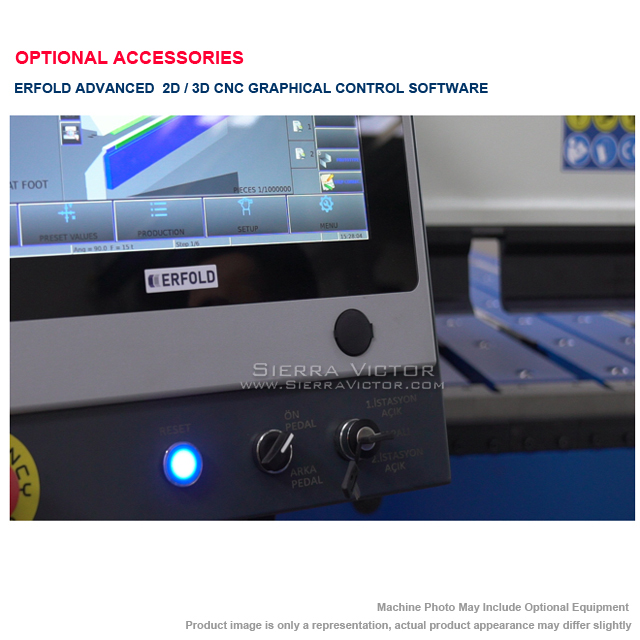

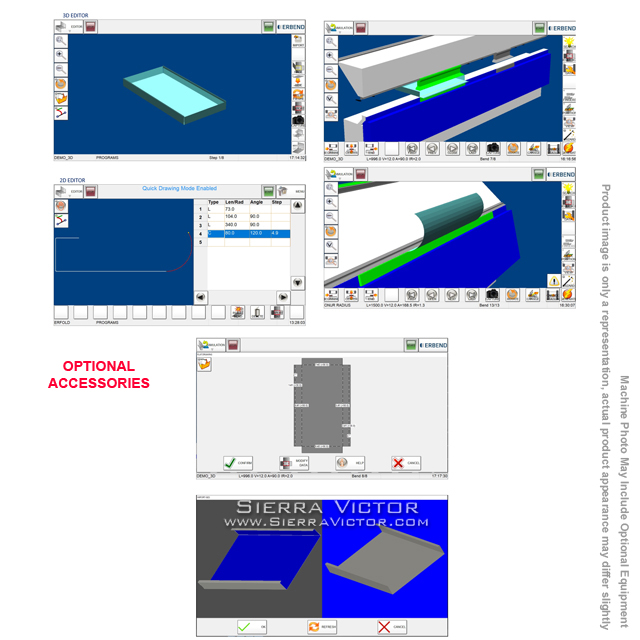

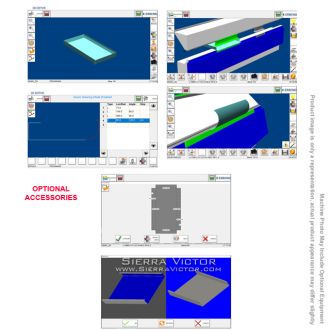

- ERFOLD ADVANCED 2D/3D cnc graphic control software.

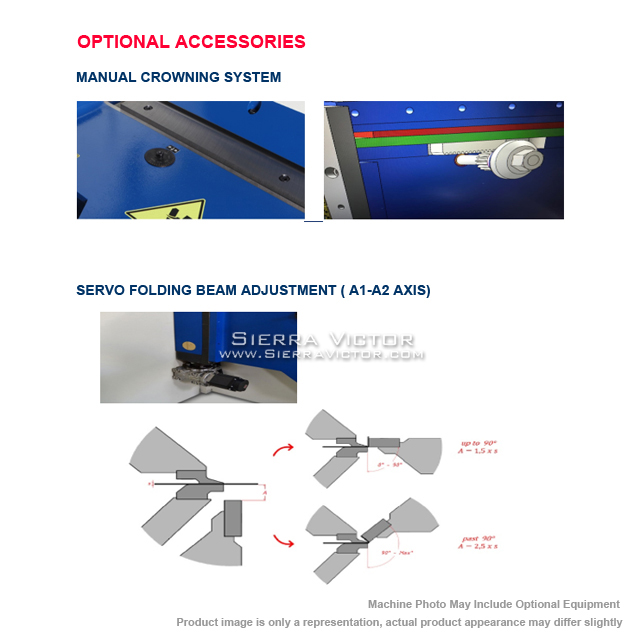

- Servo folding beam adjustment.
- Manual crowning system.

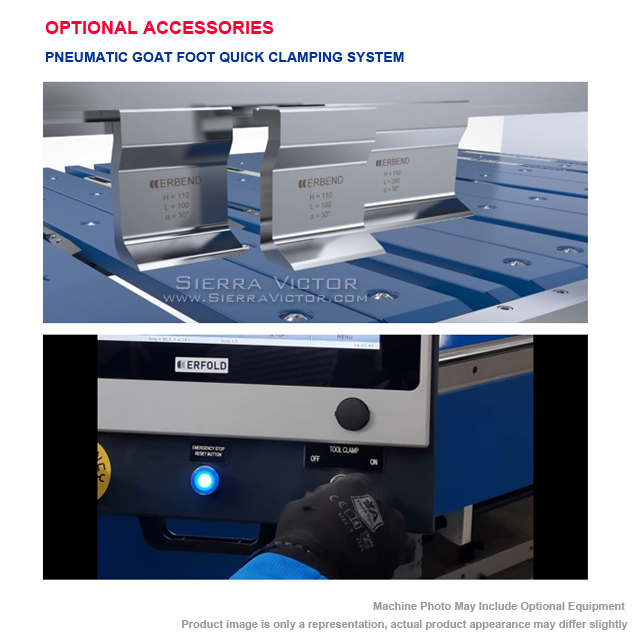

- Pneumatic quick goatfoot tool clamping.

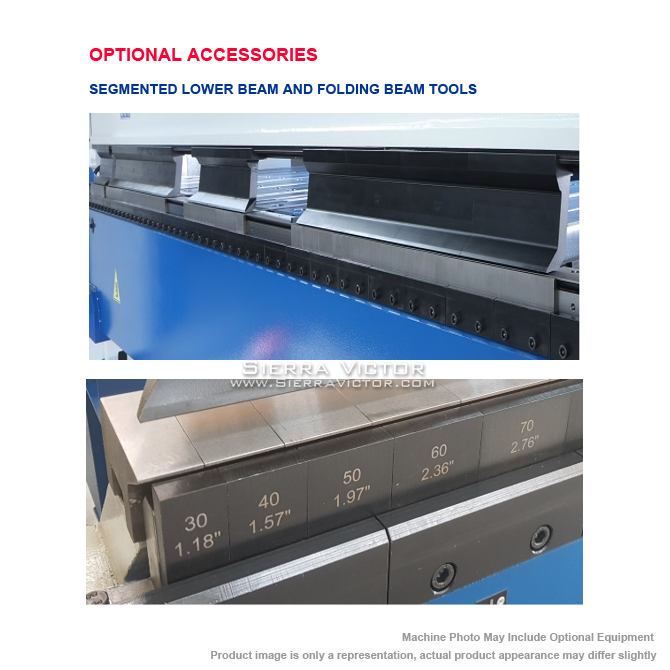

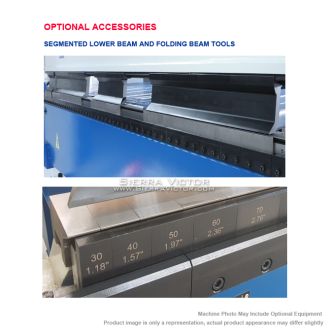

- Segmented bottom or folding tools.
- Custom Freight

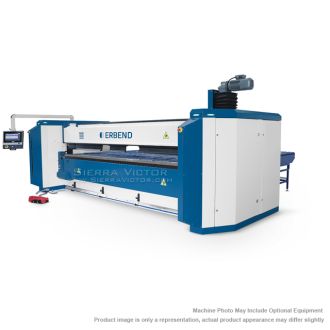

ERBEND 6ft x 0.157 in. CNC Servo Combi Sheet Metal Folding Machine MFA 2040
ITEM: 6 ft x 0.157 in. CNC Servo Combi Sheet Metal Folding Machine
MANUFACTURER: ERBEND
MODEL: MFA 2040
Manufacturer:
Erbend
Machine Type
Machine Category:
Folders
Control:
CNC
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
5/32"
MODEL
|
MFA 2040
|
|
Sheet Length |
81 in. (6.75 ft) |
|
Capacity |
Steel |
0.157 in. |
Stainless |
0.118 in. |
|
Aluminum |
0.236 in. |
|
Dimensions |
142 x 90.5 x 90.5 in. |
|
Weight |
14,551 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
