<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td>
<td width="257" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>EVS-1440B</b></span></div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Part#</div></td>
<td><div align="center">JT1-114</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Bed (In.)</div></td>
<td><div align="center">14</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Distance Between Centers (In.)</div></td>
<td><div align="center">40</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Over Cross Slide (In.)</div></td>
<td><div align="center">9-1/16</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257"><div align="center">Compound Slide Travel (In.)</div></td>
<td><div align="center">3-1/2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Width of Bed (In.)</div></td>
<td><div align="center">7.48</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Cross Slide Travel (In.)</div></td>
<td><div align="center">7</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bore (In.)</div></td>
<td><div align="center">1-1/2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Mount</div></td>
<td><div align="center">D1-4</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Taper</div></td>
<td><div align="center">Morse #5</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Taper with Sleeve</div></td>
<td><div align="center">MT-5</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Thread (In./TPI)</div></td>
<td><div align="center">2 - 56</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Steady Rest Capacity (In.)</div></td>
<td><div align="center">0.23-0.61 Copper Shaft<br>
( Standard) 0.20-2.36 Bearing Roller(OP)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tailstock Spindle Travel (In.)</div></td>
<td><div align="center">6-1/8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Taper in Tailstock Spindle</div></td>
<td><div align="center">MT-3</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Drive</div></td>
<td><div align="center">EVS</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Length of Gap (In.)</div></td>
<td><div align="center">9-1/2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Max Tool Size (In.)</div></td>
<td><div align="center">3/4 x 3/4</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Inch Threads</div></td>
<td><div align="center">34.0000</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Longitudinal <br>
and Cross Feed Rates</div></td>
<td><div align="center">25</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Metric Threads</div></td>
<td><div align="center">34.0000</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Spindle Speeds</div></td>
<td><div align="center">Variable</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Cross Feeds (IPR)</div></td>
<td><div align="center">25</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Inch Threads (TPI)</div></td>
<td><div align="center">2-56</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Longitudinal Feeds (IPR)</div></td>
<td><div align="center">0.0016-0.0460</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Metric Threads</div></td>
<td><div align="center">0.5-12</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Spindle Speeds (RPM)</div></td>
<td><div align="center">40-2000</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor (HP)</div></td>
<td><div align="center">3 HP, 230V, 3-Phase</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Power (HP)</div></td>
<td><div align="center">3</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Voltage (V.)</div></td>
<td><div align="center">230</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Prewired Voltage (V.)</div></td>
<td><div align="center">230</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Input Power</div></td>
<td><div align="center">230V 3ph</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Shipping Dimensions (L x W x H) (In.)</div></td>
<td><div align="center">76 x 30 x 61</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Overall Dimensions (L x W x H) (In.)</div></td>
<td><div align="center">68.5 x 28.3 x 50</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Net Weight (Lbs.)</div></td>
<td><div align="center">1,320</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Gross Weight (Lbs)</div></td>
<td><div align="center">1,584</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Prop 65</div></td>
<td><div align="center">Cancer and Reproductive Harm</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

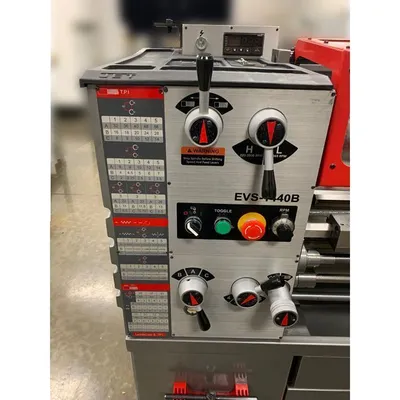

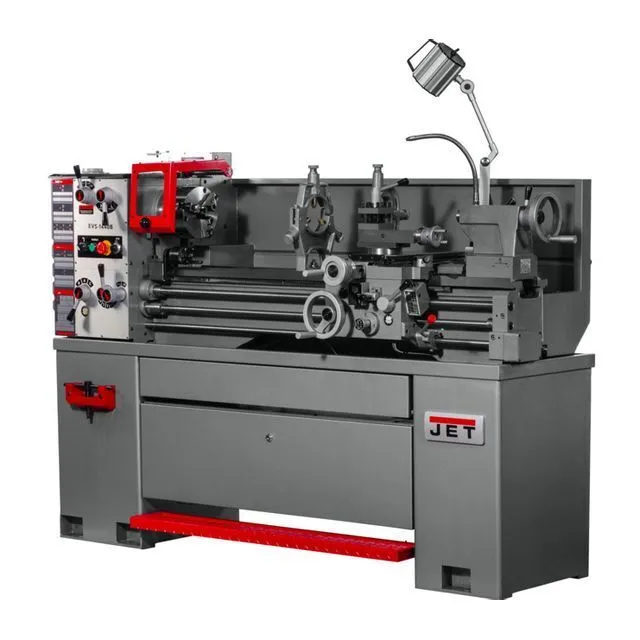

<ul> <li>The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.</li> </ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>

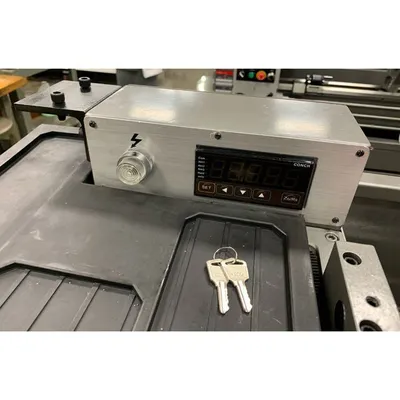

<ul> <li>6" 3-jaw chuck</li> <li>Treading dial indicator</li> <li>Steady & follow rest</li> <li>LED Work Lamp</li> <li>4-Position carriage stop</li> <li>Chuck Guard</li> <li>Threading Dial Indicator</li> <li>Compound and cross slide have backlash elimination</li> <li>Electronic Chuck Key Docking Station</li></ul>
