<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr>
<td align="right" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td>
<td width="257" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>GH-2680ZH</b></span></div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Part#</div></td>
<td><div align="center">JT9-321865-4</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257"><div align="center">Max. Swing Over Bed (in.)</div></td>
<td><div align="center">26</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Max. Swing Over Cross Slide (in.)</div></td>
<td><div align="center">16.5</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Swing Through Gap (in.)</div></td>
<td><div align="center">34</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Length of Gap (in.)</div></td>
<td><div align="center">8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Distance Between Centers (in.)</div></td>
<td><div align="center">80</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Bore (in.)</div></td>
<td><div align="center">4-1/8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Mount</div></td>
<td><div align="center">D1-8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Spindle Taper</div></td>
<td><div align="center">MT-5</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Spindle Speeds</div></td>
<td><div align="center">12</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Spindle Speeds (RPM)</div></td>
<td><div align="center">36-1,600</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Longitudinal & Cross Feeds</div></td>
<td><div align="center">65</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Longitudinal Feeds (in./rev.)</div></td>
<td><div align="center">.0023 - .0937</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Cross Feeds</div></td>
<td><div align="center">63</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Cross Feeds (Inch/rev)</div></td>
<td><div align="center">.0010 - .0404</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Inch Threads</div></td>
<td><div align="center">48</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Inch Threads (in.)</div></td>
<td><div align="center">2-30</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Metric Threads</div></td>
<td><div align="center">22</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Metric Threads (mm)</div></td>
<td><div align="center">1-14</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of D.P Threads</div></td>
<td><div align="center">24</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of D.P Threads</div></td>
<td><div align="center">4-56 DPI</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Number of Module Threads</div></td>
<td><div align="center">18</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Range of Module Threads (mm)</div></td>
<td><div align="center">0.5-7</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Maximum Tool Size (in.)</div></td>
<td><div align="center">1-1/4 x 1-1/4</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Maximum Compound Slide Travel (in.)</div></td>
<td><div align="center">5-1/2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center"> Cross Slide Travel (in.)</div></td>
<td><div align="center">14-9/16</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center"> Carriage Travel (in.)</div></td>
<td><div align="center">68-7/8</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Tailstock Spindel Travel (in.)</div></td>
<td><div align="center">6</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center"> Taper in Tailstock Spindle</div></td>
<td><div align="center">MT-5</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Follow Rest Capacity (in.)</div></td>
<td><div align="center">3-15/32</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Steady Rest Capacity - Large (in.)</div></td>
<td><div align="center">4-29/32 / 9-7/16</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Width of Bed (in.)</div></td>
<td><div align="center">16</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Main Motor</div></td>
<td><div align="center">10HP, 460v, 3Ph (230v available)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Prewired</div></td>
<td><div align="center">230V</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Overall Dim. w/ Stand (in.) </div></td>
<td><div align="center">138 x 43 x 57</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Net Weight (lb.)</div></td>
<td><div align="center">8,514</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

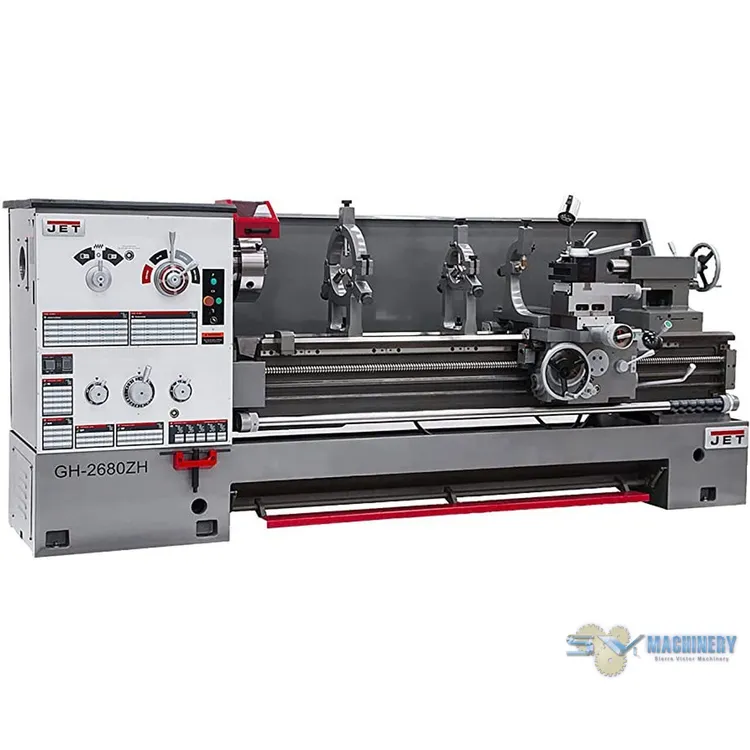

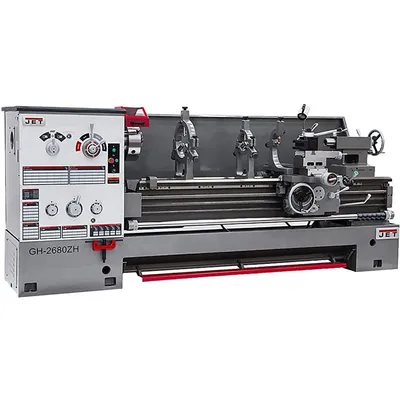

<ul><li>Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8” Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>
<ul><li>12" 3 Jaw scroll chuck with top reversing jaws</li><li>2 Steady rests with roller bearings</li><li>Bed ways are induction hardened and ground for durability</li><li>E-Stop on Carriage for added safety</li><li>Electronic Chuck Key Holder</li><li>Fitted top mats to hold tooling</li><li>Full Length Splash Guard</li><li>Heavy-duty tailstock and quill</li><li>Large easy to use foot brake</li><li>Rapid power traverse to cross slide and carriage</li></ul>
