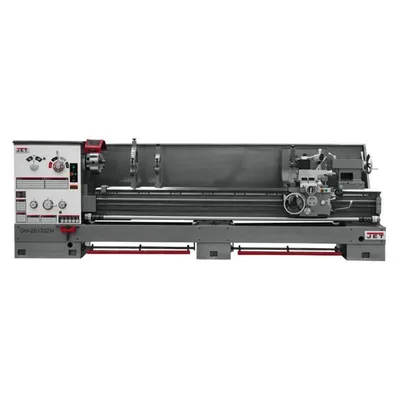

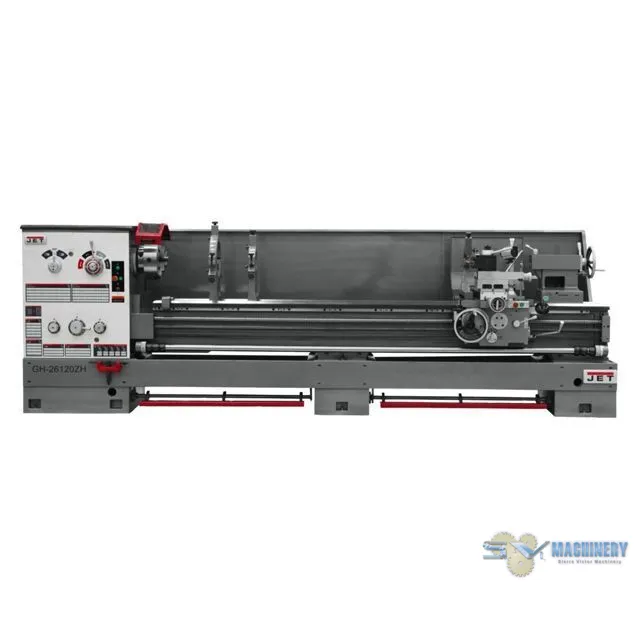

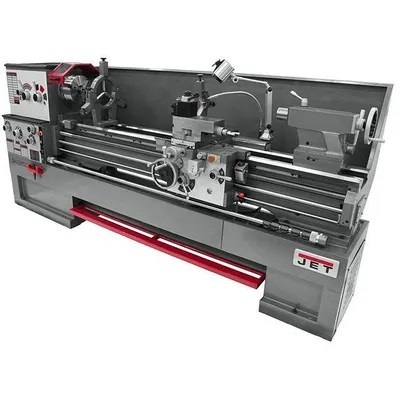

JET GH-26120ZH 26x120 in. Geared Head Lathe with Taper Attachment

<p><b>SPECIFICATIONS:</b></p> <table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText"> <tbody style="text-align: center;"> <tr> <td bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td> <td width="257" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>GH-26120ZH</b></span></div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Part#</div></td> <td><div align="center">JT9-321893</div></td> </tr> <tr> <td bgcolor="#cccccc" width="257"><div align="center">Max. Swing Over Bed (in.)</div></td> <td><div align="center">26</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Max. Swing Over Cross Slide (in.)</div></td> <td><div align="center">16.5</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Swing Through Gap (in.)</div></td> <td><div align="center">34</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Length of Gap (in.)</div></td> <td><div align="center">8</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Distance Between Centers (in.)</div></td> <td><div align="center">120</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Spindle Bore (in.)</div></td> <td><div align="center">4-1/8</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Spindle Mount</div></td> <td><div align="center">D1-8</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Spindle Taper</div></td> <td><div align="center">MT-5</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of Spindle Speeds</div></td> <td><div align="center">12</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of Spindle Speeds (RPM)</div></td> <td><div align="center">36-1,600</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of Longitudinal & Cross Feeds</div></td> <td><div align="center">65</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of Longitudinal Feeds (in./rev.)</div></td> <td><div align="center">.0023 - .0937</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of Cross Feeds</div></td> <td><div align="center">63</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of Cross Feeds (Inch/rev)</div></td> <td><div align="center">.0040 - .0404</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of Inch Threads</div></td> <td><div align="center">48</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of Inch Threads (in.)</div></td> <td><div align="center">2-30</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of Metric Threads</div></td> <td><div align="center">22</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of Metric Threads (mm)</div></td> <td><div align="center">1-14</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of D.P Threads</div></td> <td><div align="center">24</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of D.P Threads</div></td> <td><div align="center">4-56 DPI</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Number of Module Threads</div></td> <td><div align="center">18</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Range of Module Threads (mm)</div></td> <td><div align="center">0.5-7</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Maximum Tool Size (in.)</div></td> <td><div align="center">1-1/4 x 1-1/4</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Maximum Compound Slide Travel (in.)</div></td> <td><div align="center">5-1/2</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center"> Cross Slide Travel (in.)</div></td> <td><div align="center">14-9/16</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center"> Carriage Travel (in.)</div></td> <td><div align="center">108-1/4</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Tailstock Spindel Travel (in.)</div></td> <td><div align="center">6</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center"> Taper in Tailstock Spindle</div></td> <td><div align="center">MT-5</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Follow Rest Capacity (in.)</div></td> <td><div align="center">3-15/32</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Steady Rest Capacity - Large (in.)</div></td> <td><div align="center">4-29/32 / 9-7/16</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Width of Bed (in.)</div></td> <td><div align="center">16</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Main Motor</div></td> <td><div align="center">10HP, 230/460V, 3Ph</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Prewired</div></td> <td><div align="center">230V</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Overall Dim. w/ Stand (in.) </div></td> <td><div align="center">178 x 43 x 57</div></td> </tr> <tr> <td bgcolor="#cccccc"><div align="center">Net Weight (lb.)</div></td> <td><div align="center">9,362</div></td> </tr> </tbody> </table> <p><b><br>FEATURES:</b></p> <ul><li>The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty</li><li>4-1/8" Spindle Bore</li><li>Clutch operated headstock with all headstock gears hardened and ground</li><li>Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required</li><li>Meehanite Castings are used for added durability.</li><li>Bed ways are induction hardened and ground for durability.</li><li>Full Length Splash Guard</li><li>Heavy-duty tailstock and quill</li><li>Rapid power traverse to cross slide and carriage</li><li>Siemens Electrics</li></ul> <p><strong>STANDARD EQUIPMENT:</strong></p> <ul><li>Drive Plate</li><li>12" 3-Jaw scroll chuck with top reversing jaws</li><li>Face Plate</li><li>2 Steady Rests with Roller Bearings</li><li>Follow Rest</li><li>Large capacity steady rest with ball bearing tips</li><li>5pc. Quick change tool post set</li><li>Micro-carriage bed stop</li><li>Fully Integrated Coolant System</li><li>LED work lamp</li><li>Electronic Chuck Key Holder</li><li>Fitted top mats to hold tooling</li><li>E-Stop on Carriage for added safety</li><li>Large easy to use foot brake</li></ul>
