GATOR FAB Single Spindle Beam Drilling Machine w/46 ft Conveyor | BEAM-X 1200

GATOR FAB Single Spindle Beam Drilling Machine w/46 ft Conveyor | BEAM-X 1200

Have one to sell?
386-304-3720
dan@sierravictor.com
Fulfillment
FOB  |  Freight Quoted Separately
Have one to sell?

Overview

Type:
Beam Drilling Machines
Manufacturer:
GATOR FAB
Model:
BEAMX 1200
Stock #:
BEAMX-1200-46
Status:
For Sale

Description

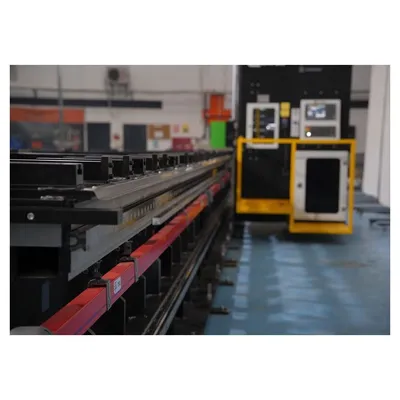

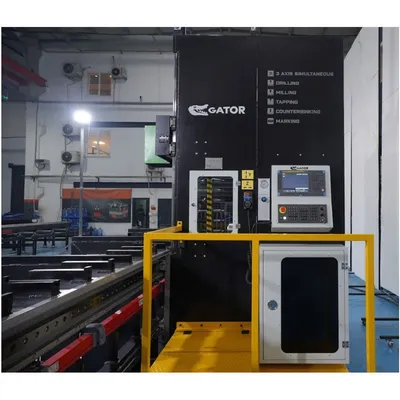

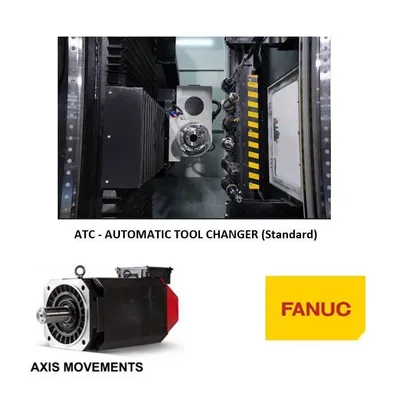

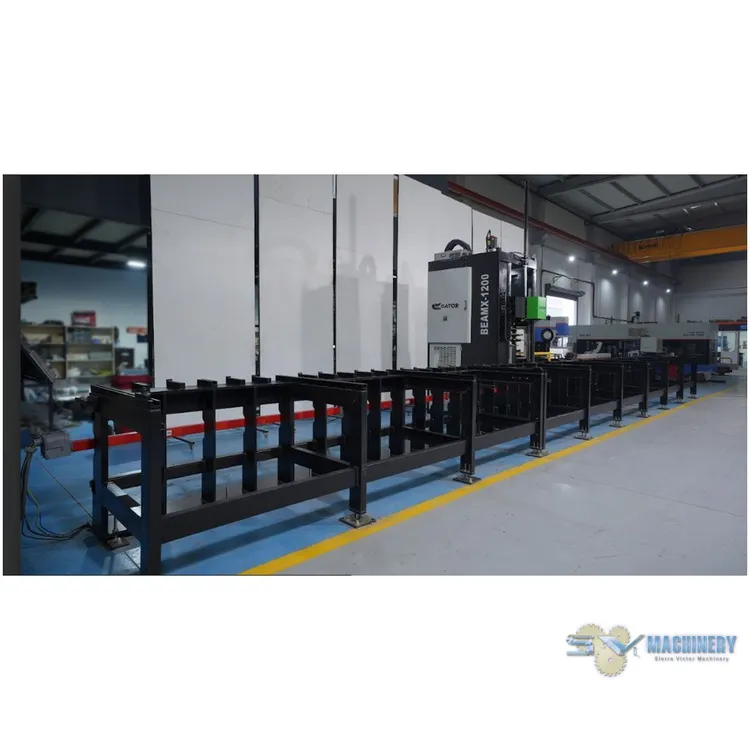

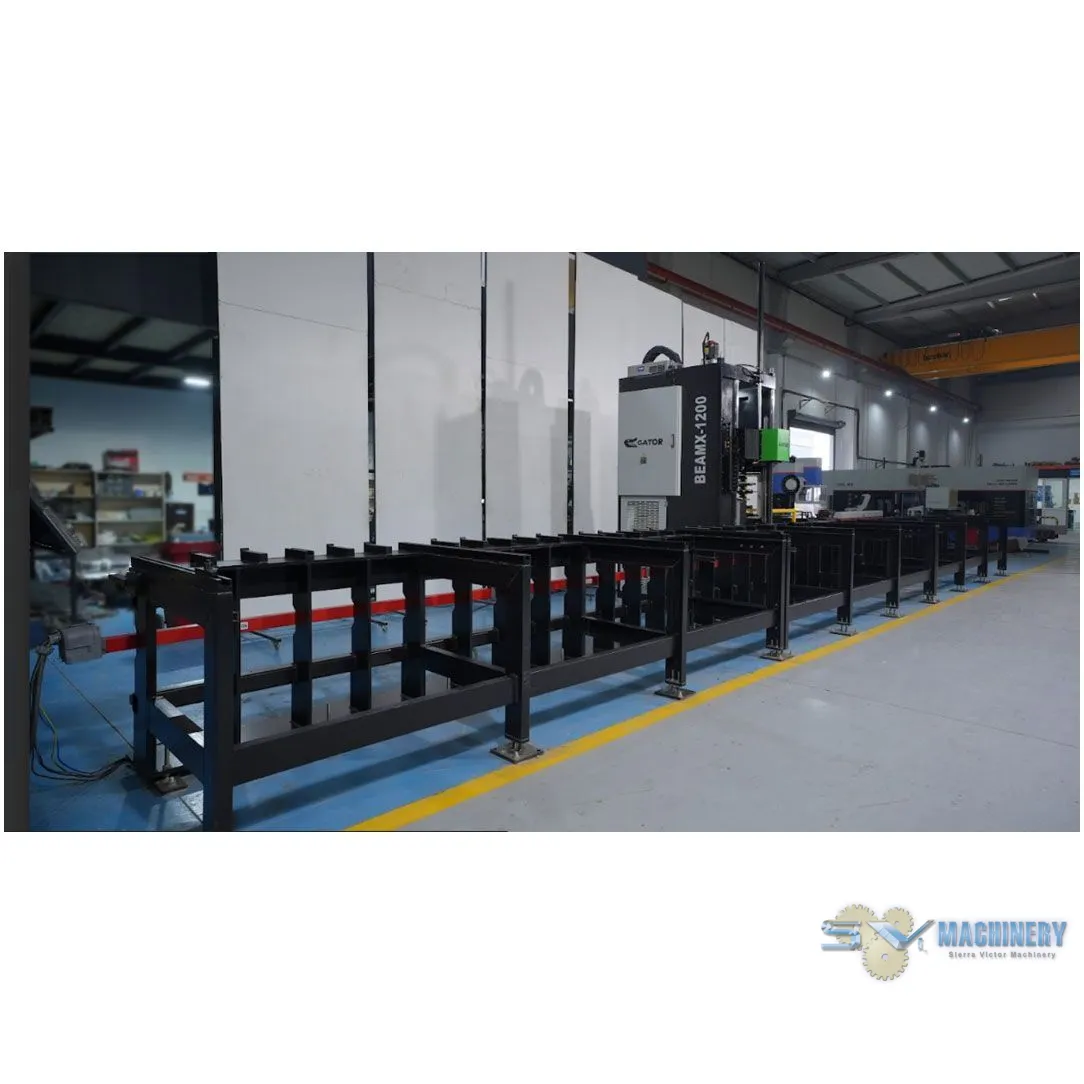

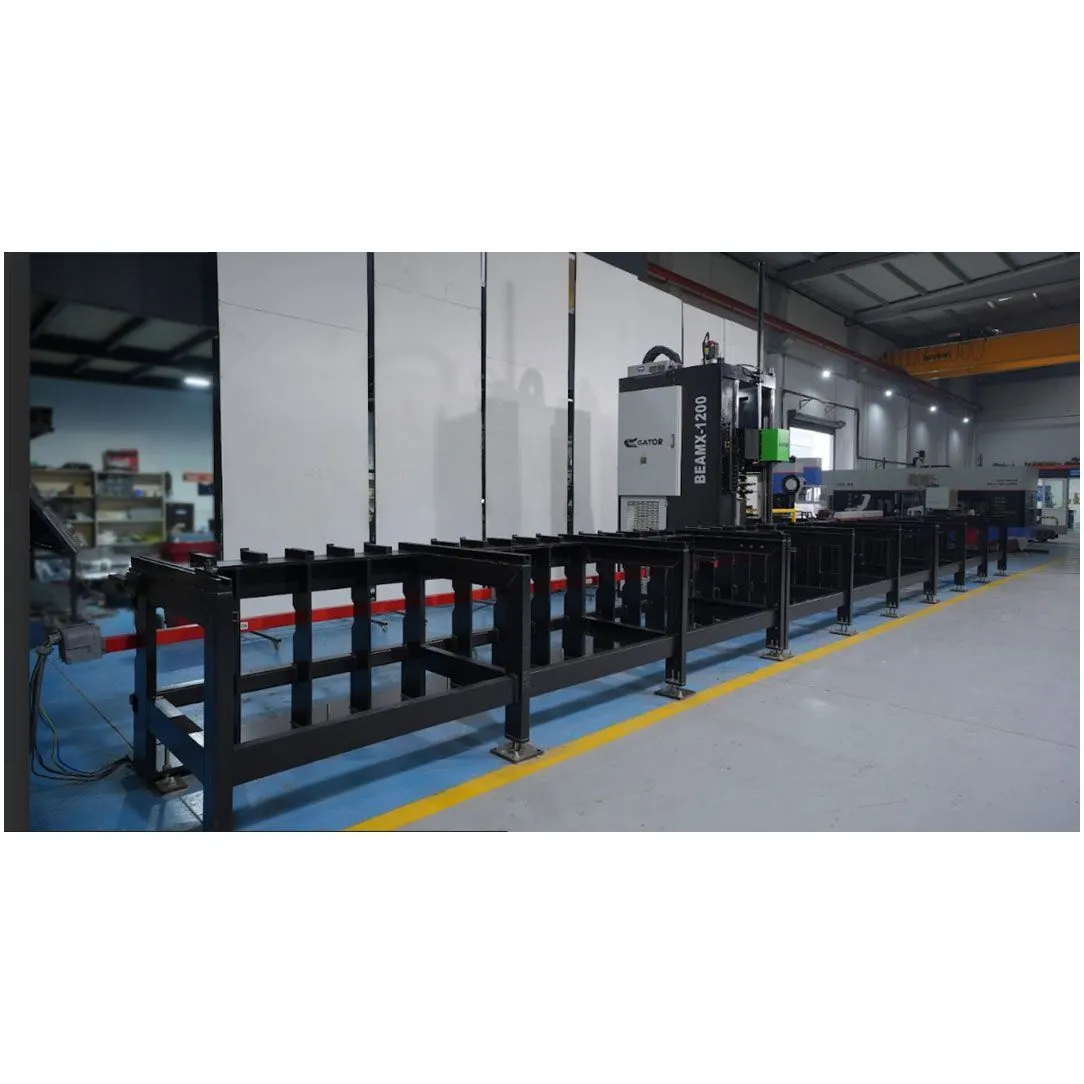

GATOR FAB Single Spindle Beam Drilling Machine BEAM-X 1200 46’ Long All-in-One Drilling Machine, 10” SubX (z-axis) and 20 hp spindles. The machine is equipped with one automatic tool changing unit for each spindle. Each unit has four stations for different tools. The ATC system allows for fast and automatic tool changes, eliminating manual intervention and minimizing machine downtime.

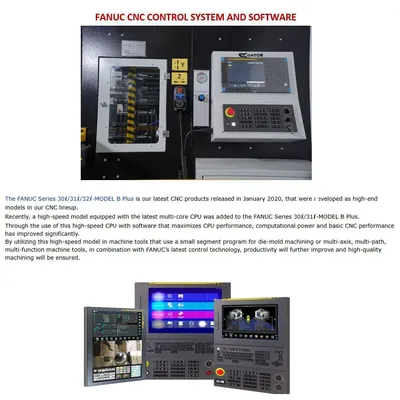

Control PanelFS 31i-B Plus 21.5" Color LCD Touch PanelFS 31i-B Plus 21.5" Color LCD Touch Panel
Conveyor Length46'14 m
Drilling Diameter2"50.8 mm
Power20 hp14.9 kW
Spindle SpeedInfinitely adjustable, 50-4000 rpmInfinitely adjustable, 50-4000 rpm
Dimensions7 x 23 x 10 ft7 x 23 x 10 ft

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

OPTIONAL ITEMS - CALL FOR PRICE:
*Lantek Flex 3D SteelWork SD Plus Module
*SAT Importer
*CAM importer
*1 set of starter tool set
*Scribe/marking tool 3,000 rpm
*Scribe/marking tool with Air 20,000 rpm
*Light Curtains

*AUTOMATIC TOOL AND MATERIAL MEASUREMENT (Optional)
The machine features independent measurement systems that automatically measure the material's length, width, and height. The operator inputs the material type and dimensions into the program, and the software determines how many points the material height measurement will be performed. Flanges and web heights are measured automatically with a measurement probe.
When the beam is clamped horizontally, the width of the beam is measured automatically using a measurement probe.
Material length is measured using a laser sensor at the exit of the machine.
The software stores these dimensions to calculate the required real dimensions, ensuring more accurate results when starting the process.
Additionally, the tool length can be measured automatically by a laser sensor when a new tool is placed in the tool changer.
By automatically measuring material dimensions and drill length, the system saves time and enhances operational safety.

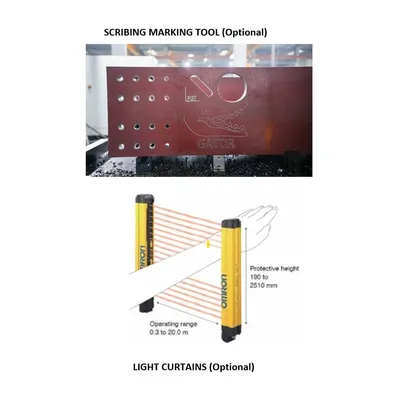

*SCRIBING MARKING TOOL (Optional)
The machine is equipped with a scribing tool for marking on 4 surfaces of beams.
The markings are of high quality and remain readable even after processes like painting or blasting.
For more details, please feel free to ask.

*LIGHT CURTAINS (Optional)
Light curtains are provided upon request to detect approaches in a dangerous area. When a light curtain is crossed, all systems of the relevant area will be shut down immediately.

*DSTV, SAT and CAM File Importing (Optional)

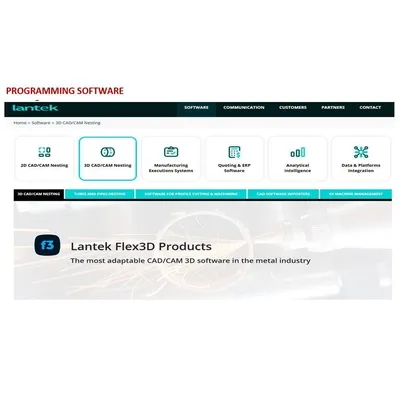

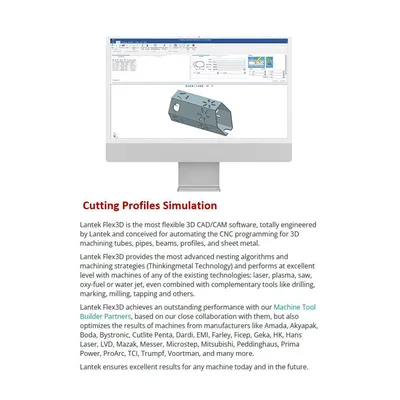

Lantek Flex3D SteelWork can import data generated by third-party CAD systems used for designing structures, such as DSTV, SAT, and CAM files. DSTV file importing is a standard feature for all Lantek packages.
Importing SAT and CAM files is available as an optional feature.
The software allows users to import various file formats, including machining operations, and modify them for production. Once imported, the files are converted into Lantek Flex3D's native format, enabling easy and intuitive modifications. Users can also modify, add, or delete any machining operations required for the profile.
Lantek Flex3D SteelWork can interpret the various properties of each file, such as material thickness, material type, and quantity, as long as these attributes are supported by the imported format.
