ACRA 26120ACH 26x120 in. Precision Gap Bed Engine Lathe

Have one to sell?

386-304-3720

dan@sierravictor.com

ConditionNew

Quantity

Fulfillment

FOB | Freight Quoted Separately

ACRA 26120ACH Precision / Gap Bed Lathes | Sierra Victor Industries (1)

ACRA 26120ACH Precision / Gap Bed Lathes | Sierra Victor Industries (2)

ACRA 26120ACH Precision / Gap Bed Lathes | Sierra Victor Industries

New

Have one to sell?

Overview

Type:

Precision / Gap Bed Lathes

Manufacturer:

ACRA

Model:

26120ACH

Condition:

Build To Order

Stock #:

ATEL26120ACH

Status:

For Sale

Description

ACRA ACH 26" Swing Precision Gap Bed Engine Lathe has a 90", 120" or 160" distance between centers. Made in Taiwan. 15 HP/4P, 230/460V AC/3PH Spindle Drive Motor.Standard equipment includes: 15" 3-Jaw Chuck, Steady Rest (1-3/5" ~ 10"), Coolant System, Halogen Light, 4 Way Tool Holder, Full Length Splash Guard and Removable Gap.

Long Description

<p><b>SPECIFICATIONS:</b></p> <table border="1" cellspacing="0" cellpadding="0" width="520"> <tbody style="text-align: center;"> <tr> <td valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>MODEL</strong></span></div> </div></td> <td valign="middle" bgcolor="#333333" class="Title_white_bold"><div></div></td> <td width="195" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>26120ACH</strong></span></div> </div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="5" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>CAPACITY</strong></span></div> </div></td> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Swing Over Bed:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">26"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Swing In Gap:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">35-1/8"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Swing Over Cross Slide:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">17-1/2"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Distance Between Centers</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">120"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Width of Bed</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">15-3/4"</div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="5" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>HEADSTOCK</strong></span></div> </div></td> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Spindle Nose Type:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">D1-11</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Spindle Bore</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">4-1/16"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Taper of Spindle</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">MT NO.7 x MT NO.5</div></td> </tr> <tr class="TableText_bold"> <td rowspan="2" valign="middle" bgcolor="#CCCCCC" class="TableText"><div align="center">Spindle Speeds</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">Steps: 12 step</div></td> </tr> <tr class="TableText_bold"> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">Range: 13 ~ 1,200 RPM</div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="2" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>CARRIAGE</strong></span></div> </div></td> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Cross Slide Travel: </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">15-3/4"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Compound Slide Travel</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">9-1/2"></div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="4" width="121" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>THREAD & FEEDS</strong></span></div> </div></td> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Inch threads</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">2~72 TPI</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Metric threads</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">0.2 ~ 14 mm</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Longitudinal Feeds</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">0.0012 ~ 0.039" /rev</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div align="center">Cross Feeds</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">0.0004 ~ 0.0117" /rev</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td rowspan="3" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>TAILSTOCK</strong></span></div> </div></td> <td valign="middle" class="TableText"><div align="center">Quill Diameter:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">2.935"</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td valign="middle" class="TableText"><div align="center">Quill Travel:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">7"</div></td> </tr> <tr> <td valign="middle" bgcolor="#CCCCCC" class="TableText"><div align="center">Taper Center</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">MT No. 5</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td rowspan="2" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>POWER</strong></span></div> </div></td> <td valign="middle" class="TableText"><div align="center">Spindle Drive Motor:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">15 HP/4P</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td valign="middle" class="TableText"><div align="center">Voltage</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">230/460V AC / 3 PH</div></td> </tr> <tr> <td rowspan="2" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>MEASUREMENT</strong></span></div> </div></td> <td valign="middle" bgcolor="#CCCCCC" class="TableText"><div> <div align="center">Weight </div> </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">7,700 lbs.</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td class="TableText" width="196" valign="middle"><div> <div align="center">Dimensions </div> </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">178" x 48" x 60"</div></td> </tr> </tbody> </table> <p><b><br>FEATURES:</b></p> <ul><li>Made in Taiwan</li><li><strong>Bed:</strong><br>• MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED.<br>• INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND.<br>• PRECISION HAND SCRAPED REMOVABLE GAP.<br>• FOOT BRAKE</li><li><strong>Universal Gear Box:</strong><br>• OIL BATH LUBRICATION.<br>• HEAT-TREATED GEARS.<br>• INCH/METRIC/MODULE/DIAMETRICAL THREADS.<br>• OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN</li><li><strong>Apron and Saddle:</strong><br>• MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH.<br>• OVERLOAD PROTECTION DEVICE.<br>• CROSS SLIDE IS HARDENED AND PRECISION GROUND.<br>• CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED.<br>• FORWARD-OFF-REVERSE LEVER.<br>• TOP AND SADDLE SLIDE LOCKING SYSTEM.<br>• T-SLOT COMPOUND FOR AMERICA AREA</li><li><strong>Spindle:</strong><br>• SUPPORTED BY 3 PRECISION P-GRADE TAPER ROLLER BEARINGS.<br>• DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND.<br>• ACH-2200 SERIES-D1-11 SPINDLE NOSE, SPINDLE HOLE 4.09"</li><li><strong>Headstock:</strong><br>• ALL GEARS MADE BY CHROMIUM MOLYBDENUM STEEL AND SEGMENTATION TREATED AND PRECISION GROUND.<br>• FORCED LUBRICATION SYSTEM</li><li><strong>Tailstock:</strong><br>• QUILL MADE BY CHROMIUM MOLYBDENUM STEEL WITH SEGMENTATION AND PRECISION GROUND.<br>• ACH-2200 SERIES-DIAMETER TAIL STOCK SPINDLE 2.935" AND SPINDLE TRAVEL 7"<br>• TWO SPEED WITH 1:1 AND 1/4:1 CHANGE FEEDS.</li></ul> <p><strong>STANDARD EQUIPMENT: </strong></p> <ul><li>15" 3-Jaw Chuck</li><li>Steady Rest (1-3/5" ~ 10")</li><li>Coolant System</li><li>Halogen Light</li><li>4 Way Tool Holder</li><li>Full Length Splash Guard</li><li>Removable Gap</li></ul>

Specifications

ImperialMetric

Lathe Type	Precision Engine	Precision Engine
Swing Over Bed	26"	660.4 mm
Distance Between Centers	120"	3,048 mm
Spindle Bore	4.0625"	103.19 mm
Spindle Nose	D1-11	D1-11
Motor	15 hp	11.2 kW
Phase	3	3
Voltage	230/460v	230/460v
Dimensions	178" x 48" x 60"	178" x 48" x 60"
Weight	7,700 lbs.	7,700 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

Steady Rest (1-3/5" ~ 10")
Large Steady Rest (7-1/2" ~ 15")
7" Follow Rest
20" Face Plate
Taper Attachment
Taper Attachment Installation: $450
Newall Digital Read-Out-14" X 60" DP700
Newall Digital Read-Out-14" X 60” NMS300
Newall Digital Read-Out-14" X 88" DP700
Newall Digital Read-Out-14" X 88" NMS300
Newall Digital Read-Out-14" X 120" DP700
Newall Digital Read-Out-14" X 120” NMS300
Newall Digital Read-Out-14" X 160" DP700
Acu-Rite Digital Read-Out-16" X 60" 203
Acu-Rite Digital Read-Out-16" X 90" 203
Acu-Rite Digital Read-Out-16" X 120" 203
Acu-Rite Digital Read-Out-16" X 60” 303
Acu-Rite Digital Read-Out-16" X 90” 303
Acu-Rite Digital Read-Out-16" X 120” 303
Sony or Fagor or Mitutoyo Digital Read-Out
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Chuck Guard
Live Center MT 5
4 Jaw Chuck 20" (China)
Turret Carriage Stop
Micro Carriage Stop

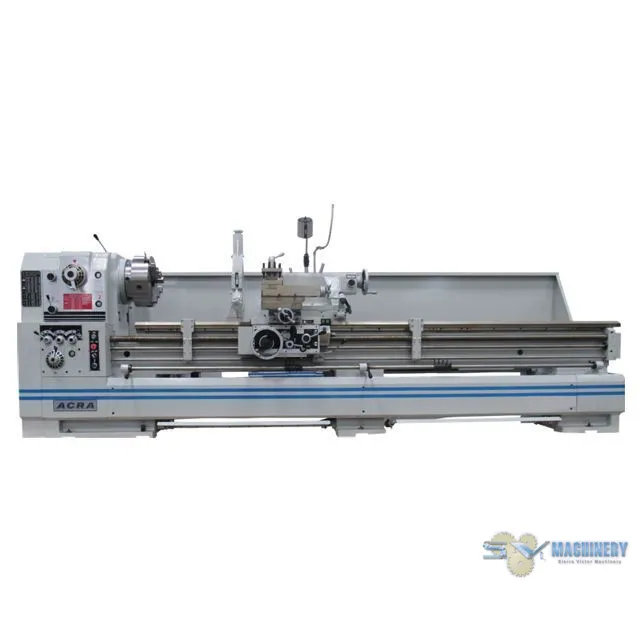

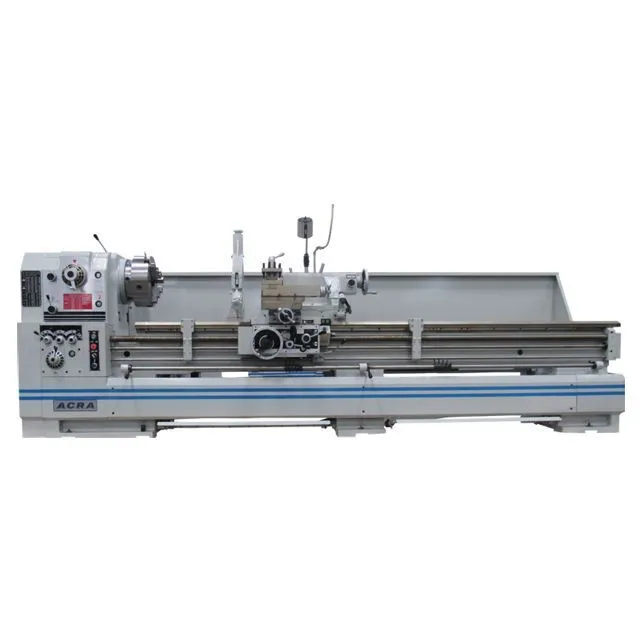

ACRA 26120ACH 26x120 in. Precision Gap Bed Engine Lathe
