ACRA 1767ACH 17x67 in. Precision Gap Bed Engine Lathe

Have one to sell?

386-304-3720

dan@sierravictor.com

ConditionNew

Quantity

Fulfillment

FOB | Freight Quoted Separately

ACRA 1767ACH Precision / Gap Bed Lathes | Sierra Victor Industries (1)

ACRA 1767ACH Precision / Gap Bed Lathes | Sierra Victor Industries (2)

ACRA 1767ACH Precision / Gap Bed Lathes | Sierra Victor Industries

New

Have one to sell?

Overview

Type:

Precision / Gap Bed Lathes

Manufacturer:

ACRA

Model:

1767ACH

Condition:

Build To Order

Stock #:

ATEL1767ACH

Status:

For Sale

Description

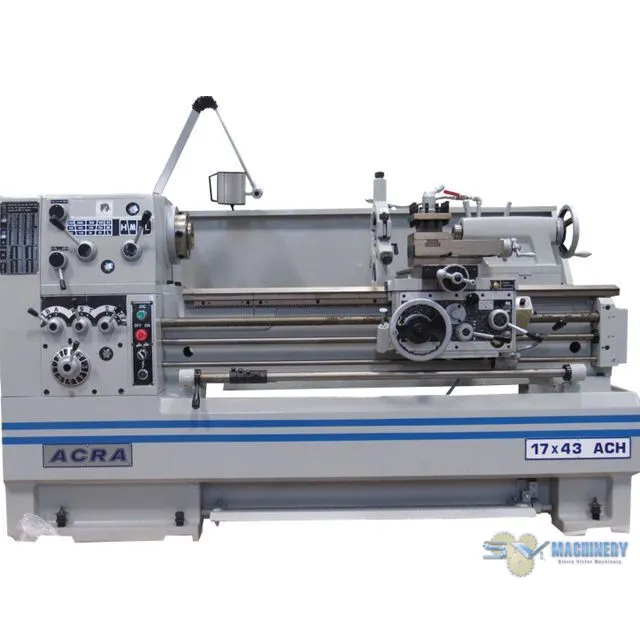

ACRA ACH Precision Gap Bed Engine Lathe have a 17" swing with 43" or 67" distance between centers. Has 7.5 HP, 230/460V AC/3PH Spindle Drive Motor. Standard equipment includes: 10" 3-Jaw Chuck, 12" 4-Jaw Chuck, Steady Rest, Full Length Splash Guard, Coolant System, 4 Way Tool Holder and Halogen Work Lamp.

Long Description

<p><b>SPECIFICATIONS:</b></p> <table border="1" cellspacing="0" cellpadding="0" width="520"> <tbody style="text-align: center;"> <tr> <td valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>MODEL</strong></span></div> </div></td> <td colspan="2" valign="middle" bgcolor="#333333" class="Title_white_bold"><div></div></td> <td width="177" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>1767ACH</b></span></div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="5" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>CAPACITY</strong></span></div> </div></td> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Swing Over Bed:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">17"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Swing In Gap:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">24"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Swing Over Cross Slide:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">10-1/2"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Distance Between Centers</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">67"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Width of Bed</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">12"</div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="5" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>HEADSTOCK</strong></span></div> </div></td> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Spindle Nose Type:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">D1-6</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Spindle Bore</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">2-1/4"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Taper of Spindle</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">MT No.5</div></td> </tr> <tr class="TableText_bold"> <td colspan="2" rowspan="2" valign="middle" bgcolor="#CCCCCC" class="TableText"><div align="center">Spindle Speeds</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">Steps: 12 step</div></td> </tr> <tr class="TableText_bold"> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">Range: 35 ~ 2,000 RPM</div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="2" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>CARRIAGE</strong></span></div> </div></td> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Cross Slide Travel: </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">6-1/2"</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Compound Slide Travel</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">4"</div></td> </tr> <tr class="TableText_bold"> <td class="Title_white_bold" rowspan="4" width="124" valign="middle" bgcolor="#333333"><div> <div align="center"><span style="color: #ffffff;"><strong>THREAD & FEEDS</strong></span></div> </div></td> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Inch threads</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">2~72 TPI</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Metric threads</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">0.2 ~ 14 mm</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Longitudinal Feeds</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">0.0012 ~ 0.039" /rev</div></td> </tr> <tr class="TableText_bold"> <td class="TableText" colspan="2" valign="middle" bgcolor="#CCCCCC"><div align="center">Cross Feeds</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">0.0004 ~ 0.0117" /rev</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td rowspan="3" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>TAILSTOCK</strong></span></div> </div></td> <td colspan="2" valign="middle" class="TableText"><div align="center">Quill Diameter:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">2-3/8"</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td colspan="2" valign="middle" class="TableText"><div align="center">Quill Travel:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">6"</div></td> </tr> <tr> <td colspan="2" valign="middle" bgcolor="#CCCCCC" class="TableText"><div align="center">Taper Center</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">MT No. 4</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td rowspan="2" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>POWER</strong></span></div> </div></td> <td colspan="2" valign="middle" class="TableText"><div align="center">Spindle Drive Motor:</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">7.5 HP</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td colspan="2" valign="middle" class="TableText"><div align="center">Voltage</div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">230/460V AC / 3 PH</div></td> </tr> <tr> <td rowspan="3" valign="middle" bgcolor="#333333" class="Title_white_bold"><div> <div align="center"><span style="color: #ffffff;"><strong>MEASUREMENT</strong></span></div> </div></td> <td rowspan="2" valign="middle" bgcolor="#CCCCCC" class="TableText"><div> <div align="center">Weight approx. </div> </div></td> <td width="98" valign="middle" bgcolor="#CCCCCC" class="TableText"><div> <div align="center">Net </div> </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">4,180</div></td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#CCCCCC"><div> <div align="center">Gross </div> </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">4,750</div></td> </tr> <tr bgcolor="#CCCCCC" class="TableText"> <td class="TableText" width="111" valign="middle"><div> <div align="center">Packing sizes </div> </div></td> <td class="TableText" valign="middle"><div> <div align="center">Dimensions </div> </div></td> <td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">115" x 42" x 54"</div></td> </tr> </tbody> </table> <p><b><br>FEATURES:</b></p> <ul><li><strong>Spindle:</strong><br>• Supported By 3 Precision P-Grade Taper Roller Bearings<br>• Dynamically Balanced, Hardened, and Precision Ground<br>• D1-6 Spindle Nose<br>• Spindle Bore 2-1/4"</li><li><strong>Universal Gear Box:</strong><br>• Oil Bath Lubrication<br>• Heat-Treated Gears<br>• Inch/Metric/Module/Diametrical Threads<br>• Output Shaft is Designed with Safety Pin</li><li><strong>Head Stock:</strong><br>• All Gears Made by Chromium Molybdenum Steel and Segmentation Treated and Precision Ground<br>• Forced Lubrication System</li><li><strong>Tailstock:</strong><br>• Quill made by Chromium Molybdenum Steel with Segmentation and Precision Ground<br>• Tailstock Spindle 2-3/8" and Spindle Travel 6"</li></ul> <p><strong>STANDARD EQUIPMENT: </strong></p> <ul><li>10" 3-Jaw Chuck</li><li>12" 4-Jaw Chuck</li><li>Steady Rest</li><li>Full Length Splash Guard</li><li>Coolant System</li><li>4 Way Tool Holder</li><li>Halogen Work Lamp</li></ul>

Specifications

ImperialMetric

Lathe Type	Engine	Engine
Swing Over Bed	17"	431.8 mm
Distance Between Centers	67"	1,701.8 mm
Spindle Bore	2.25"	57.15 mm
Spindle Nose	D1-6	D1-6
Motor	7.5 hp	5.6 kW
Phase	3	3
Voltage	230/460v	230/460v
Dimensions	115" x 42" x 54"	115" x 42" x 54"
Weight	4,750 lbs.	4,750 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

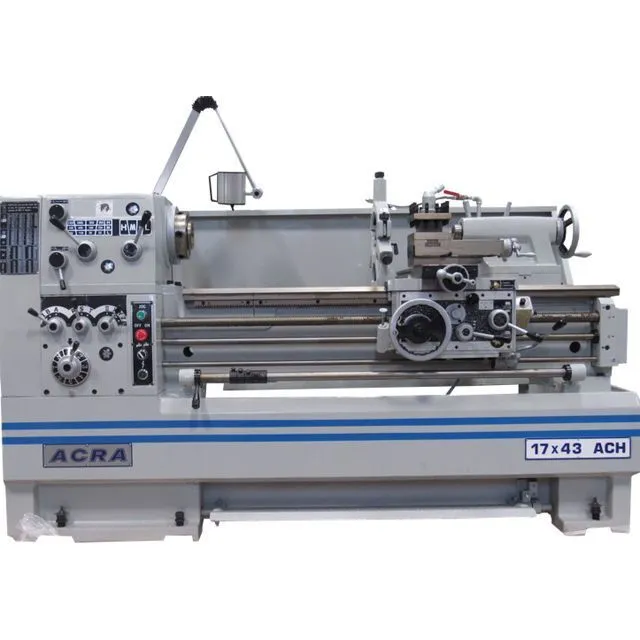

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

Steady Rest 6"
Steady Rest 8"
Follow Rest
Face Plate
Micro Bed Stop
Taper Attachment
Taper Attachment Installment
Lever Type 5C Collet Closer JFK D1-8
Import Collet Closer (Taiwan)
Newall Digital Read-Out 10" x 40" DP700
Newall Digital Read-Out 10" x 40" NMS300
Newall Digital Read-Out 10" x 62" DP700
Newall Digital Read-Out 10" x 62" NMS300
Acu-Rite Digital Read-Out 10" x 43" 203
Acu-Rite Digital Read-Out 10" x 67" 203
Acu-Rite Digital Read-Out 10" x 43" 303
Acu-Rite Digital Read-Out 10" x 67" 303
Sony or Fagor or Mitutoyo Digital Read-Out
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Chuck Guard
Live Center MT 4
