<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="120" rowspan="5" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CAPACITY</strong></span>
</div>
</td>
<td bgcolor="#cccccc" width="175" class="TableText">
<div align="center">Max sheet length
</div>
</td>
<td width="217" class="TableText">
<div align="center">126 in. (10.49 ft)</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max Thickness Capacity <br>
Full Length
</div>
</td>
<td class="TableText">
<div align="center">0.078 in. (14g) Steel
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Mild sheet
</div>
</td>
<td class="TableText">
<div align="center">0.078 in. (14g)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Stainless
</div>
</td>
<td class="TableText">
<div align="center">0.047 in. (18g)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Aluminum
</div>
</td>
<td class="TableText">
<div align="center"> 0.118 in. (11g)
</div>
</td>
</tr>
<tr>
<td rowspan="3" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CLAMPING BEAM <br>
(Z-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Drive Power<br>
(SEW AC Motor w/Encoder)
</div>
</td>
<td class="TableText">
<div align="center">2 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Opening Height (No tools)
</div>
</td>
<td class="TableText">
<div align="center">6.3 in
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Clamping Speed
</div>
</td>
<td class="TableText">
<div align="center">2.36 in/sec
</div>
</td>
</tr>
<tr>
<td rowspan="3" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>FOLDING BEAM <br>
(Y-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Drive Power<br>
(SEW AC Motor w/Encoder)
</div>
</td>
<td class="TableText">
<div align="center">4 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Folding Angle
</div>
</td>
<td class="TableText">
<div align="center">0 - 150°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Folding Speed
</div>
</td>
<td class="TableText">
<div align="center">65°/sec
</div>
</td>
</tr>
<tr>
<td rowspan="2" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>FOLDING BEAM ADJUSTMENT <br>
(A-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Adjustment Height
</div>
</td>
<td class="TableText">
<div align="center">1.37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Adjustment
</div>
</td>
<td class="TableText">
<div align="center">Manual
</div>
</td>
</tr>
<tr>
<td rowspan="3" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>1M BACK GAUGE SYSTEM (X-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Drive Power<br>
(SEW AC Motor w/Encoder)
</div>
</td>
<td class="TableText">
<div align="center">.53 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Speed
</div>
</td>
<td class="TableText">
<div align="center">9.8 in/sec
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Min/Max Gauging
</div>
</td>
<td class="TableText">
<div align="center">0.078 in. / 39.37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CLAMPING BEAM ROTATION (C-AXIS)</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Rotational Speed
</div>
</td>
<td class="TableText">
<div align="center">20°/sec
</div>
</td>
</tr>
<tr>
<td width="120" rowspan="2" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>GENERAL</strong></span>
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dimensions (W x L x H)
</div>
</td>
<td class="TableText">
<div align="center">175 x 87 x 78 in.</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="175" class="TableText">
<div align="center">Weight:
</div>
</td>
<td width="217" class="TableText">
<div align="center">9,921 lbs.</div>
</td>
</tr>
</tbody>
</table>
<p></p>
<p><strong>FEATURES:</strong></p>

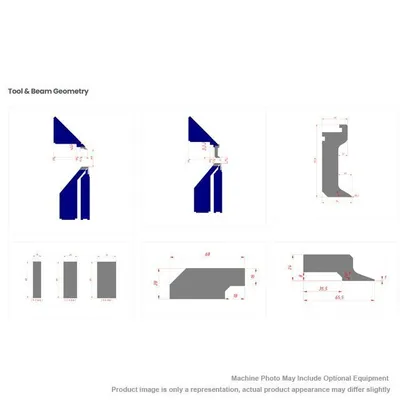

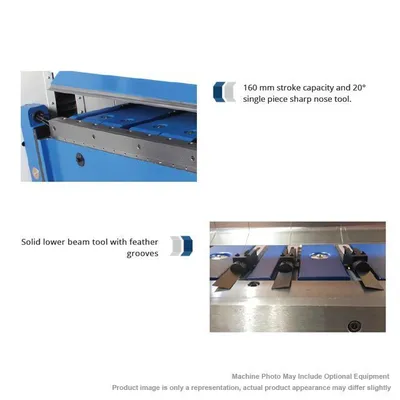

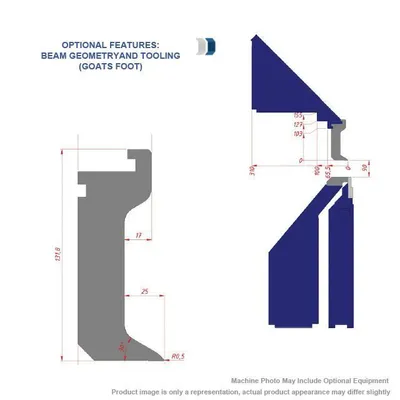

<ul><li>DEMO MACHINE</li><li>FOB - Port Orange</li><li>UPPER BEAM - Clamping beam with 160 mm/ 6.2" opening height without tools and 45° beam geometry </li>

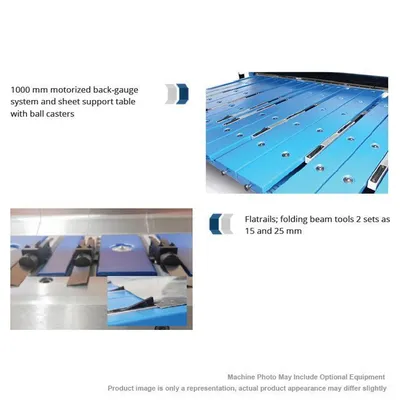

<li> 1000mm (39") SERVO BACK GAUGE WITH RECTANGULAR SHEET SUPPORT TABLE </li>
<li> SOLID LOWER BEAM (WITHOUT CHANNELS) AND FEATHER GROOVES </li>
<li> FOOT PEDAL WITH 3 SWITCHES </li>
<li> HORIZONTAL FRONT LIGHT BARRIERS </li>
<li> TOOL HOLDERS </li>
<li> 2 STANDARD FOLDING TOOLS (10MM AND 25MM Included! ) </li>

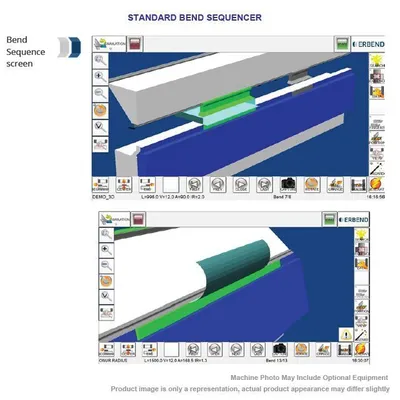

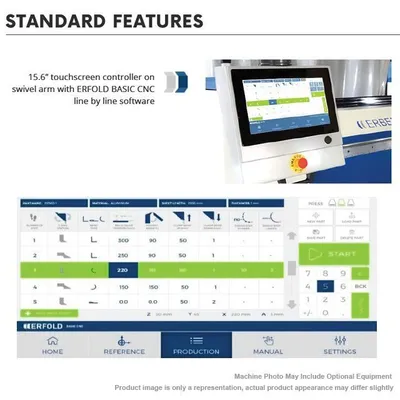

<li> ERFOLD BASIC LINE BY LINE CONTROLLER SOFTWARE </li>
<li> STANDARD TOOL SHARP NOSE SINGLE PIECE 20° </li>

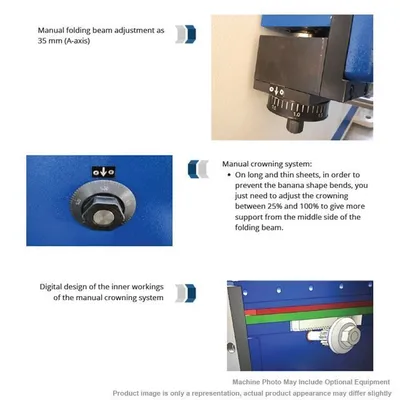

<li> MANUAL FOLDING BEAM ADJUSTMENT </li>
</ul>
<p><b> EQUIPPED WITH</b></p>
<ul>

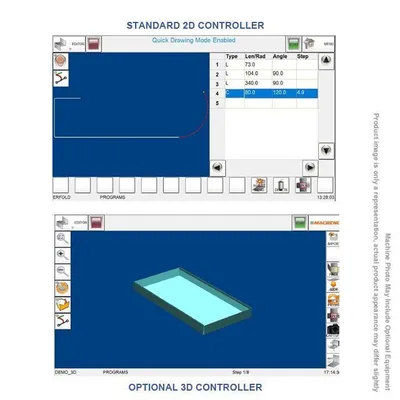

<li> ERFOLD 2D TECHNO PACKAGE:
<ul>
<li>ERFOLD 2D SOFTWARE</li>
<li>1500mm/ 59" RECT.BACKGAUGE with Pnuematic pop-ups</li>
<li> MANUAL CROWNING </li>
</ul>
</li>
</ul>
