<p><b>SPECIFICATIONS:</b></p><table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr height="14">
<td height="14" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td>
<td height="14" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>GML-2080</b></span></div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. swing over bed </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">20"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. length of workpiece </span> </div>
</div></td>
<td width="257" height="14" valign="top" class="TableText"><div align="center">80"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. swing over cross slide </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">12-1/2"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. Swing in gap </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">29-1/8"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Width of Bed </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">12"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Effective length in gap to spindle </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">6"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Effective length in gap to chuck jaws </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">3-1/2"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>

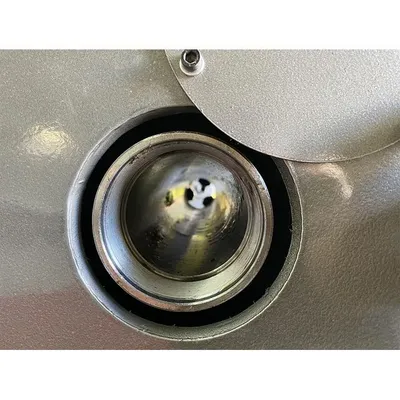

<div align="center"><span class="TableText">Spindle bore </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">3-1/8” , D1-8</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Taper of spindle center </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">M.T.# 7</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Spindle speeds </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">25-1,800 rpm / 12 steps</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Longitudinal feeds </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">0.0011-0.063 IPR, 42 kinds </div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Cross feeds </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">0.0003-0.018 IPR, 42 kinds</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Inch threads </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">2-112 TPI, 60 kinds</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Metric threads </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">0.1-14 mm , 41 kinds</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Module threads </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">0.1-7mm, 34 kinds</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Diametral pitch threads </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">4-112DP , 50 kinds</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. travel of top slide </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">5"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. travel of cross slide </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">11-1/4"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Spindle length w/o chuck </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">17-1/2"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Leadscrew length X TPI </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">1-1/4” x 4 TPI</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Diameter of tailstock quill </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">2-3/8"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Max. travel of tailstock quill </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">5-1/8"</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Taper of tailstock quill center </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center">MT4</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Main motor </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center"> 10 HP, 3 Ph.<br>
Prewired: 220VAC / 35A<br>
Optional: 440VAC / 20A</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Coolant pump motor </span> </div>
</div></td>
<td height="14" class="TableText"><div align="center"> 1/8 HP 3 Ph.<br>
Prewired: 220VAC<br>
Optional: 440VAC</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div>
<div align="center"><span class="TableText">Overall dimensions, LxWxH </span> </div>
</div></td>
<td height="14" valign="top" class="TableText"><div align="center">128” x 43” x 59”</div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc"><div align="center">Net Weight, approx.</div></td>
<td height="14" valign="top" class="TableText"><div align="center">6,350 lbs.</div></td>
</tr>
</tbody>
</table><br><p><b>FEATURES:</b></p>
<ul>

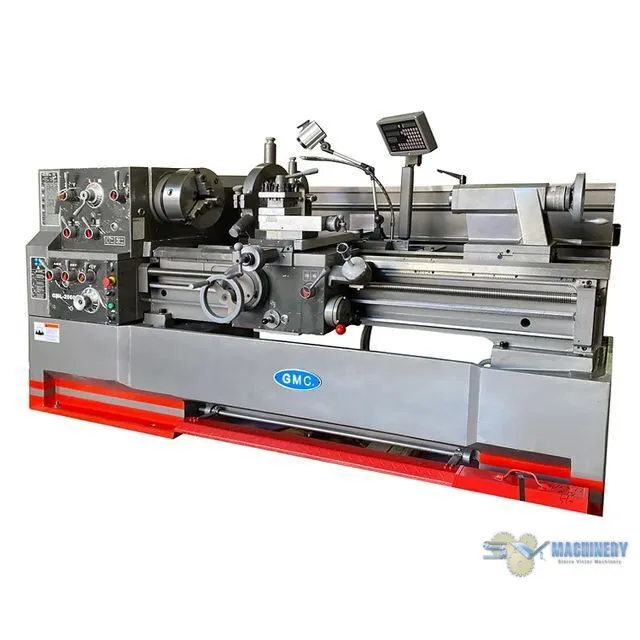

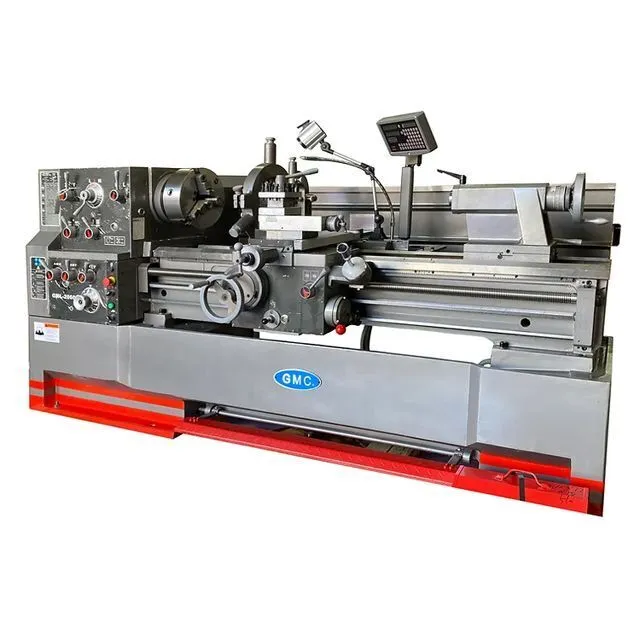

<li>Bed Gap Metal Lathe with a big spindle bore 3-1/8". Precise, robust, and fully equipped with a 29 swing in gap. Whether you're in a machine shop or looking to replace your old workhorse in your home garage, this metal lathe is for you. It comes standard with a fully assembled metal stand with two cabinets on each side to keep your tooling and accessories stored.</li>
<li>ISO 9001 certified</li>
<li>1-Year Parts Only Warranty</li>
<li>Large spindle bore 3-1/8”</li>
<li>Spindle D1-8</li>
<li>Guideway width 12”</li>
<li>Main motor 10HP</li>
<li>16 spindle speeds from 25-1,800 rpm, 12 speeds</li>
<li>4-way rapid traverse on the carriage longitudinal and cross</li>
<li>60 kinds of inch threads, and 41 kinds of metric threads</li>
<li>Threading and feeding rate change without changing gears</li>
<li>Spindle is balanced, hardened and precision ground</li>
<li>Spindle is supported at 3-point by high precision bearings </li>
<li>All gears and shafts are hardened and precision ground</li>
<li>Guideways induction hardened and precision ground</li>
<li>Automatic lubrication system in headstock and feed box</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li>
</ul>
<p><b> STANDARD ACCESSORIES </b></p>
<ul>

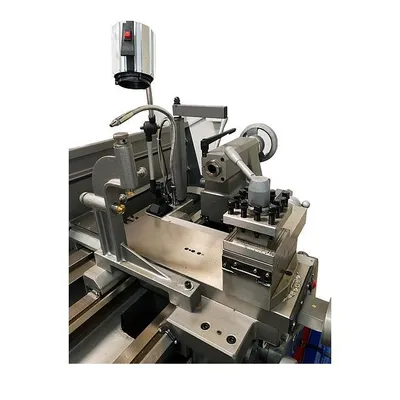

<li>Free Taper turning attachment, , installed</li>

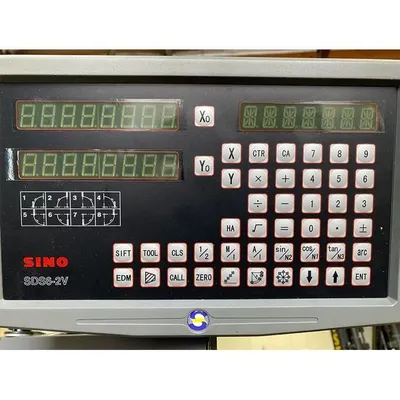

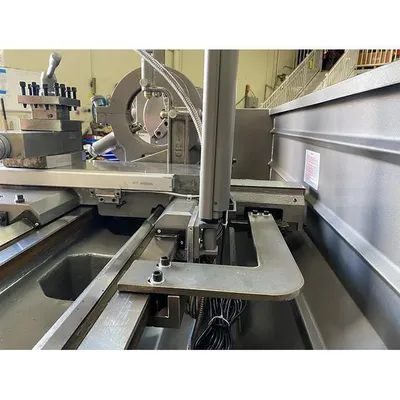

<li>Free SINO DRO, installed</li>
<li>Automatic kick-out longitudinal carriage stop system</li>

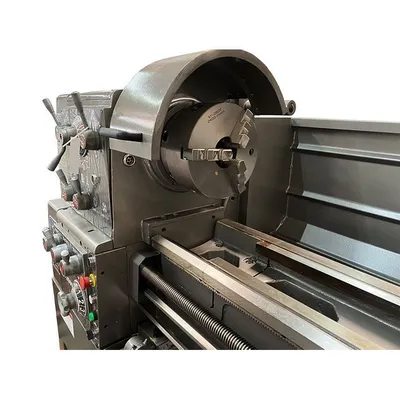

<li>10” 3-jaw chuck with top reversible jaws, direct mount</li>
<li>12” 4-jaw chuck, direct mount</li>
<li>14” Face plate</li>
<li>1/2”-6” steady rest with roller jaws</li>
<li>7/8”-4-3/8” follow rest</li>
<li>Removeable gap</li>

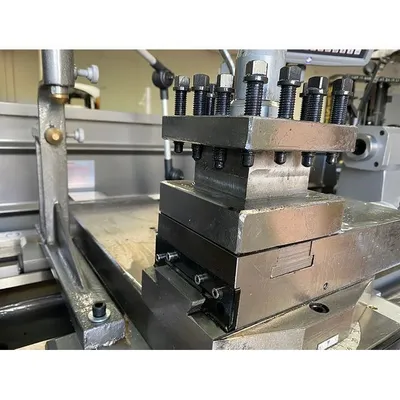

<li>4-way tools post</li>
<li>Foot brake</li>
<li>Halogen Work light and coolant system</li>
<li>Full length splash guard </li>
<li>Dead centers</li>
<li>Thread chasing dial</li>
<li>Tool box and leveling pads</li>
</ul>
<p><b> OPTIONAL ITEMS</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText1">
<tbody style="text-align: center;">
<tr class="Title_white1" bgcolor="#333333">
<td class="optional_accessories" width="115"><div class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><b><strong>PART #</strong></b></span></div>
</div></td>
<td width="326" bgcolor="#333333"><div class="Title_white_bold">
<div align="center"><span style="color: #ffffff;"><strong>ITEM</strong></span></div>
</div></td>
<td width="71" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>PRICE</b></span></div></td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC"><div>
<div align="center">— </div>
</div></td>
<td><div>
<div align="center">5-C Hand Lever Type Collet Closer, free install
</div>
</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$CALL</div></td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC"><div>
<div align="center">3900-0014
</div>
</div></td>
<td><div>
<div align="center">33 Piece 5C Collet Set, from 1/16 to 1-1/16” by 32ndth
</div>
</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$CALL</div></td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC"><div>
<div align="center">3900-5260-300
</div>
</div></td>
<td><div>
<div align="center">ALORIS Type QC Tool Post Set , 6 pieces
</div>
</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$CALL</div></td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC"><div>
<div align="center">3900-5004
</div>
</div></td>
<td><div>
<div align="center">Live Center for tailstock
</div>
</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$CALL</div></td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC"><div align="center">3900-5005</div></td>
<td><div align="center">Live Center for headstock</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$CALL</div></td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC"><div>
<div align="center">— </div>
</div></td>
<td><div>
<div align="center">¾ to 10-1/2” large steady rest with roller jaws
</div>
</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$CALL</div></td>
</tr>
</tbody>
</table>
