<p><b>SPECIFICATIONS:</b></p>
<table border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr>
<td valign="middle" bgcolor="#333333" class="Title_white_bold">
<div>
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong><span style="color: #ffffff">M</span>ODEL</strong></span>
</div>
</div>
</div>
</td>
<td valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>TR 80/4</b></span></div></td>
</tr>
<tr class="TableText_bold">
<td valign="middle" bgcolor="#CCCCCC" class="TableText_bold"><div align="center"><b>Rolling Capacity</b></div></td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF"><div align="center">4' x 14 ga. <br>
(Typical Mild Steel – 36 KSI Yield)</div></td>
</tr>
<tr class="TableText_bold">
<td valign="middle" bgcolor="#CCCCCC" class="TableText_bold"><div align="center"><strong>Diameter of all Rolls</strong></div></td>
<td class="TableText" width="257" valign="middle" bgcolor="#FFFFFF"><div align="center">3.15"</div></td>
</tr>
<tr class="TableText_bold">
<td width="257" valign="middle" bgcolor="#CCCCCC" class="TableText_bold"><div align="center"><strong>Rolling Speed</strong></div></td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF"><div align="center">approximately 16' per minute</div></td>
</tr>
<tr class="TableText_bold">
<td class="TableText_bold" valign="middle" bgcolor="#CCCCCC"><div align="center"><strong>Motor Power</strong></div></td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF"><div align="center">2 HP drive motor</div></td>
</tr>
<tr class="TableText_bold">
<td class="TableText_bold" valign="middle" bgcolor="#CCCCCC"><div align="center"><b>Hydraulic System motor</b></div></td>
<td class="TableText" valign="middle" bgcolor="#FFFFFF"><div align="center">1/2 HP</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#CCCCCC" class="TableText_bold"><div align="center"><strong>Voltages</strong></div></td>
<td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">230V/3-Phase or 480V/3-Phase</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#CCCCCC" class="TableText_bold"><div align="center" class="TableText_bold">
<div align="center"><b>Machine Weight
</b></div>
</div></td>
<td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">1,800 lbs.</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#CCCCCC" class="TableText_bold"><div align="center"><b>Machine Dimensions</b></div></td>
<td valign="middle" bgcolor="#FFFFFF" class="TableText"><div align="center">85" x 33" x 37"</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>
<ul>
<li> <strong>Trilogy Machinery</strong> is pleased to be the North American Distributor for the popular LEMAS Four-Roll Double-Pinch Plate Bending rolls.<strong>LEMAS</strong> has been distributing metal fabricating machinery in the United States for over 20 years including hundreds of plate bending rolls delivered since 2001. </li>
<li> <strong>LEMAS</strong> specializes in sheet metal fabricating equipment including hydraulic plate bending rolls delivering thousands of machines to satisfied customers around the world. Over 50 years of continuous operations have provided valuable experience and a solid foundation in the competitive global market. Innovation, quality, value and service are what <strong>LEMAS</strong> products represent around the world. </li>
<li> <strong>LEMAS</strong> 3-Roll initial-pinch bending rolls feature hydraulic adjustment of the bending roll and the lower pinch roll with separate convenient pinch gap indicator. In addition, the rear bending roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls. </li>
<li> <strong>Sumitomo Cyclo® 6000</strong> gear-less speed reducers, featured on all <strong>LEMAS </strong>plate rolls, uses a unique epicycloidal design superior to conventional speed reducers using common tooth gears. Unlike teeth-style gears with limited contact points, a Cyclo has two-thirds of its reduction components in contact at all times. This design enables Cyclo speed reducers and gear-motors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications. </li>
<li> Other standard features include <strong>Direct-Drive Design</strong> using no belts or chains, cone rolling attachment, rolls heat treated to 50Rc, digital readouts for positioning rear bending roll, and much more. </li>
<li><strong>Direct-Drive Design using no belts or chains </strong>-Less maintenance, better performance</li>
<li><strong><strong>Spherical roller bearings on all rolls</strong></strong></li>
<li><strong>Hydraulically powered bending roll</strong> – No manual adjustment needed</li>
<li><strong>Pinch gap indicator</strong> – Set the perfect roll gap every time with no guessing.</li>
<li><strong>Power tilting side bending roll for cone rolling</strong> – No need to manual adjust for cone bending</li>
<li><strong>Cone bending attachment</strong> – Already integrated for your cone bending needs</li>

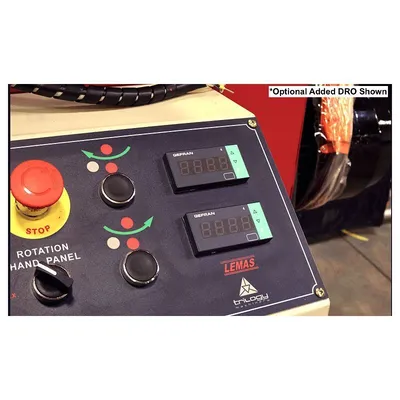

<li><strong>Control panel mounted at machine with digital readout for position of rear bending roll</strong> – All machine controls easily located.</li>
<li><strong>Hydraulically operated drop-end for quick removal of rolled product</strong> – Easy open allows you to easily slide out finished part</li>
<li><strong>Forward/Reverse rotation controls – Ability to walk around entire machine while controlling rotation</strong></li>
<li><strong>Upper and lower pinch rolls driven</strong></li>
<li><strong>All rolls heat treated to 50 Rc</strong> – Keeping your rolls in peak condition as long as possible</li>
<li><strong>Sumitomo Cyclo® 6000 gear-less speed reducers</strong> – The hardest working in the industry.</li>
<li><strong>Manual tilt of the lower pinch roll</strong></li>
<li><strong>Emergency stop cable</strong></li>
<li><strong>Hydraulic oil, tools, technical manual</strong> </li>
