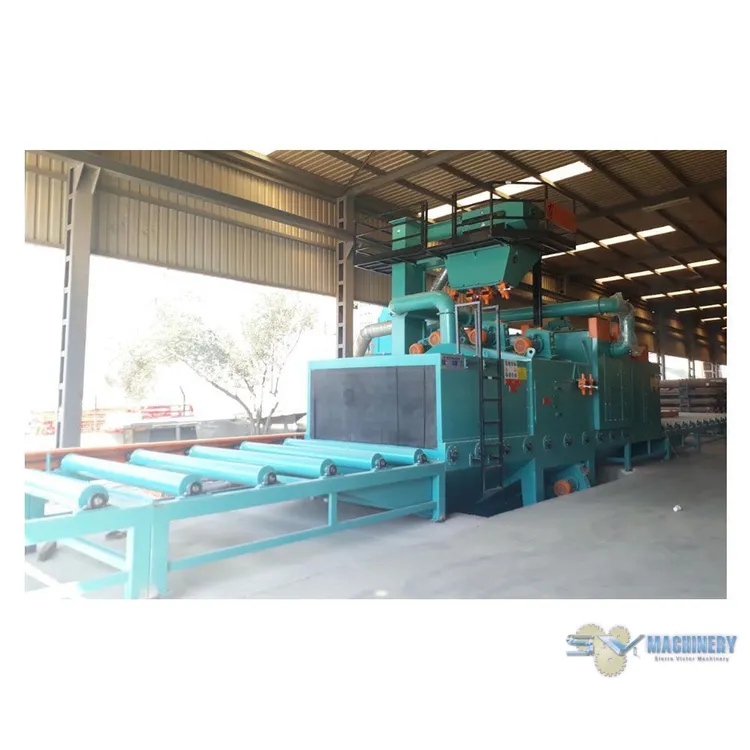

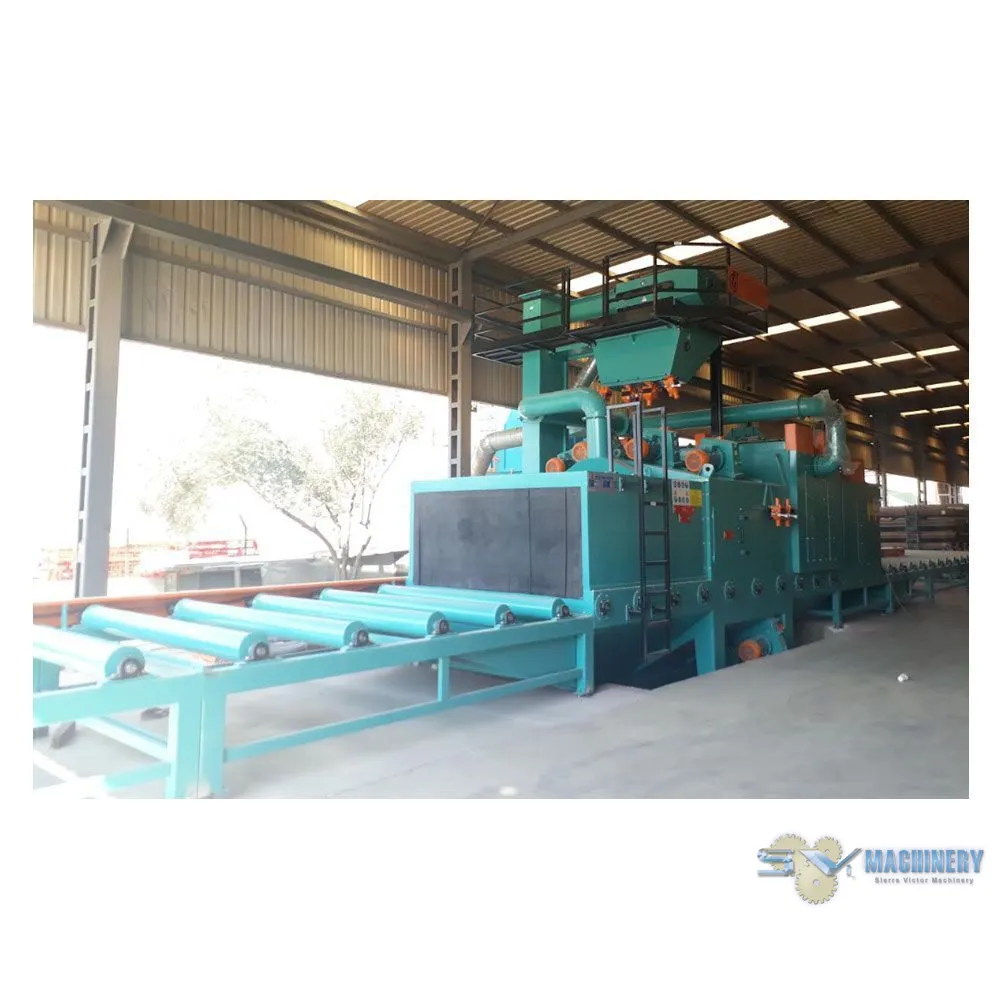

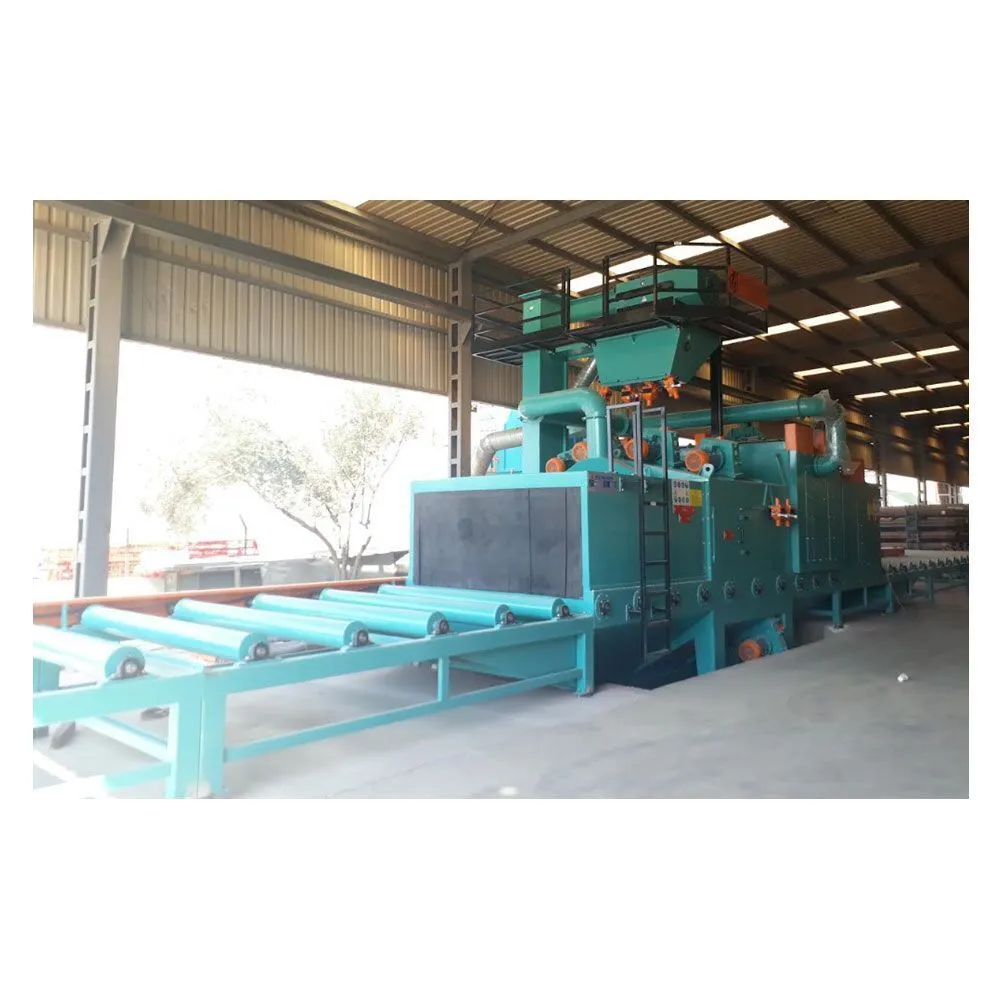

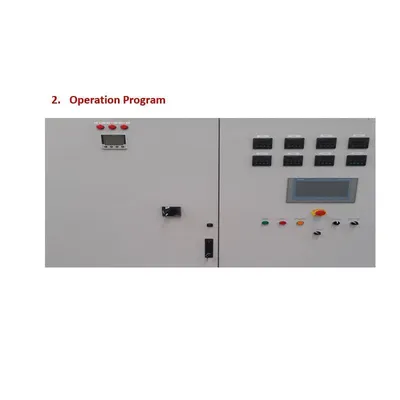

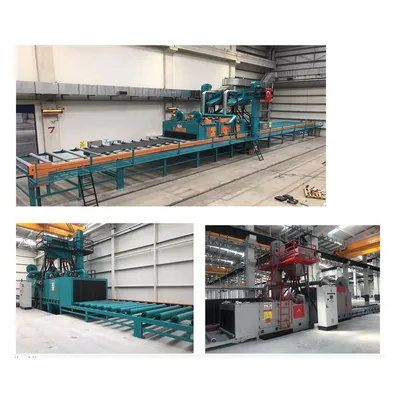

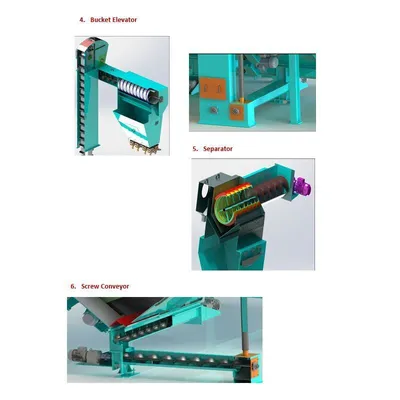

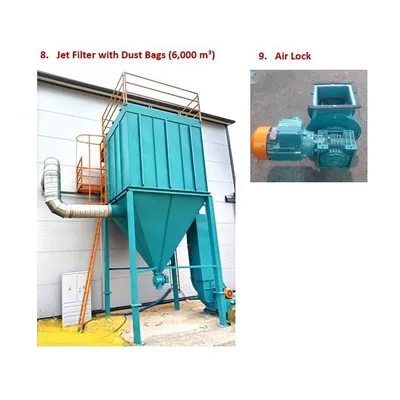

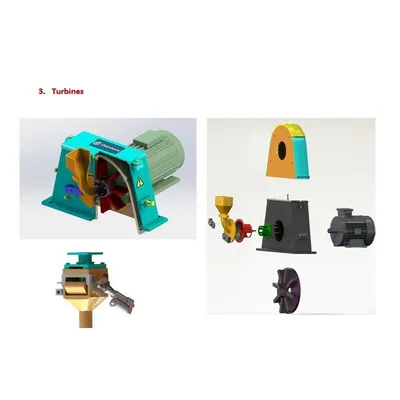

GATOR FAB 31 x 40 in. Shot Blasting Line w/4-Turbines | BLASTER 80100

<p><b>SPECIFICATIONS:</b></p> <table cellspacing="0" cellpadding="0" border="1" width="520"> <tbody style="text-align: center;"> <tr> <td width="96" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"></div></td> <td width="208" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td> <td width="208" valign="middle" bgcolor="#333333" class="TableText"><div align="center"><span style="color: rgb(255, 255, 255);"><b><span class="Title_white_bold">G-BLASTER 80100</span></b></span></div></td> </tr> <tr> <td width="96" rowspan="6" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>ENTRY / CAPACITY</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Entry Opening</div></td> <td valign="middle" class="TableText"><div align="center">43.3" x 35.4"</div></td> </tr> <tr> <td bgcolor="#cccccc" width="208" valign="middle" class="TableText"><div align="center">Maximum Beam Height</div></td> <td valign="middle" class="TableText"><div align="center">39.4"</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Maximum Blasting Width</div></td> <td valign="middle" class="TableText"><div align="center">31.5"</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Maximum Blasting Length</div></td> <td valign="middle" class="TableText"><div align="center">9.8 ft – 78.7 ft</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Minimum Sheet Thickness</div></td> <td valign="middle" class="TableText"><div align="center">0.20"</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Machine Inside Liner</div></td> <td valign="middle" class="TableText"> <div align="center">0.31" manganese plates</div></td> </tr> <tr> <td rowspan="5" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>TURBINES</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Quantity</div></td> <td valign="middle" class="TableText"><div align="center">4</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Diameter</div></td> <td valign="middle" class="TableText"><div align="center">12.6"</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Motor Power</div></td> <td valign="middle" class="TableText"><div align="center">14.7 HP / 3000 RPM</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Blade Quantity</div></td> <td valign="middle" class="TableText"><div align="center">8</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Type</div></td> <td valign="middle" class="TableText"><div align="center">Coupled</div></td> </tr> <tr> <td rowspan="7" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>ROLLER CONVEYOR SYSTEM</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Infeed Length</div></td> <td valign="middle" class="TableText"><div align="center">78.7 ft</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Outfeed Length</div></td> <td valign="middle" class="TableText"><div align="center">39.4 ft</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Drive Motors</div></td> <td valign="middle" class="TableText"><div align="center">2 HP x 2 pcs</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Running Speed</div></td> <td valign="middle" class="TableText"><div align="center">3.3 – 9.8 ft/min</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Distance Between Rollers -<br> Inside blasting machine</div></td> <td valign="middle" class="TableText"><div align="center">40"</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">External conveyor first 160"</div></td> <td valign="middle" class="TableText"><div align="center">40"</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Remaining</div></td> <td valign="middle" class="TableText"><div align="center">60"</div></td> </tr> <tr> <td rowspan="6" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MATERIAL HANDLING COMPONENTS</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Steel Shot Elevator Motor</div></td> <td valign="middle" class="TableText"> <div align="center">5.4 HP</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Steel Shot Screw Conveyor Motor</div></td> <td valign="middle" class="TableText"><div align="center">5.4 HP</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Drag Screw Conveyor Motor</div></td> <td valign="middle" class="TableText"><div align="center">5.4 HP</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Exit Tunnel Screw Conveyor Motor</div></td> <td valign="middle" class="TableText"><div align="center">2 HP – 9.8 ft</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Separator</div></td> <td valign="middle" class="TableText"> <div align="center">3 HP, Rotary Screen Type</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Blowing Fans</div></td> <td valign="middle" class="TableText"><div align="center">24.8 HP / 3000 RPM – 2 pcs</div></td> </tr> <tr> <td rowspan="5" valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>DUST COLLECTION SYSTEM</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Type</div></td> <td valign="middle" class="TableText"><div align="center">Jet Filter with Dust Bags</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Capacity</div></td> <td valign="middle" class="TableText"> <div align="center">~3,530 CFM</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Filter Bags</div></td> <td valign="middle" class="TableText"><div align="center">60</div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Dust Filter Fan</div></td> <td valign="middle" class="TableText"><div align="center">14.7 HP / 3000 RPM </div></td> </tr> <tr> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Air Lock Motor</div></td> <td valign="middle" class="TableText"><div align="center">1 HP</div></td> </tr> <tr> <td valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>CONTROL PANEL</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Schneider switchgear and Siemens </div></td> <td valign="middle" class="TableText"><div align="center">PLC S7-1200</div></td> </tr> <tr> <td valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>POWER</b></span></div></td> <td bgcolor="#cccccc" valign="middle" class="TableText"><div align="center">Total Power</div></td> <td valign="middle" class="TableText"><div align="center">152 HP</div></td> </tr> </tbody> </table> <p><b>FEATURES:</b></p> <ul> <li> Our Shot Blasting Machines are constructed from high-grade, wear-resistant materials to ensure extended service life and consistent productivity in metal-industry applications. During operation, the steel shot used for cleaning abrades both the workpiece and the internal surfaces of the machine. To minimize this inevitable wear, components in contact with the abrasive are manufactured from materials specifically engineered for high abrasion resistance. This design approach reduces internal wear to the lowest possible level and maximizes machine reliability. </li> <li><strong>1. Main Cabinet </strong> <ul> <li>Entry Opening: 43.3" × 35.4"</li> <li>Maximum Blasting Width: 31.5"</li> <li>Maximum Blasting Height: 39.4"</li> <li>Maximum Blasting Length: 9.8 ft – 78.7 ft</li> <li>Internal Lining: 0.31" manganese plates</li> </ul> </li> <li>The main cabinet is built from 0.39" (10 mm) thick steel plate. The interior walls of the blasting chamber are fully lined with 0.24" (6 mm) manganese plates for wear protection. Both the inlet and outlet tunnels are fitted with high-quality rubber curtains to prevent steel shot from escaping. Four turbines are mounted on the cabinet at optimal angles for uniform blasting coverage.<br> </li> <li><strong>2. Operation Program</strong></li> <li>The power panel is designed for automatic operation. Using a Schneider control panel, the blasting process runs automatically according to the programmed intermittent relay settings.</li> <li>Panel Protection Level: IP54 <ul> <li>Applied Standards:</li> <li>IEC 61439 (Low-voltage switchgear and controlgear assemblies – Part 1)</li> <li>IEC 60529 (Degrees of protection provided by enclosures)</li> </ul> </li> <li>Applied Directives: <ul> <li>2006/95/EEC (Low Voltage Directive)</li> <li>93/68/EEC (CE Marking Directive)</li> </ul> </li> <li>This configuration ensures reliable automated operation, compliance with international safety standards, and consistent blasting performance.<br> </li> <li><strong>3. Turbines</strong></li> <li>Quantity: 4</li> <li>Diameter: 12.6"</li> <li>Motor Power (each): 14.7 HP / 3000 RPM</li> <li>Throwing Speed: 230 ft/sec (≈70 m/s)</li> <li>Abrasive Capacity (each): 264 lb/min (≈120 kg/min)</li> <li>Total Capacity: Up to 15,400 lb/hour (≈7,000 kg/hour) of steel shot</li> <li>Each turbine is of the coupled type and operates at 3000 RPM. The internal surfaces are lined with 16–18% manganese steel plates, cast to specifications for high abrasion resistance. The blades, funnel, and shot distributor, which are in direct contact with the abrasive, are manufactured to Ni-Hard 4 quality for extended wear life. Each turbine is fitted with 8 blades for optimal shot distribution and performance. <br> </li> <li><strong>4. Bucket Elevator</strong></li> <li>Elevator Casing: Manufactured from 0.20" thick steel plate</li> <li>Buckets: Manufactured from 0.12" thick steel plate</li> <li>Elevator Belt: 5-ply cord fabric</li> <li>Belt Adjustment: Easily adjustable using a built-in tensioning apparatus</li> <li>Maintenance Door: Provided on the elevator casing for easy access</li> <li>Gear Unit: 5.4 HP</li> <li>This construction provides a robust, wear-resistant elevator system with simple belt tension adjustment and convenient maintenance access, ensuring reliable operation under continuous shot-blasting conditions.<br> </li> <li>5. Separator</li> <li>Function: Separates dust and foreign particles from the abrasive stream.</li> <li>Operation: As dust is removed from the system, clean steel granules are collected in the separator tank.</li> <li>Motor Power: 3 HP (2.2 kW)</li> <li>Type: Rotary Screen</li> <li>This configuration ensures effective cleaning and recycling of the abrasive, maintaining consistent shot quality and minimizing contamination.<br> </li> <li><strong>6. Screw Conveyor</strong></li> <li>Quantity: 3 screw conveyors located beneath the machine and the roller tables.</li> <li>Design: Each conveyor features a helical flight made of structural steel to transport steel granules.</li> <li>Protection Plate: A Hardox-500 steel plate is installed above each conveyor to prevent large parts from falling into the screw and to protect the conveyors from premature wear.</li> <li>This design ensures efficient, continuous transport of abrasive media and extends the service life of the screw conveyors under heavy-duty shot-blasting conditions.<br> </li> <li>7. Roller Tables</li> <li>Roller Diameter: 5.24" (133 mm)</li> <li>Axial Distance Between Rollers: 29.5" (750 mm)</li> <li>Bearings: FAG</li> <li>Inverter Reducer Power: 2 × 2 HP (1.5 kW each)</li> <li>Standard configuration includes 78.7 ft (24 m) inlet and 39.4 ft (12 m) outlet roller tables. They operate at an adjustable speed of 3.3–9.8 ft/min (1–3 m/min) via an inverter. Speed is adjustable according to the desired blasting depth. Two screw conveyors are installed beneath the entry and exit roller tables to collect and return escaping granules to the main screw conveyor. Roller tables are positioned 31.5" (80 cm) above ground level. Rollers are hardened by special heat treatment.<br> </li> <li>8. Jet Filter with Dust Bags (6,000 m³)</li> <li>Air Capacity: ~3,530 CFM (6,000 m³/h)</li> <li>Fan Motor Power: 14.7 HP (11 kW) with inverter</li> <li>Filtering Bags: 60</li> <li>Solenoid Valves: 6</li> <li>Filter type: Jet filter with dust bags.</li> <li>Bag size: 6.3" × 78.7" (160 × 2000 mm), made of polyester needle felt.</li> <li>Dust suction fan: 14.7 HP (11 kW) at 3000 RPM.</li> <li>Air requirement: 102 PSI / 53 CFM (7 bar / 1500 L/min).</li> <li>Filter height: 19.7 ft (6 m).</li> <li>Includes galvanized bag cases, solenoid valves, collector, water separator, pre-buckling hopper, hopper, carrier legs, maintenance covers, maintenance platform, and inlet/outlet pipes. Filter uses the latest technology and automatically cleans the bags with compressed air at 7 ATM.<br> </li> <li><strong>9. Air Lock</strong></li> <li>Capacity: 1.06 gal/rev (4 L/rev)</li> <li>Material: Cast iron</li> <li>Drive: 1 HP (0.75 kW) geared motor at 32 RPM<br> </li> <li><strong>10. Blowing System</strong></li> <li>Two blowing systems are installed. Blowing fans clear all granules at the outlet.</li> <li>Motor Power (each): 24.8 HP (18.5 kW)</li> <li><strong>11. Painting</strong></li> <li>Rust-preventive priming coat and finishing coat applied with two-pack acrylic topcoat of high hardness. Standard color: RAL 7016 and 1028 or custom colors upon request.</li> <li><strong>12. Spare Parts</strong></li> <li>A complete list of spare parts and their expected wear times will be provided. Spare parts can be supplied directly from our company as needed.<br> </li> <li><strong>13. Abrasive</strong></li> <li>Steel shot is used as the consumable material in the shot blasting machine. High-quality steel shot must be selected to minimize wear and reduce dust generation during operation.</li> <li>Recommended Size Range: S170 – S780 (≈0.017" – 0.078" diameter steel shot)<br> Initial Load: 2 tons (≈4,400 lb) of steel shot<br> Selecting the proper shot size and quality ensures optimal blasting performance, longer service life of the machine components, and reduced operating costs.<br> </li> </ul>
